Product Description

Basic Specifications

Model NO.

YTH

Type

Polymer Dosing Machine

Method

Chemical Treatment

Usage

Industrial, Agriculture, Hospital, Municiple, Farming, Restaurant Sewage etc.

PAM Dosage

1-25 Kg/H

Water Inflow

0.3-12 M3/H

Capacity

500-6000 L/H

Material

SS304

Protection Level

IP55 F

HS Code

8479820090

Product Description

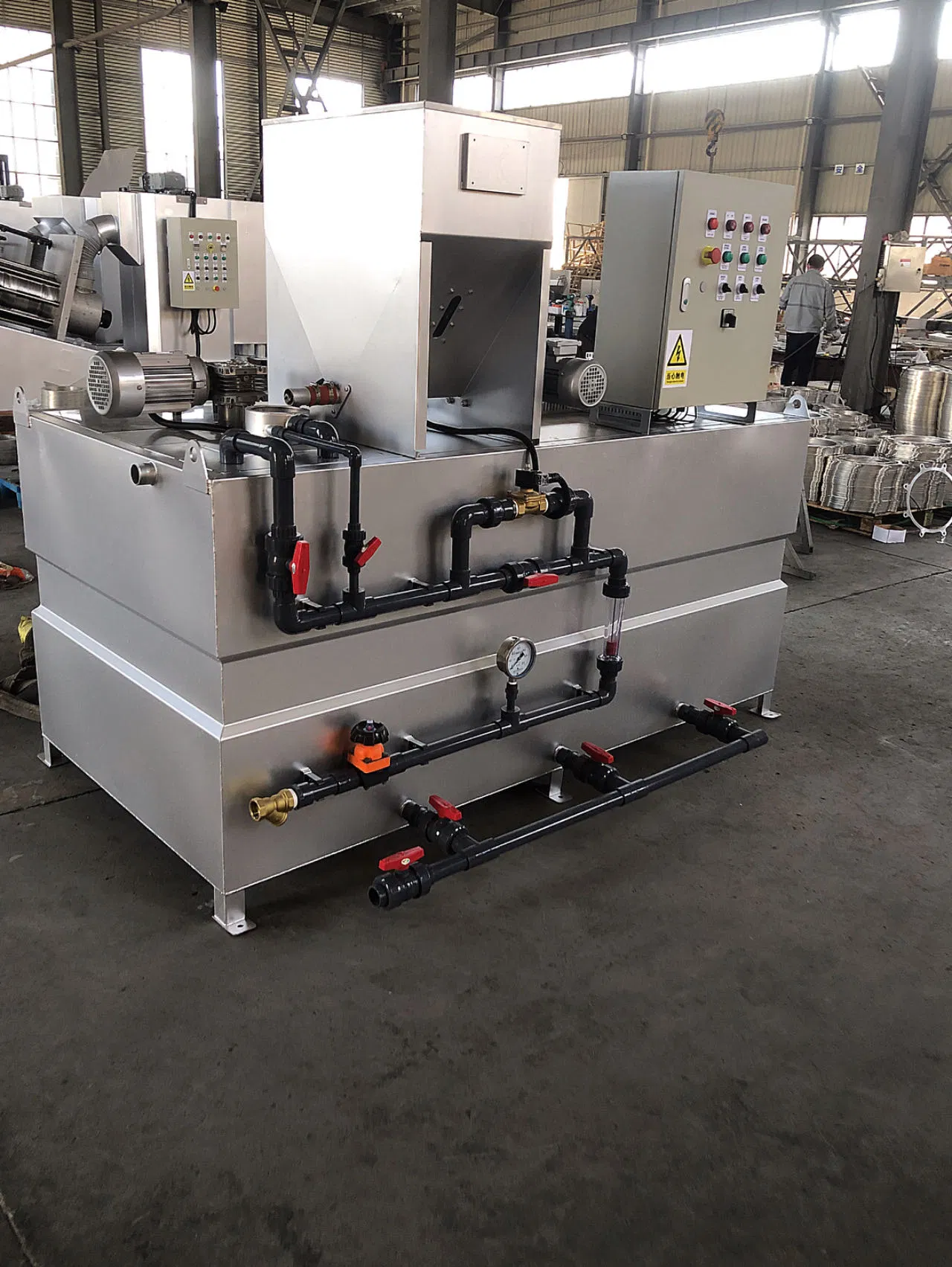

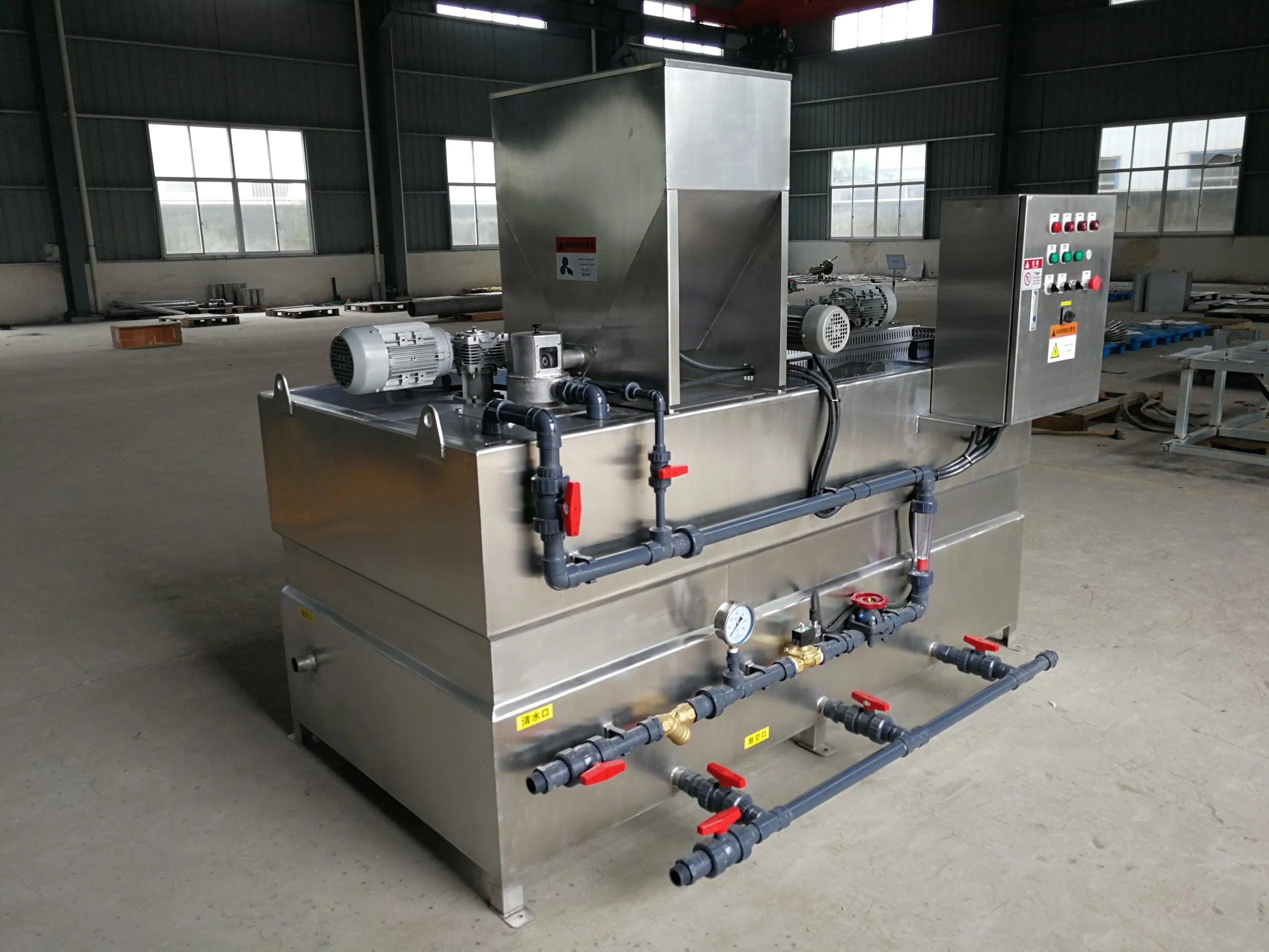

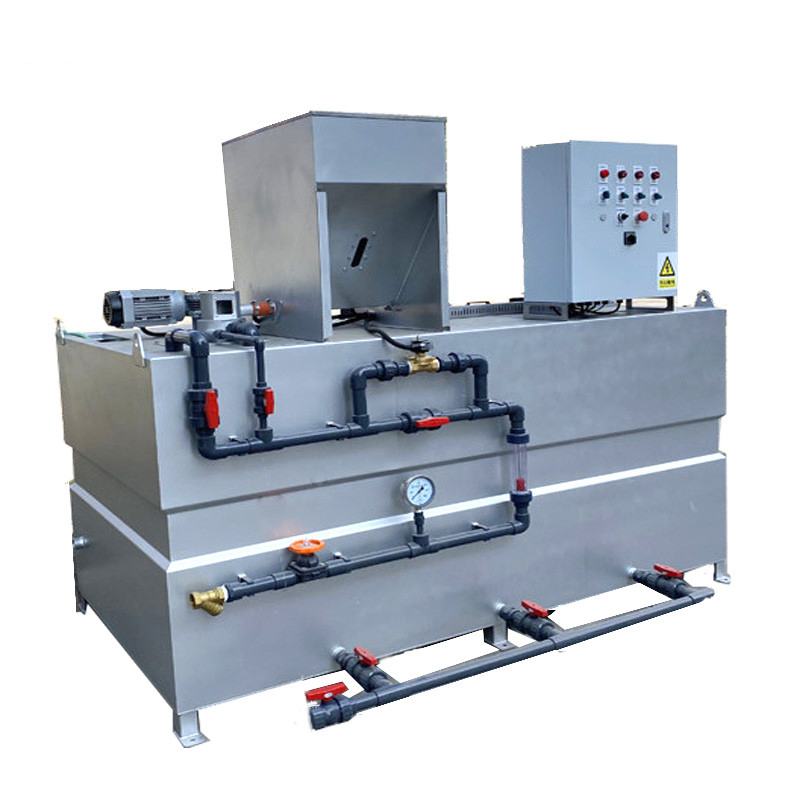

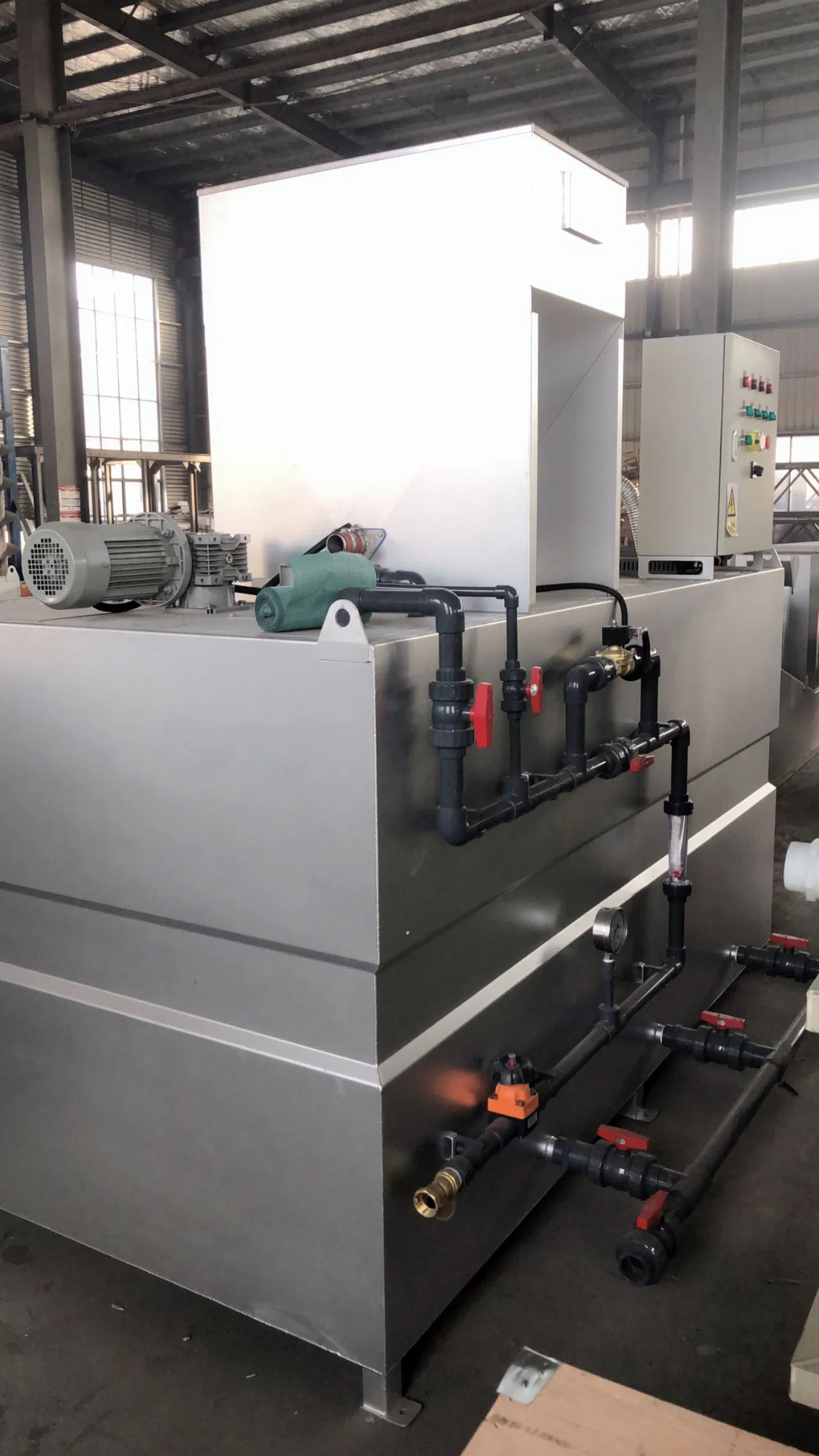

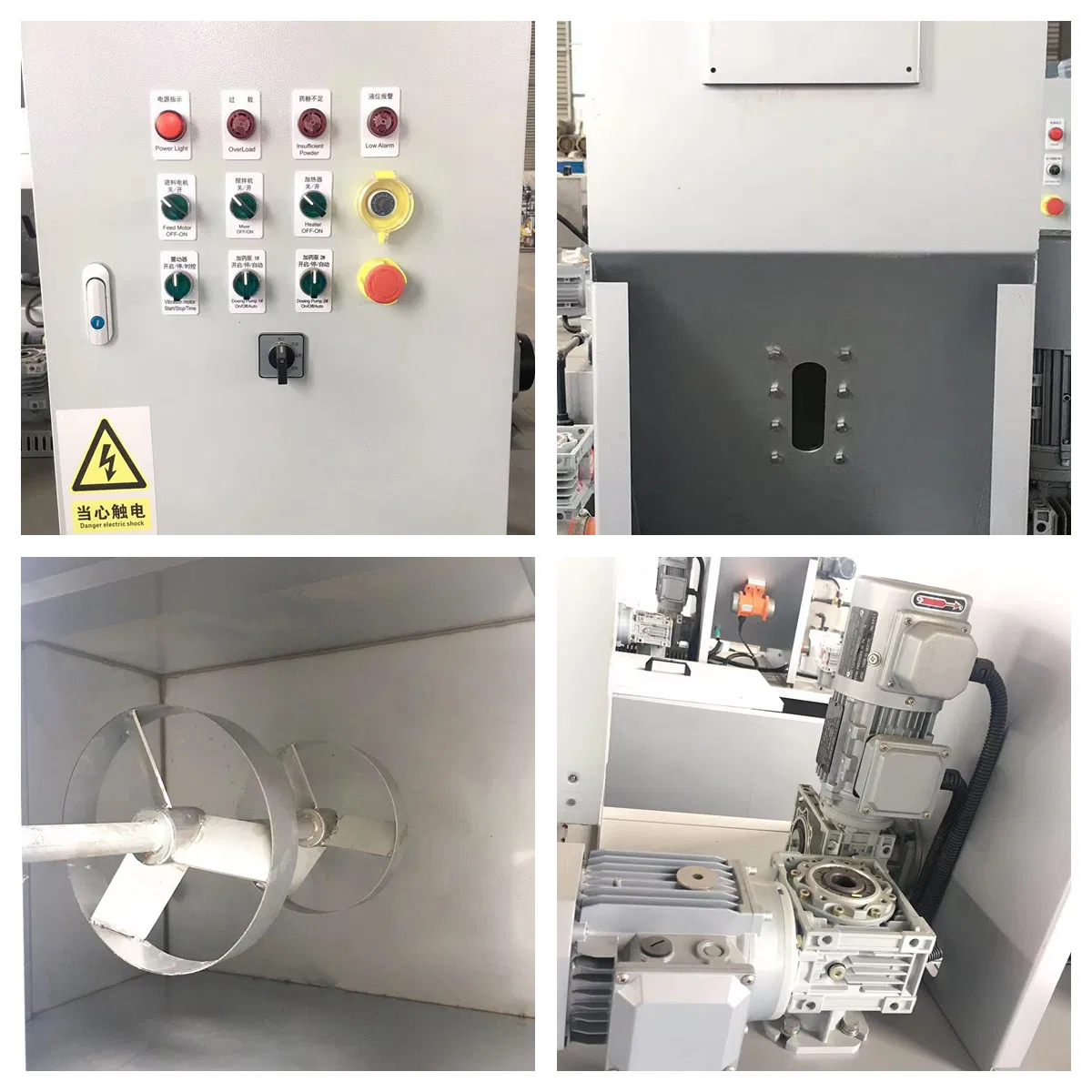

The automatic polymer dosing machine is widely used in waste water treatment. It can mix compounds continuously and effectively to create a reactive polymer solution. The machine integrates several essential components: dry powder hopper, infiltration device, tank, level controller, mixer, water inlet pipe, and electric cabinet.

Key Features

◈
Fully automatic operation integrated with automatic dosing, dissolving, and feeding processes.
◈
Highly precise dry polymer dosing device with a well-designed heater to prevent polymer caking.
◈
Adjustable dosage of dry polymer and water, allowing for customized solution concentrations.
◈
Advanced electric control cabinet that manages the whole process and provides alarms for low powder levels.
◈
Flexible tank material options: SS304, SS316, Polypropylene (PP), or FRP.

Models & Specifications

Model Item	YTH 500	YTH 1000	YTH 1500	YTH 2000	YTH 3000	YTH 4000	YTH 5000	YTH 6000
Capacity (L/h)	500	1000	1500	2000	3000	4000	5000	6000
Power (kw)	0.94	2.45	2.45	2.62	4.89	4.89	4.89	4.89
PAM dosage (kg/h)	1~5	2~10		3~15	3.5~20		4.5~25
Water inlet (m³/h)	0.3~1.5	0.6~3	0.9~4	1.2~6	2.0~10	2.4~12	2.4~12	2.4~12
N.W. (kg)	250	400	490	550	700	770	960	1050

Manufacturing Overview

The company maintains strong manufacturing capacity with first-class workshops and modern processing facilities. Product quality is regarded as the core priority, supported by a complete process control and management system covering research, development, raw material procurement, and quality inspection. Our specialized equipment is widely utilized across municipal sewage, petrochemical, food and beverage, aquaculture, chemical pharmacy, and papermaking industries.
