Basic Information
Type
Polymer Dosing Machine
Usage
Industrial, Agriculture, Hospital, Municiple, Farming, Restaurant Sewage etc.
Production Capacity
3000 Sets
Product Description
The automatic polymer dosing machine is widely used in waste water treatment. It can mix compounds continuously and effectively to ensure the reactive polymer solution is prepared properly. This system is an essential component for efficient sludge sewage water and wastewater treatment processes.
The machine integrates multiple functional parts: dry powder hopper, infiltration device, Tank, Level controller, Mixer, water inlet pipe, and Electric cabinet.
Key Features
- Fully automatic operation integrated with automatic dosing, dissolving, and feeding functions.
- Highly precise dry polymer dosing device with a well-designed heater to prevent polymer caking.
- Adjustable dosage of dry polymer and water to control solution concentration precisely.
- Electric control cabinet manages the entire process with low-position powder alarms.
- Optional components: Vacuum feeding machine and on-line dilution system.
- Available Tank materials: SS304 or SS316, Polypropylene PP, FRP, etc.
Models & Specifications
| Model Item |
YTH 500 |
YTH 1000 |
YTH 1500 |
YTH 2000 |
YTH 3000 |
YTH 4000 |
YTH 5000 |
YTH 6000 |
| Capacity (L/h) |
Curing for an hour |
500 |
1000 |
1500 |
2000 |
3000 |
4000 |
5000 |
6000 |
| Power (kw) |
0.94 |
2.45 |
2.45 |
2.62 |
4.89 |
4.89 |
4.89 |
4.89 |
| PAM dosage (kg/h) |
1~5 |
2~10 |
3~15 |
3.5~20 |
4.5~25 |
| Water inlet (m³/h) |
0.3~1.5 |
0.6~3 |
0.9~4 |
1.2~6 |
2.0~10 |
2.4~12 |
2.4~12 |
2.4~12 |
| Dimensions (mm) |
L |
1370 |
2000 |
2130 |
2200 |
2400 |
2720 |
2700 |
2970 |
| B |
680 |
1000 |
1070 |
1200 |
1300 |
1400 |
1500 |
1600 |
| H |
1485 |
1770 |
1810 |
1970 |
2270 |
2355 |
2222 |
2322 |
| N.W. (kg) |
250 |
400 |
490 |
550 |
700 |
770 |
960 |
1050 |

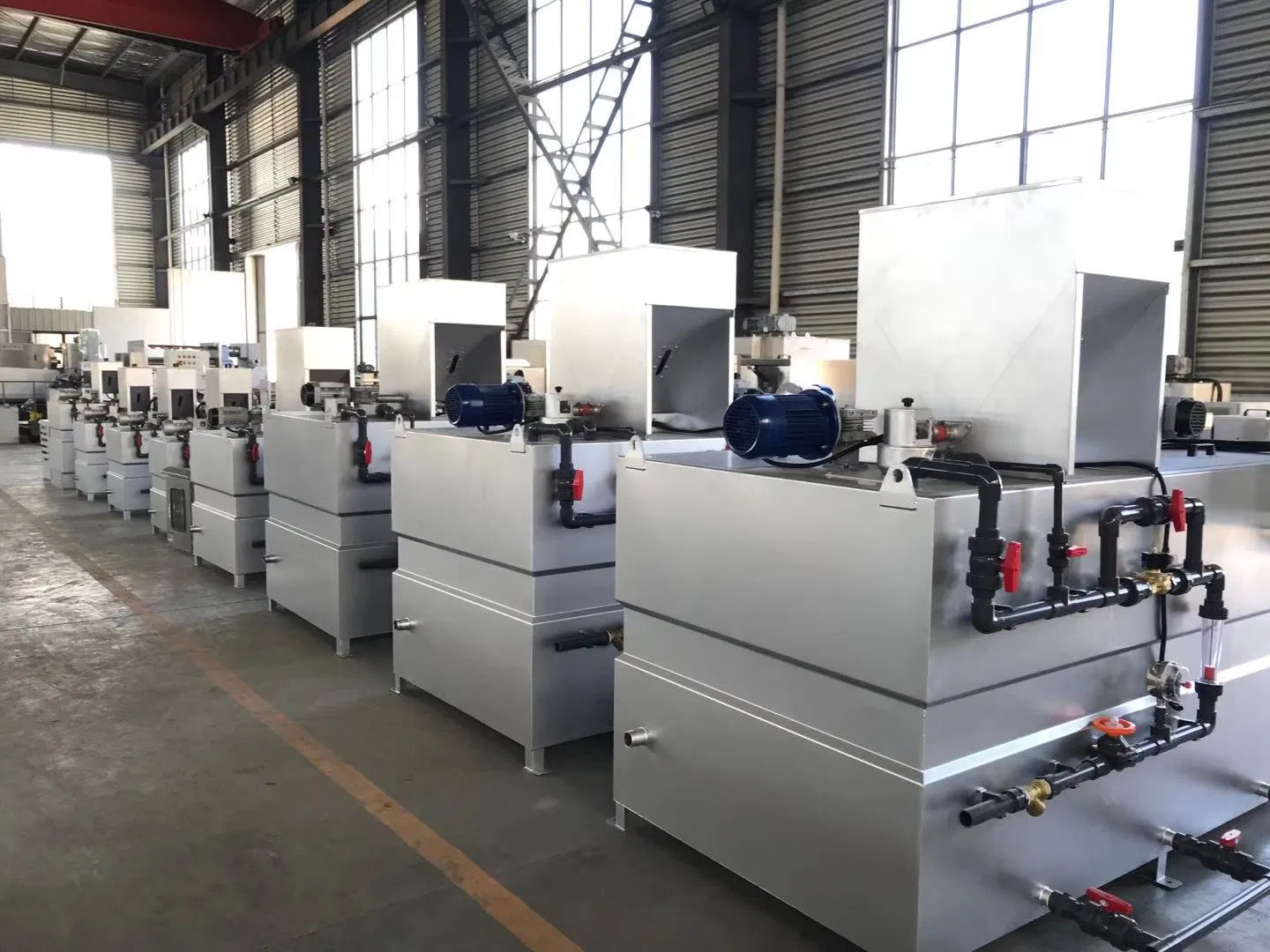

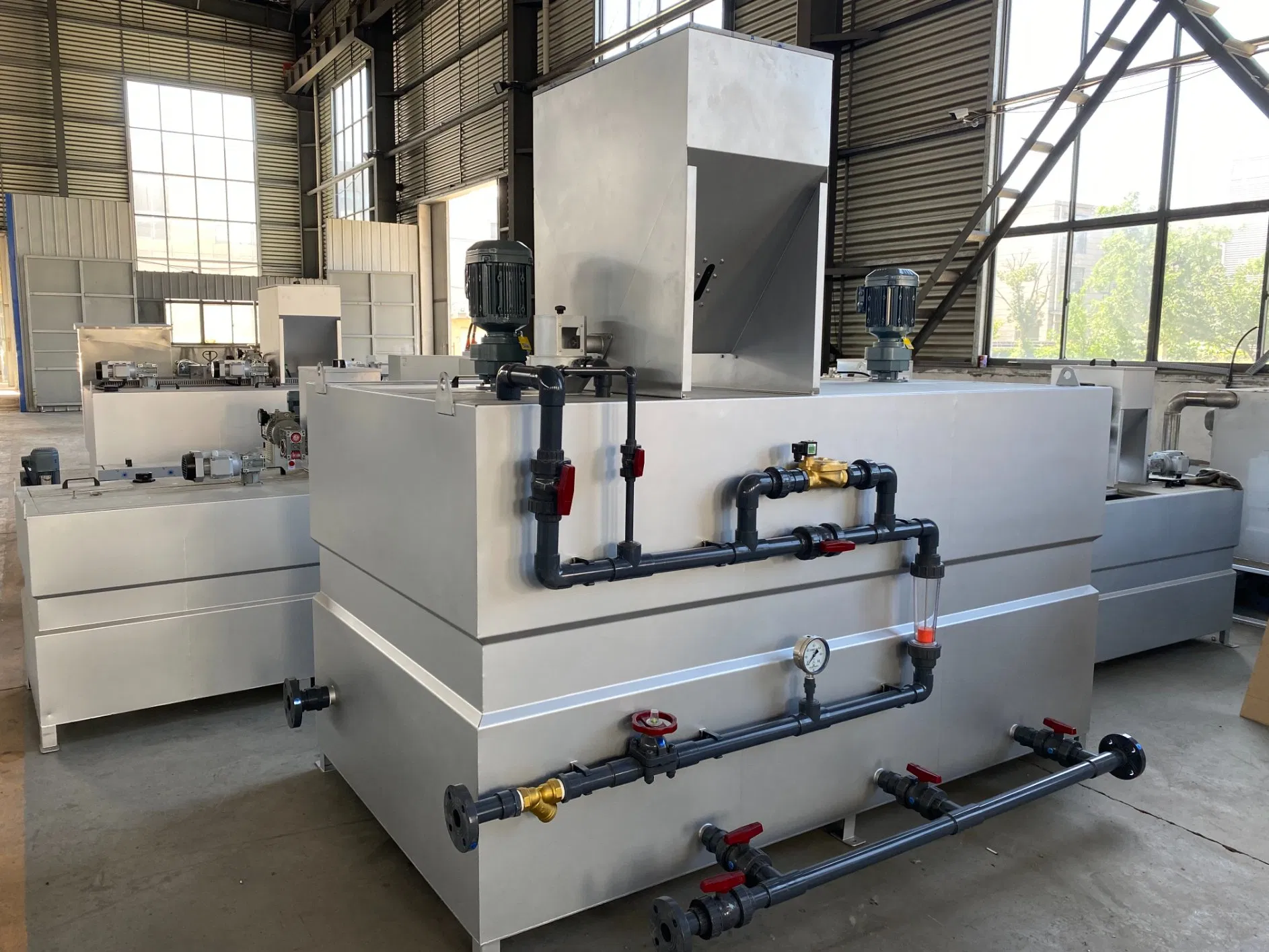

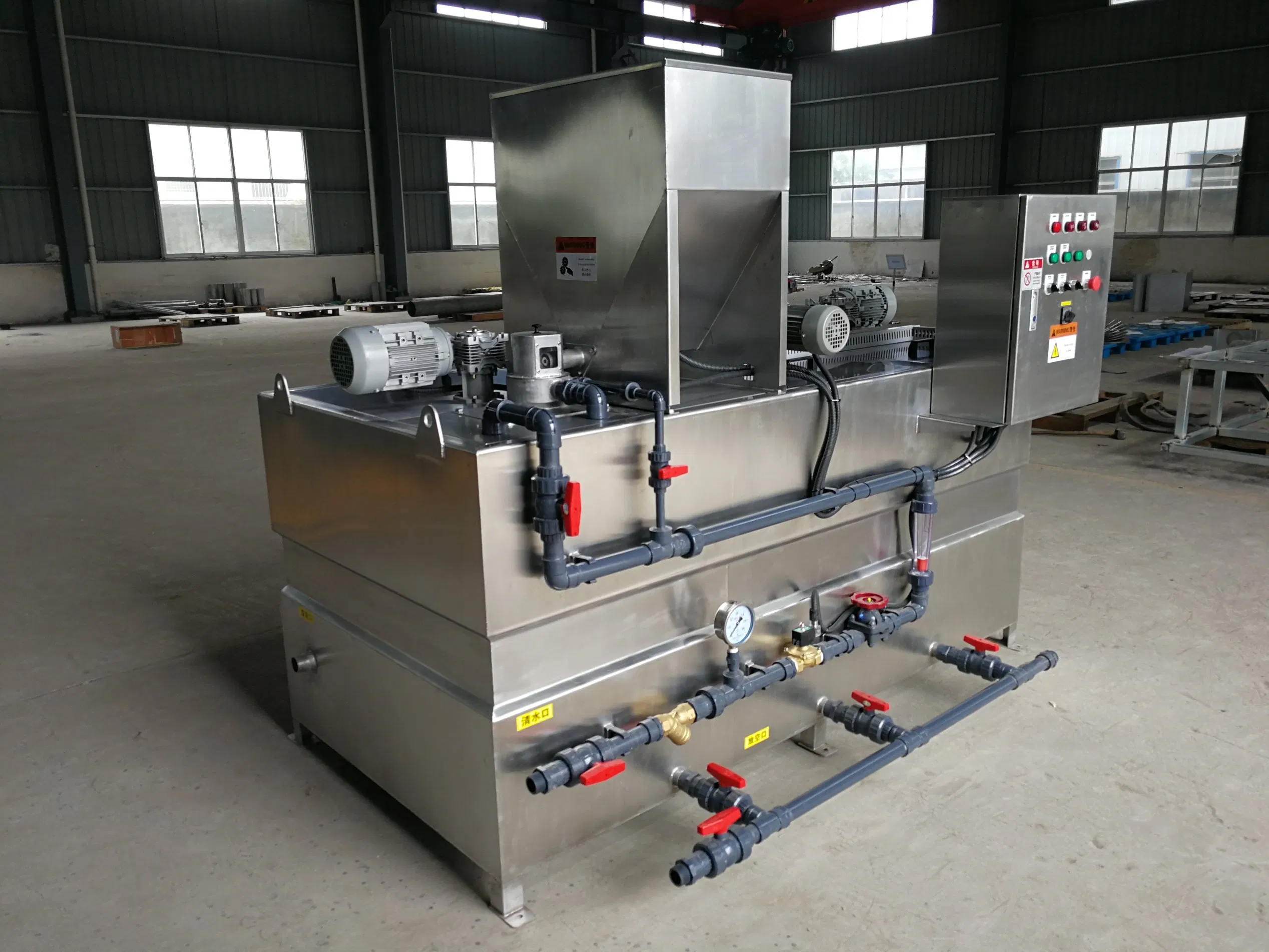

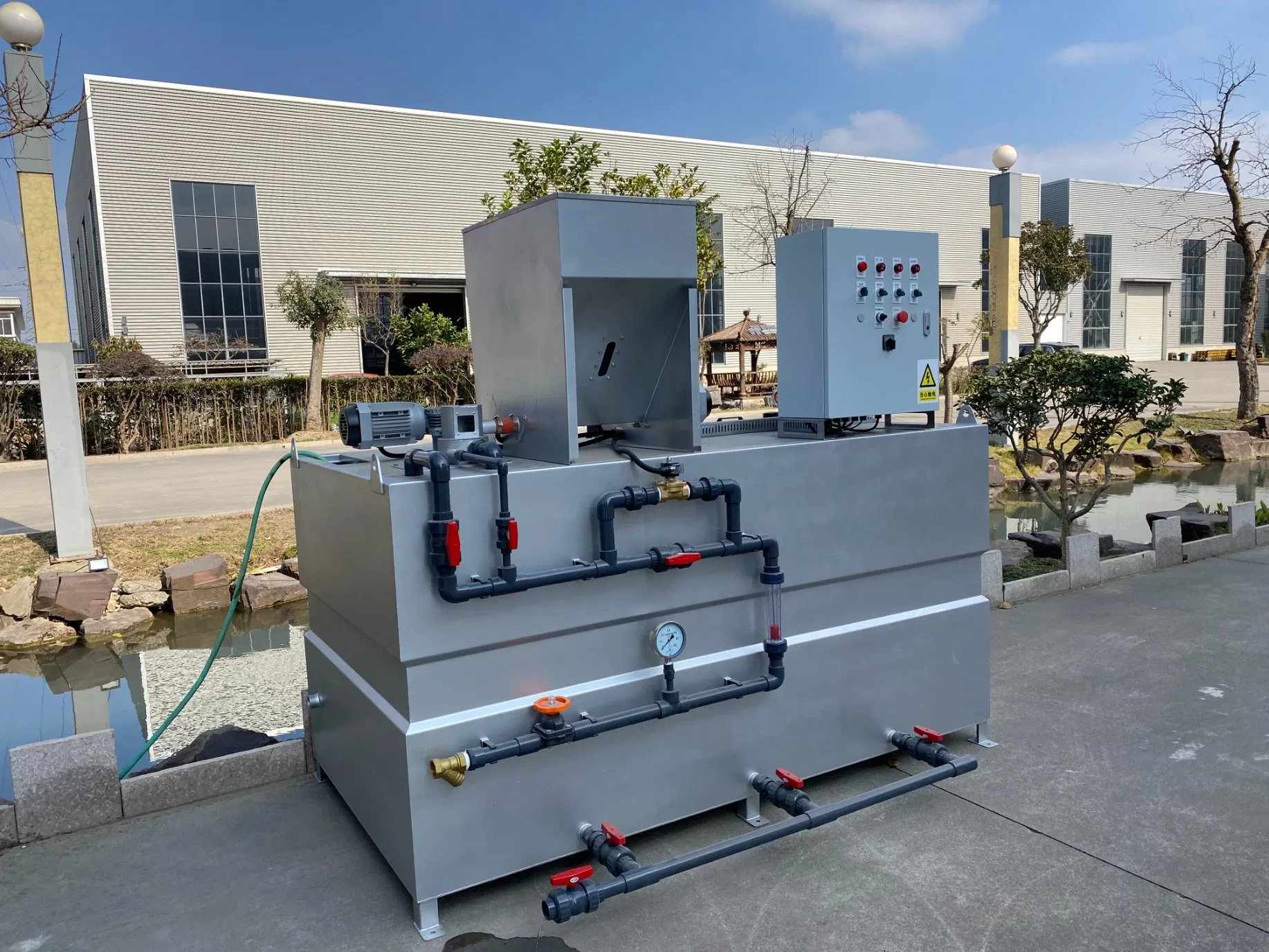

Product Display

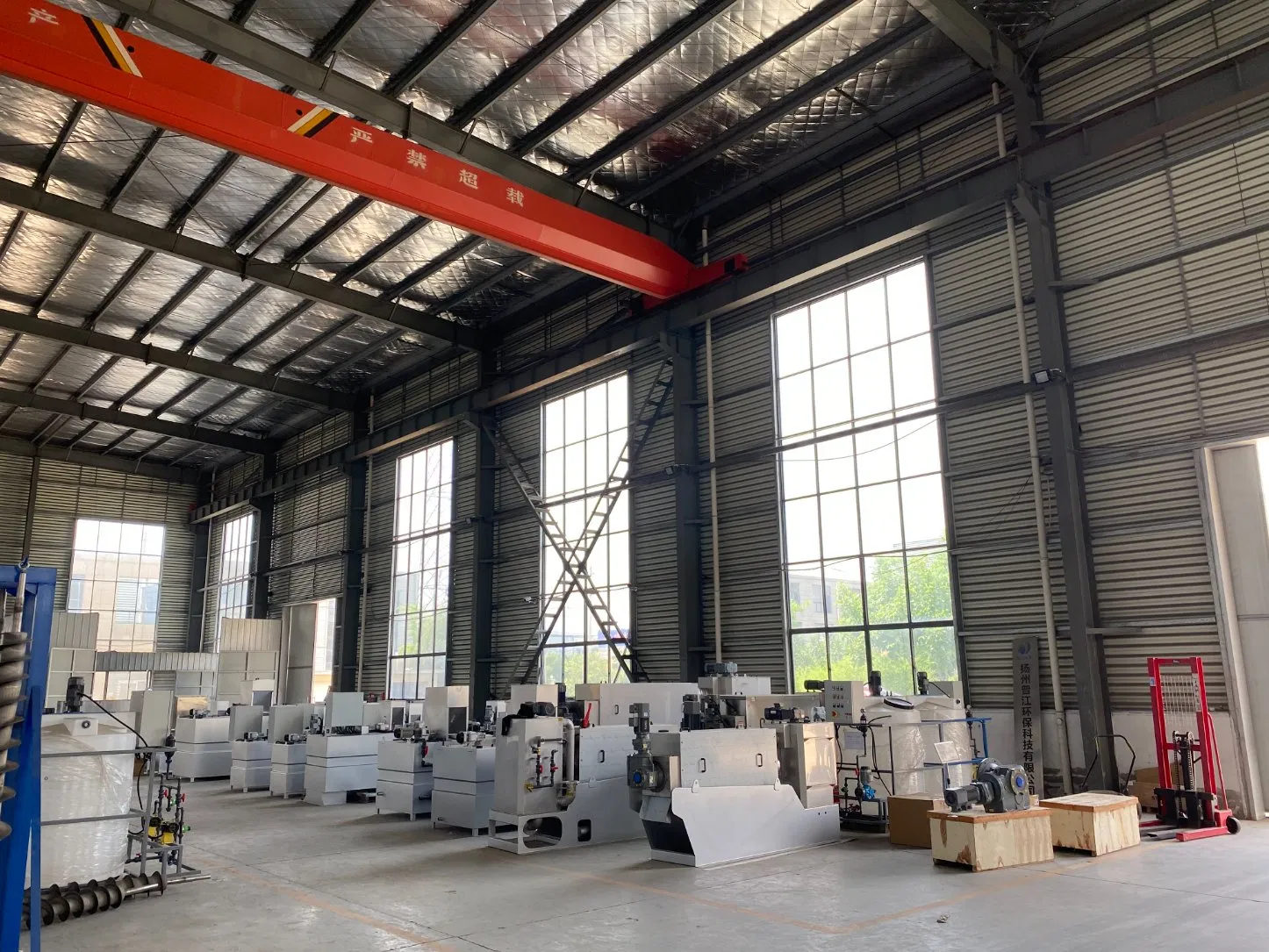

Manufacturing Overview
We possess strong manufacturing capacity with first-class workshops and advanced processing facilities. We regard product quality as our core priority and have established a complete process control and management system, spanning from research and development and raw material procurement to final manufacturing and quality inspection.
The equipment range covers screw press sludge dewatering machines, polymer dosing machines, screw conveyors, sludge hoppers, wastewater treatment units, solid-liquid separators, and sand-water separators. These products are widely utilized in municipal sewage, petrochemical, food and beverage, aquaculture, chemical pharmacy, and papermaking industries.
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a professional factory specializing in the production of waste water treatment equipment.
Q: Do you provide OEM services?
A: Yes, we provide OEM services and can accommodate required logos as needed.
Q: What is your annual production capacity?
A: Our facility produces more than 3,000 sets of specialized equipment per year.
Q: What is the standard warranty period for your equipment?
A: We provide a one-year warranty starting from the arrival of the goods.
Q: What is the typical delivery time for an order?
A: Normally, delivery is within 45 days following the receipt of the down payment.
Q: How is the equipment packaged for export?
A: We typically use anti-corrosion wooden cases to ensure the safety of the product during international transport.
