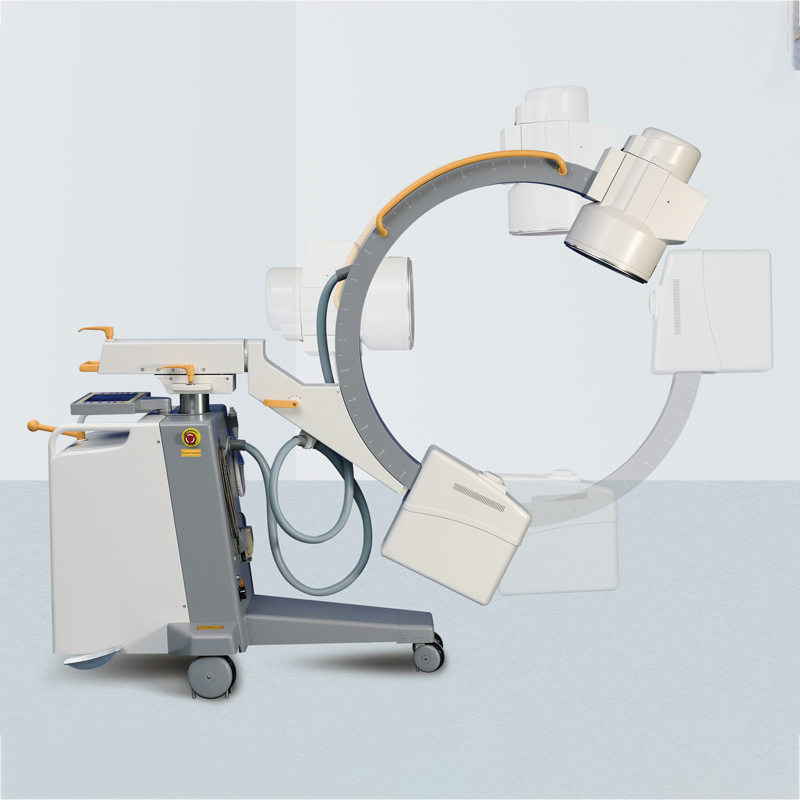

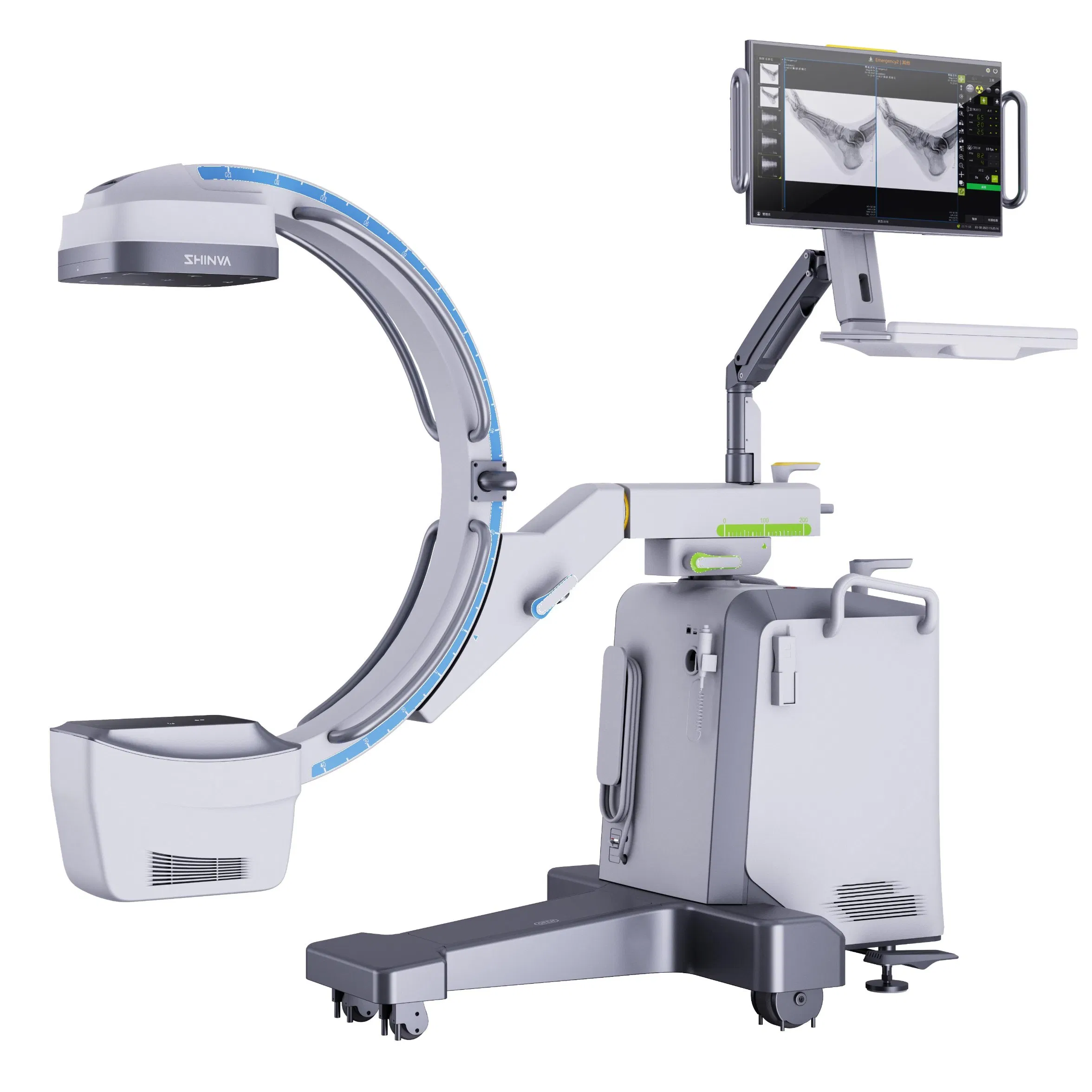

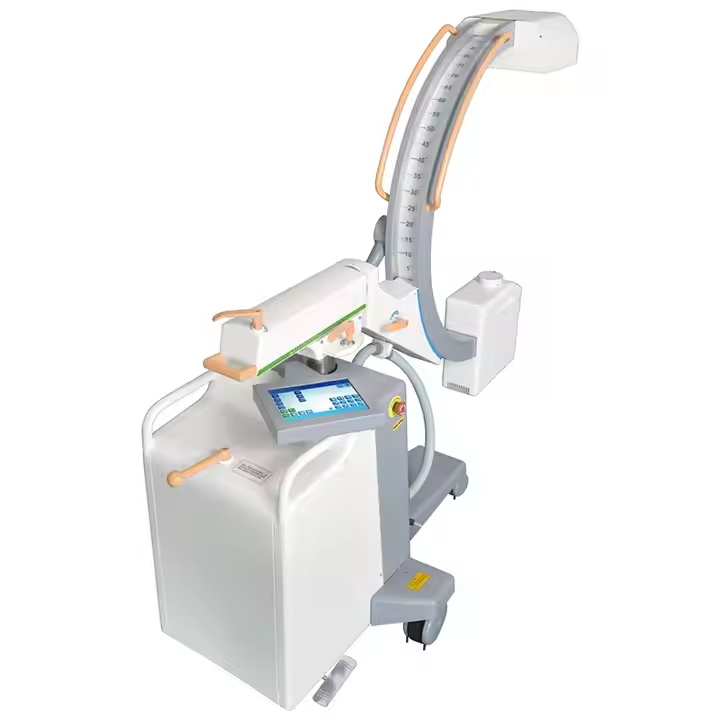

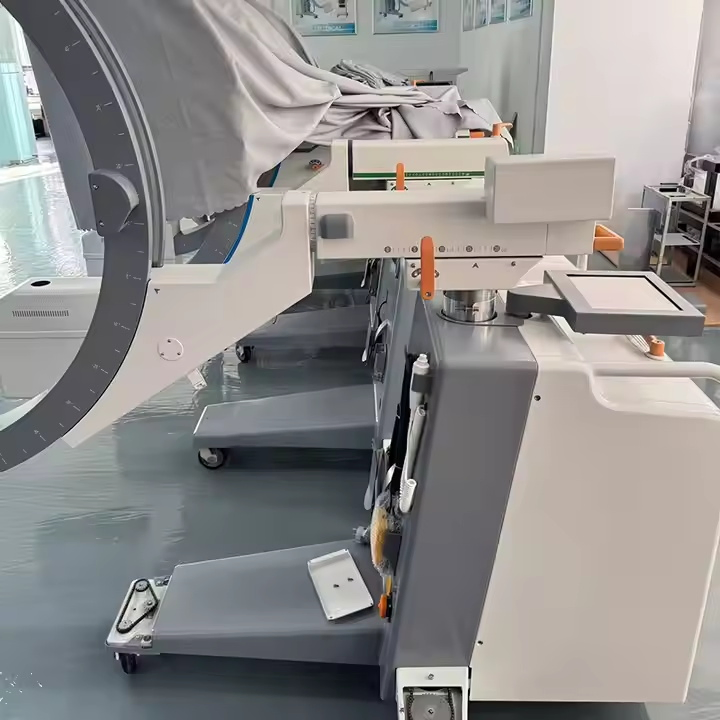

Digital C-Arm X-ray System for Accurate Medical Diagnosis
Digital C-Arm X-ray System for Accurate Medical Diagnosis
Digital C-Arm X-ray System for Accurate Medical Diagnosis
Digital C-Arm X-ray System for Accurate Medical Diagnosis
Digital C-Arm X-ray System for Accurate Medical Diagnosis
1 / 5
Digital C-Arm X-ray System for Accurate Medical Diagnosis
Digital C-Arm X-ray System for Accurate Medical Diagnosis
Digital C-Arm X-ray System for Accurate Medical Diagnosis
Digital C-Arm X-ray System for Accurate Medical Diagnosis
Digital C-Arm X-ray System for Accurate Medical Diagnosis

Digital C-Arm X-ray System for Accurate Medical Diagnosis

Customization: Available
Customized: Customized
Certification: CE, ISO13485
Send Inquiry

Product Description

📋 Overview
Model NO.
HT005
Scale
Medium
Product Name
C-Arm X-ray Machine
Type
Mobile C-Arm / Digital X-ray / Surgical Imaging
Application
Hospital / Clinic / Operating Room
X-ray Tube Voltage
40-120 Kv (Adjustable)
Image Intensifier
9 Inch / 12 Inch / Optional
Power Supply
220V ±10%, 50/60Hz
Display System
Dual 19-Inch LCD Monitors
Image Storage
≥ 200,000 Images
Warranty
1 Year / 2 Years (Optional)
Origin
China
📝 Product Description

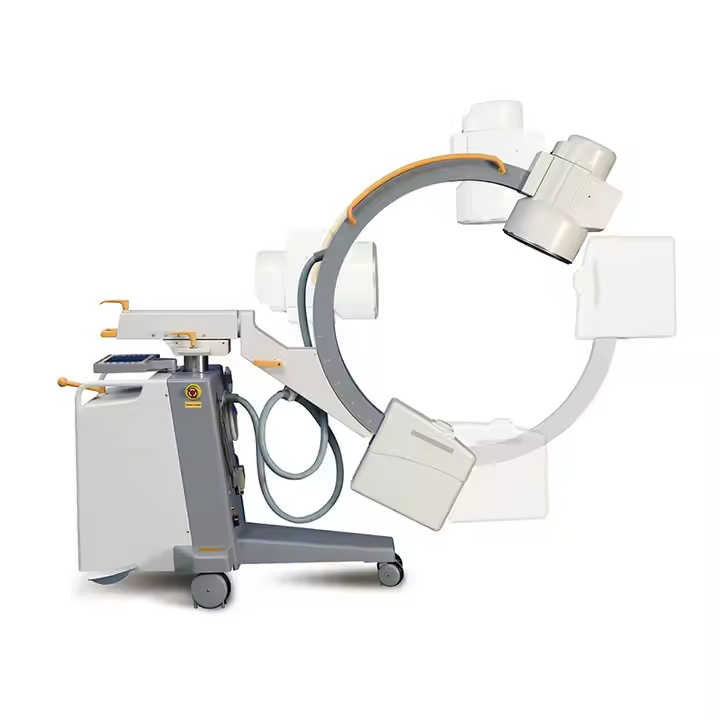

Digital C-Arm X-ray System
Series Mobile C-arm X-ray Machine adopted 1Kx1K pixel digital image system can get clear image for diagnosing. Simple and lightweight mechanical design makes the operation more convenient.
Clinical applications are very extensive, widely used in surgery of spine, trauma, joint pain, orthopedics, general surgery, rehabilitation, urology, gastroenterology, and oncology to provide the best diagnostic solutions.
Key Product Features
  • Simple structure, highly integrated, no external drag cable, easy to use.
  • Large anode heat capacity to support long-term use.
  • High Ma pulse ensures clear images even for obese body positions.
  • Excellent image algorithm without dynamic tailing.
  • AK & AKR dynamic monitoring with real-time dose display and high dose prompts.
  • 50KW high power with original bgd timing interconnected image acquisition.
  • High quality and low radiation generator with pulse fluoroscopy function.

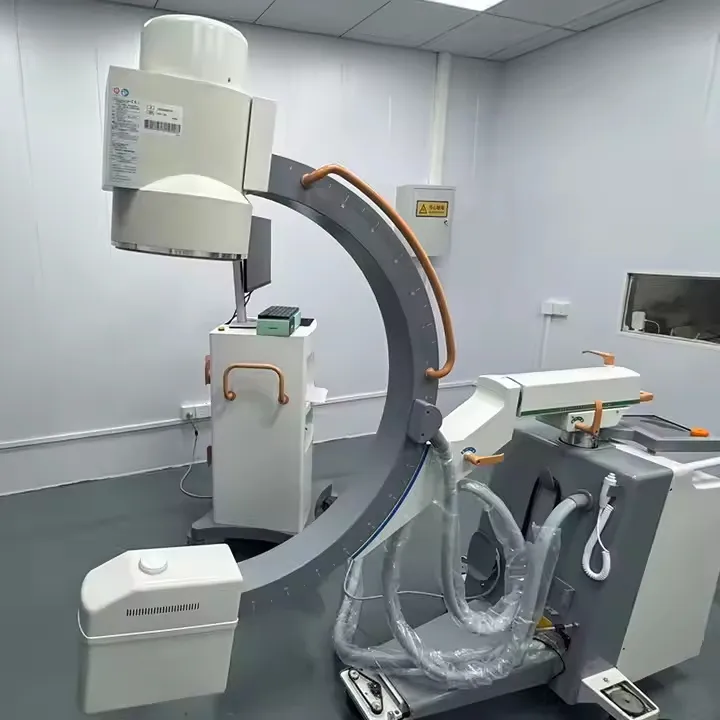

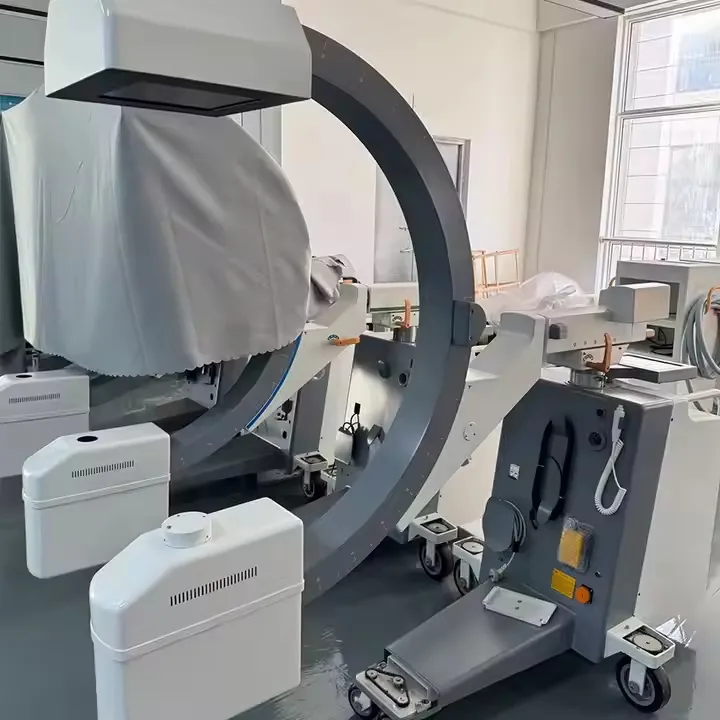

C-Arm Detail 1 C-Arm Detail 2
⚙️ Specification
Part Technical Parameters & Performance Description
HF Generator 110kV, 3.5KW, 40kHz; Fluoroscopy mode 40~110 kv / 0.5~5mA; Boost fluoroscopy 40~110 kv / 5~10mA
X-ray Tube Dual-focus fixed anode: 0.6mm/1.5mm; Advanced Technology
Image Intensifier Three fields of vision: 9", 6", 4.5" (Canon Brand)
CCD Camera High resolution, 360° rotation
Image System 5 Degree recursive Noise Reduction; Frame freezing; Digital storage; Dicom 3.0 support; One-click print
Mechanical Motion Vertical travel: 0~400mm; Horizontal travel: 0~200mm; Rotation about horizontal axis: ±180°
Dimensions SID: 1000mm; Depth in arm: ≥650mm; Mobile stand: 1800x800x1850mm
✅ Advantages
Advantage 1

Easier Positioning: C-arm with a color guide assists operators in finding the right position quickly. Unique block wire wheel design avoids accidents from compacted cables during movement.

Advanced Image Workstation: Features 19" high-definition medical LCD displays, mass storage, and movie playback. Highly integrated patient information management and Dicom standard support.

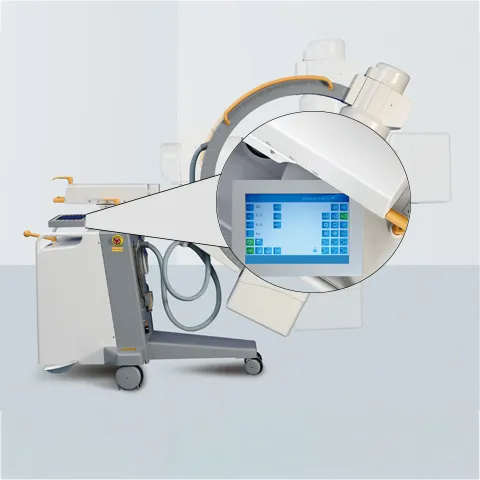

Advantage 2
Advantage 3

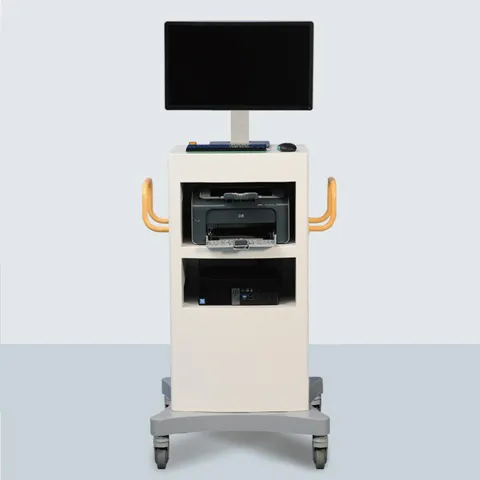

Compact & Portable: The trolley is specially designed for operating rooms, integrating processing, storage, keyboard input, and printing capabilities in a space-saving design.

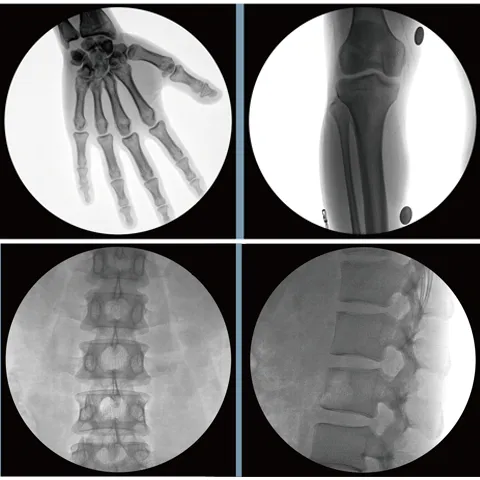

Perfect Image Efficiency: Enhanced fluoroscopy function and automatic brightness control. 1Kx1K digital imaging system ensures lossless processing and high-resolution output.

Advantage 4
🖼️ Product Display

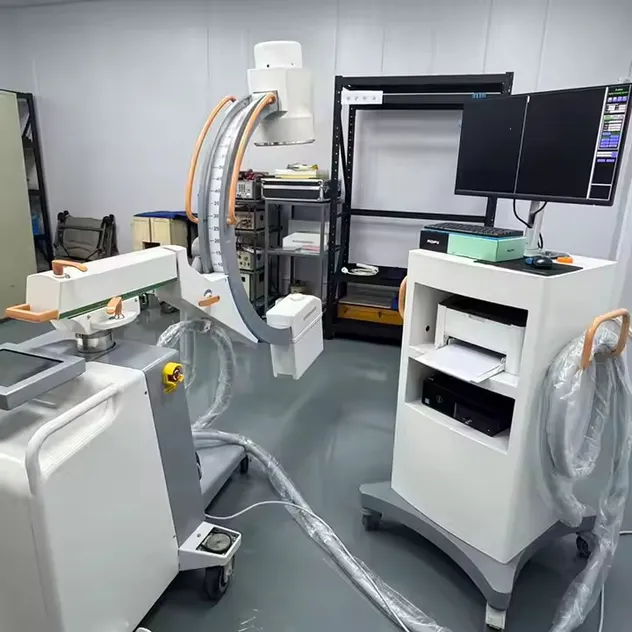

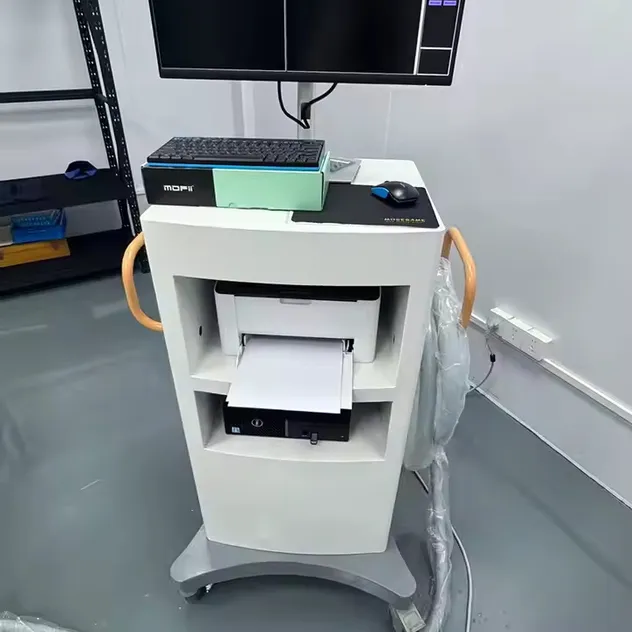

Display 1 Display 2 Display 3
Display 4 Display 5
🏢 Profile
We are a high-tech enterprise focusing on the research, development, production, and sales of medical devices and protective products. The company has strong technology and R&D capabilities, holding multiple international quality certifications such as ISO9001 and ISO14001.
Manufacturing Facility
With a focus on providing high-quality products and excellent service, we have achieved brilliant results in many medical fields. Our products are exported to over 46 international countries and regions, including North America, Europe, Southeast Asia, and the Middle East. We aim to be your most reliable long-term partner.
Quality Control Product Range Shipping
❓ FAQ
Q: Are you a trading company or manufacturer? A: We are a professional manufacturer.
Q: How long is your delivery time? A: The delivery time is usually around 7-10 days depending on the order volume.
Q: What are your payment terms? A: We accept TT, LC, and DP.
Q: What documents do you provide for shipping? A: Usually, we provide Commercial Invoice, Packing List, Bill of Lading, and COA. We can accommodate special market requirements as well.
Q: What clinical applications is this C-arm suitable for? A: It is widely used in spine surgery, trauma, orthopedics, urology, gastroenterology, and oncology departments.
Q: Does the system support digital image storage? A: Yes, the digital workstation can store ≥ 200,000 images and supports Dicom 3.0 for network integration.
