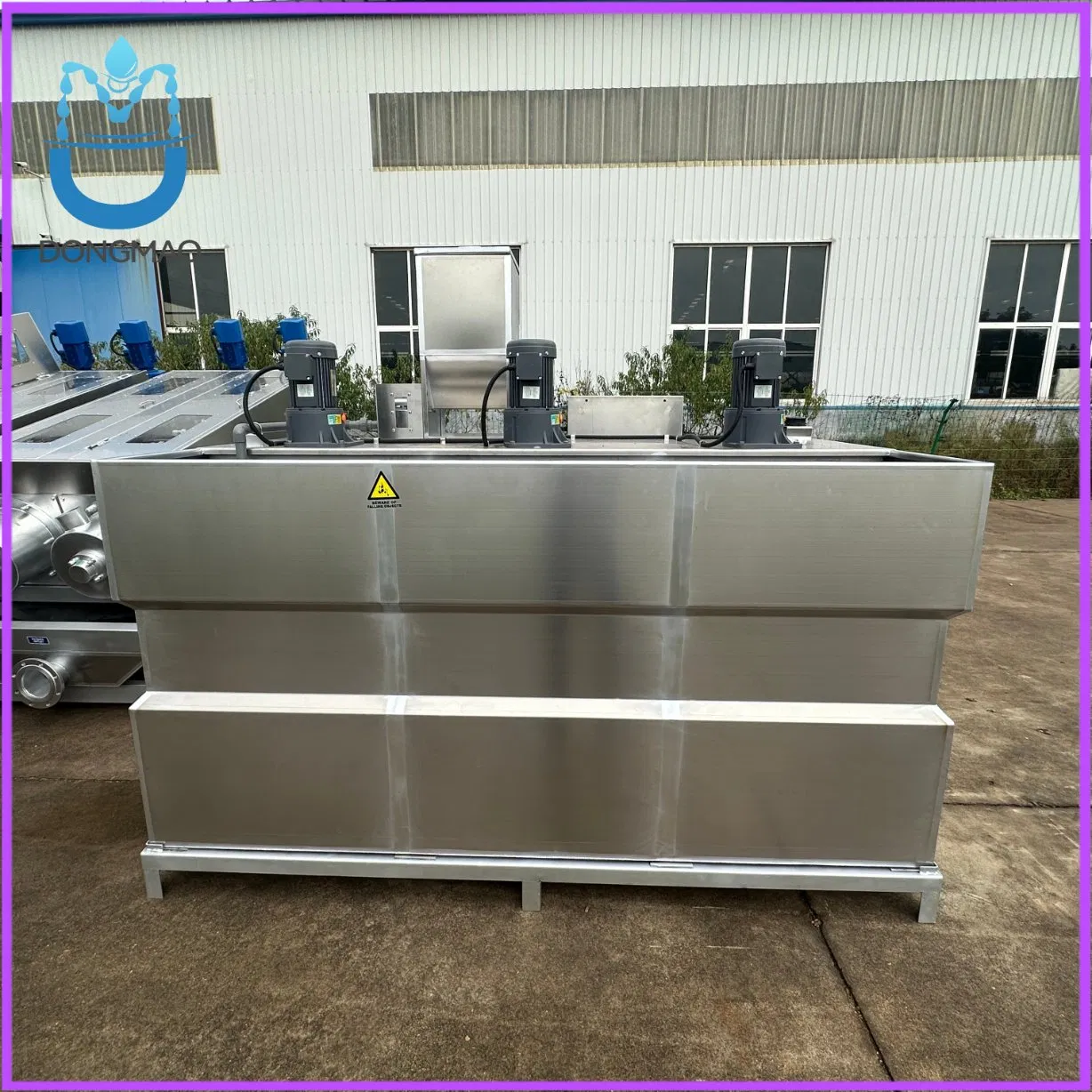

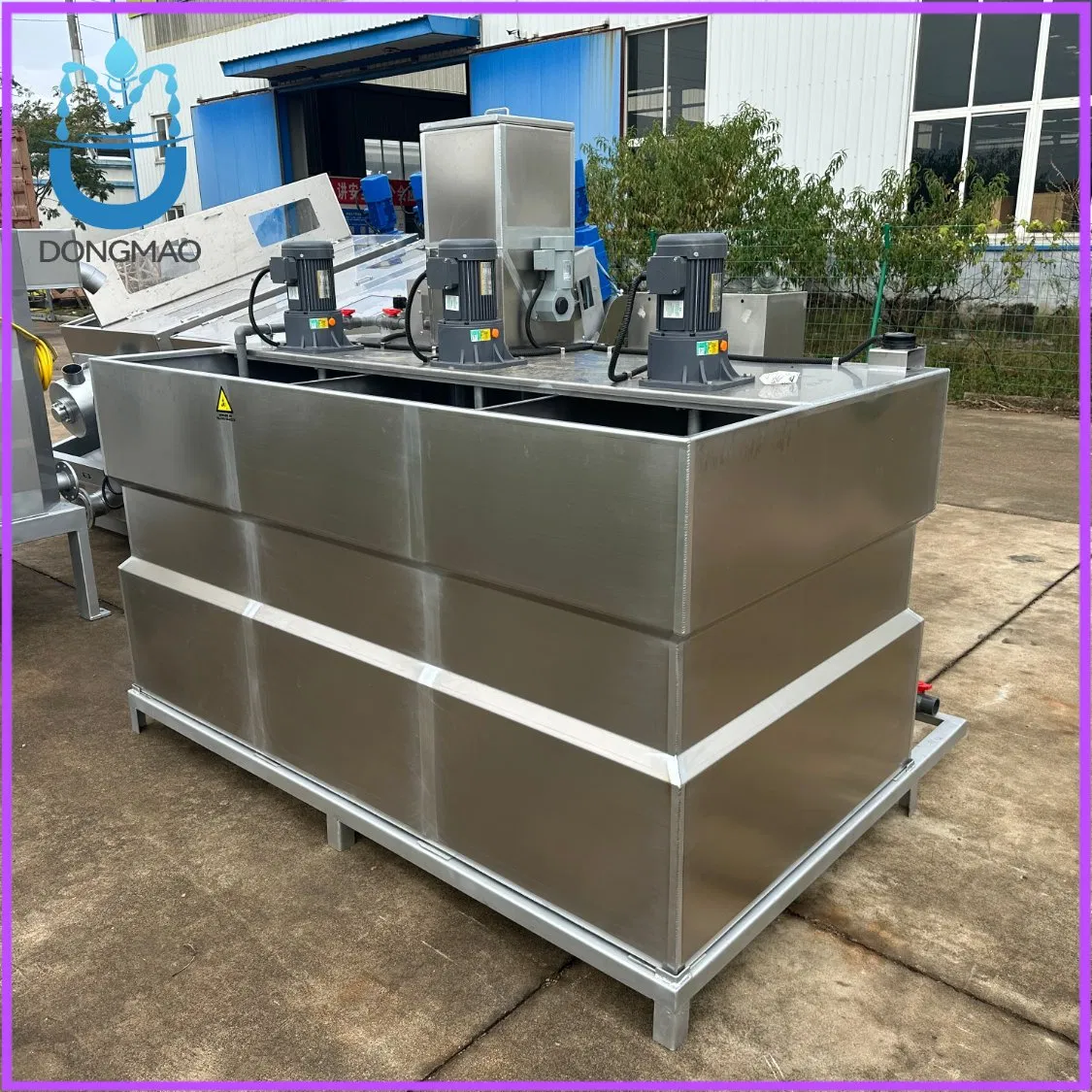

Full Automatic Control PAM PAC Automatic Powder Liquid Polymer Chemical Dosing System

1 / 5

Full Automatic Control PAM PAC Automatic Powder Liquid Polymer Chemical Dosing System

Customization:	Available
After-sales Service:	Lifetime After-Sales Service
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.

DMJY-500/1000l

Type

Chemical Dosing

Method

Chemical Treatment

Product Name

Automatic Flocculant Polymer Dosing System

Keywords

Auto Dosing System

Weight (Kg)

780kg

Material

SS304 Outdoor Rainproof

Operation

24 Hours Automatic Running

Core Components

Pressure Vessel, Motor

HS Code

8421219990

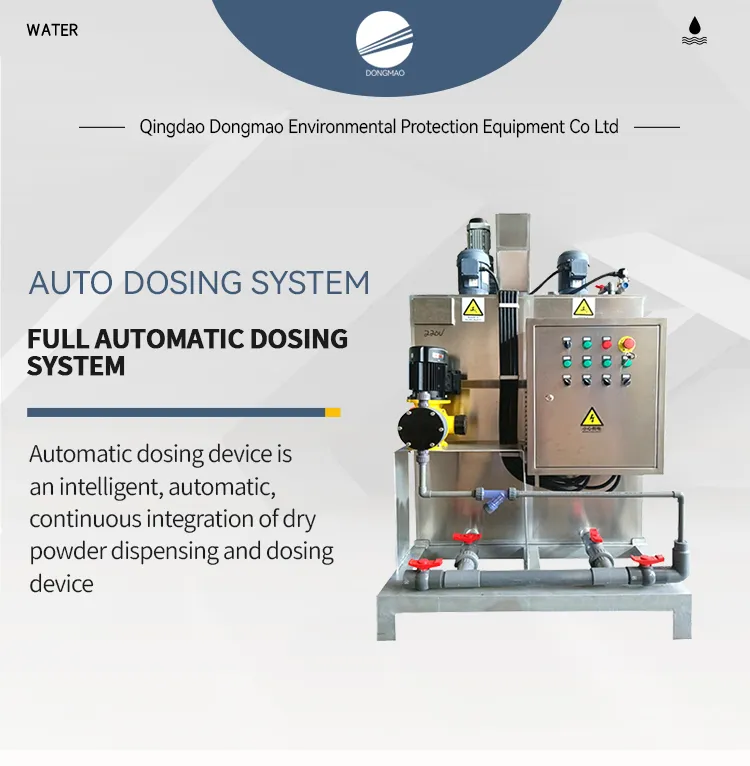

Product Overview

The automatic dosing system is an intelligent, automatic, and continuous integration device for dry powder dissolution and drug delivery. This sophisticated system consists of a water supply system, a dissolved powder system, a curing system, and an automatic control system, ensuring high precision and efficiency in chemical treatment processes.

Features at a Glance

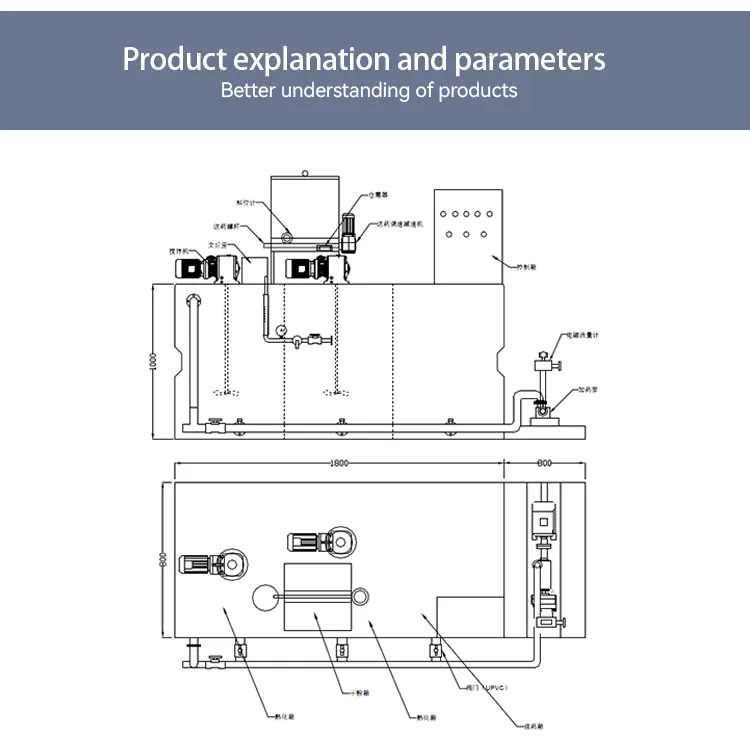

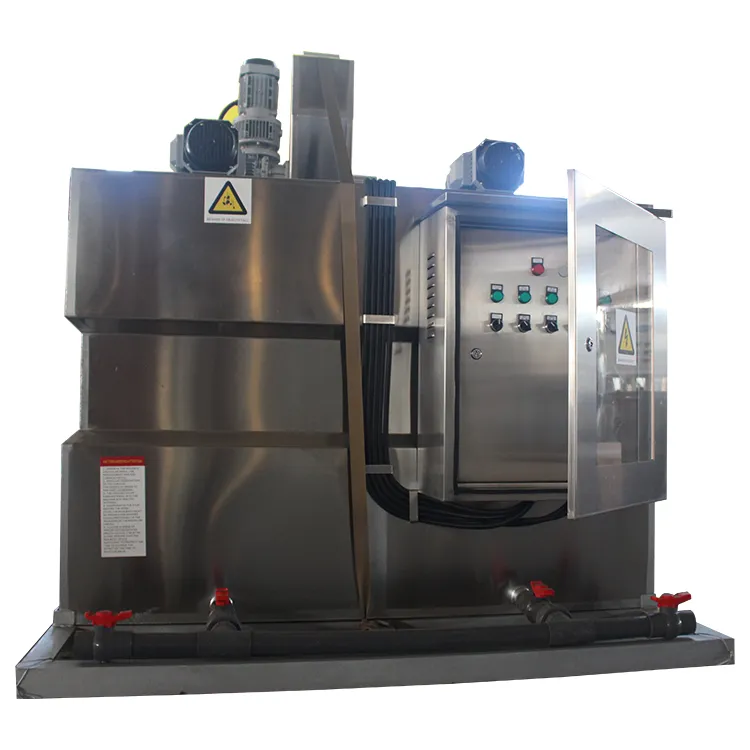

Right Elevation

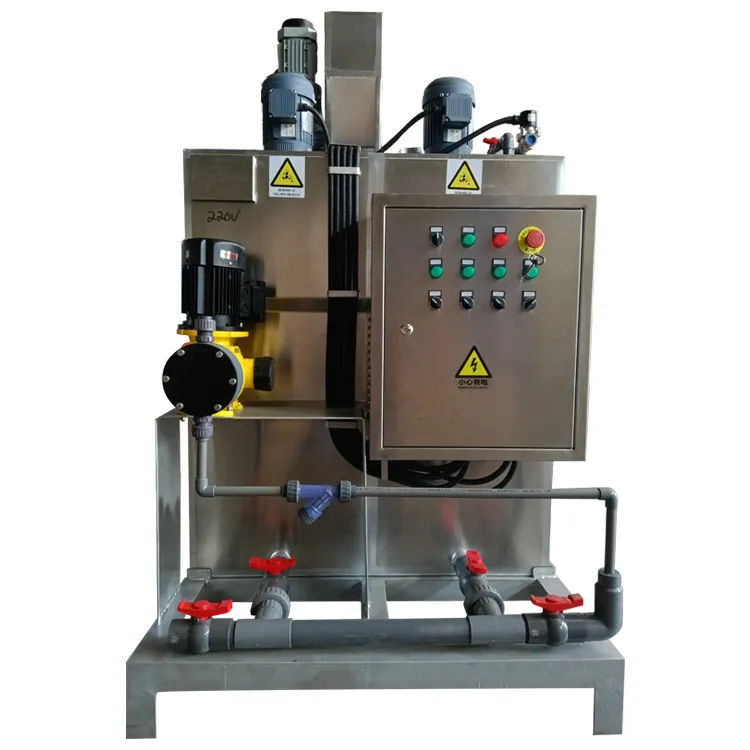

Left Elevation

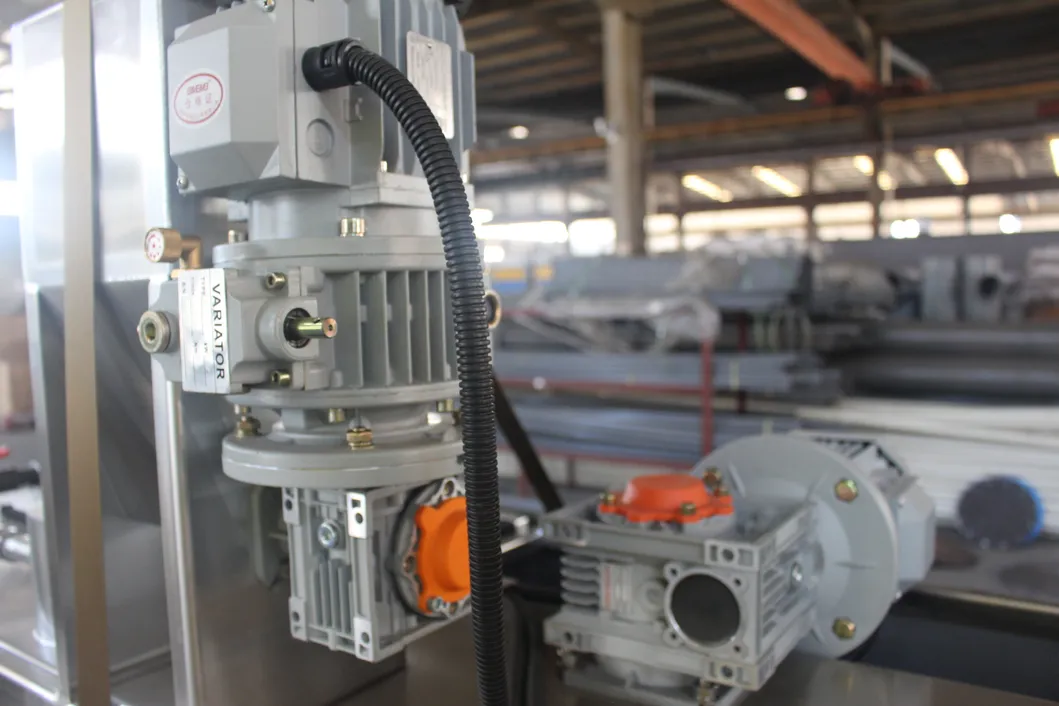

Front Elevation

Product Specifications

No	Capacity (L/h)	External Dimension (mm)	Total Power (kW)	Main Tank Size (mm)
1	500	11008001700	1.47	10005001160
2	1000	15009001700	1.47	14006001160
3	1500	170011501870	1.47	16408001160
4	2000	250012001970	1.87	24008001160
5	3000	250015502000	2.57	240012001160
6	4000	460019002000	4.77	450015001000

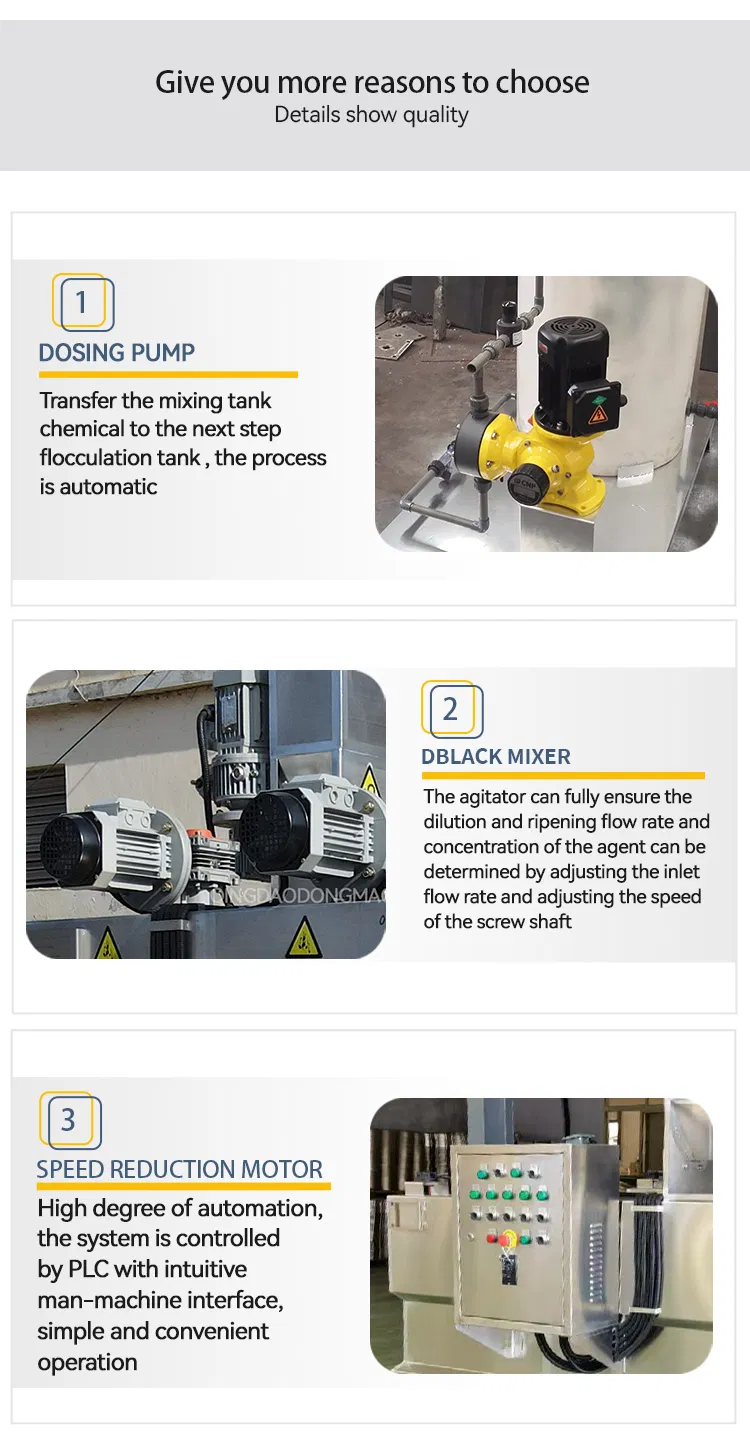

Core Configuration

High Power Engine

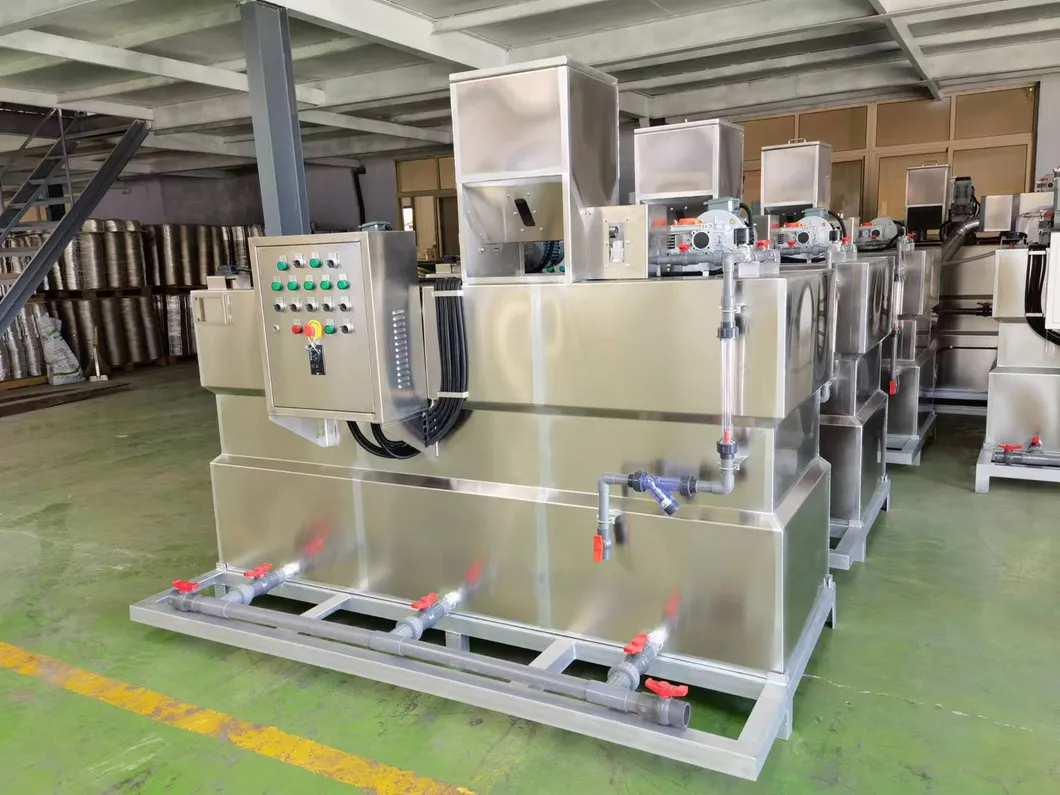

Imported Control Valve

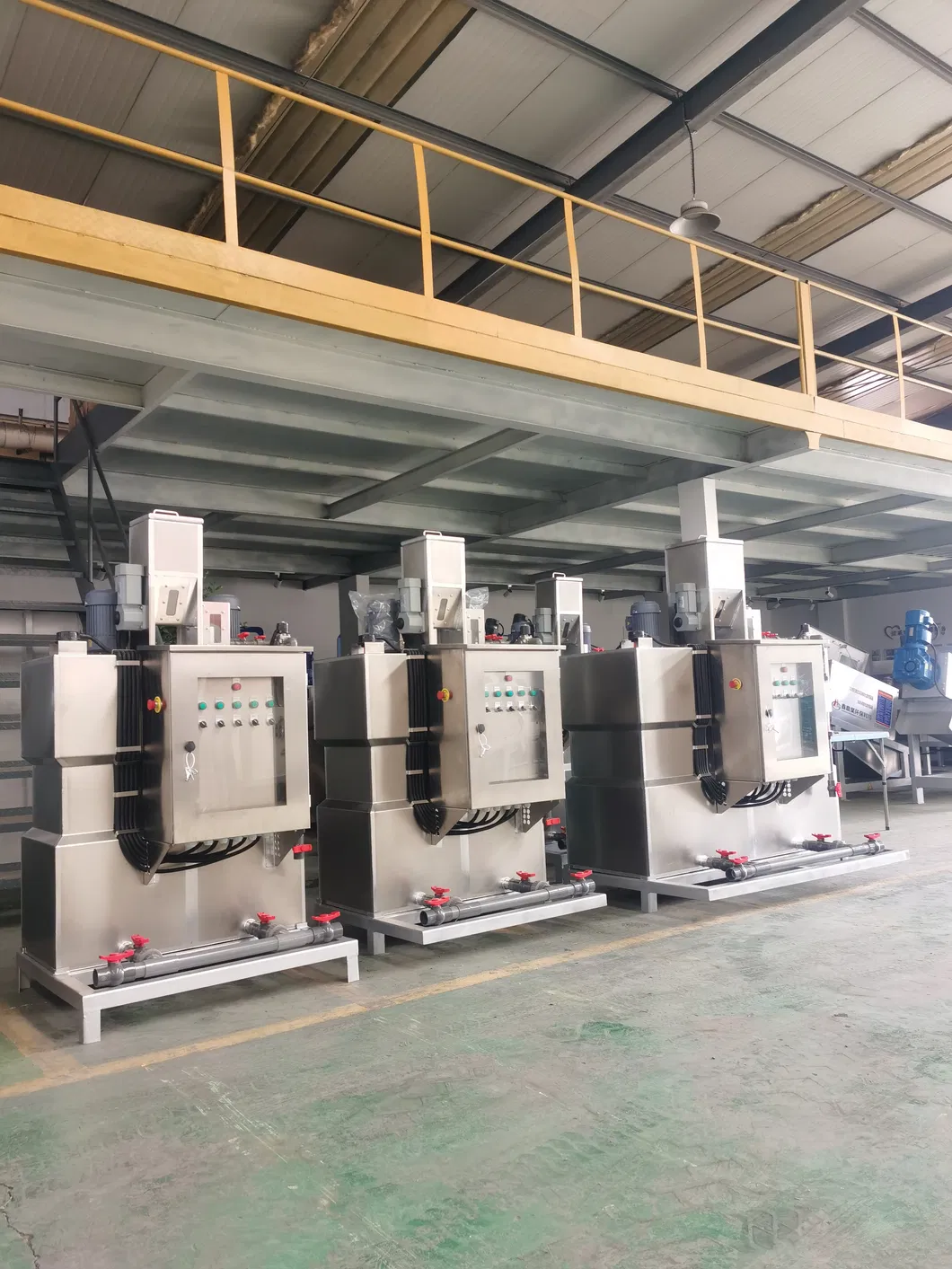

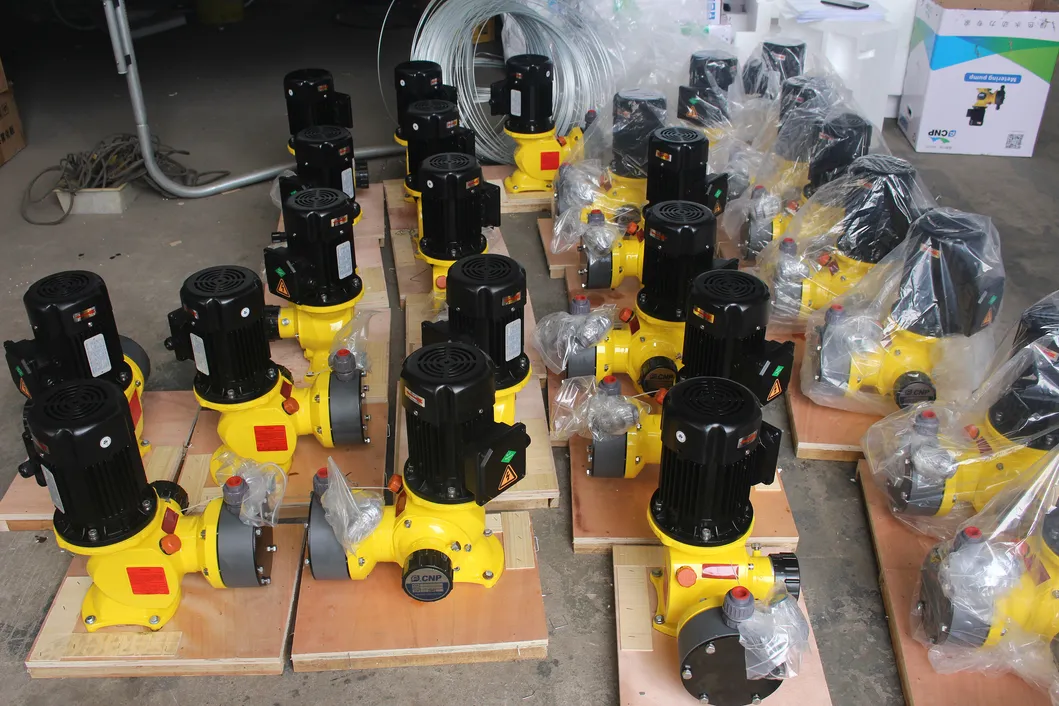

Precision Hydraulic Motor

Successful Projects

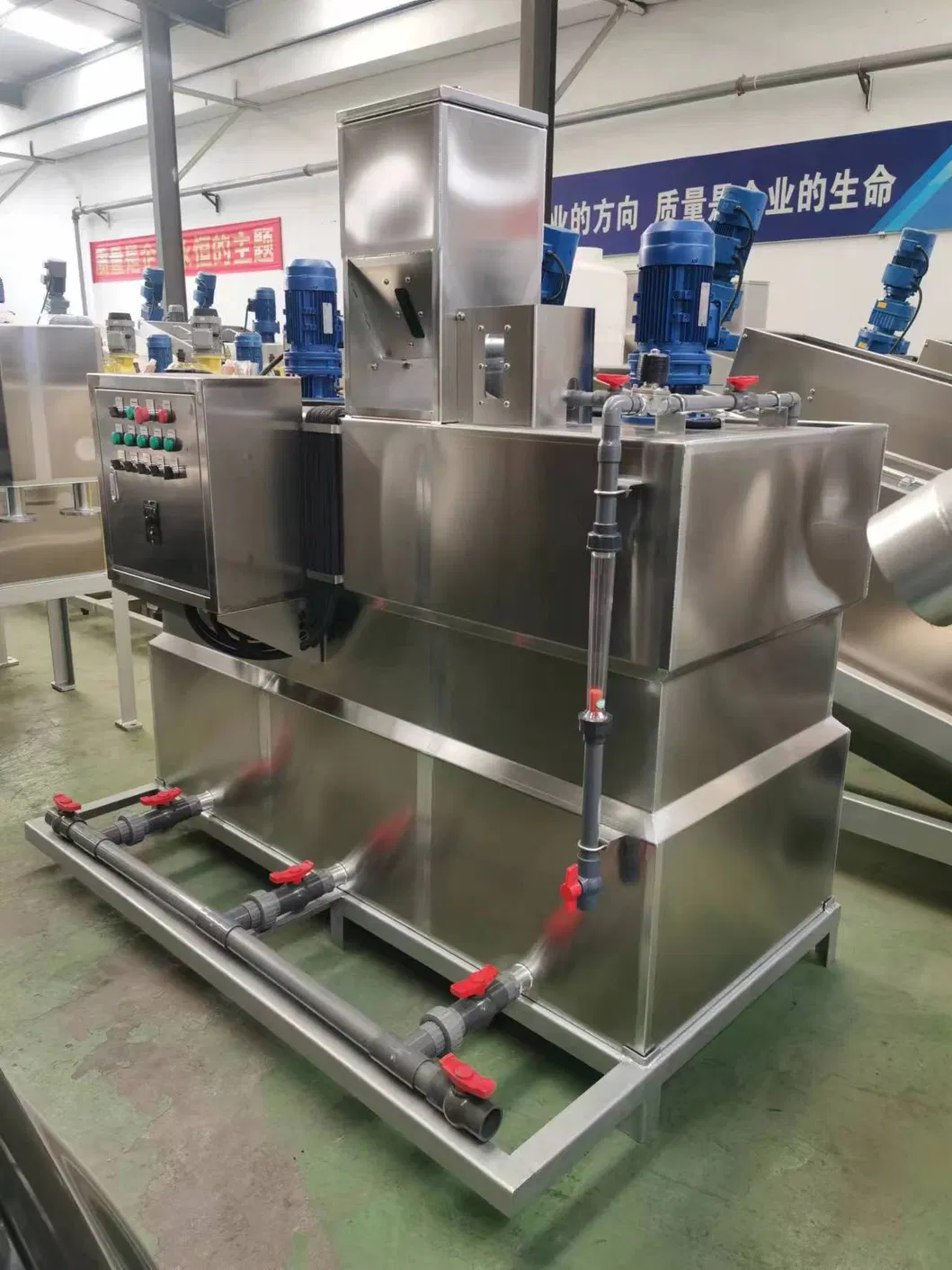

Project in Thailand

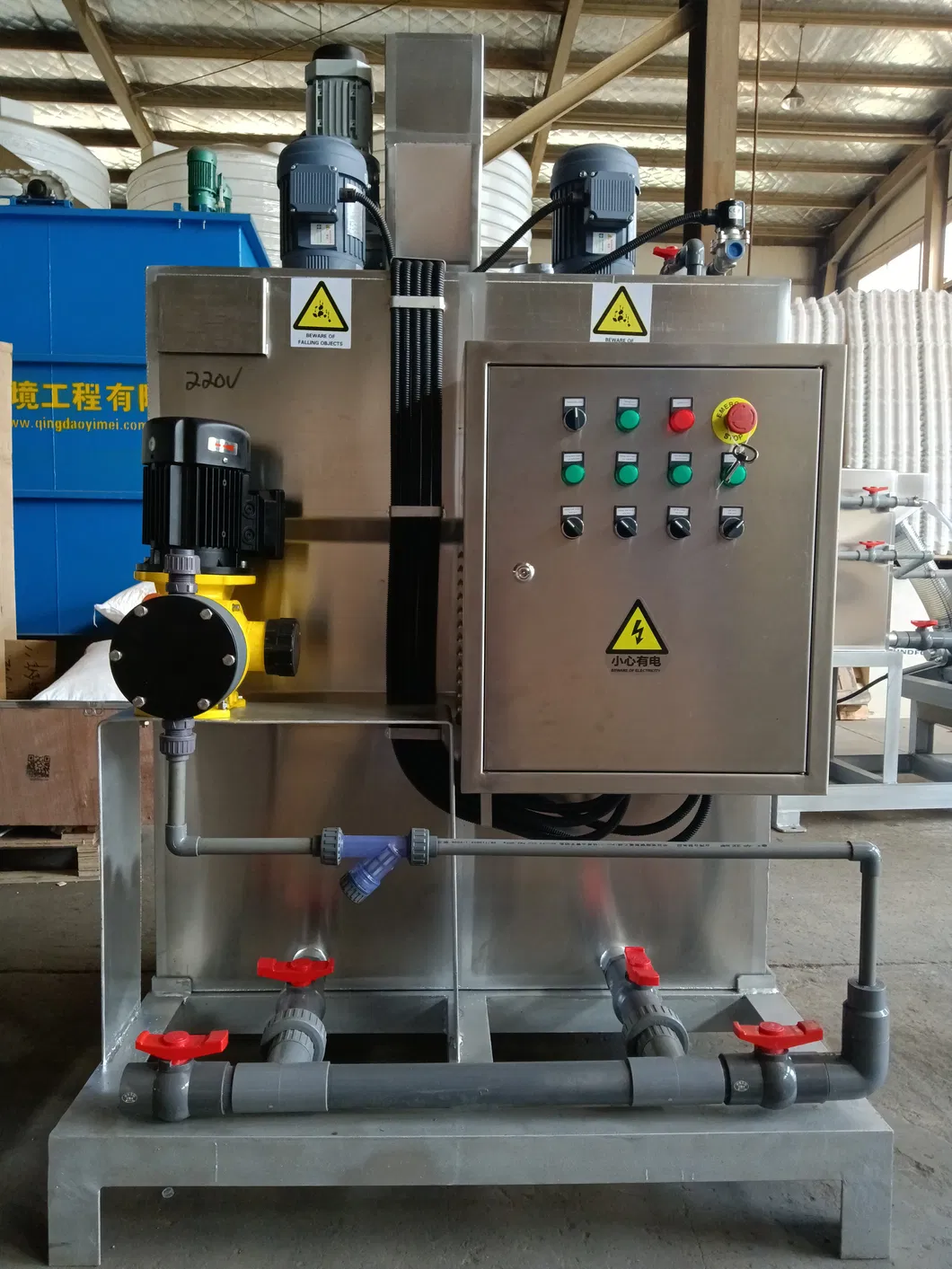

Project in Indonesia

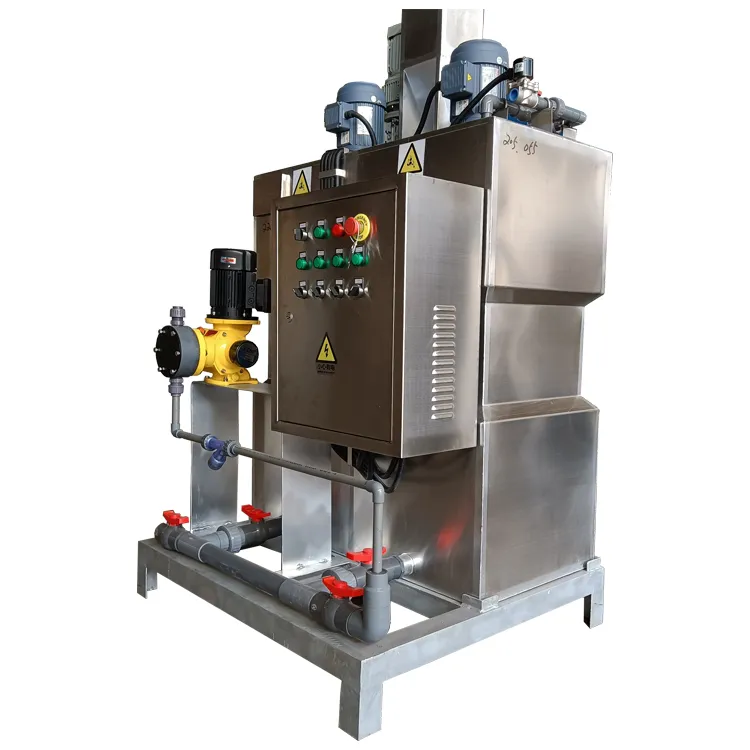

Project in Russia

Similar Products

Frequently Asked Questions

What is the primary function of the Automatic Dosing System?

It is an intelligent device designed for the continuous and automatic dissolution of dry powders and the accurate delivery of chemical drugs for water treatment.

What materials are used for the main tank?

The system is constructed using SS304 material, which is outdoor rainproof and resistant to corrosion, ensuring a long service life in various environments.

Can the system operate unattended?

Yes, the system is designed for 24-hour automatic running with an integrated intelligent control system, reducing the need for manual intervention.

Are the voltage requirements customizable?

Yes, the voltage can be customized according to the specific requirements of the client's location or industry.

What is the capacity range of these dosing systems?

We offer a variety of models with capacities ranging from 500 L/h up to 4000 L/h to suit different industrial scales.

In which industries is this system typically applied?

Common applications include hotels, manufacturing plants, and various chemical treatment facilities requiring precise flocculant or polymer dosing.
