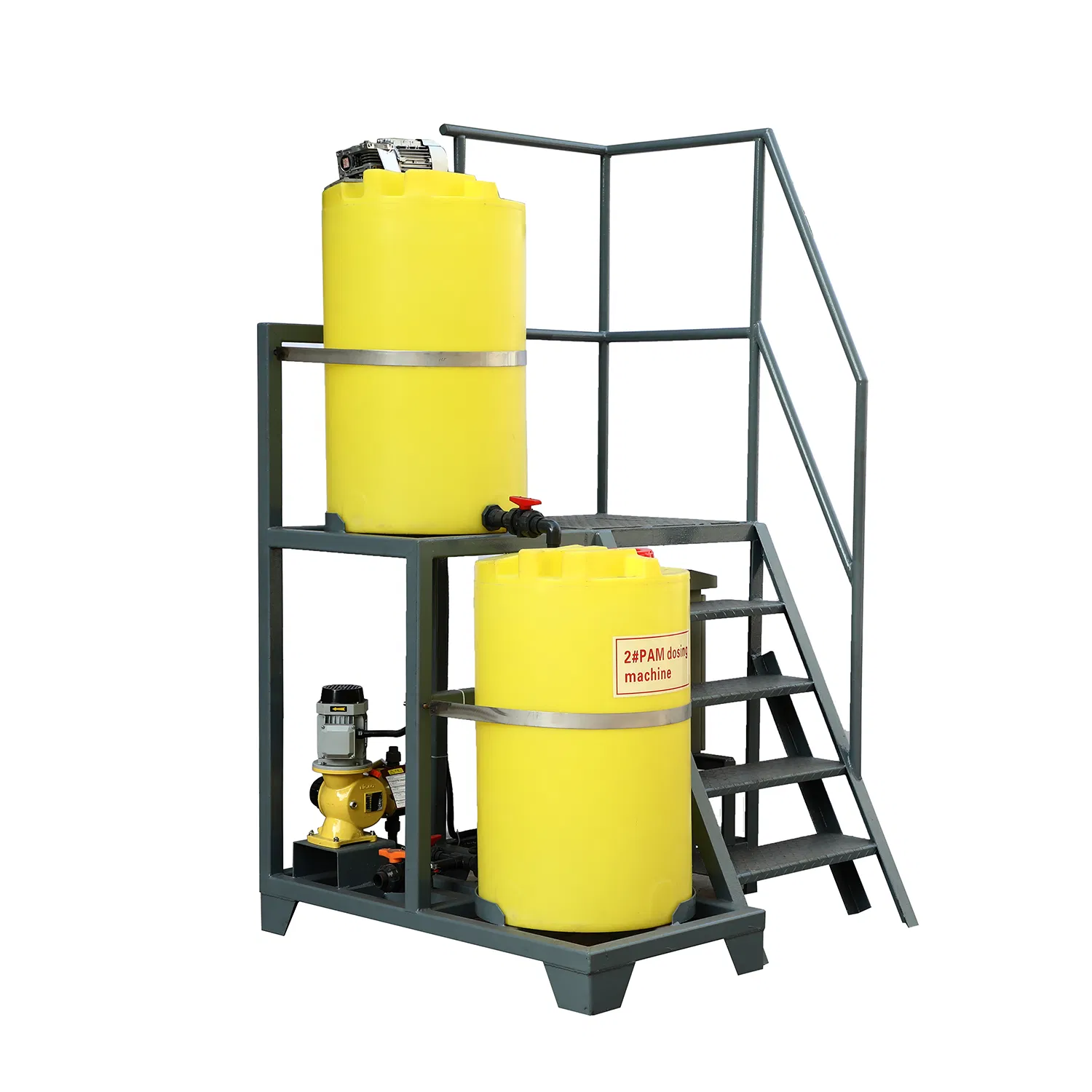

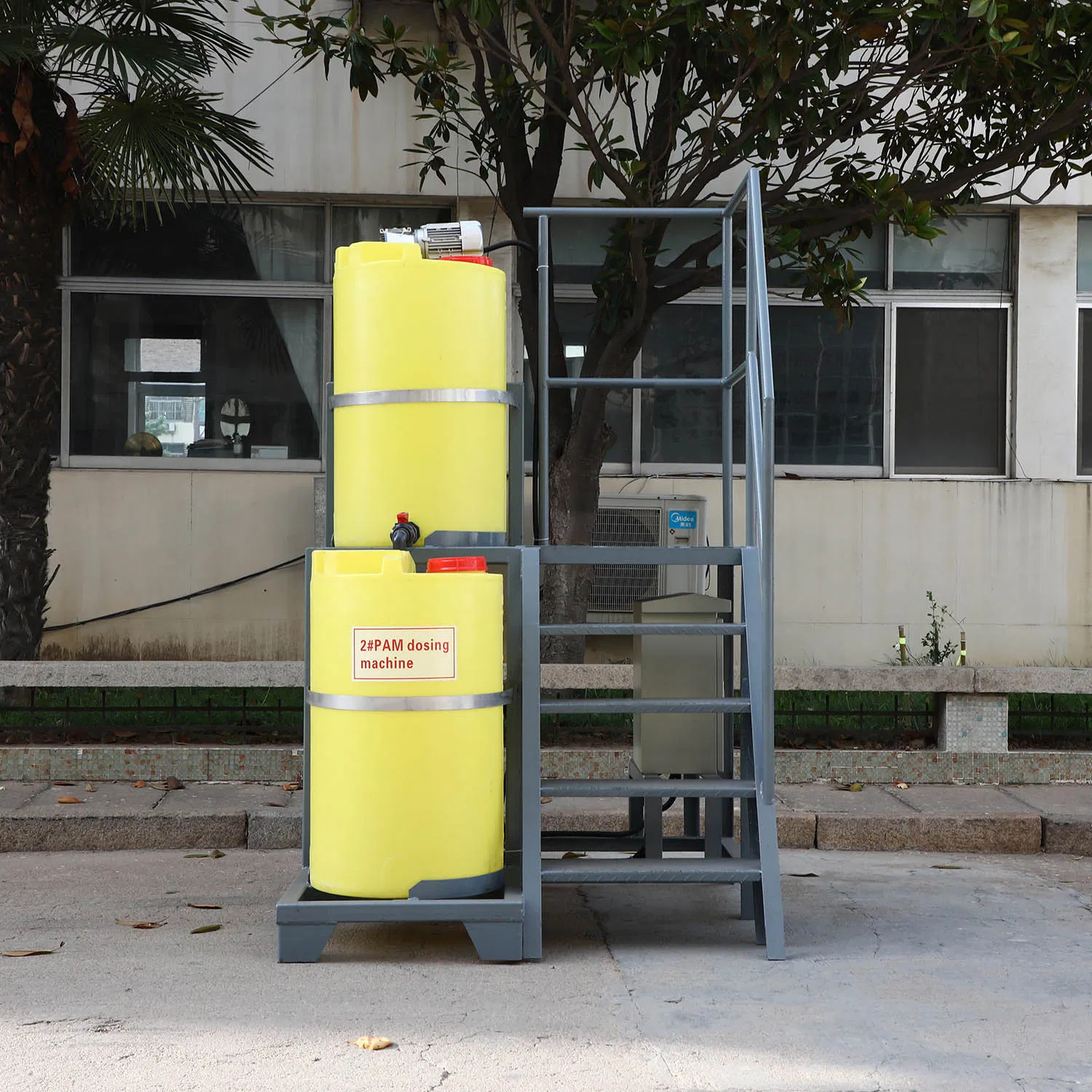

Automatic Dosing System Polymer Dosing and Feeding System for Wastewater Processing

1 / 5

Automatic Dosing System Polymer Dosing and Feeding System for Wastewater Processing

Customization:	Available
After-sales Service:	24 Hours
Warranty:	1 Year

Send Inquiry

Product Description

ℹ Basic Information

Model NO.:QDJY

Type:Automatic Soluble Drug Dosing Machine

Method:Chemical Treatment

Usage:Industrial, Home, Agriculture, Hospital

Specification:1800*1100*1600mm

Trademark:SPARK

Production Capacity:100 Sets/Month

HS Code:8421219990

📋 Product Description

Automatic Stainless Steel Chemicals Dosing Machine Dosage Feeding Equipment for Polymer Flocculant Agent PAC PAM

QDJY series medicine equipment is specially designed to feed and add water quality stabilizers, coagulants, disinfectants, and various other water treatment medicaments. This equipment features a compact structure, ease of operation, and stable performance. It is characterized by small energy consumption, anti-corrosive properties, and low noise operation.

Performance Features:

PT polymer dissolved dosing device
Three Slots continuous preparation with simple operation
Precision conveyor with pre-invasion device to reduce agglomeration phenomenon
Adjustable dry powder and water input for desired liquid concentration
Guaranteed liquid curing time of 45-60 minutes
Integrated control cabinet for homogeneous solution preparation
Visual and audible alarms for low material levels in the dry powder hopper
Optional features: Liquid polymer feed, vacuum conveyors, on-line dilution system, static mixer
Tank materials: Stainless steel SS304 or SS316L, Polypropylene PP, High-density polyethylene HDPE

Applicable Scope:

Water projects involving coagulants, disinfectants, and dissolution agitation.
Configuration and dosing of acid and alkali solutions.
Desalination water treatment and fluid regeneration configuration.
Disposition of recirculated cooling water quality stabilizers.

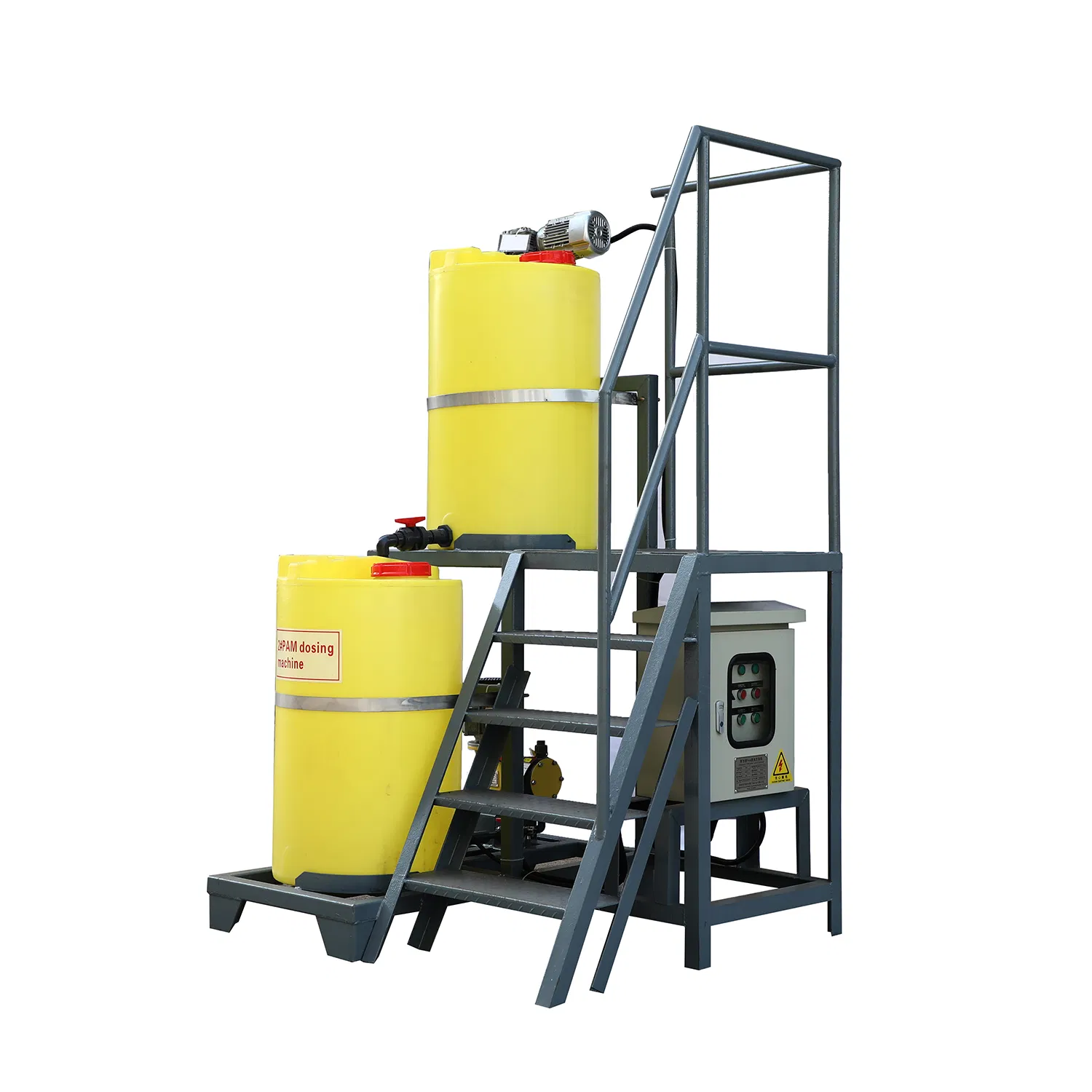

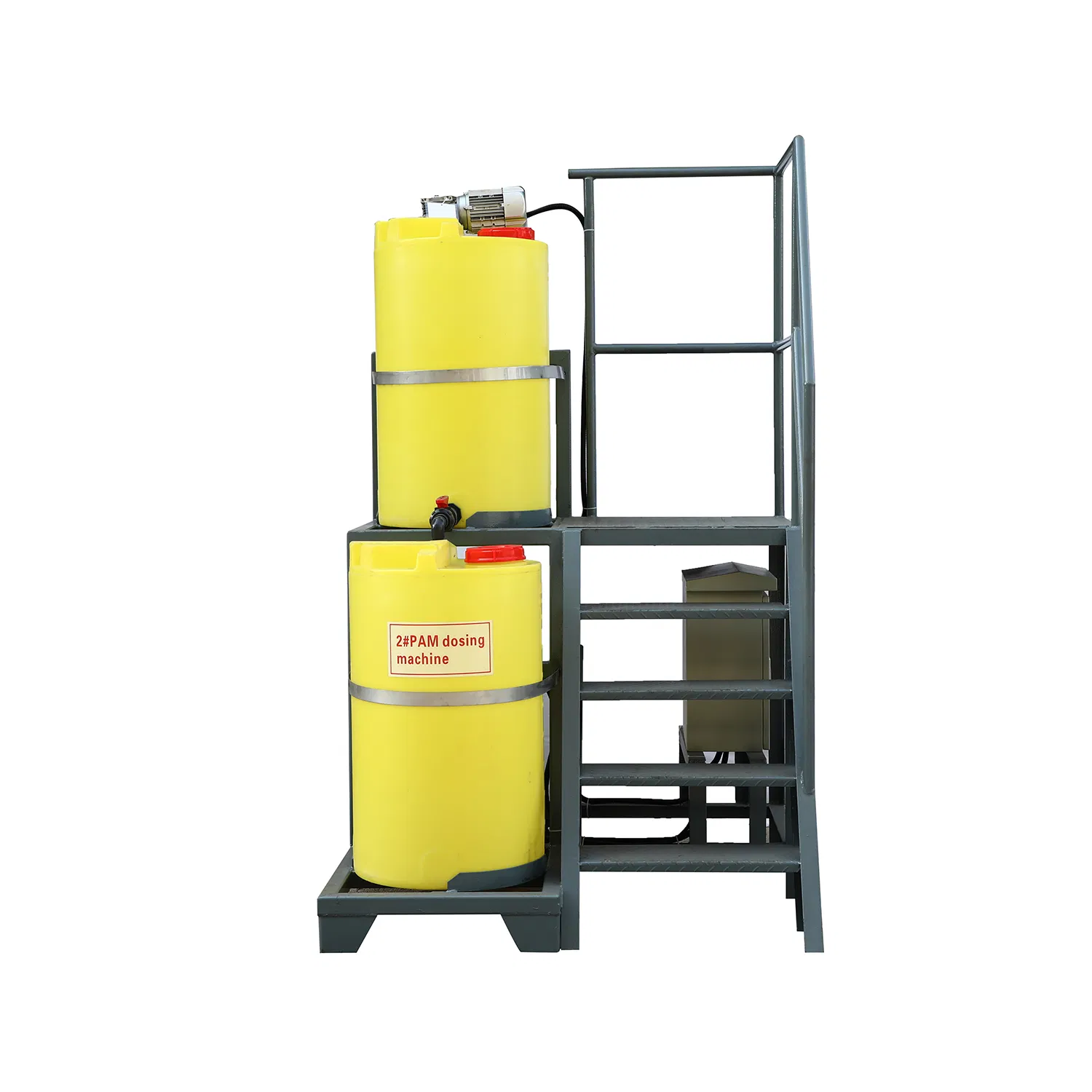

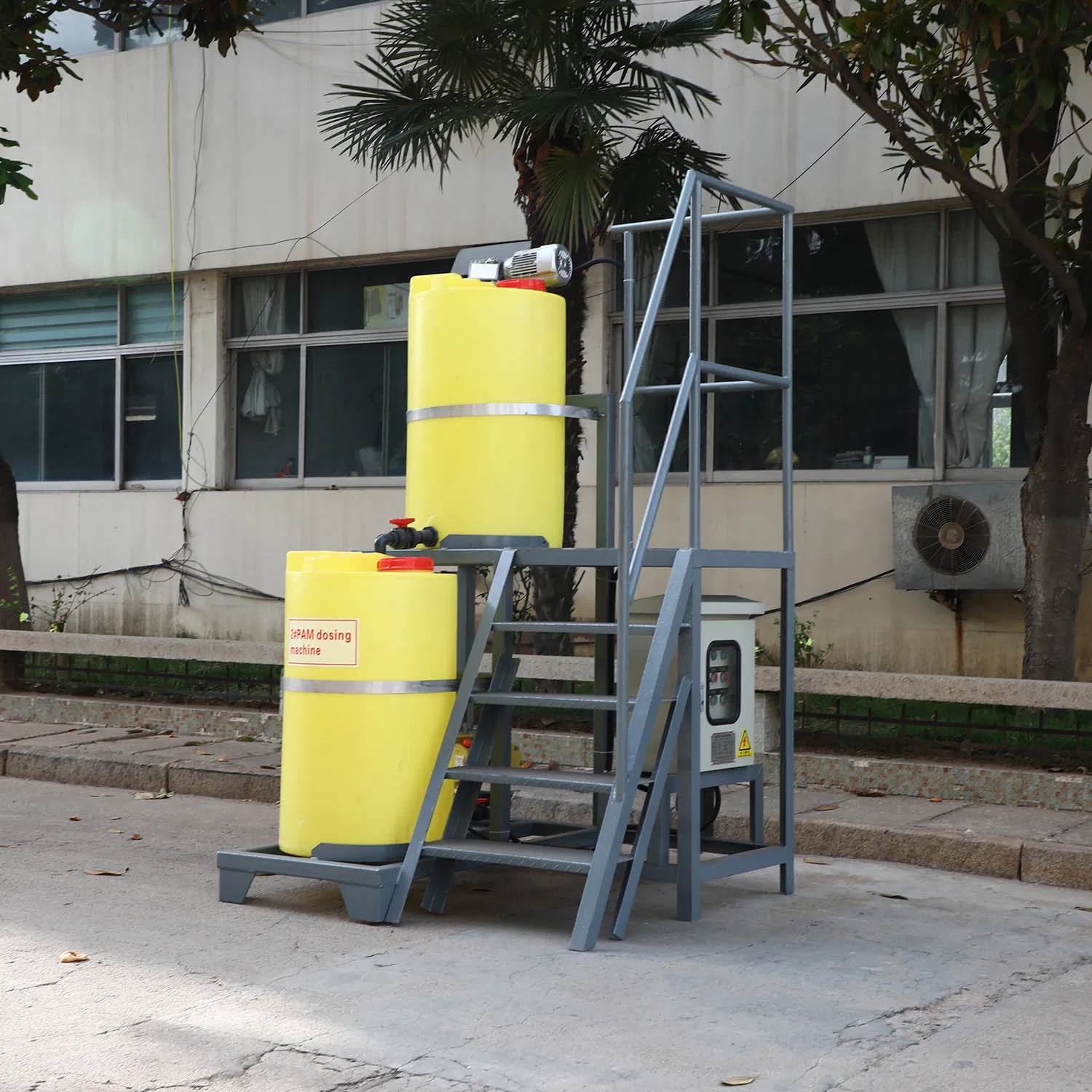

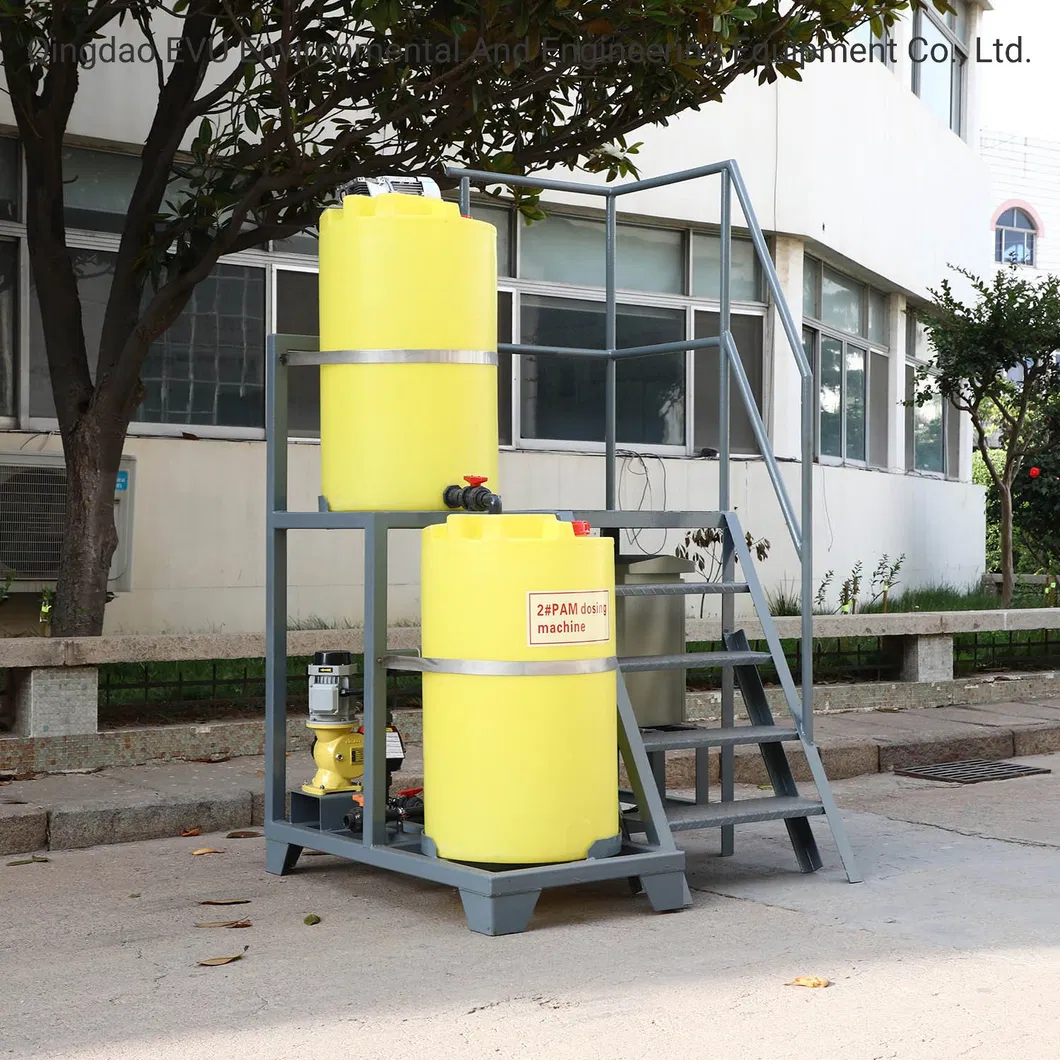

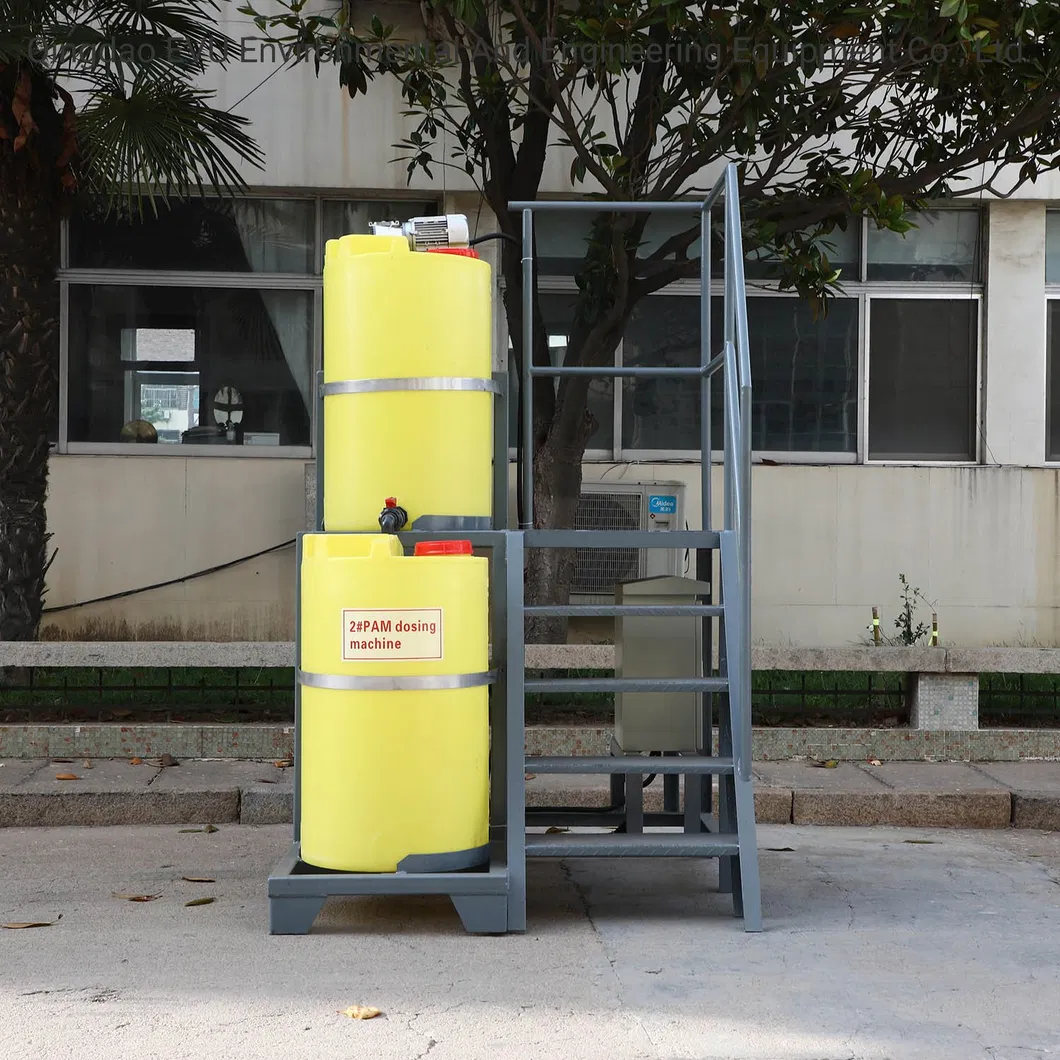

📷 Detailed Photos

📊 Product Parameters

Model	Max. Capacity (lt/hr)	Tank (Lt.)	QTY	Rotate Speed 60Hz (rpm)	HP (KW)	Max. Power Consumption (kw)
QDJY-500	500	16	2	168	0.18	1.5
QDJY-1000	1000	16	2	224	0.37	1.5
QDJY-2000	2000	16	2	224	0.37	1.5
QDJY-3000	3000	16	2	227	0.75	2.2
QDJY-4000	4000	16	2	227	0.75	2.2
QDJY-5000	5000	16	2	227	0.75	2.2

📜 Certifications

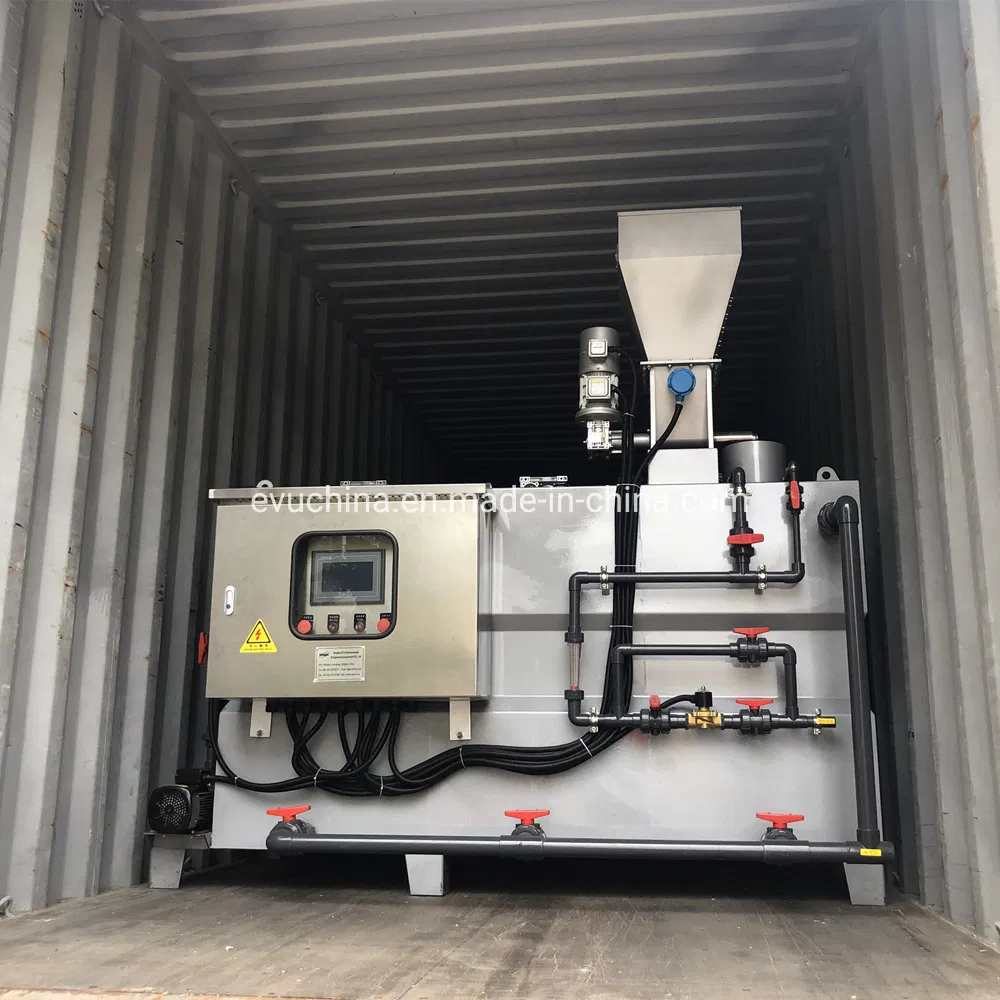

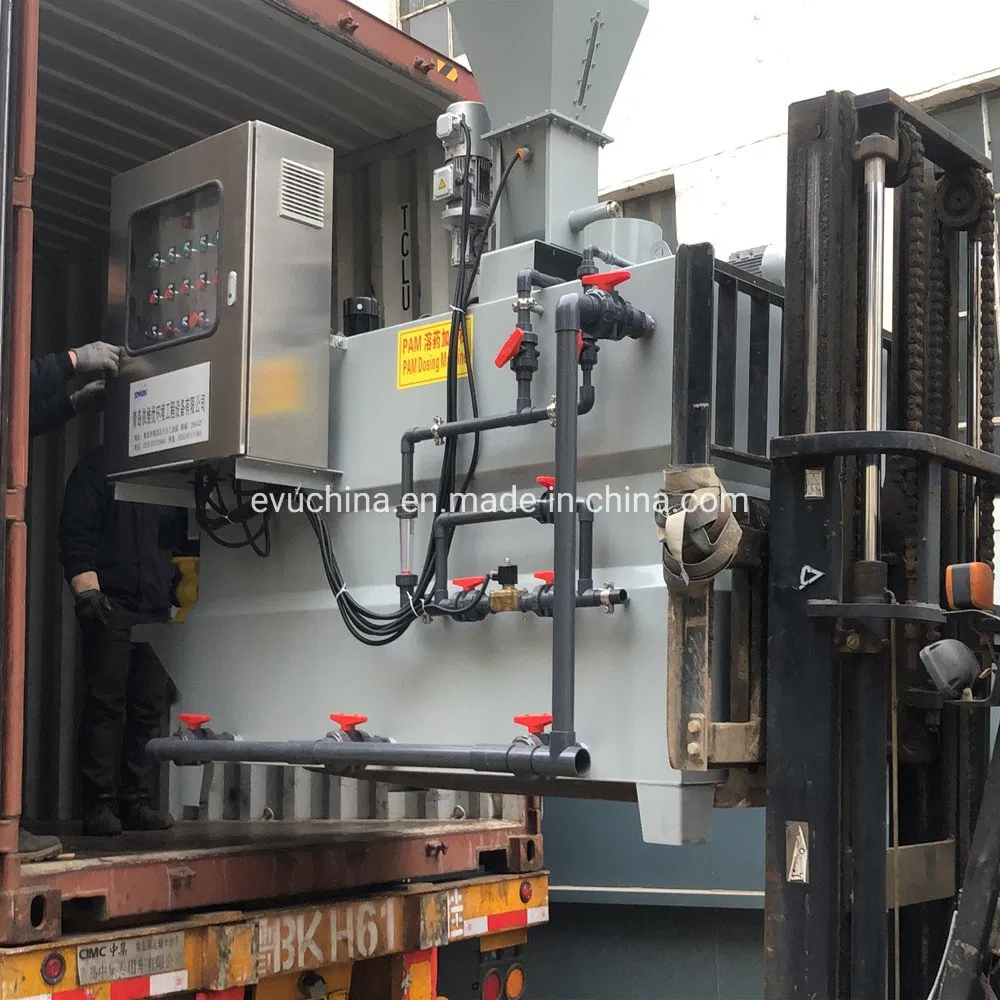

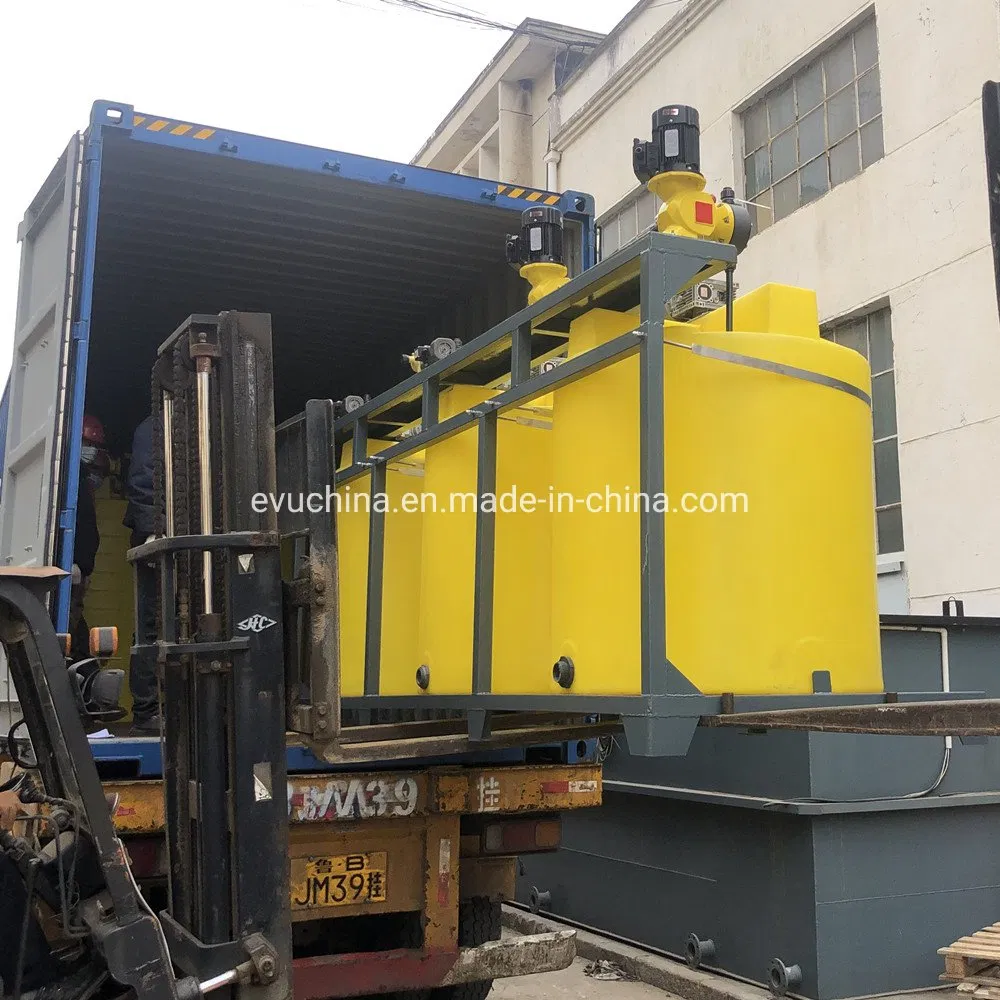

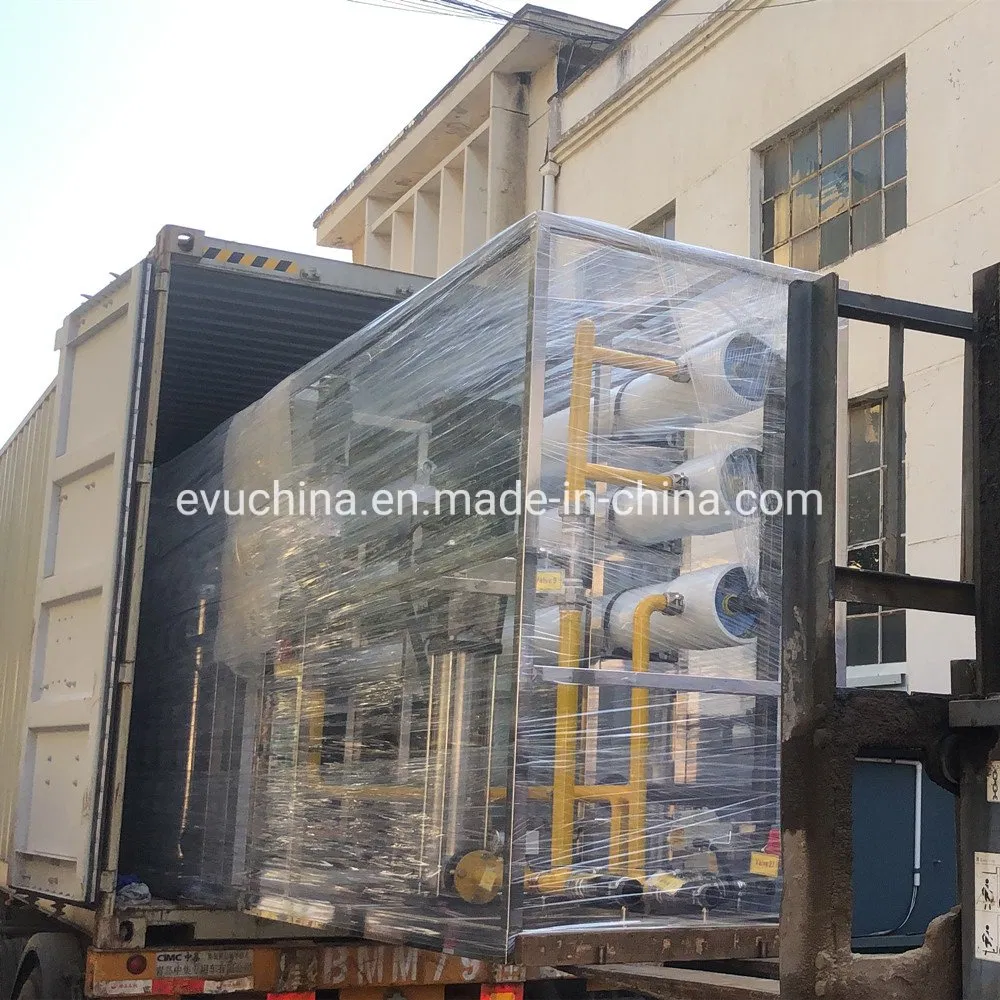

📦 Packaging & Shipping

⭐ Our Advantages

With professional engineer support, a high-efficiency sales team, and competitive pricing, we attract customers globally. Our products are exported to over 40 countries, including Europe, Poland, Serbia, Uruguay, Russia, USA, Mexico, Brazil, Singapore, India, Egypt, and South Africa.

Main Product Lines:

Integrated Sewage Treatment MBR Systems Electrocoagulation Plants Reverse Osmosis Filteration DAF & CAF Machines Screw Press Dewatering Automatic Dosing Systems

🛠 After Sales Service

24/7 access to professional hotline for trouble-shooting assistance.
On-site installation and debugging services with professional engineer guidance.
Comprehensive training for operators provided.
English manual book included with the machine delivery.
Provision of technical drawings and layouts.

Frequently Asked Questions

What types of chemicals can the QDJY dosing machine handle?

The machine is designed for polymer flocculants (PAC, PAM), water quality stabilizers, coagulants, disinfectants, and various acid/alkali solutions used in water treatment.

What are the available materials for the dosing tank?

Depending on your specific chemical requirements, tanks are available in Stainless Steel (SS304 or SS316L), Polypropylene (PP), or High-Density Polyethylene (HDPE).

Does the system include an automatic alarm?

Yes, the system is equipped with visual and audible alarm signals to alert operators when the dry powder hopper material level is low.

Can the concentration of the liquid solution be adjusted?

Yes, both the dry powder feed and water intake can be adjusted to achieve any desired concentration for the liquid solution.

How is the solution curing time managed?

The equipment features a three-slot design that ensures a continuous preparation process with a guaranteed curing time of 45-60 minutes.

Is technical support available for international customers?

Absolutely. We provide English manual books, technical drawings, and 24/7 remote support, as well as on-site installation and training guided by professional engineers.
