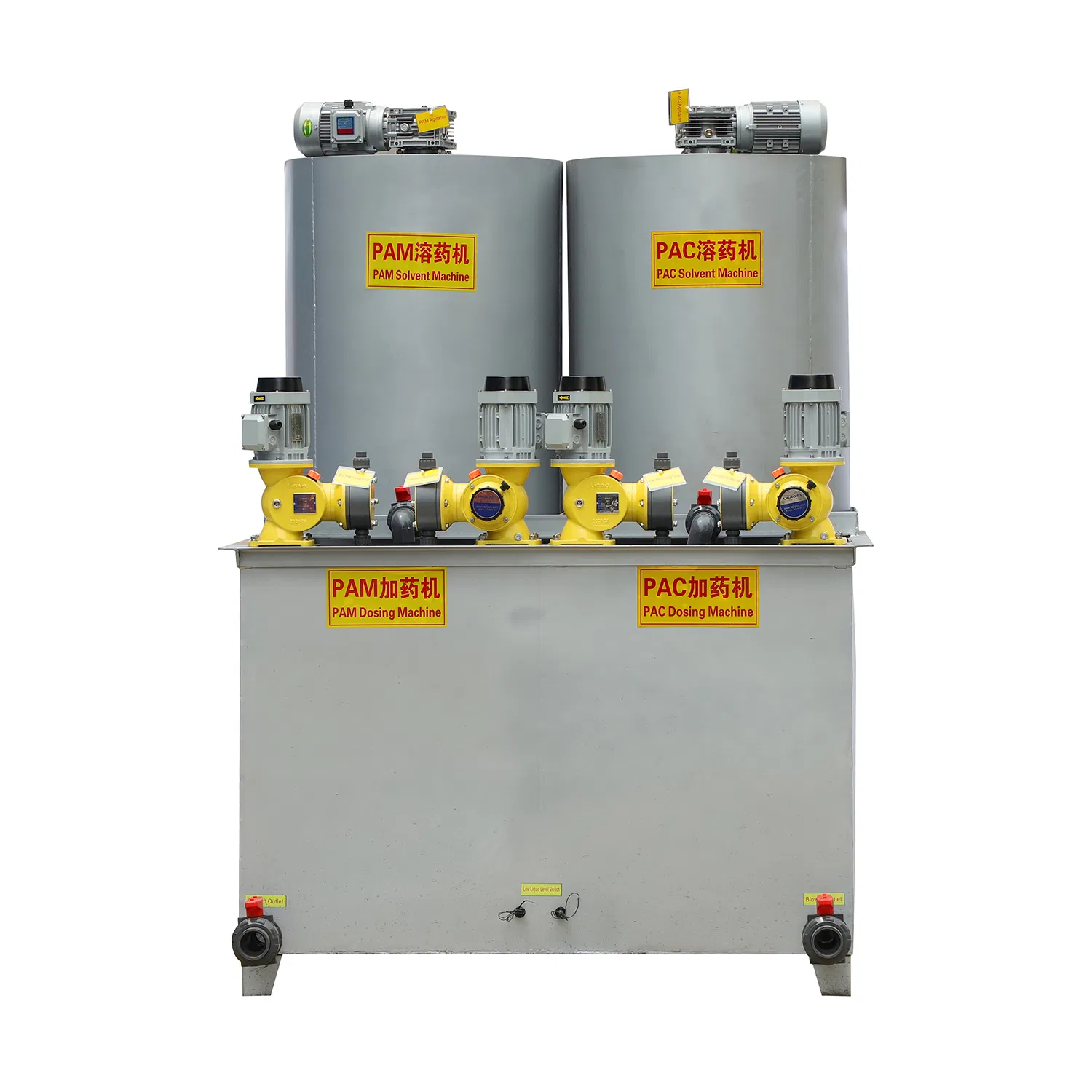

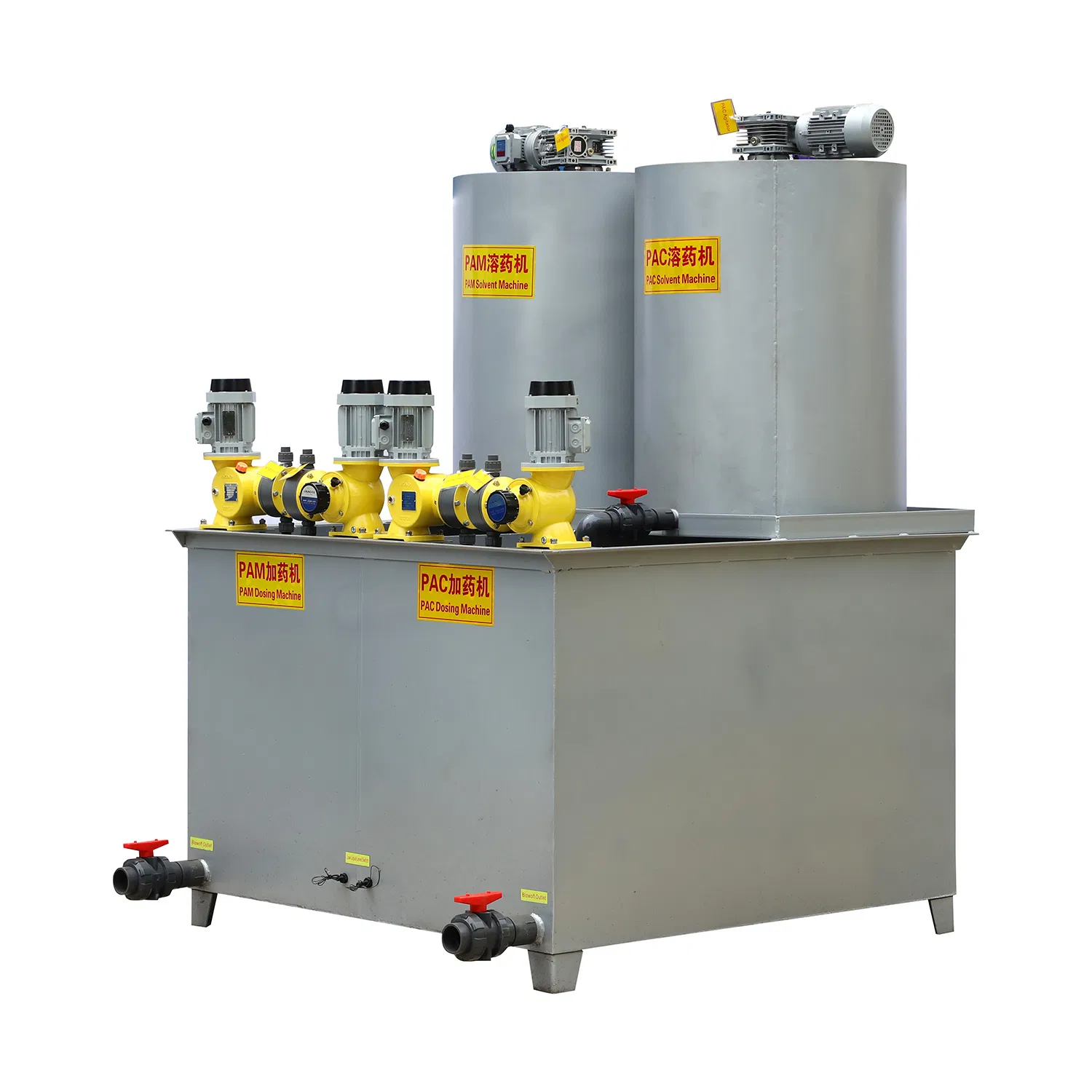

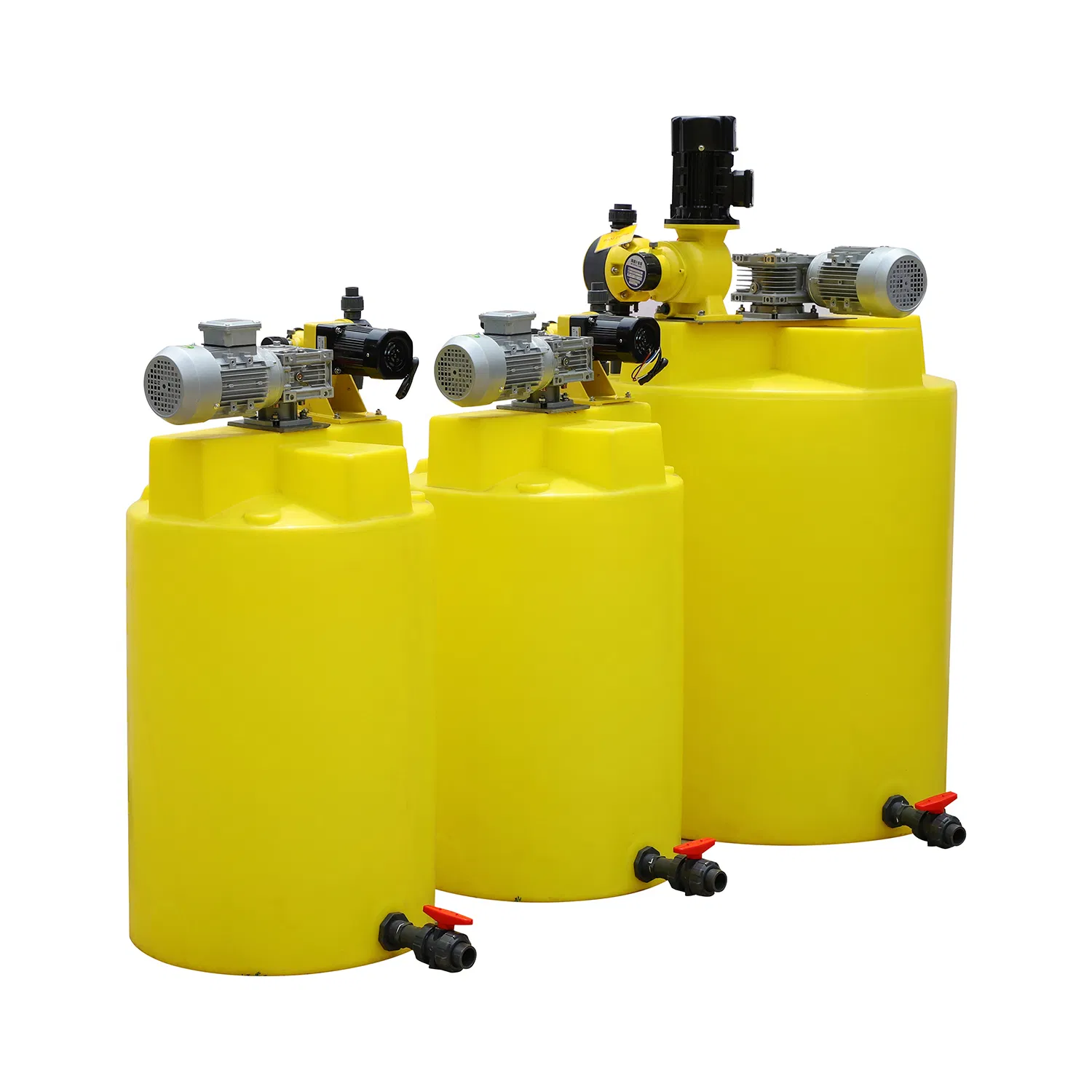

Automatic Polymer Dosing System Polymer Dosing for Water Treatment Filter

1 / 5

Automatic Polymer Dosing System Polymer Dosing for Water Treatment Filter

Customization:	Available
After-sales Service:	24 Hours
Warranty:	1 Year

Send Inquiry

Product Description

Automatic Stainless Steel Chemicals Dosing Machine

The equipment is specifically designed for feeding and adding water quality stabilizers, coagulants, disinfectants, and various other water treatment medicaments. It features a compact structure, ease of operation, stable performance, low energy consumption, and anti-corrosive properties.

📋 Basic Information

Model NO.

QDJY

Type

Automatic Soluble Drug Dosing Machine

Method

Chemical Treatment

Usage

Industrial, Agriculture, Hospital

Specification

1800*1100*1600mm

HS Code

8421219990

⚙️ Performance Features

Three Slots continuous preparation with simple operation.
Specially designed pre-invasion device to reduce powder agglomeration.
Adjustable dry powder and water input for precise liquid concentration.
Ensures liquid curing time of 45-60 minutes.
Integrated control cabinet for automated production process.
Visual and audible alarm for low hopper material levels.
Optional Features: Liquid polymer feed, vacuum conveyors, on-line dilution, and static mixers.
Material Options: Stainless steel SS304/SS316L, Polypropylene (PP), or HDPE.

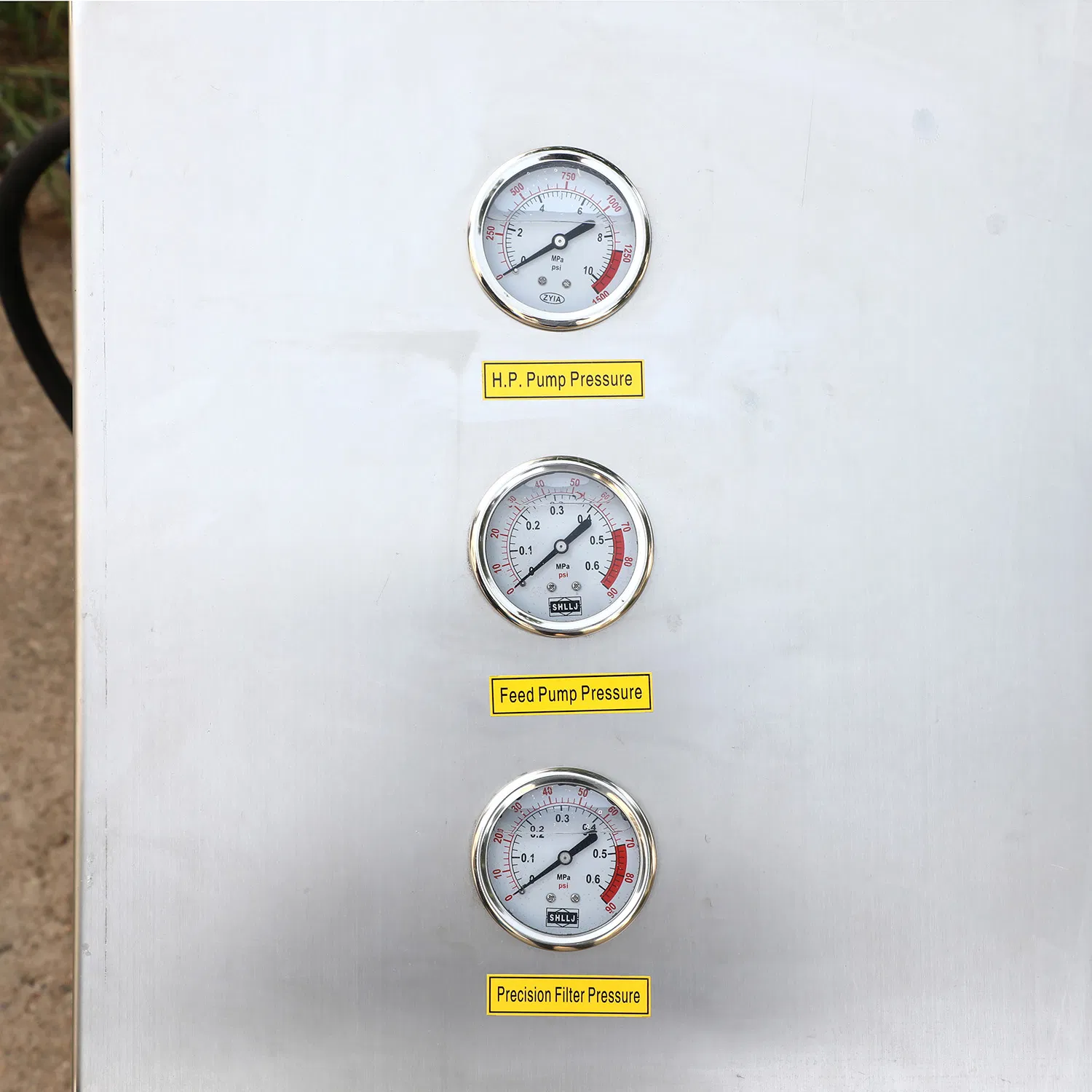

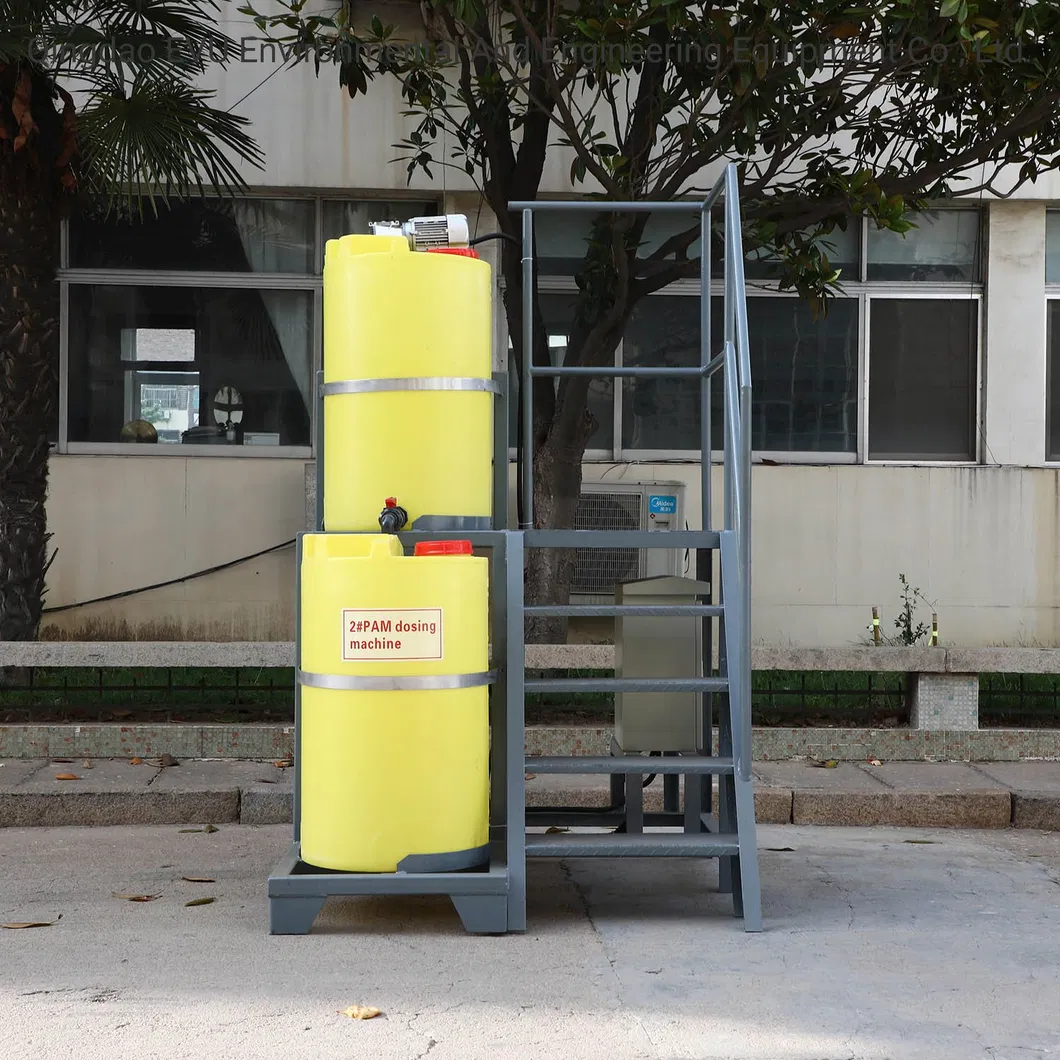

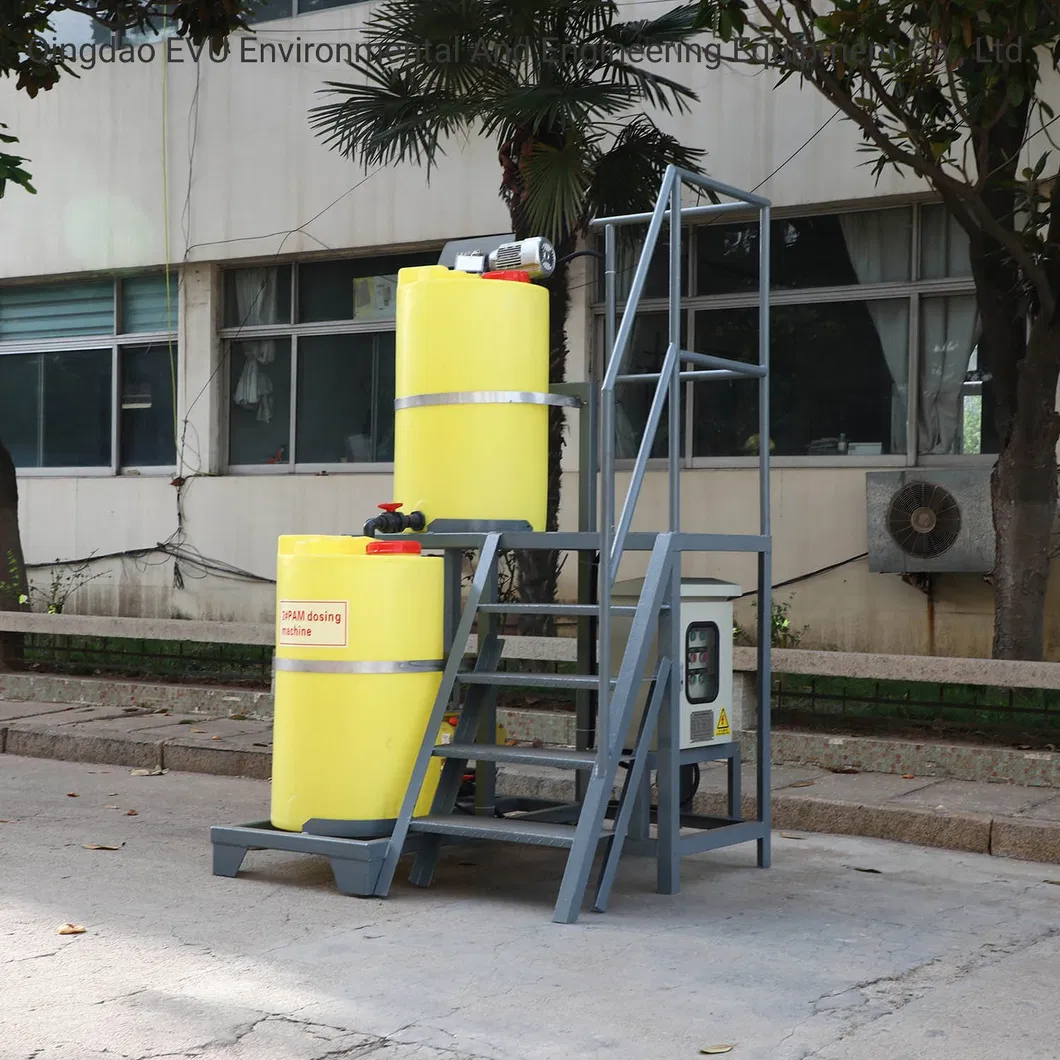

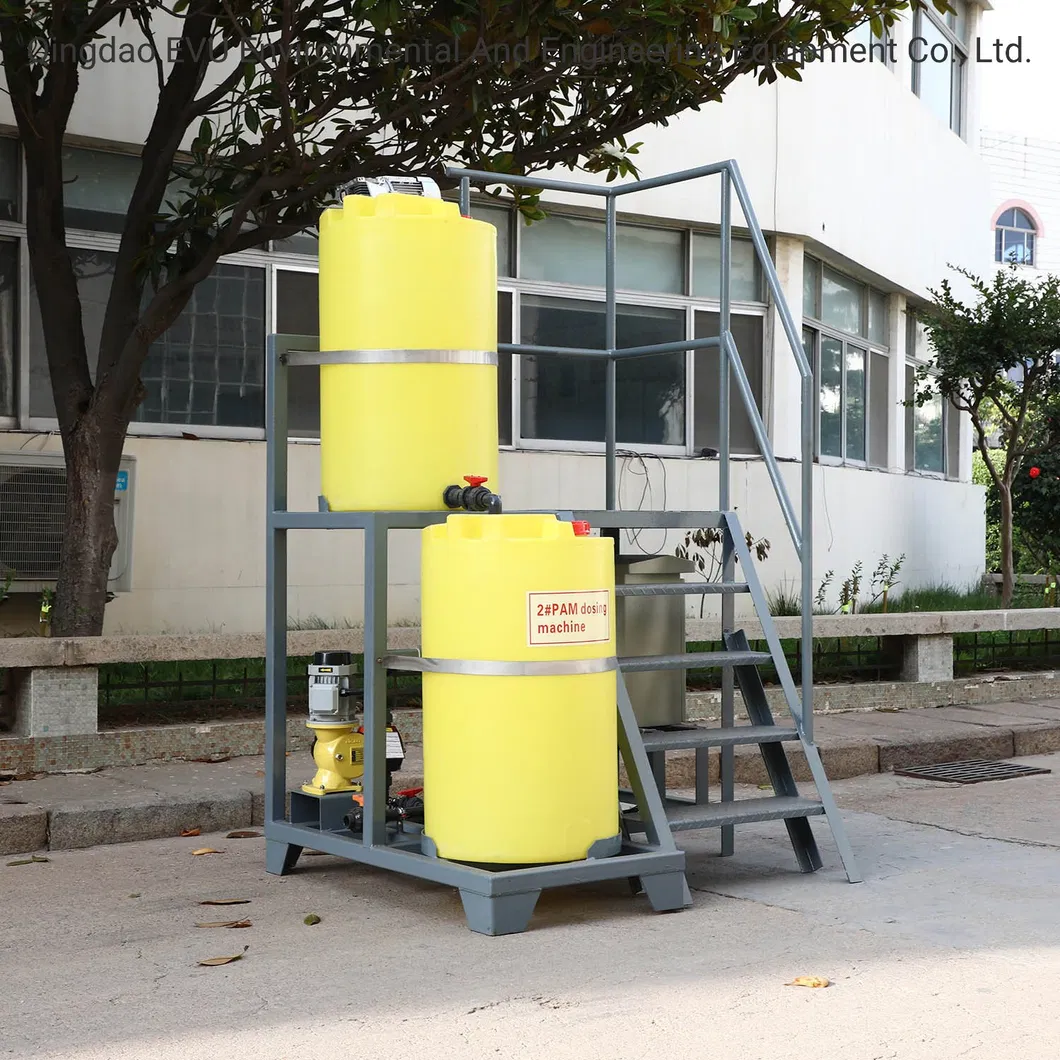

🖼️ Detailed Photos

📊 Technical Parameters

Model	Max. Capacity (lt/hr)	Tank (Lt.)	Rotate Speed 60Hz (rpm)	HP (KW)	Max. Power Consumption (kw)
QDJY-500	500	16	168	0.18	1.5
QDJY-1000	1000	16	224	0.37	1.5
QDJY-2000	2000	16	224	0.37	1.5
QDJY-3000	3000	16	227	0.75	2.2
QDJY-4000	4000	16	227	0.75	2.2
QDJY-5000	5000	16	227	0.75	2.2

🛡️ Certifications & Production

Our facility integrates scientific research design, equipment manufacture, and technical services. We utilize advanced technology to produce high-quality equipment including MBR systems, Reverse Osmosis units, and Screw Press Sludge Dewatering machines.

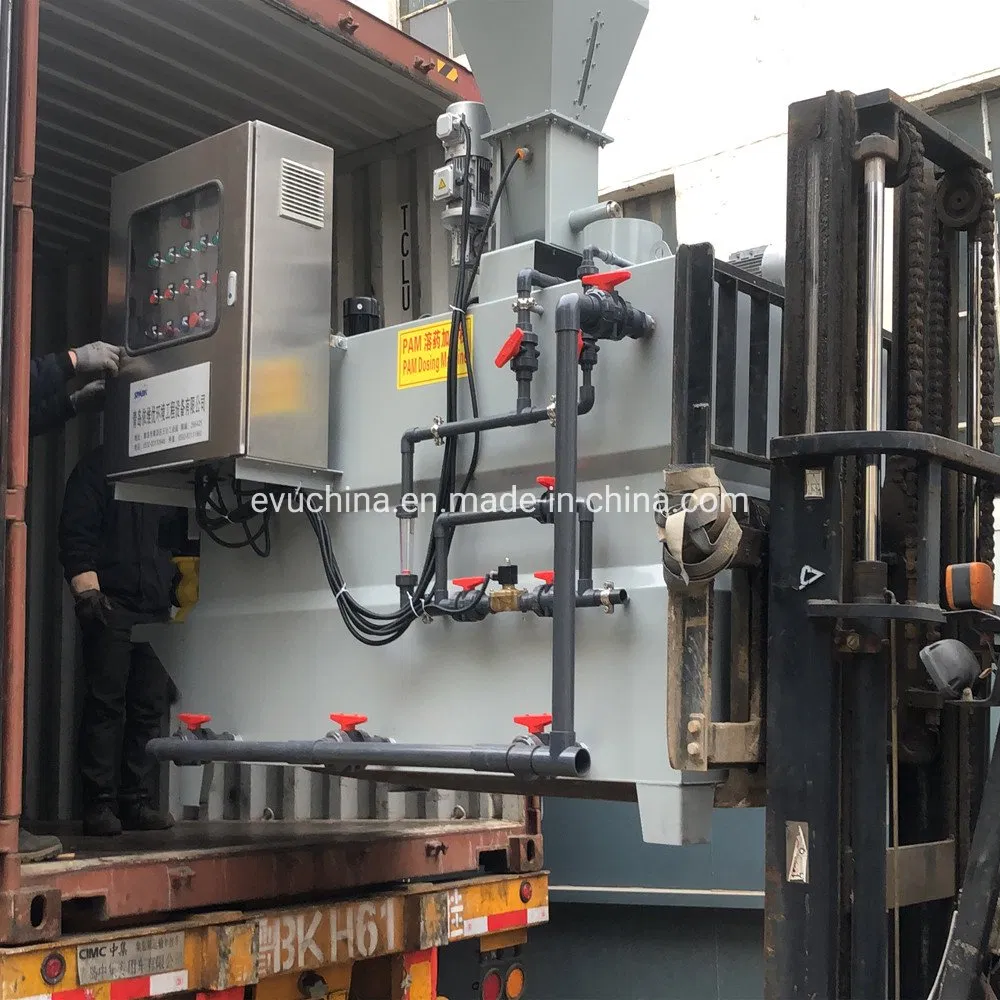

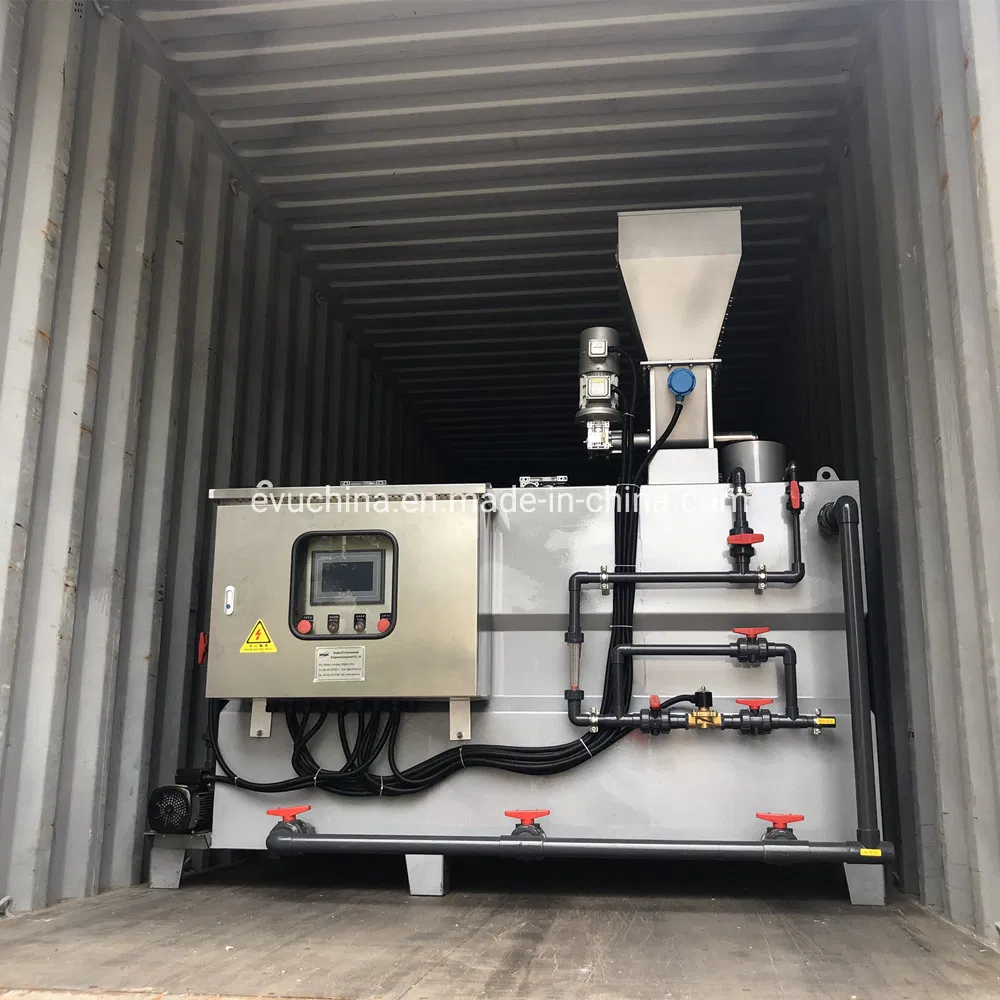

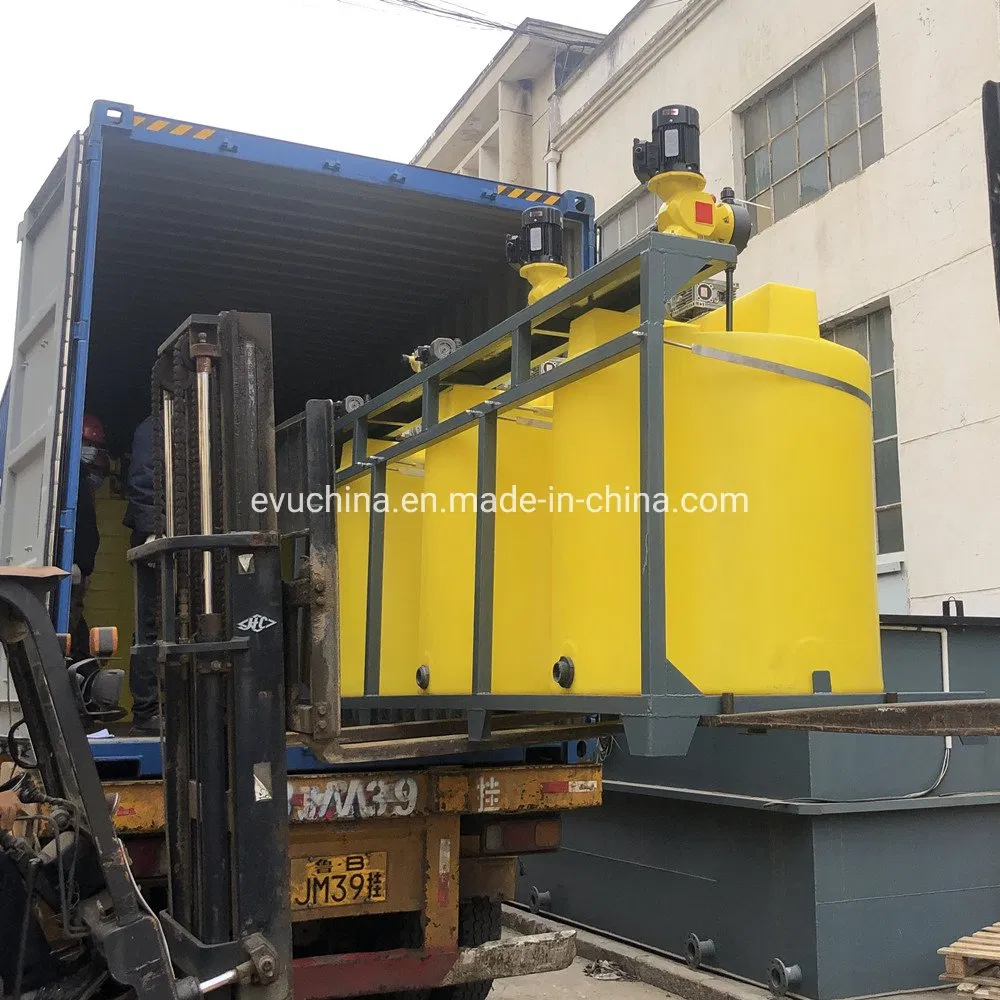

📦 Packaging & Shipping

🛠️ Service & Support

Professional engineering support and high-efficiency sales team.
24/7 technical assistance for troubleshooting.
On-site installation and debugging services available globally.
Comprehensive English manual and technical drawings provided with every machine.

Frequently Asked Questions (FAQ)

What materials are available for the dosing tanks?

We offer multiple material options depending on your requirements, including Stainless Steel (SS304 or SS316L), Polypropylene (PP), and High-Density Polyethylene (HDPE).

How does the system handle dry powder agglomeration?

The QDJY series features an ingenious pre-invasion device in the conveyor that significantly reduces the block phenomenon and ensures smooth powder dissolution.

Is the curing time for the chemical solution guaranteed?

Yes, the three-slot continuous preparation design ensures a liquid curing time of 45 to 60 minutes for a homogeneous solution.

Does the machine include automated alarms?

Yes, the system is equipped with visual and audible alarms to alert the operator when the dry powder hopper material level is low.

Can this machine handle liquid polymers as well?

While optimized for dry powder, a liquid polymer feed function is available as an optional feature to meet specific project needs.

What kind of after-sales technical support do you provide?

We provide 24/7 technical support, English operation manuals, professional installation guidance, and on-site debugging services by experienced engineers.
