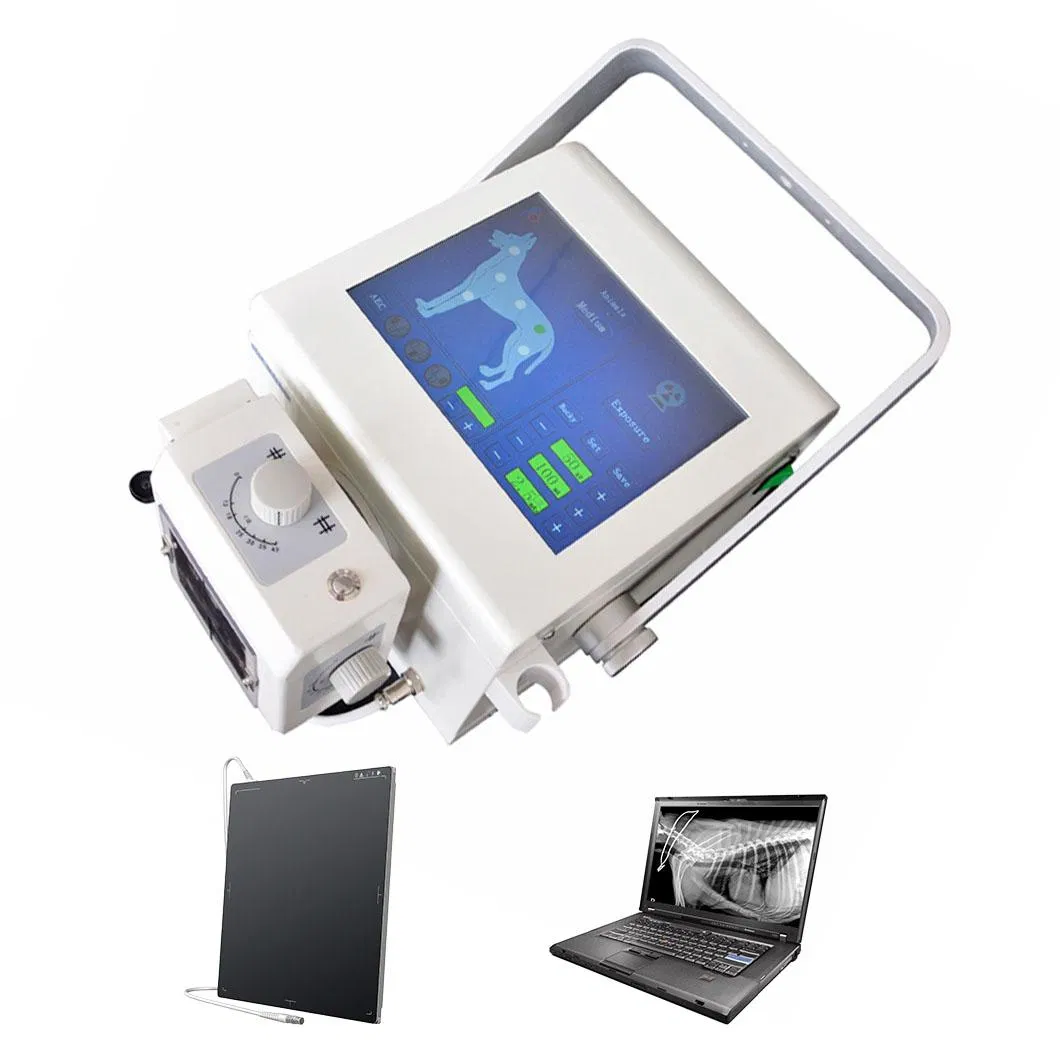

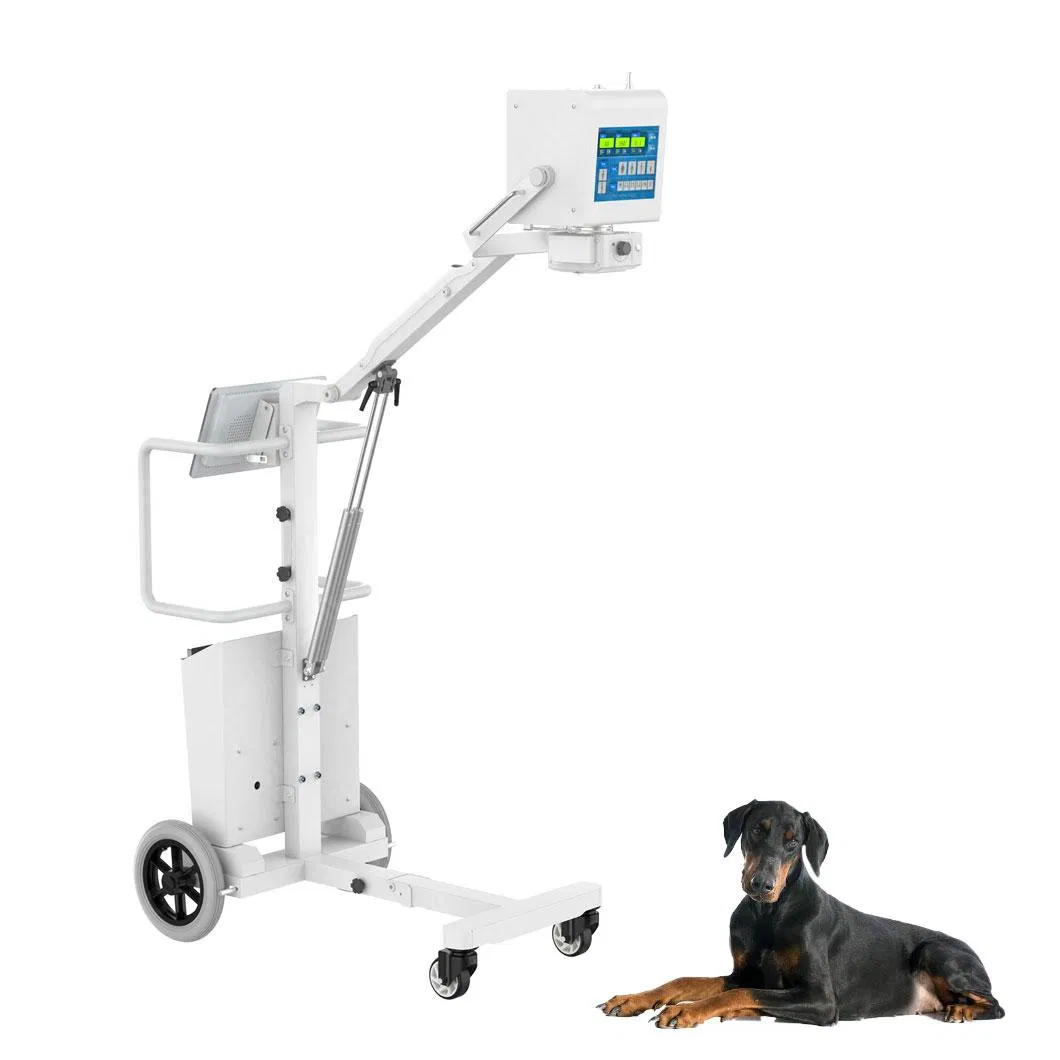

8kw 160mA Portable Digital Mobile X Ray Diagnosis Equipment for Human or Veterinary

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Information

Model NO. WMDR-001
Transport Package Paper Box
Origin China
Production Capacity 50000PCS/Year
📸

Product Gallery

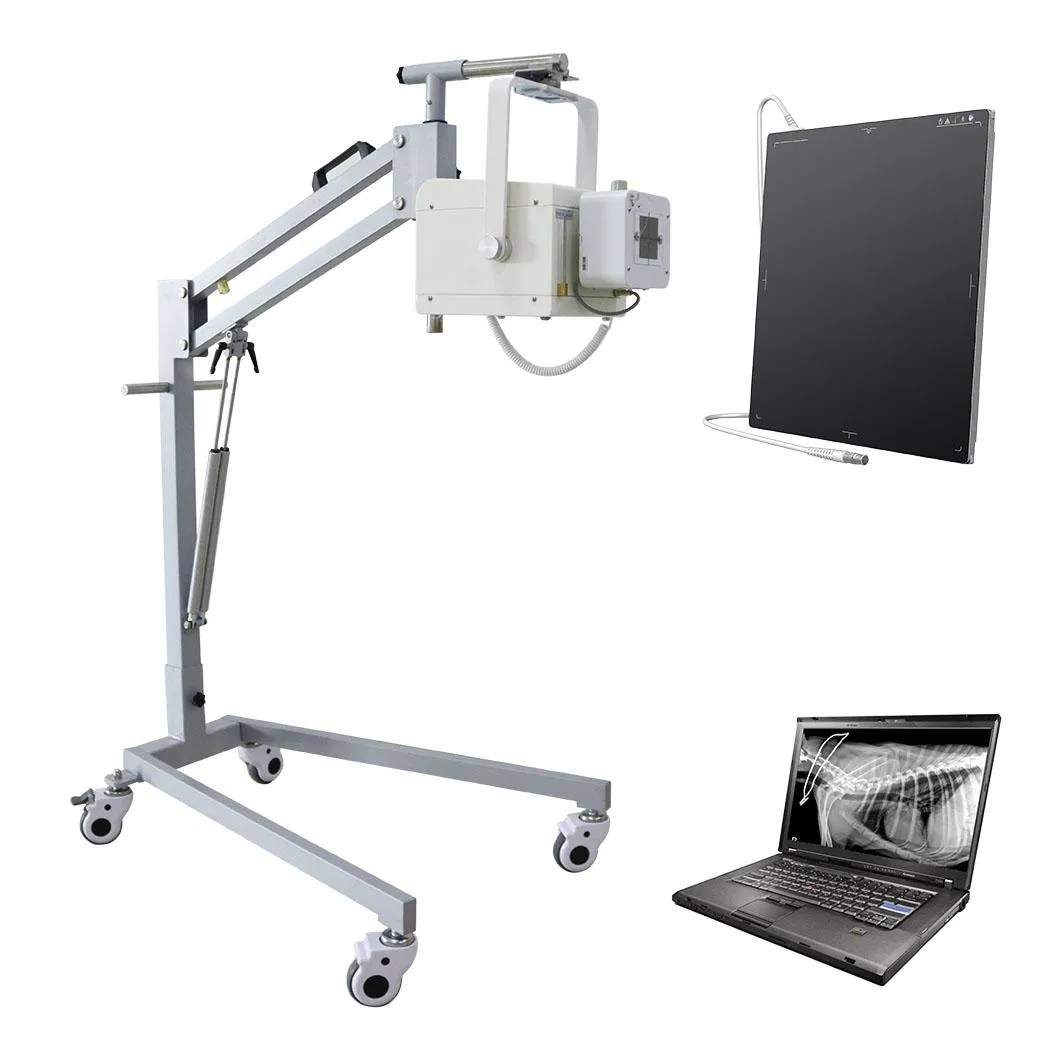

Portable Digital Mobile X Ray

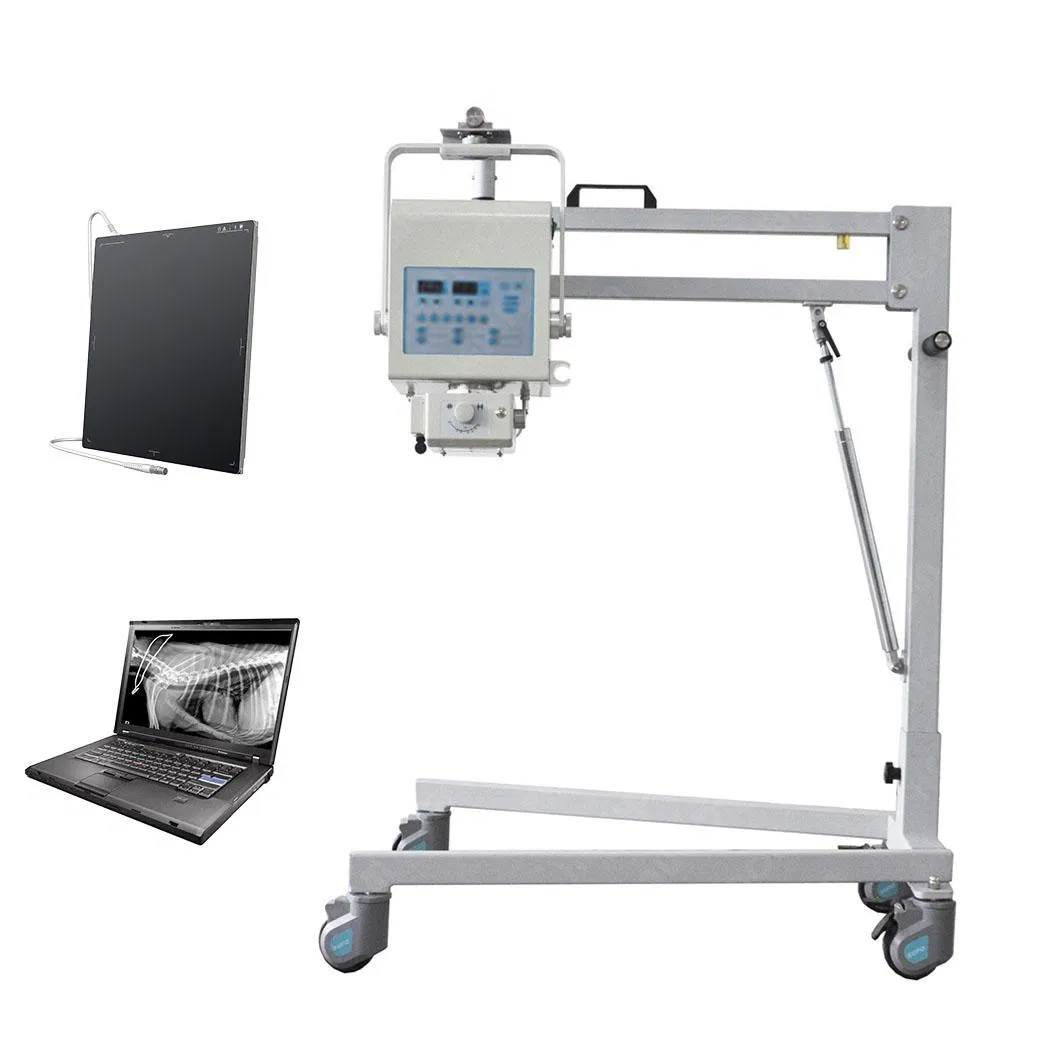

X Ray Diagnosis Equipment

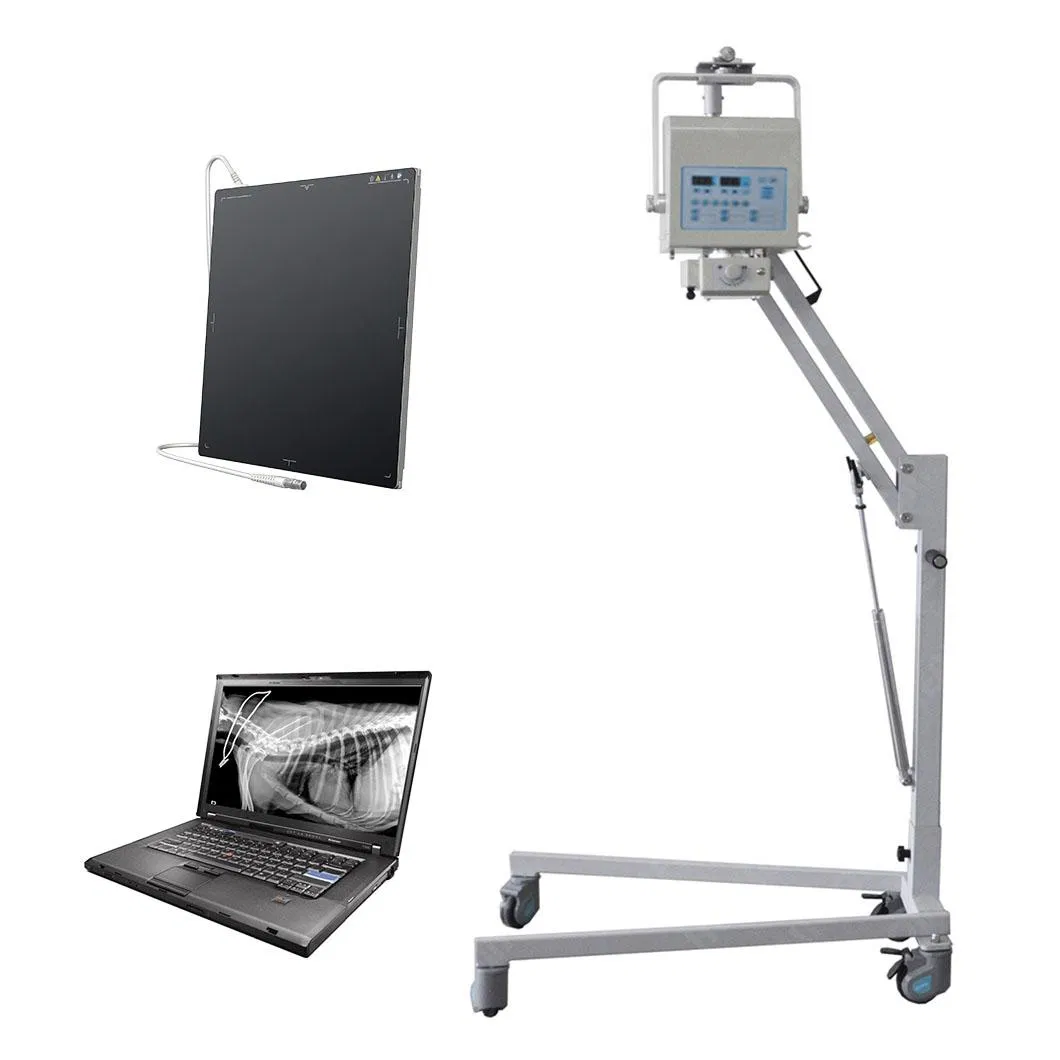

Mobile X Ray Unit
⚙️

Technical Specifications

Product Details

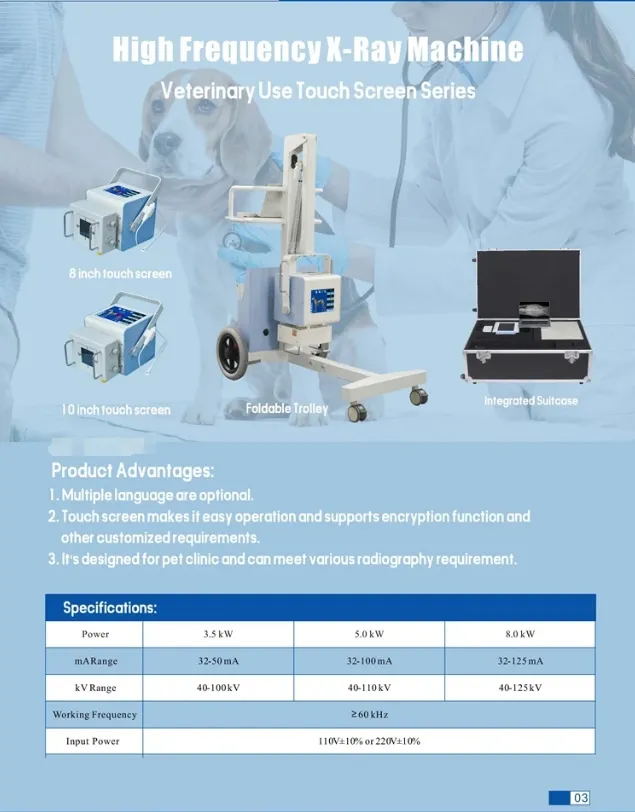

Technical Specs

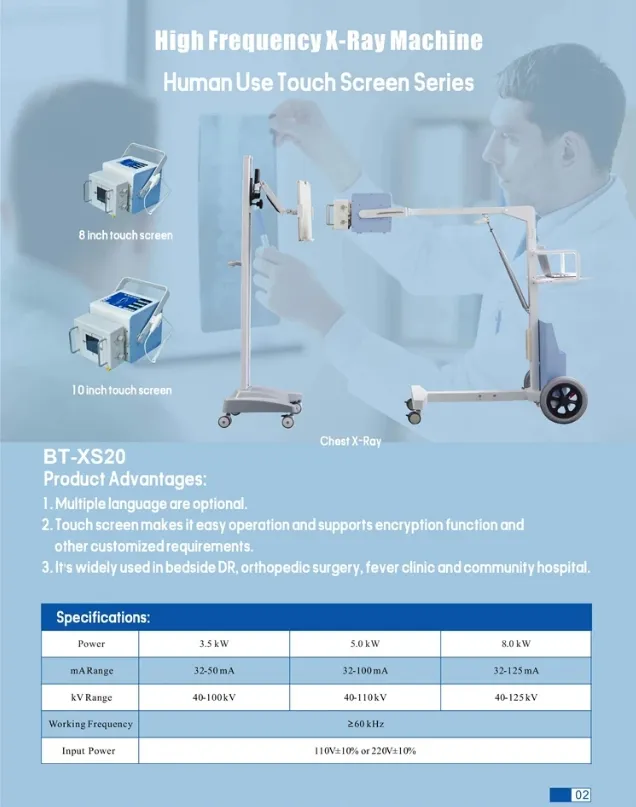

Technical Specs 2
ModelDR-M100A & DR-M100AV
Input powerVoltage: AC220V±22V Frequency: 50/60Hz±1Hz
Maximum output power5kW
Nominal powerAC 220V, 50Hz
kV adjusting range40kV~110kV, Continuous adjustment step 1 kV
mA adjusting range20mA~100mA
mAs adjusting range0.2mAs~200mAs, shifted adjustment
s adjusting range10~4000ms
X-ray tubeFocus: 0.5/1.6mm; Anode heat capacity: 240kHU
Flat Panel Detector17X17inch; Scintillator: CsI Direct Deposit; Pixel Pitch: 139; Limit resolution: Max.3.6LP/mm; Pixels: 3072*3072
LaptopModel: Lenovo; CPU: Intel Core i5; Memory: 4GB; Screen: 14 inch
X-ray machine size290×265×230mm
Weight19kg
Standard ConfigurationHand switch, remote control, detector, computer & LCD, suitcase, moveable stand

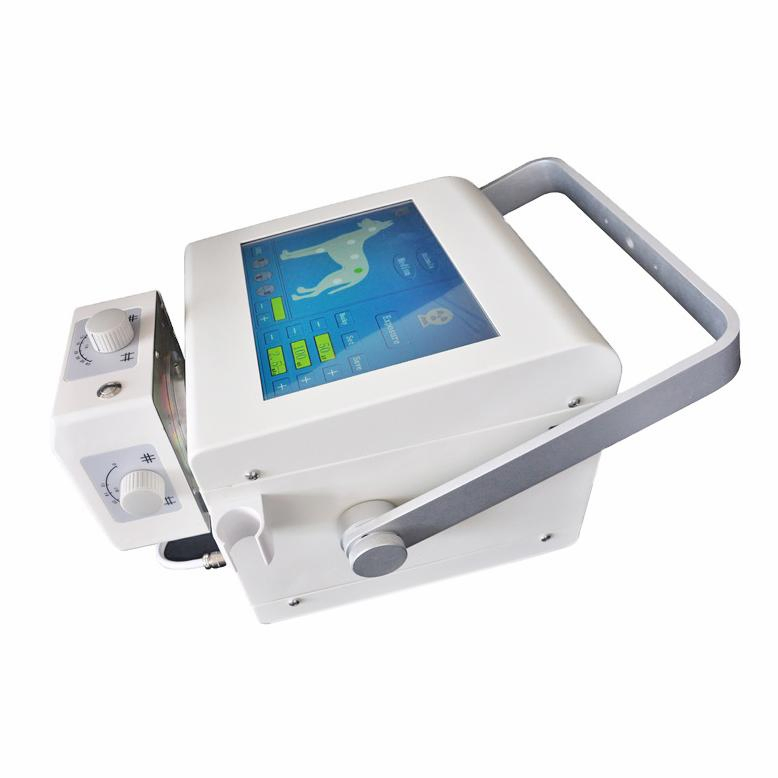

X-ray Components

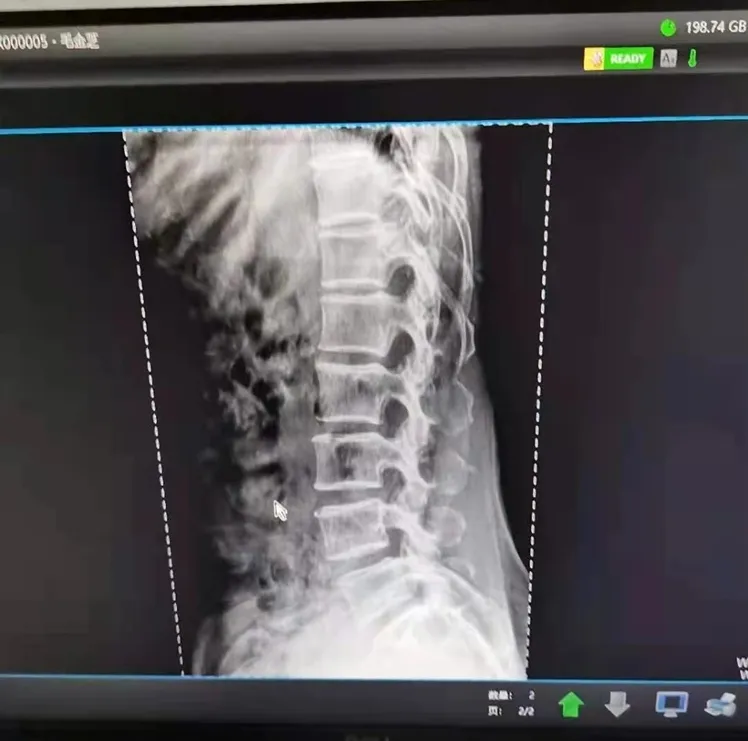

X-ray Components 2
X-ray Components 3

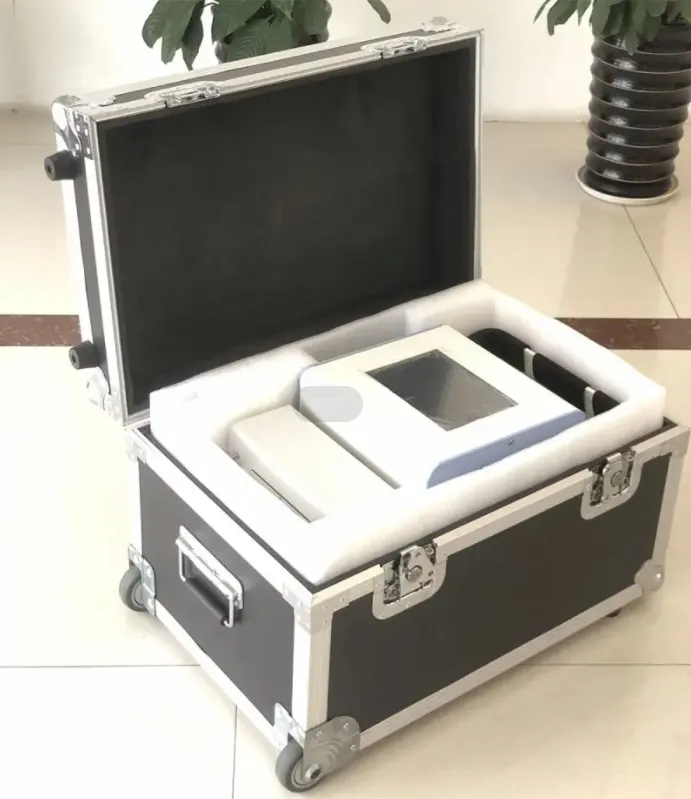

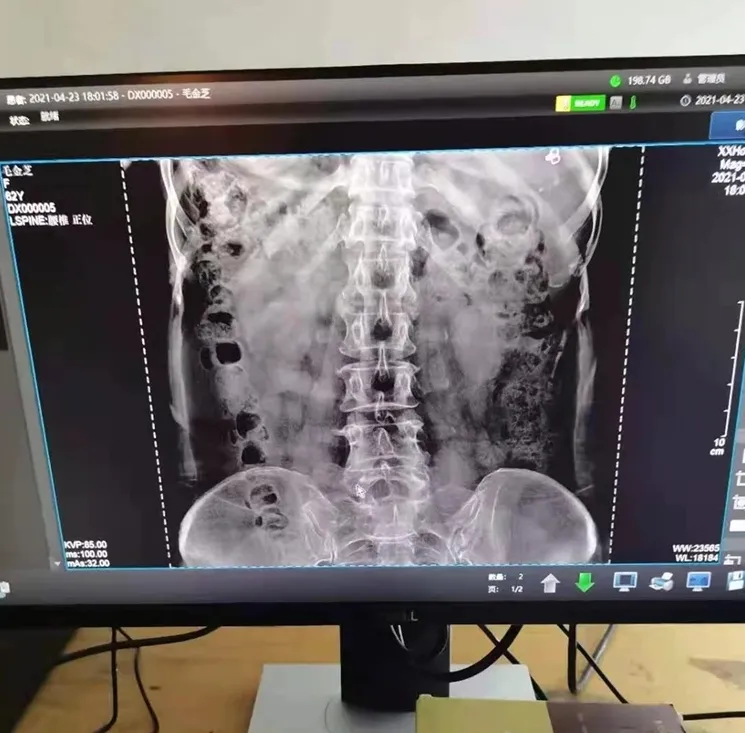

X-ray Display
📜

Certificates

Quality Certificates
🏭

Manufacturing Excellence

Our company was founded in 2010. After several years' development, our company is today one of the professional supplier of medical equipment and veterinary equipment. Our full range of products included infusion & syringe pump, Ultrasound, Anesthesia Machine, Ventilator, Patient monitors, Blood pressure monitor, Stainless steel cages and so on. We have been familiar with the high quality standards in this area from the beginning. Our company has been working with a quality management system according to ISO for years. Quality always is the first concern of us. Today, our products are shipped to all over the world, such as Europe, Middle East, Africa, South America, and Asia as well. Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are now looking forward to even greater cooperation with overseas customers based on mutual benefits.

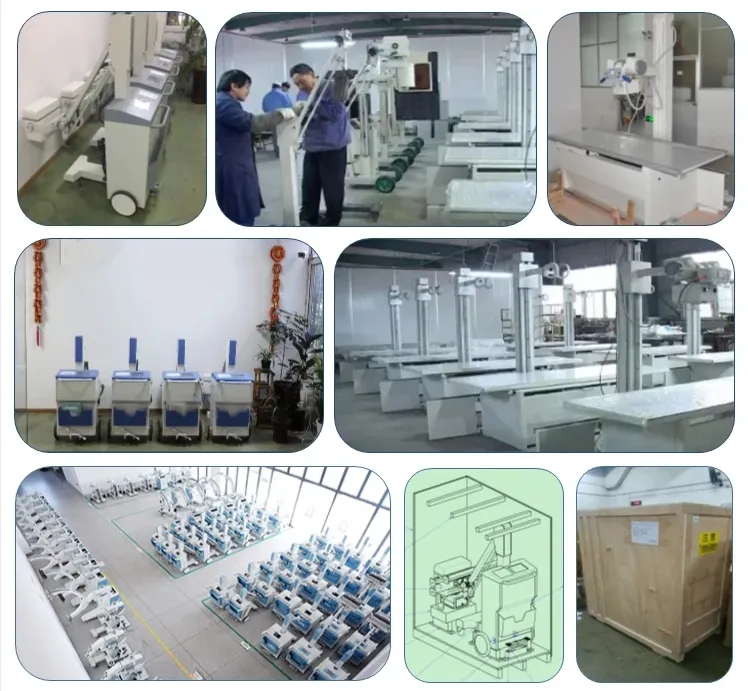

Factory View

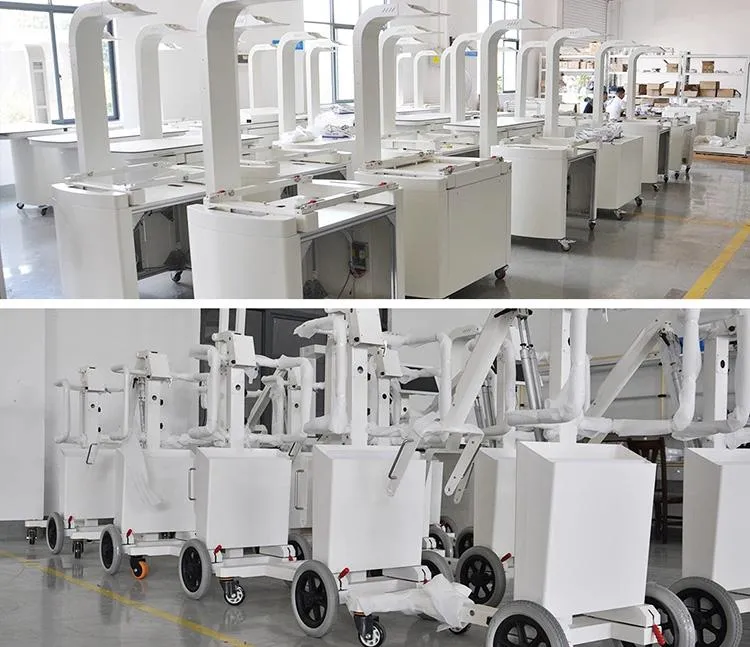

Production Line
🤝

Exhibitions

Medical Exhibition
Global Trade Show

Customer Feedback

Feedback 1
Feedback 2
🔗

Related Products

Related Product 1
Related Product 2
Related Product 3

Frequently Asked Questions

🔹 What is the output power of this portable X-ray machine?
The equipment features a maximum output power of 5kW, providing high-quality imaging for various diagnostic needs.
🔹 Can this equipment be used for both humans and animals?
Yes, the DR-M100A and DR-M100AV models are designed for both human and veterinary digital X-ray diagnosis.
🔹 What are the specifications of the digital detector?
It includes a 17x17 inch Wire Flat Panel Detector with a CsI Direct Deposit scintillator and a maximum resolution of 3.6LP/mm.
🔹 Is the system easily portable for mobile use?
Absolutely. The X-ray machine weighs only 19kg and comes with a suitcase and a moveable stand for easy transport and setup.
🔹 What is included in the standard configuration?
The standard package includes the X-ray unit, hand switch, remote control, flat panel detector, a Lenovo laptop with LCD, a suitcase, and a moveable stand.
🔹 Does the system come with imaging software?
Yes, the system is integrated with a high-performance Intel Core i5 laptop pre-configured to work with the digital detector for immediate image processing.
