5.0kw 100mA High Frequency Mobile Digital X-ray Machine Types Equipment

1 / 5

5.0kw 100mA High Frequency Mobile Digital X-ray Machine Types Equipment

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Information

Model NO.

JRX101C

Certification

CE, ISO13485

Properties

Medical X-ray Equipments & Accessories

Tube Voltage

40 Kv~120kv (Interval 1kv)

Function

Medical Diagnosis

Production Capacity

5000/Month

Product Description

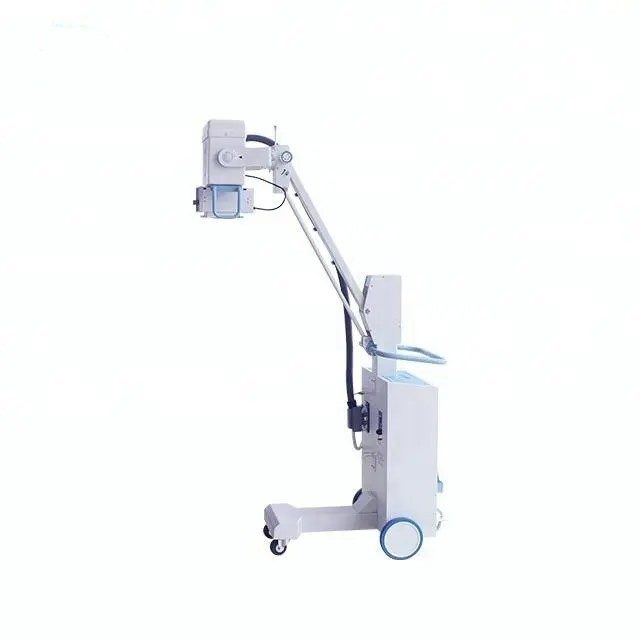

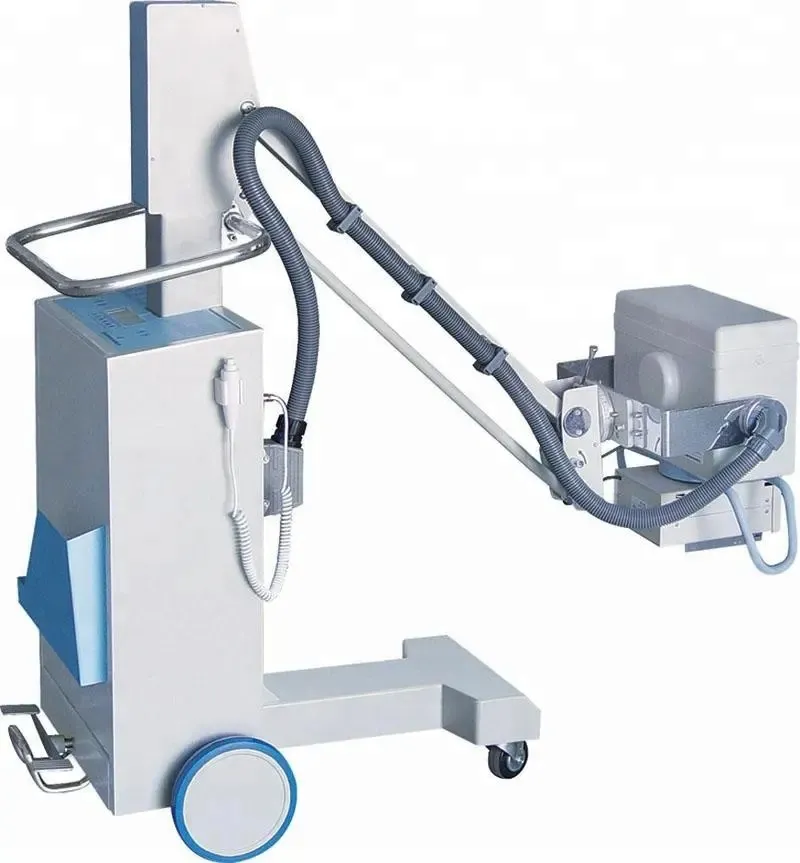

JRX101C 5.0KW 100mA High Frequency Mobile Digital X-ray Machine

1. Product Usage

This is a modular X-ray photography medical diagnosis equipment, which is available for wards, emergency, operating room, ICU and so on. A mobile diagnosis equipment for photography of body locutions such as head, arms, thoracic cavity and waist abdomen.

2. Product Features

Lovely appearance, easy to move and operate with all features of mobile X-ray photography machines.

Rocker arm applies patent technology of single-arm support and self-balanced for beautiful operation.

Expansion gate design: machine automatically locks when hand-off for safer movement.

Auto-trim patent technology for arm rotation and battery box to adjust barycenter automatically.

Compact high-frequency and high-voltage X-ray generator ensures superior image quality with low skin dose.

kV and mAs numeral closed loop control with microprocessor for accurate output dose.

High-brightness blue screen LCD display with multiple security protection functions.

50 preset exposure programs that can be modified and stored by the user.

Symmetrical beam applicator and collimator lamp for accurate radiograph positioning.

High frequency inverter emits high quality X-ray with excellent definition and contrast.

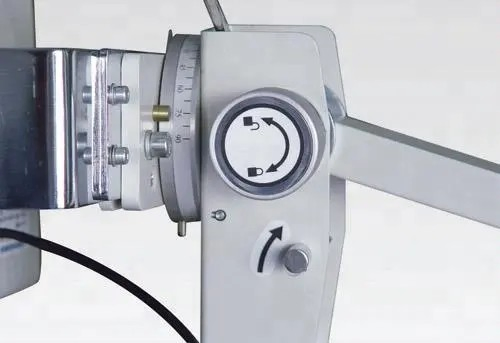

Arms can rotate ±90° left and right for convenient positioning.

Manual and remote control methods (up to 20 meters) for photography functions.

Configuration of Equipment

No.	Item	Quantity
1	Modular high-frequency and high-voltage X-ray generator; High-frequency inverter power (5.0KW, 120KV, 100mA, 40KHZ)	1
2	Innovative mobile X-ray photography Main frame	1
3	Mobile X-ray photography control system	1
4	Symmetric Adjustable beam limiter with light	1
5	Remote controller (Hand hold and Wireless Microwave control, 20 meters distance)	1

Technical Parameters

Item	JRX101C	JRX101D (with built-in battery)
Power Output	5kW	5kW
Main Inverter Frequency	50KHZ	50KHZ
Tube Voltage	40kV-120KV (interval 1KV)	40kV-120KV (interval 1KV)
mAs Range	1.0-180mAS (46 steps)	1.0-180mAs (46 steps)
Operation Method	Wire/Wireless control	Wire/Wireless Control

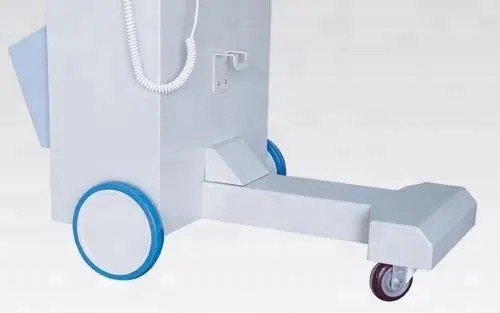

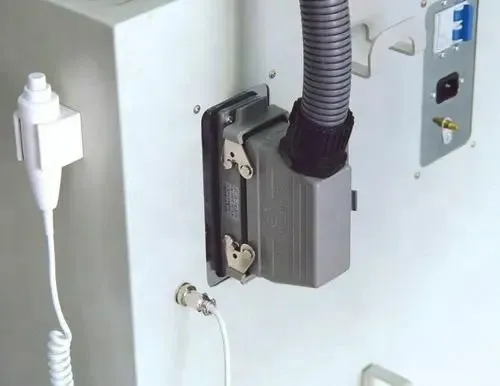

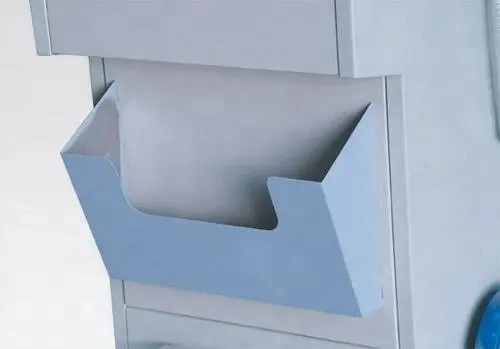

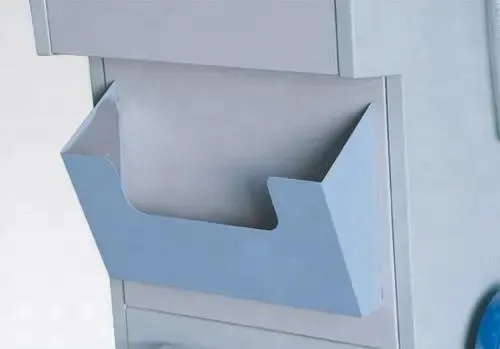

Product Gallery

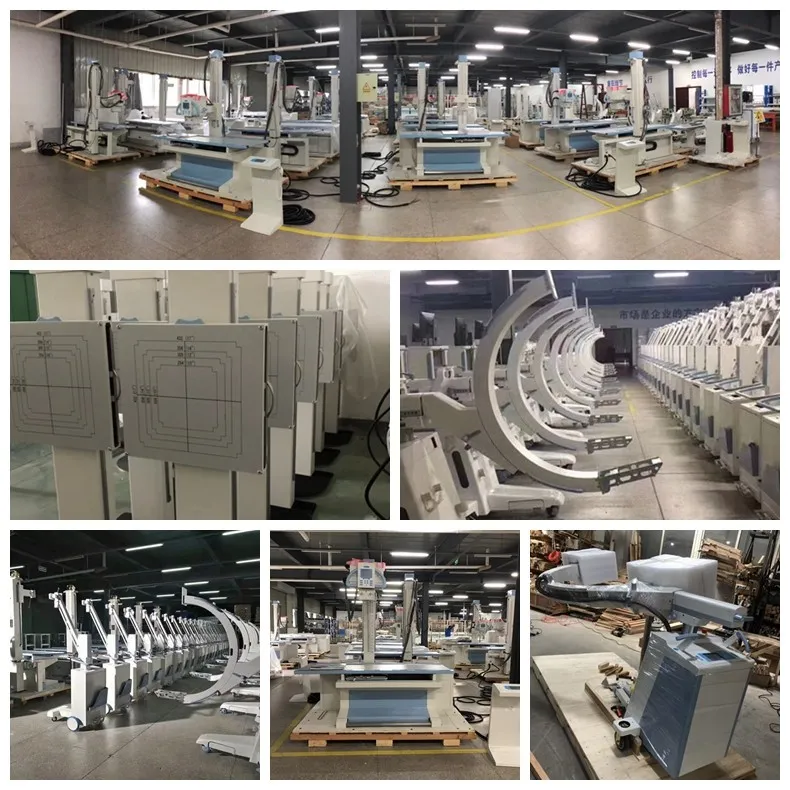

Factory Workshop

Frequently Asked Questions

Q1: What are the primary applications for the JRX101C mobile X-ray? A1: It is designed for modular X-ray photography in medical diagnosis, ideal for wards, emergency rooms, operating rooms, and ICU environments.

Q2: What is the maximum power output of this machine? A2: The JRX101C features a power output of 5.0KW with a 100mA high-frequency inverter.

Q3: Does the equipment support remote operation? A3: Yes, it includes a wireless microwave remote control with an effective distance of up to 20 meters.

Q4: How does the machine handle movement safety? A4: It utilizes an expansion gate design that automatically locks the machine when the operator releases the controls, ensuring safe transport.

Q5: What is the difference between model JRX101C and JRX101D? A5: While both share similar performance specs, the JRX101D model comes equipped with a built-in battery for enhanced portability.

Q6: Can the user customize the exposure settings? A6: Yes, the system comes with 50 preset exposure programs which can be modified and stored by the user for convenience.
