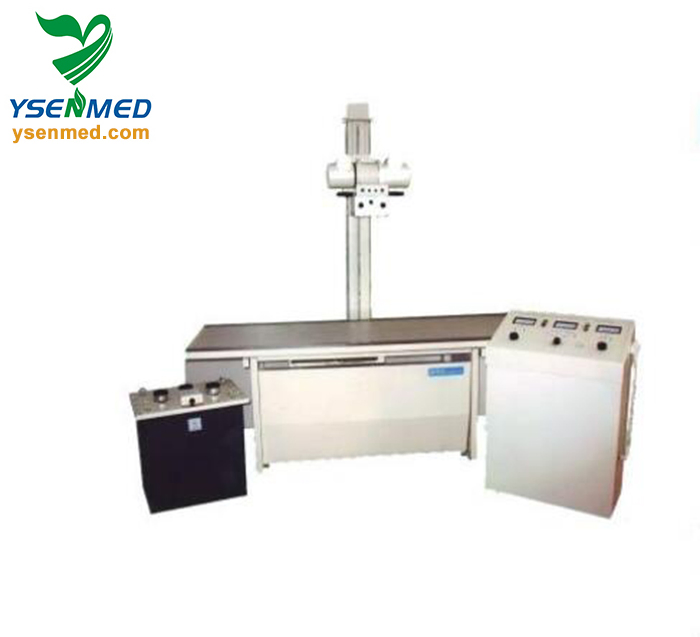

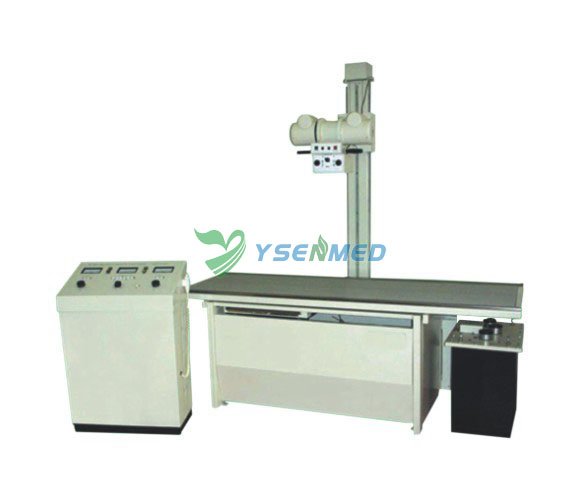

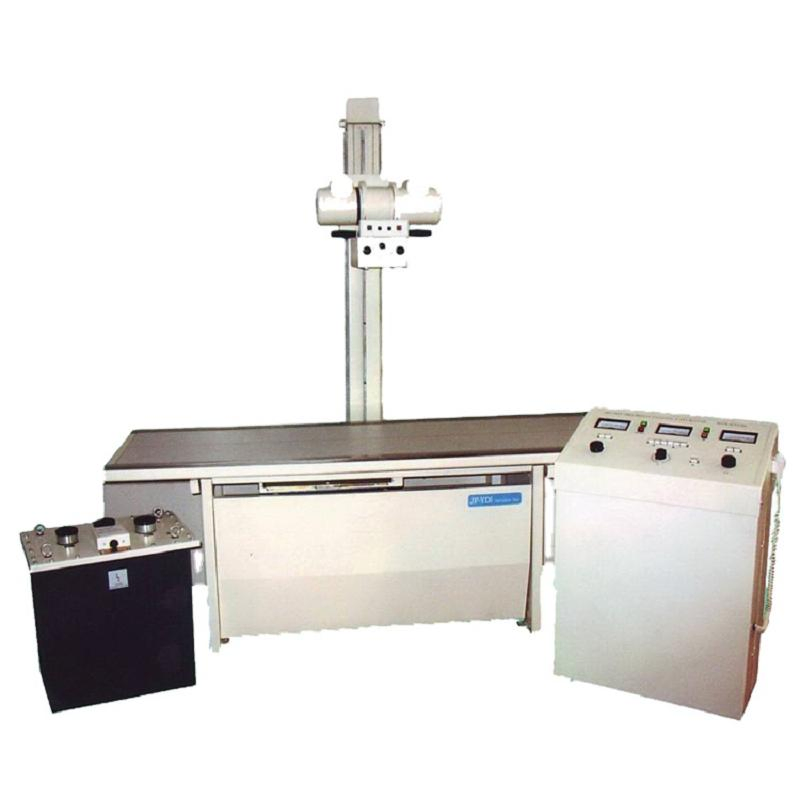

| Model NO. | YSX300 |
| Certification | ISO13485 |
| Capacity | Two-Phase 30kVA |
| Max Size of Cassette | 356mm x 432mm (14" X 17") |
| Tube Current | 300mA |
| X-ray Tube Model | Xd51.20-40/125 |
| Focus | Small Focus 1*1mm; Big Focus 2*2mm |
| Bed Surface Size | 2000mm x 665mm x 700mm |
| High-Voltage Generator | 20kVA (Instantaneous) |
| Production Capacity | 5,000 Sets/Year |
| Category | Parameters | Specifications |
|---|---|---|
| Power Supply | Capacity | Two-phase 30KVA |
| Voltage/Frequency | 380V/220V ±10% 50HZ ±0.5Hz | |
| Internal Resistance | 0.75Ω (380V) / 0.25Ω (220V) | |
| Radiograph Settings | Voltage Range | 50-100KV (Adjustable continuously) |
| Current | Small: 50/100mA | Big: 50/100/200/300mA | |
| Time Range | 0.04 ~ 6.35s (23 grades) | |
| X-Ray Tube | Model | XD51.20-40/100 |
| Focus Size | Small focus 1*1mm | Big focus 2*2mm | |
| Table Details | Moving Range | 640mm (Length) / 200mm (Breadth) |
| Ray-filter Travel | ≥500mm | |
| Grid Specs | Density N=28 | Ratio r=8 | f=100cm | |
| Column Movement | Longitudinal | 1000mm or 1800mm |
