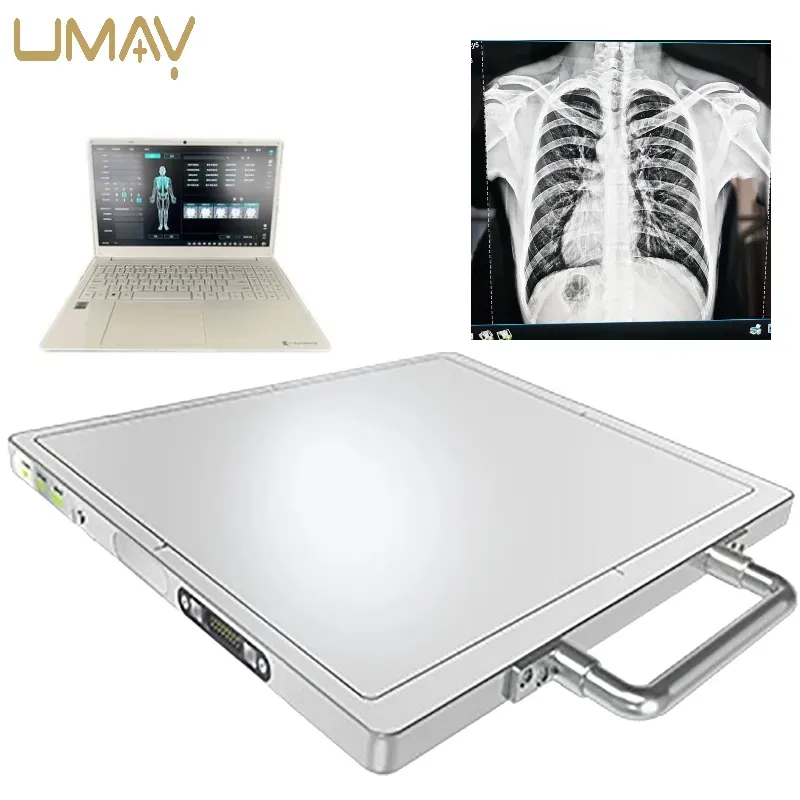

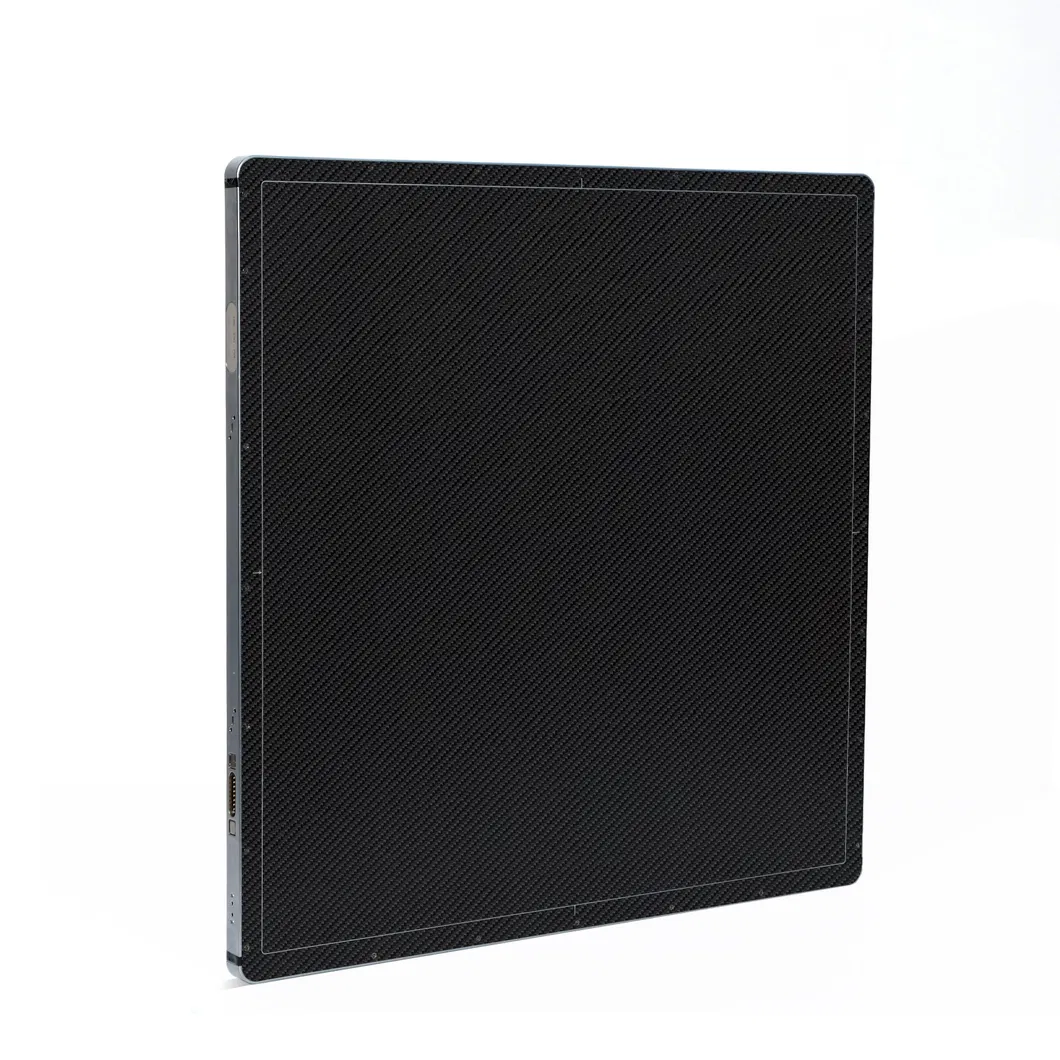

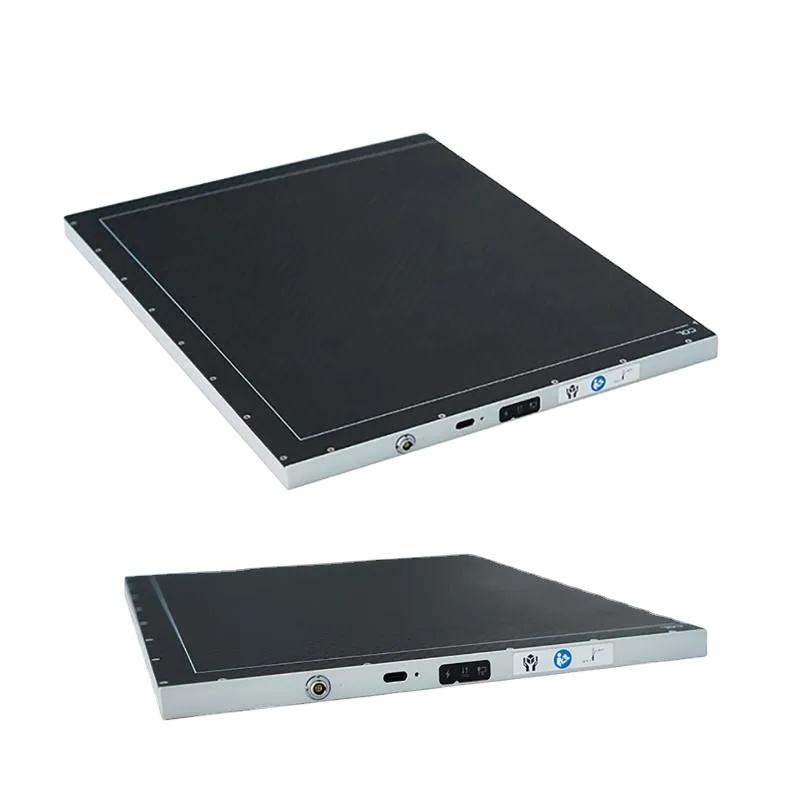

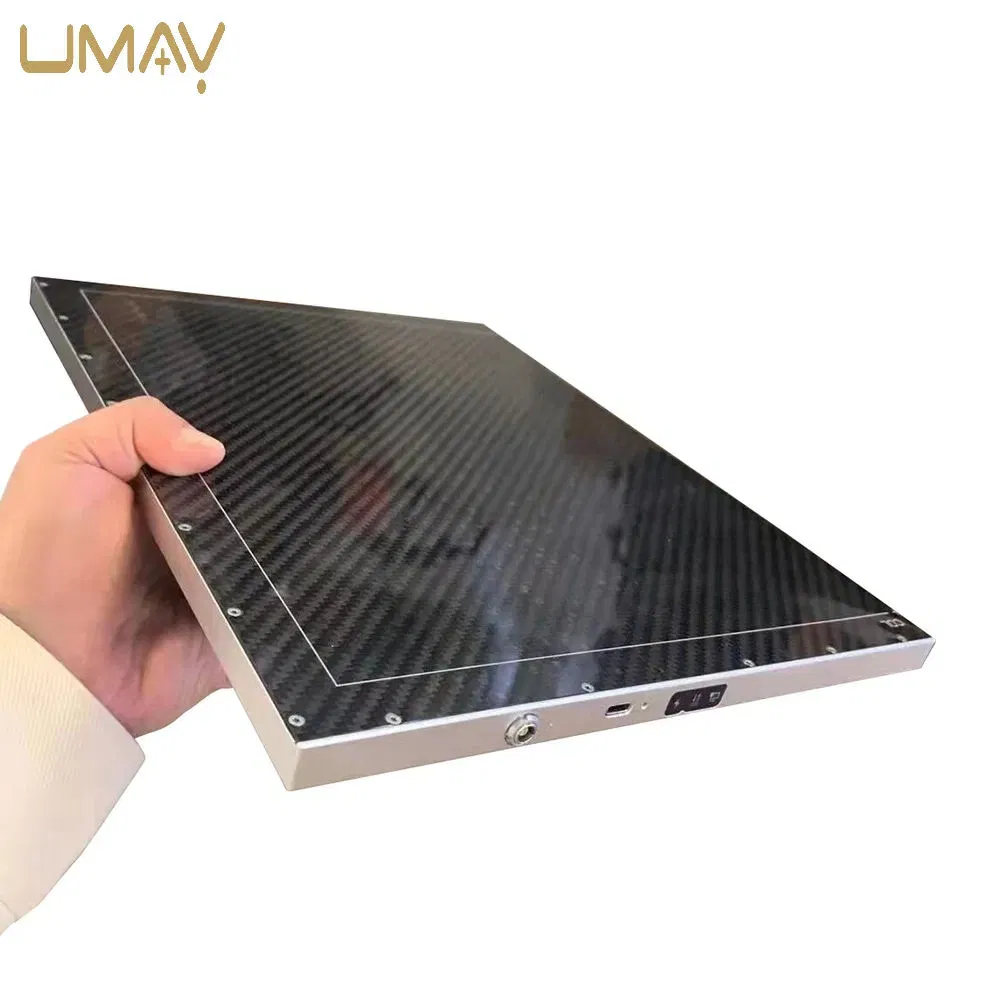

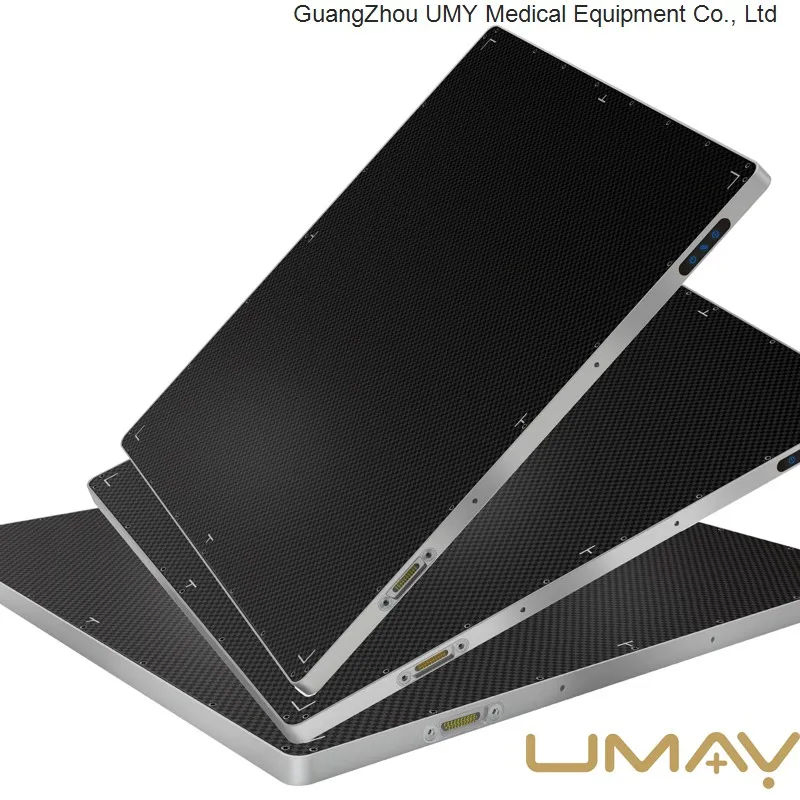

2024 High Quality Medical 17X17 Wireless Portable Digital X-ray Detector Dr Flat Panel
| Electricals and Interface | |
| A/D Conversion | 16 bits |
| Data Interface | 802.11ac (only 5G) |
| Acquire Time | Wireless: 3-5s |
| Exposure Control | Software/Sync/AED |
| Mechanical Specifications | |

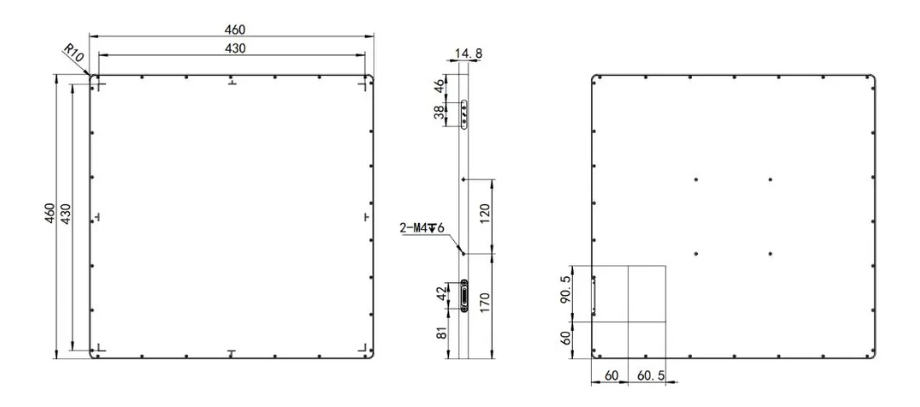

| Dimension | 460 × 460 × 14.8 mm |
| Weight | 3.8kg |
| Material | Aluminum and magnesium alloys |
| Front Panel | Carbon fiber |
| Environmental | |
| Temperature | 10-35°C (operating); -10~50°C (storage) |
| Humidity | 30-70% RH (non-condensing) |
| Ingress Protection | IP51 (Customized to IP67) |
| Sensor Details | |
| Receptor Type | a-Si |
| Scintillator | Gos / CsI:TI |
| Active Area | 430 x 430 mm |
| Resolution | 4304 x 4304 |
| Pixel Pitch | 100 μm |
| Power Supply & Battery | |
| Power Dissipation | <20 W |
| Standby Time | 4.5h |
| Recharge Time | 4.5h |
| Image Quality | |
| Limiting Resolution | 5 LP/mm |
| Dynamic Range | ≥76 dB |
| DQE | 42% @(1 LP/mm) |
| MTF | 68% @(1 LP/mm) |
