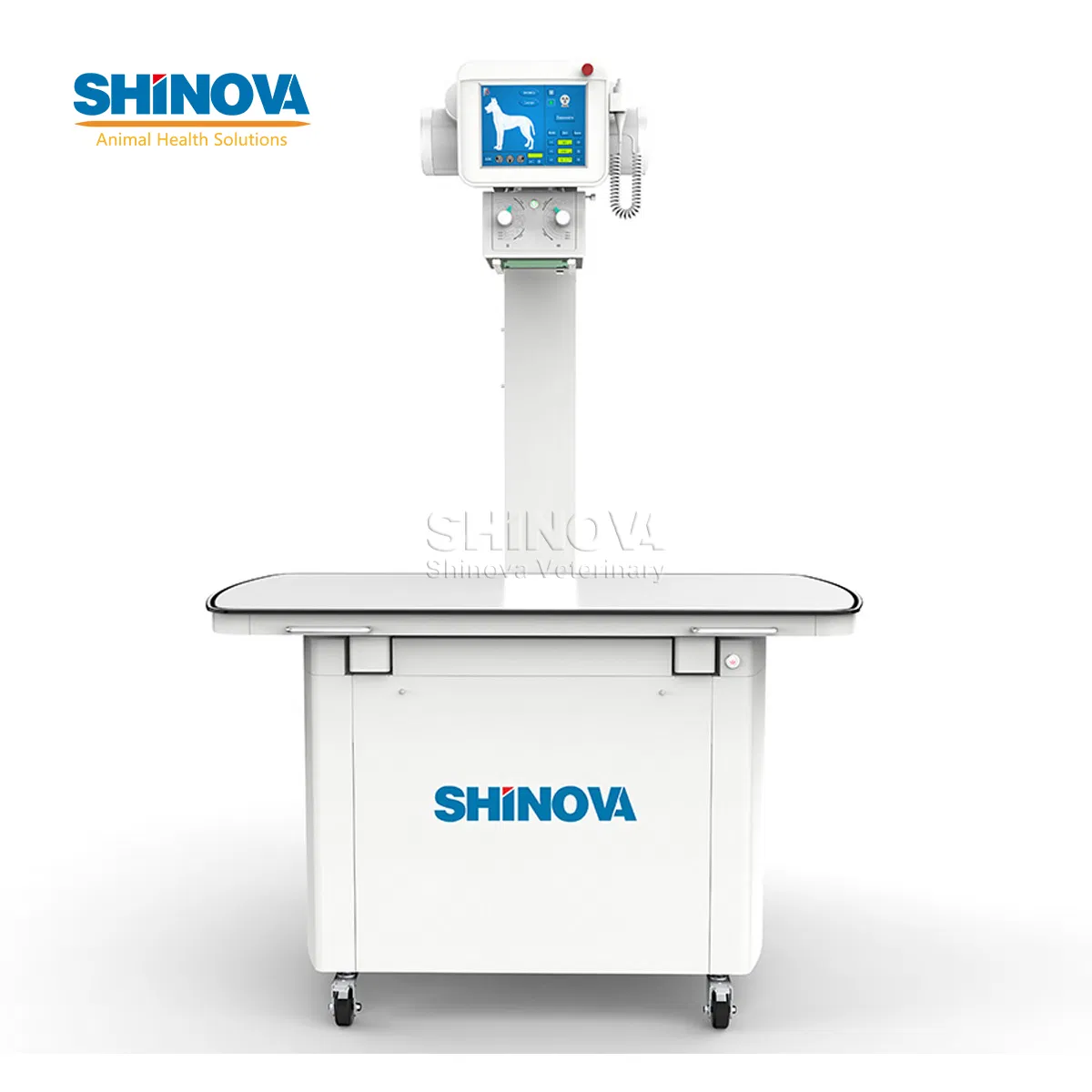

Veterinary Medical Equipment Veterinary Digital X-ray (DR) Dr-160V

1 / 5

Veterinary Medical Equipment Veterinary Digital X-ray (DR) Dr-160V

Customization:	Available
Type:	Veterinary X-ray
Transport Package:	by Air or by Sea

Send Inquiry

Product Description

Basic Information

Model NO.DR-200

SpecificationStainless Steel

OriginChina

HS Code9022140090

Package Size1.00cm * 1.00cm * 1.00cm

Gross Weight20.000kg

Stationary Veterinary Digital X-Ray (DR)

Model: DR-200 (200mA/20KW)

Key Features:

Soft touch user panel
Digital displays of kV, mAs and time
High frequency inverter type generator
Overload protection for kV, mA, Time and Temp
Self-manageable APR function with memory keys

Technical Specifications

1. HF Generator

Maximum Output Power	20kW
Tube Current Range	16~200mA
Inverter Frequency	≥30kHz
Radiography Voltage	40kv~125kv
Exposure Time Range	0.0025s~6.4s
mAs Range	0.5mAs~320mAs
Input Voltage	AC 220V±22V

2. X-ray Tube

Max. Voltage	125kV
Focus	Small: 1.0mm / Large: 2.0mm
Anode Input Power	Small: 20KW / Large: 40KW
Anode Speed	2800 R/M
Target Angle	17.5°

3. Radiography Table

Size (LWH)	1220mm700mm830mm
Bearing Weight	150kg
Movement	With wheels, Four-way tabletop movement
Brakes	Soundless manual brakes

4. Flat Panel Detector

Material	CSI
Scanning Area	17 * 17 inch
A/D Conversion	16 Bit
Pixel Matrix	3328(h)*3328(v) (11 million pixels)
Pixel Size	127μm
Preview Time	≤ 2s

Product Display

Professional Veterinary Solutions

Dedicated to providing advanced veterinary techniques and healthcare service solutions for animal hospitals and clinics worldwide. We focus on improving pet life quality through innovative diagnostic equipment, surgical tools, and smart software cloud services.

Our expertise includes Veterinary Equipment Provision, Hospital Design Solutions, and Laboratory Information Management Systems (LIS) to solve complex diagnostic challenges in animal care.

Frequently Asked Questions

Q: What is the maximum power output of the DR-200? A: The DR-200 features a high-frequency generator with a maximum output power of 20kW and a tube current range of 16~200mA.

Q: Does the system support image transmission to other devices? A: Yes, the imaging workstation includes a 100M network interface and supports DICOM 3.0 for seamless image transmission, querying, editing, and printing.

Q: What are the dimensions and mobility features of the radiography table? A: The table measures 1220mm*700mm*830mm, supports up to 150kg, and features four-way tabletop movement with soundless manual brakes and wheels for easy positioning.

Q: What kind of detector technology is used in this DR system? A: It utilizes a high-quality CSI Flat Panel Detector with a 17x17 inch scanning area and 11 million pixels (3328x3328 matrix) for high-resolution imaging.

Q: How fast can I preview the captured X-ray images? A: The system provides a rapid image preview time of no more than 2 seconds, ensuring efficient workflow in busy veterinary clinics.
