PLD3600 Hospital Digital Imaging Radiography System Medical X-ray Machine Equipment
1 / 1
PLD3600 Hospital Digital Imaging Radiography System Medical X-ray Machine Equipment

PLD3600 Hospital Digital Imaging Radiography System Medical X-ray Machine Equipment

Customization: Available
Certification: CE, ISO13485
Scale: Large
Send Inquiry

Product Description

📋 Basic Information
Model NO.
PLD3600
Voltage
220V
Frequency
50Hz
Capacity
≥40kVA
Power
32kw
Inverter Frequency
30kHz
Tube Current
Max. 100mA
Production Capacity
1000 Sets/Month
🏥 Product Overview

PLD3600 Hospital Digital Imaging Radiography System Medical X-ray Machine Equipment

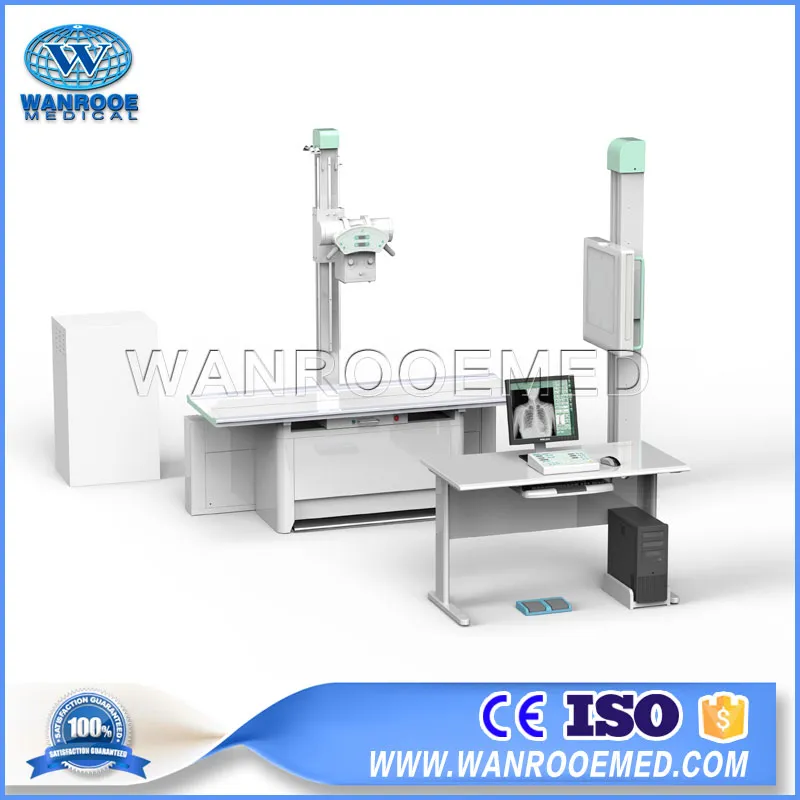

PLD3600 X-ray Machine

This machine is applied to take digital radiography on every part of human body, such as head, limbs, chest, limbus and abdomen, etc.

📦 Packing Details (4 Wooden Cases)
No. Packing Dimension (mm) NW (Kg) GW (Kg)
12290*1340*910410546
22360*800*550140240
31760*1085*915110132.5
4986*547*1077120146
⚙️ Technical Specifications
Generator & Power Supply
Power Output32KWInverter Frequency: 30 KHz
Tube Voltage40kV-150kVTube Current: 10mA-320mA
Voltage Input220V / 50HzExposure time: 1.0ms-6300ms
Flat Panel Detector
Vision Size358mm(H)×430mm(V)Pixel Pitch: 139 μm
Imaging TimeLess than 10sResolution: 3.5 lp/mm typ
A/D Transform14 bitEnergy Range: 40 - 150 kVp
X-ray Tube
Tube Focus1.2mm / 0.6mmThermal Capacity: 110KJ
Rotary Anode2800rpmInput Power: 40kW/ 20kW
🛠️ Standard Configuration
Item Model Quantity
Control ConsoleKZT101 unit
HF HV GeneratorFSQ30R1 set
X-ray Tube AssemblyLQ161 unit
CollimatorXSQ301 unit
Radiography TableSYC201 unit
Bucky StandXPJ301 unit
Flat Panel DetectorPLD-1417S (Toshiba OEM)1 set
Image WorkstationDRA401 set
🌟 System Features
✔ 220V low power supply requirements for convenient installation in various medical environments.
✔ High cost-effective Flat Panel Detector (FPD) DR system, ideal for primary hospitals.
✔ Floating table with bucky stand and electromagnetic lock for precise and flexible patient positioning.
✔ World-leading Toshiba 14" x 17" OEM digital flat panel detector for high-definition imaging.
✔ KV and MA digital closed-loop control technology ensured by real-time microprocessor monitoring.
✔ Versatile application: Can be configured as a vehicle-mounted model for emergency or mobile medical use.
📸 Product Gallery

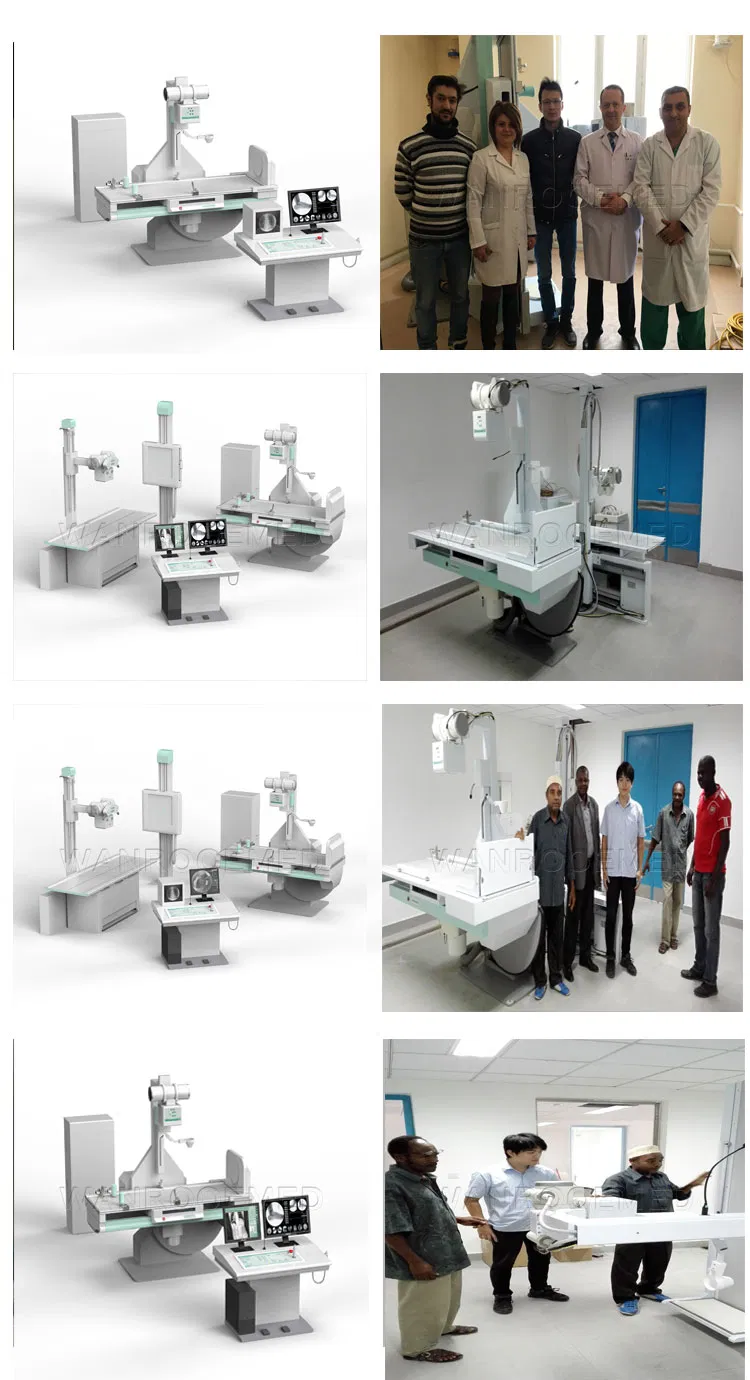

Details 1

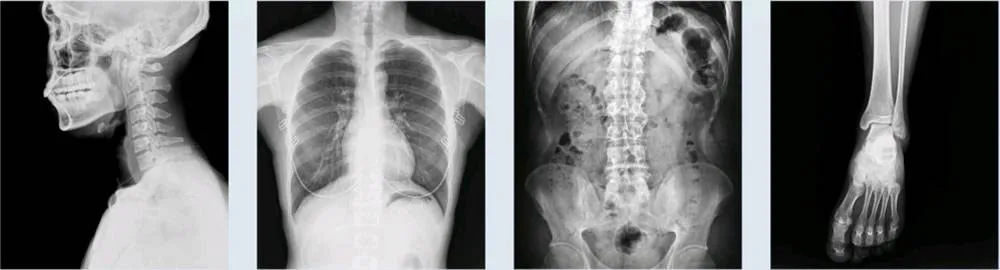

Details 2

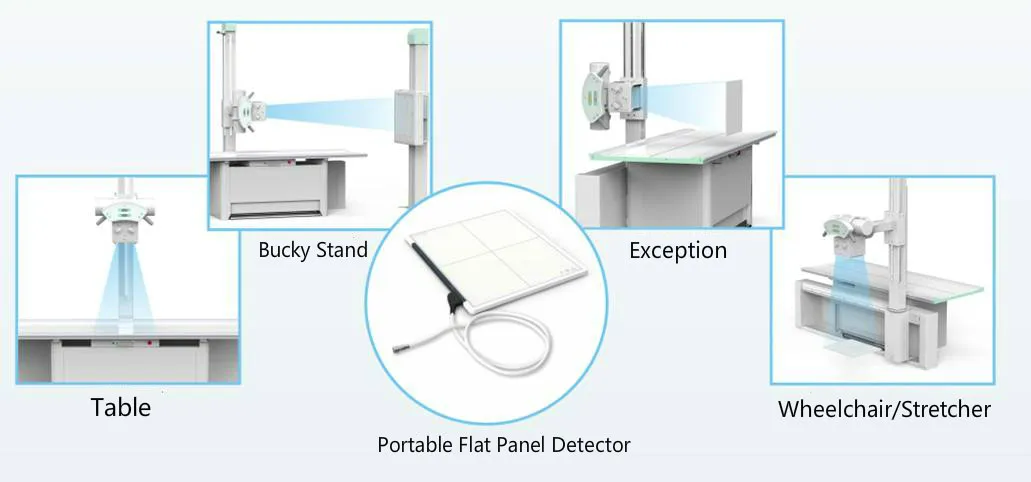

Details 3
Environment 1
Environment 2
Environment 3
Frequently Asked Questions
What power supply does the PLD3600 require?
The system operates on a 220V / 50Hz low power supply, making it highly convenient for installation in most medical facilities.
What type of Flat Panel Detector is used in this system?
The PLD3600 uses a world-leading Toshiba 14" x 17" OEM digital flat panel detector (PLD-1417S) to ensure high-definition image quality.
Is the radiography table adjustable?
Yes, it features a floating table with electromagnetic locks, allowing for easy and accurate positioning of patients in various lying positions.
Can this X-ray machine be used for mobile medical units?
Absolutely. The PLD3600 can be configured as a vehicle-mounted model, making it ideal for mobile medical examinations and emergency response.
What is the imaging time for the detector?
The digital imaging process is highly efficient, with an imaging time of less than 10 seconds per frame.
What body parts can be examined with this system?
The system is versatile and can be used for radiography of the head, limbs, chest, limbus, abdomen, and other human body parts.
