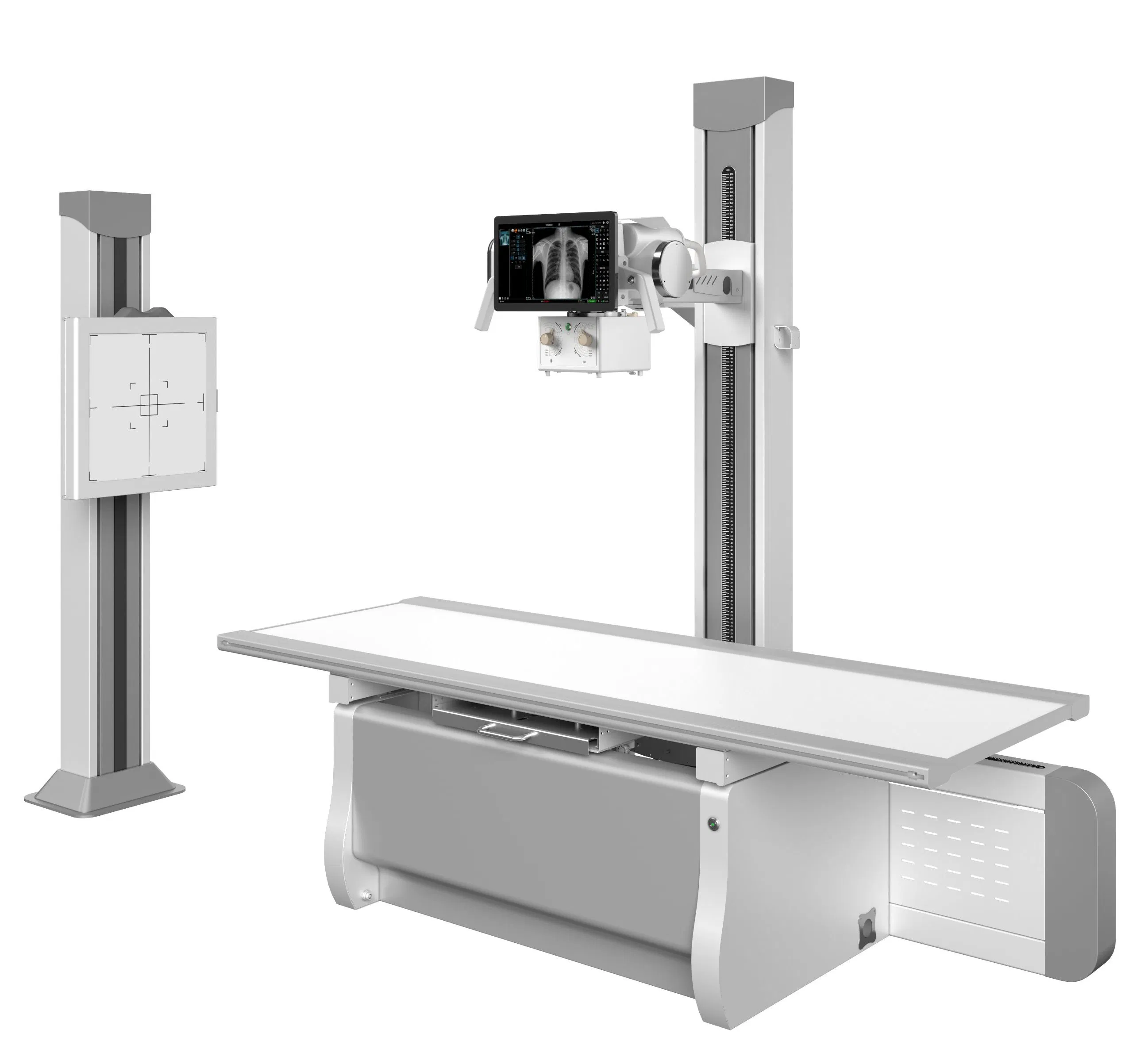

X-ray Radiography Equipment for Medical Use

Customization: Available
Customized: Non-Customized
Certification: CE

Product Description

Basic Info.
Model NO.
LXR-350
Gender
Female, Male
Suitable for
Elderly, Children, Adult
Type
X Ray Equipment
Output Power
20kw
Power Voltage
220V±22V
Kv Range
40~125kv
Ma Range
10~320mA
Mas Range
0.5 ~320mas
Exposure Time
0.002~6.3s
Small Focus
1.0
Large Focus
2.0
Anode Speed
2800r/Min
Inherent Filtration
1.0mm Ai/75kv
Light Source
LED
Top Table Size
2100X800X650mm
Bucky Size
18X18inch
Table Longitudinal Movement
≥900mm
Vertical Moving Range
≥1200mm
Transport Package
Wooden Case
Origin
China
HS Code
9022140090
Product Description

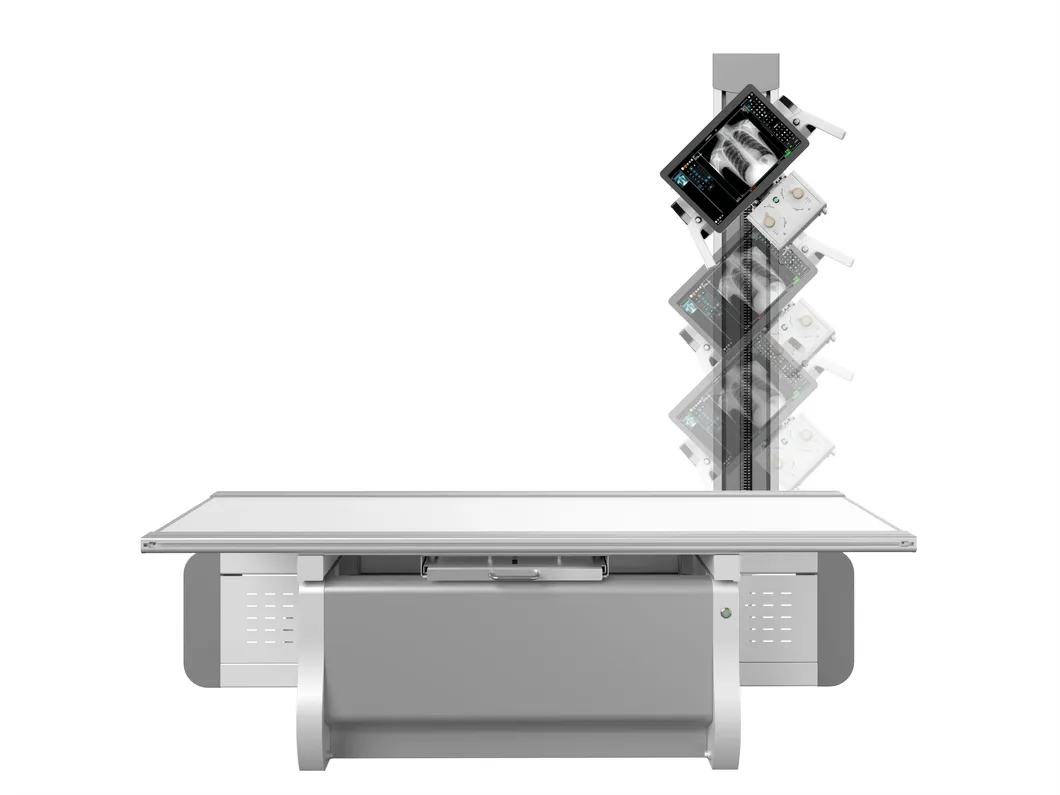

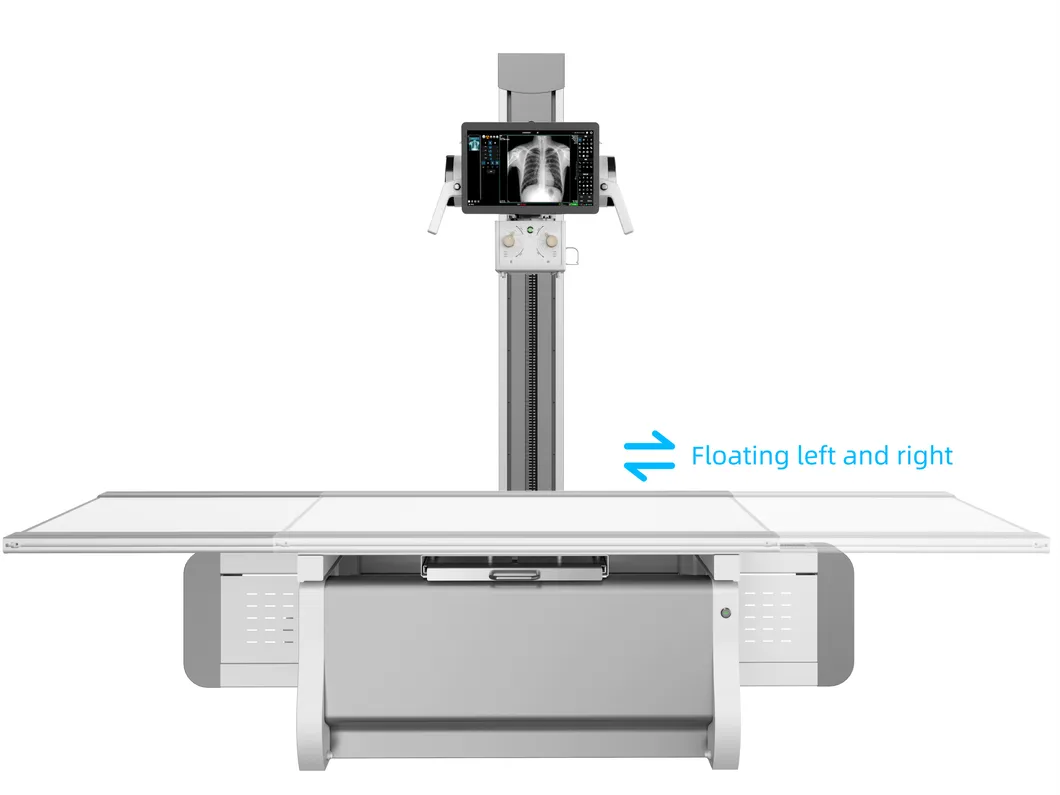

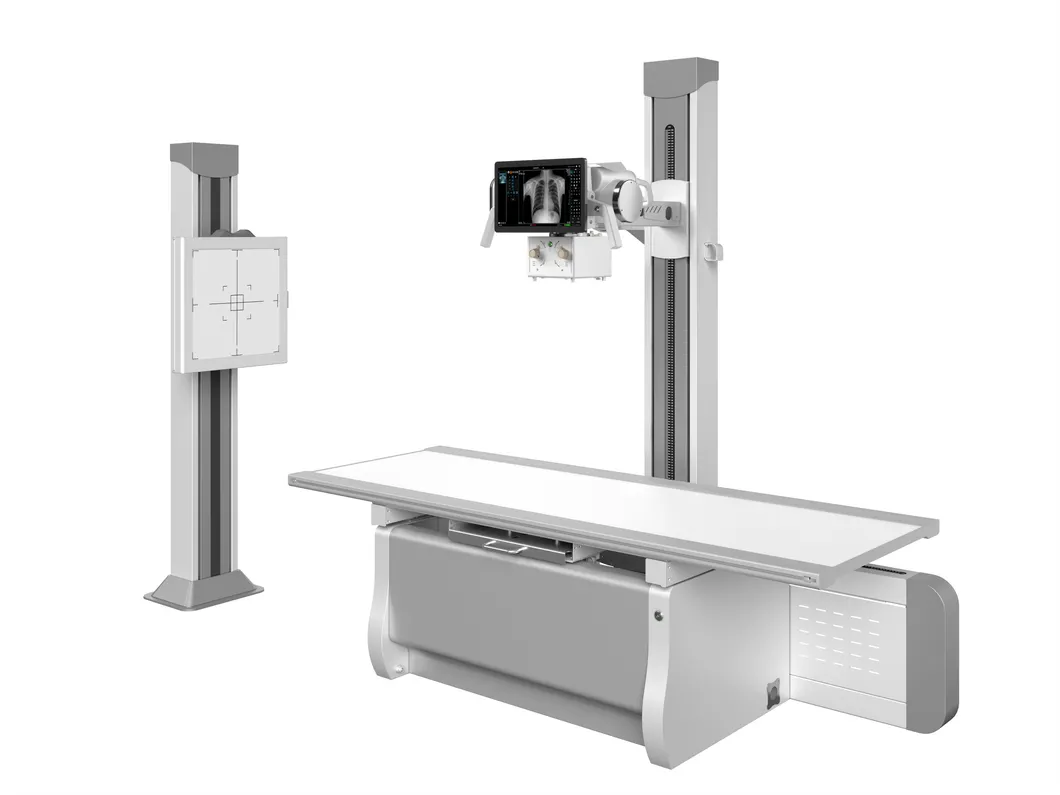

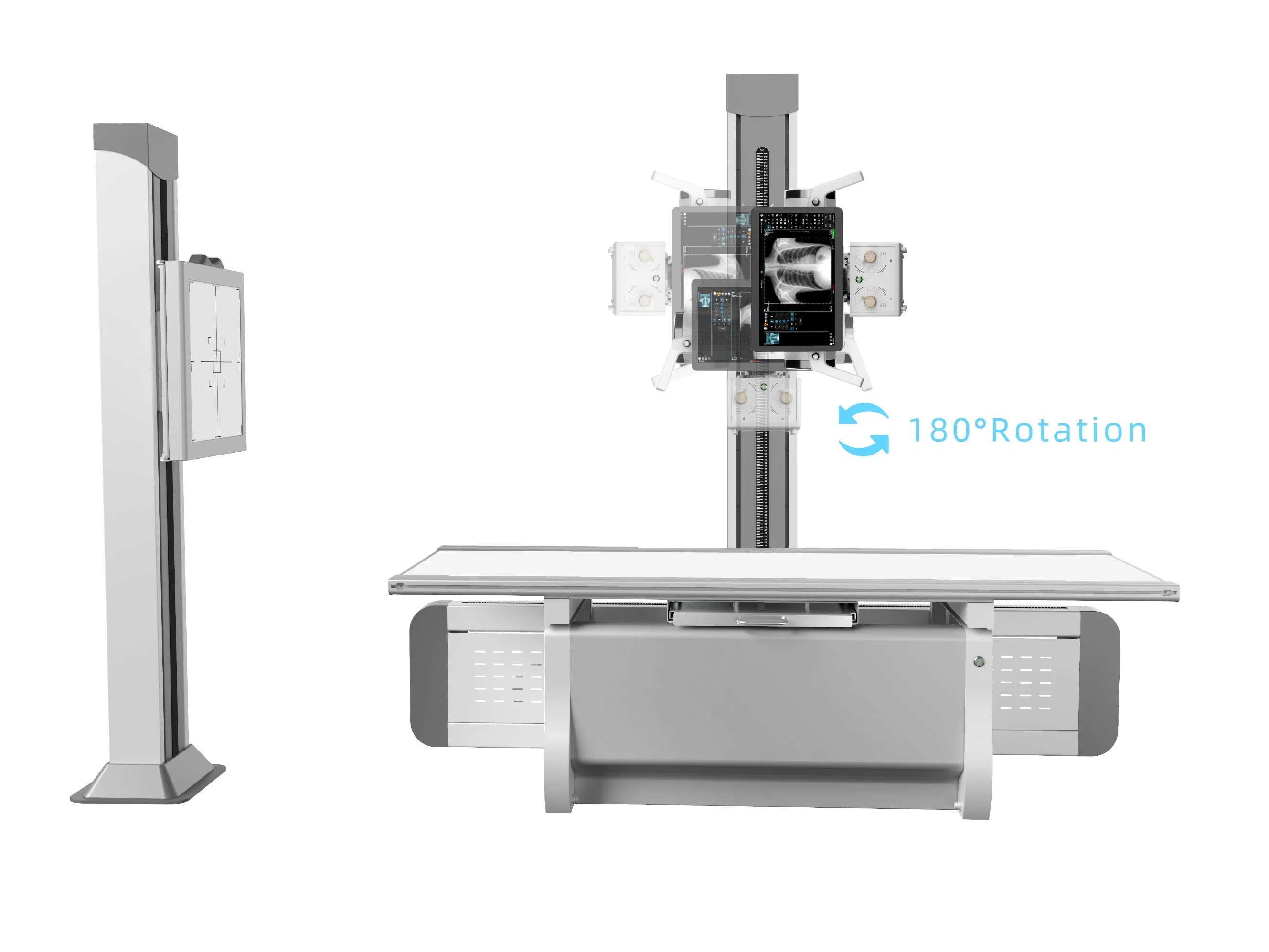

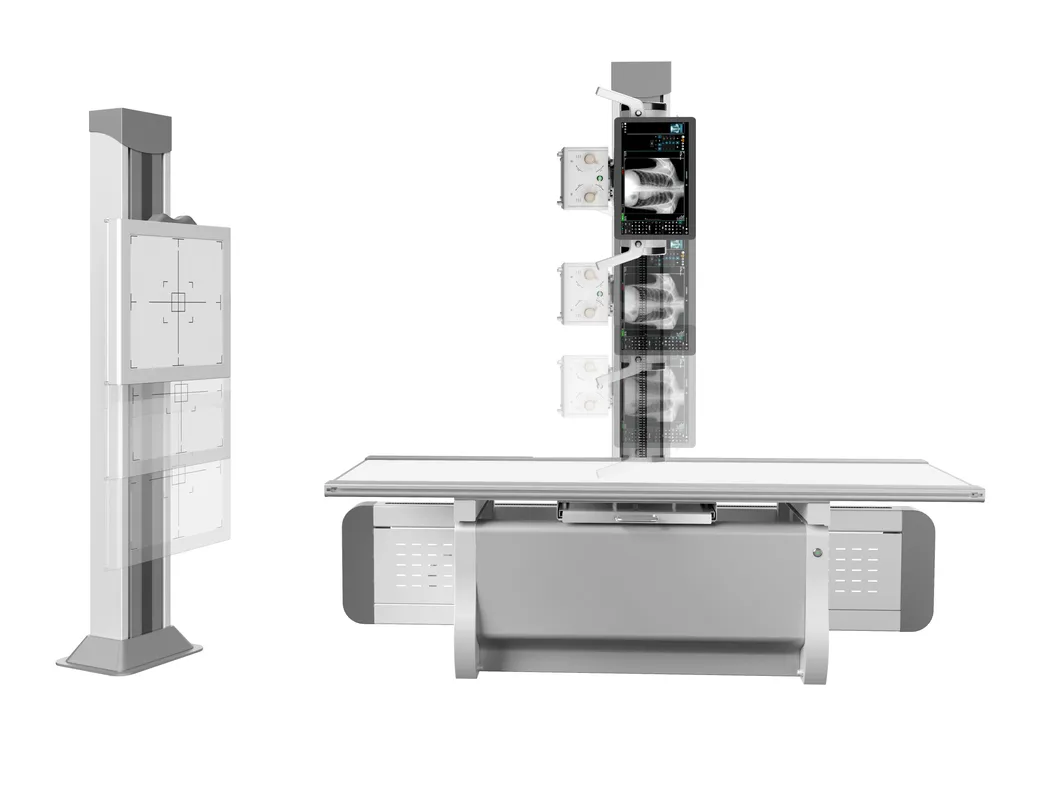

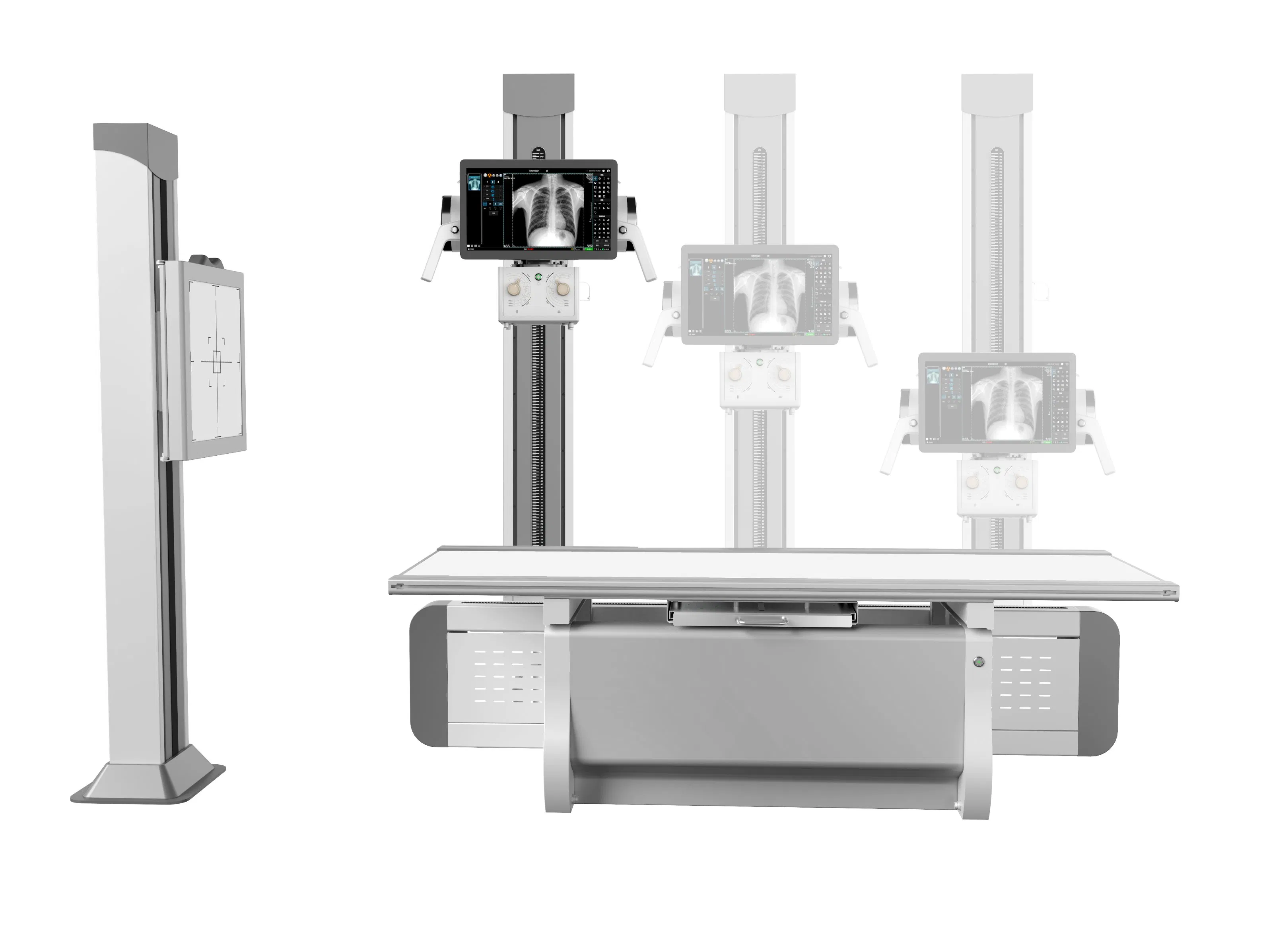

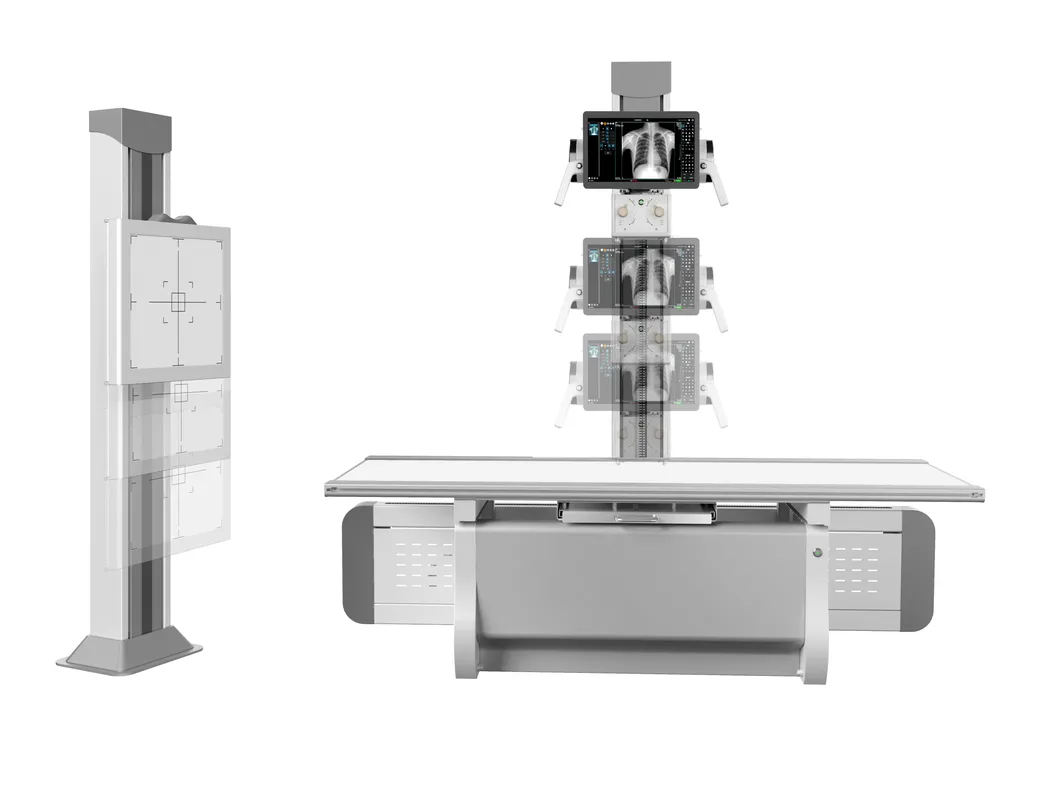

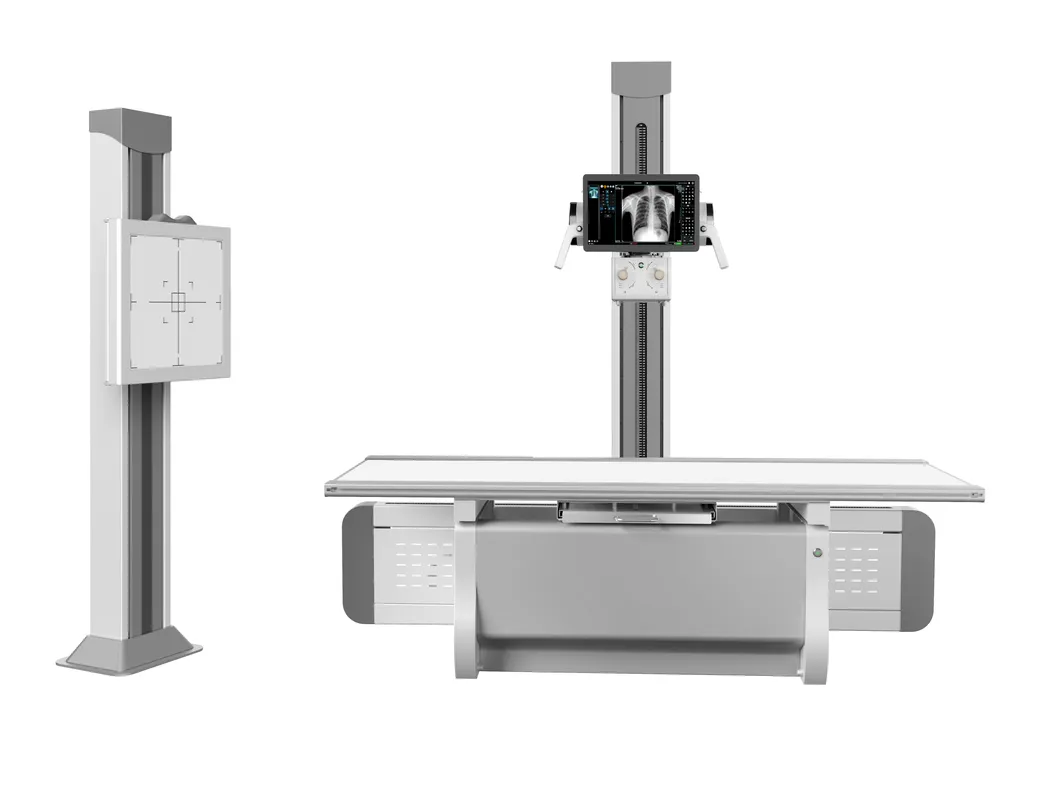

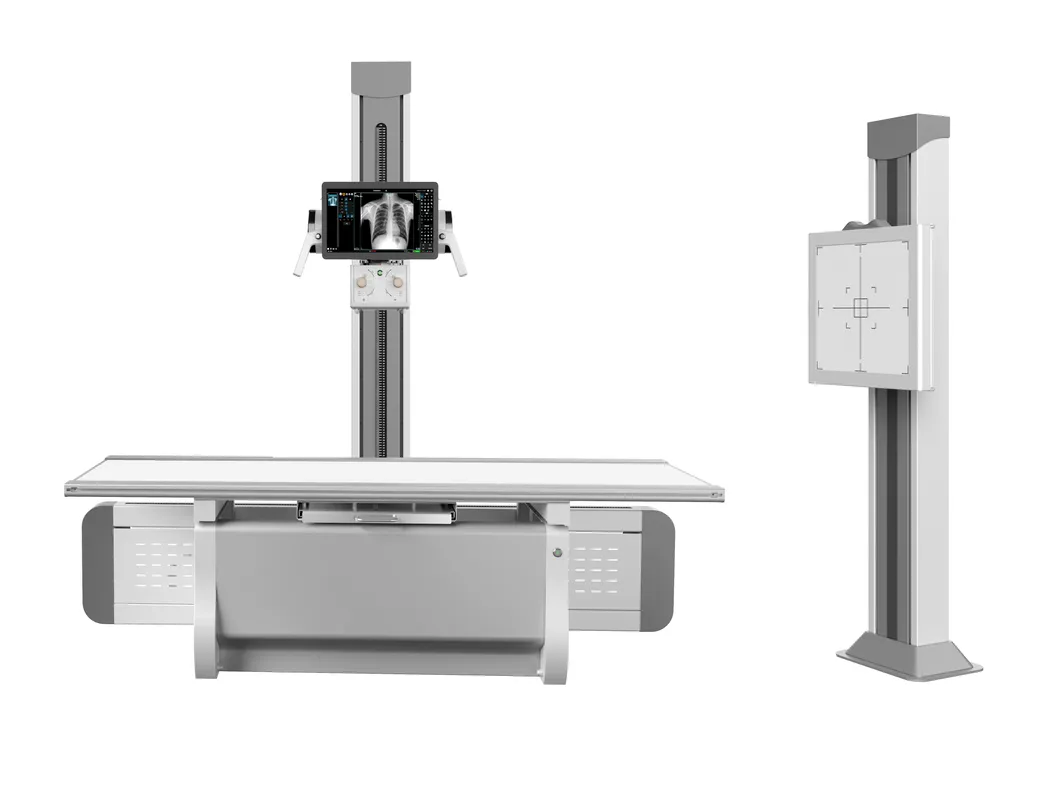

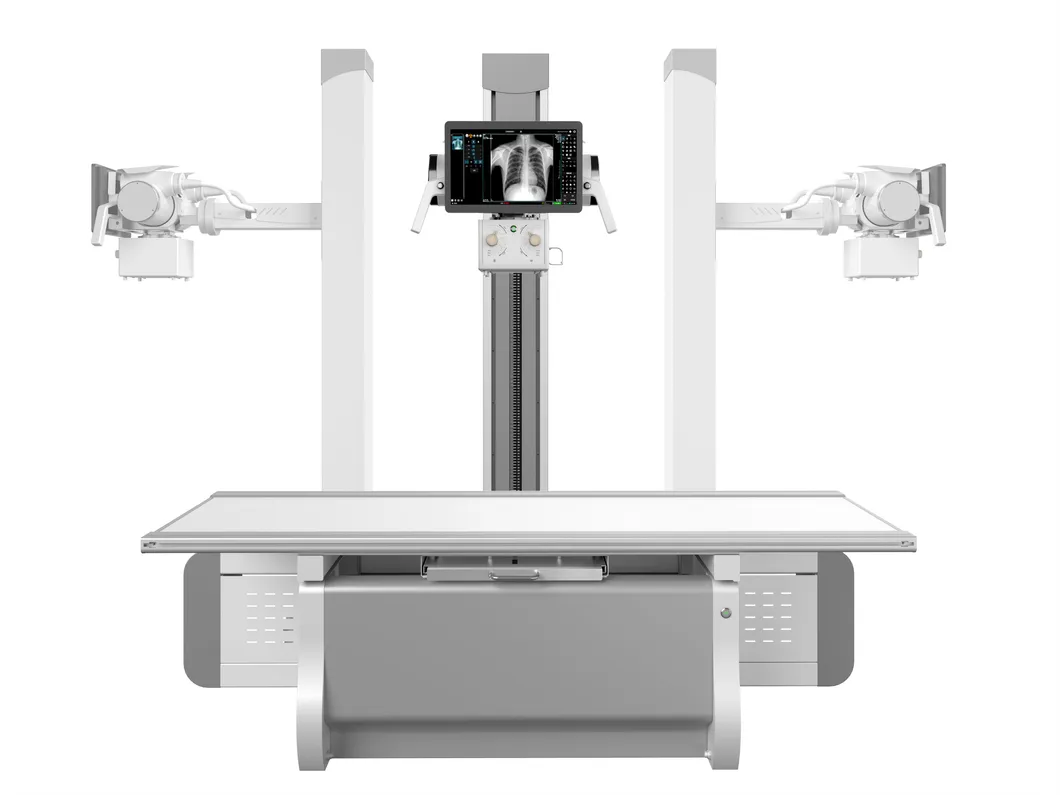

X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Radiography Equipment
X-ray Generator Features
Rich DR upgrade reserve interface
Fault self-diagnosis and protection
Automatic calibration of tube current
Infrared photoelectric switch for four-way table
X-ray tube has the function of filament dormancy
AEC function, different ionization chamber as optional
Analog - digital double - loop control, simple operation, high intelligence
High kV, high current, high power, strong penetration, able to handle obese patients
Specifications Model Parameter LXR-F20 LXR-F32 LXR-F50 LXR-F65
High Voltage Generator Power 20kW 32kW 50kW 65kW
kV Range 40~125kV 40~125kV 40~150kV 40~150kV
mA Range 10~320mA 10~400mA 10~630mA 10~800mA
mAs Range 0.1-320mAs 0.1-320mAs 0.1-630mAs 0.1-1000mAs
Working Frequency 300kHz 300kHz 400kHz 400kHz
Exposure Time 0.002S~10S 0.002S~10S 0.002S~6.3S 0.002S~10S
Control Screen 10.4 in. 10.4 in. 10.4 in. 10.4 in.
X-ray Tube Anode Heat Storage 140KHU 140KHU 300KHU 300KHU
Anode Angle 12.5° 12.5° 12° 12°
Focus 1.0/2.0mm 1.0/2.0mm 0.6/1.2mm 0.6/1.2mm
Inherent Filtration 1.0mm Al/75kV 1.0mm Al/75kV 1.0mm Al/75kV 1.0mm Al/75kV
System Overview

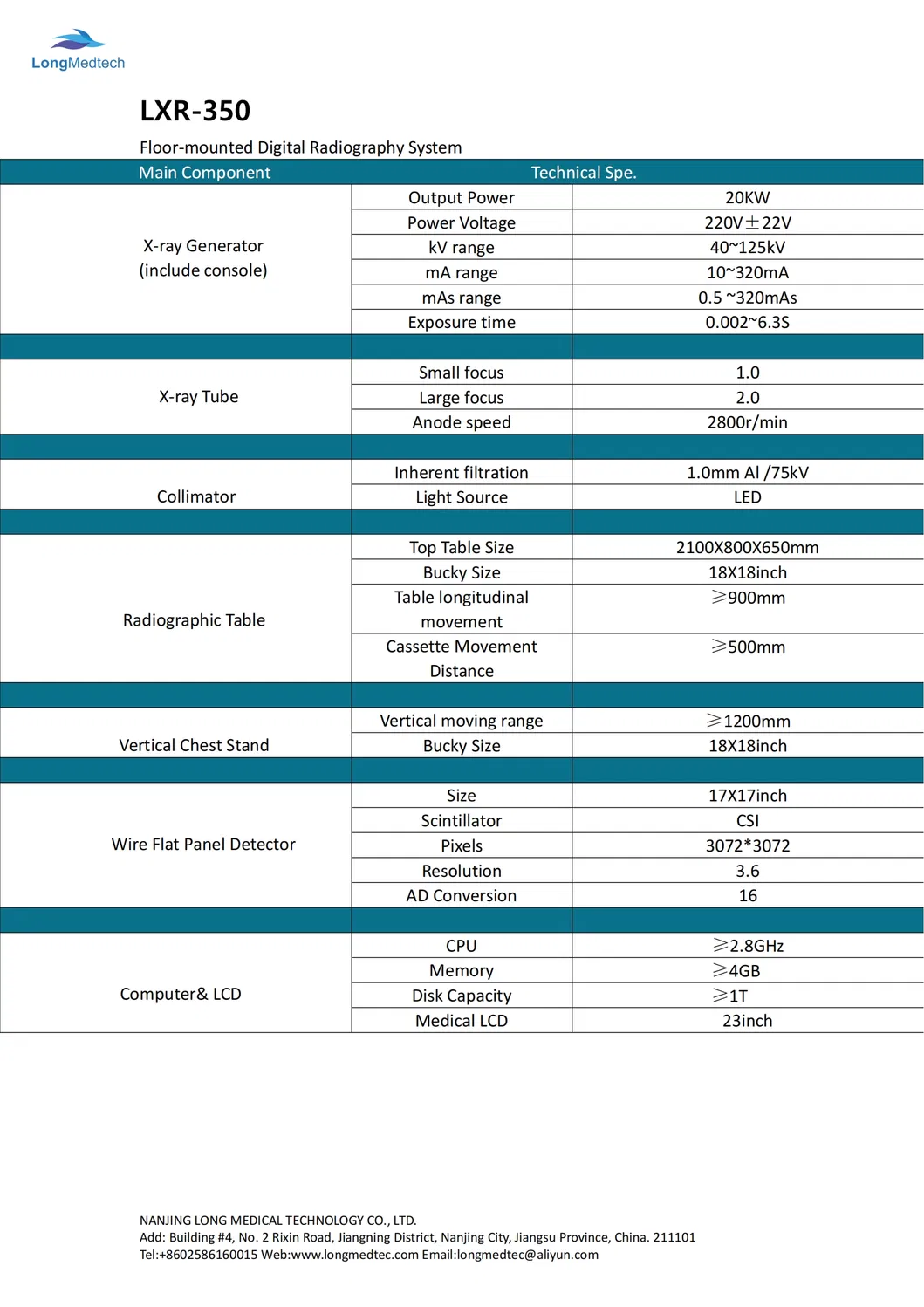

X-ray System Part 1
X-ray System Part 2

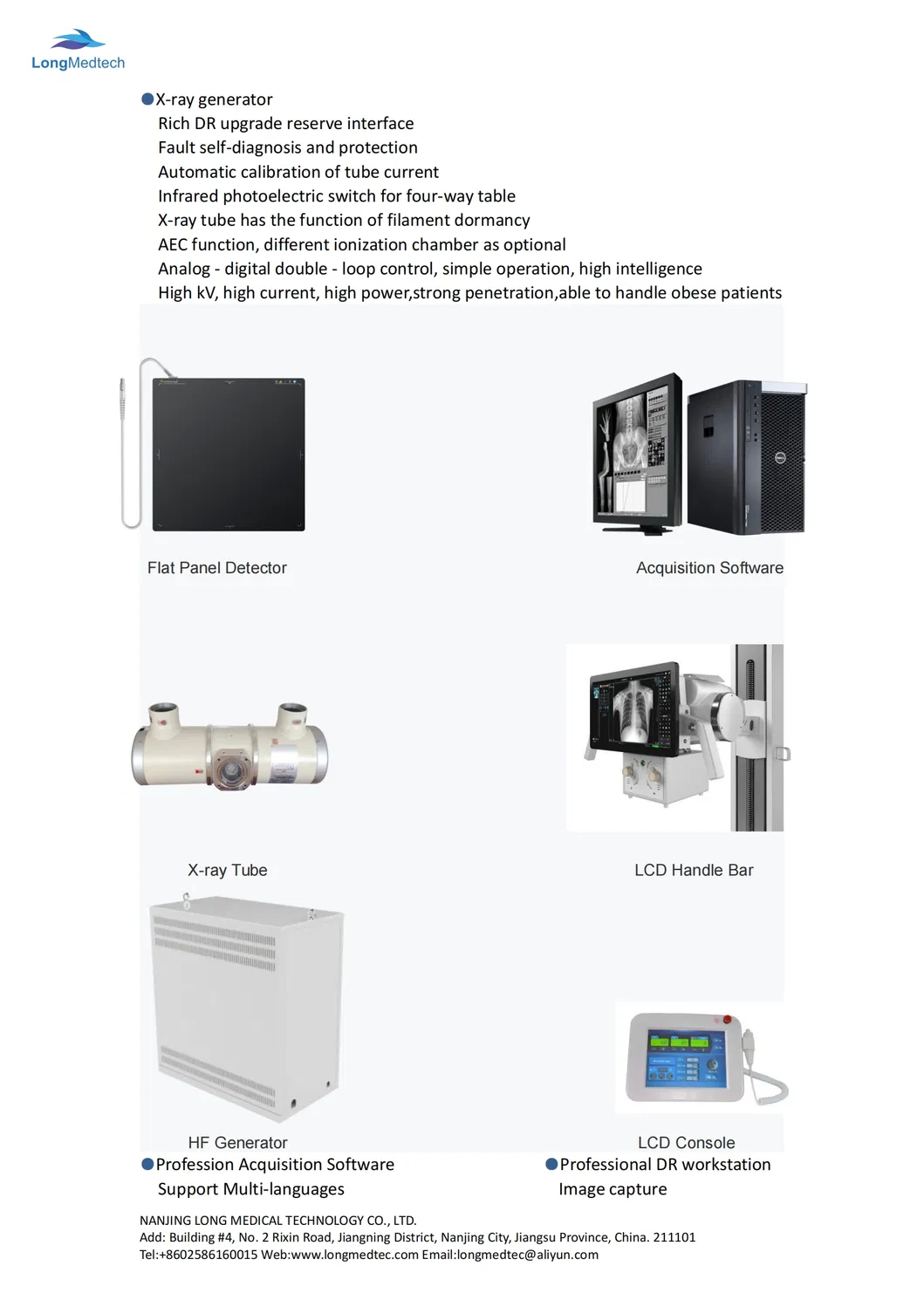

X-ray System Part 3

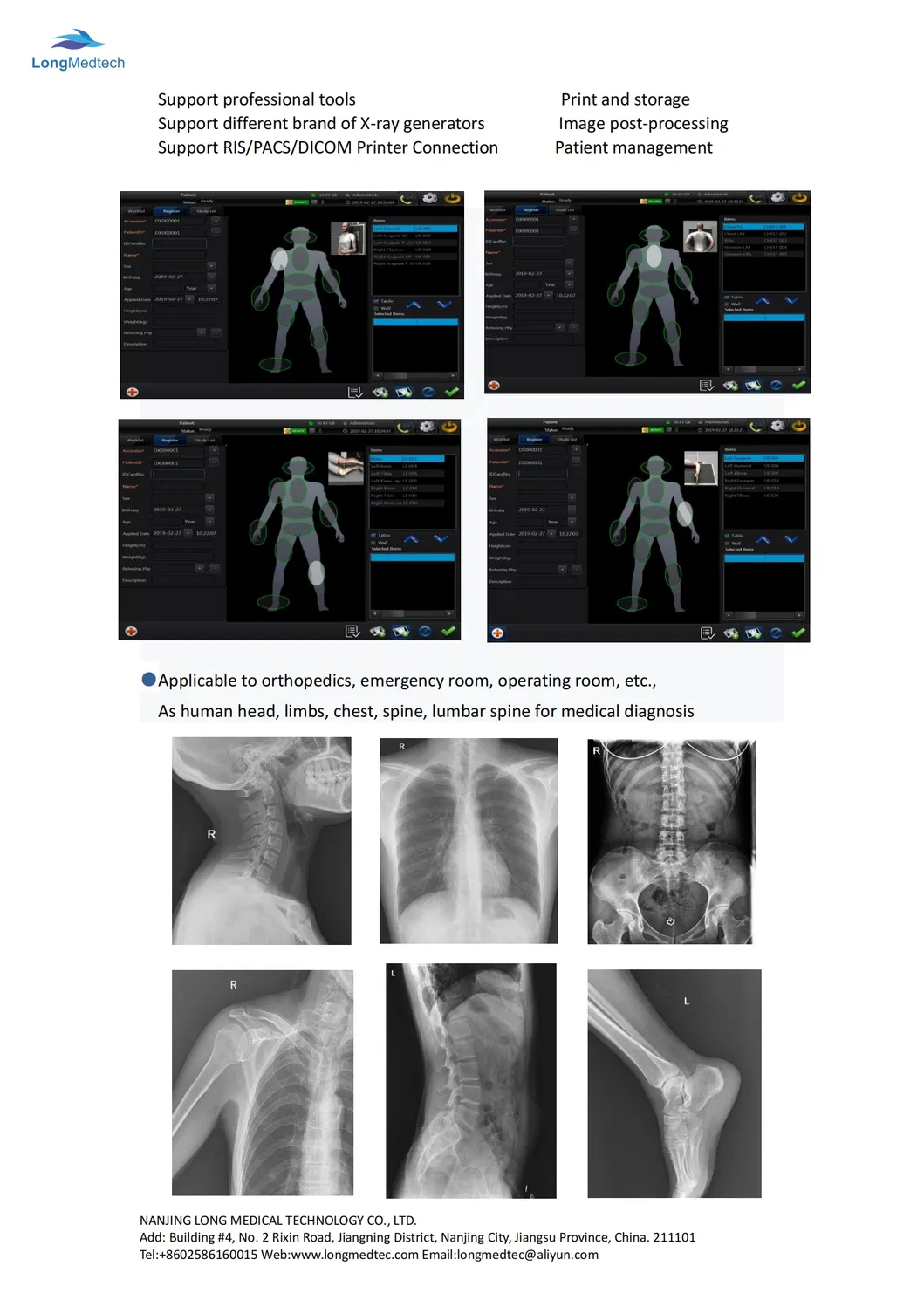

Full X-ray Setup
Global Market & Professional Supply

Our team is a leading supplier of medical equipment, specializing in the medical device industry. Our broad product range covers surgical equipment, X-ray machines, laboratory equipment, patient monitors, electrocardiograms, ultrasound scanners, dental equipment and hospital furniture.

We have been committed to providing customers with high quality, competitive prices and good after-sales service for the long term. We have built an efficient global marketing network. Over the years, our products have been exported to Africa, Latin America, the Middle East, Southeast Asia, Europe and the United States, and have gained a good reputation.

Product Range
Production Process & Facility
Factory Profile

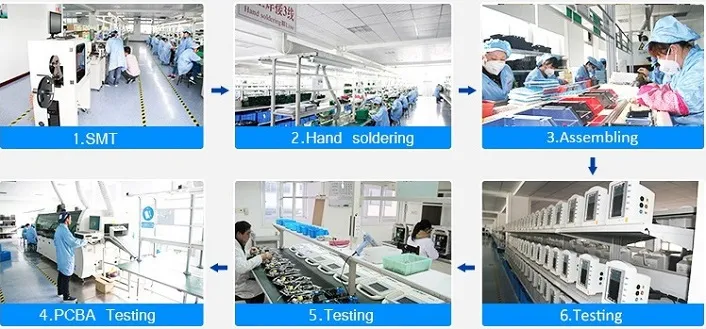

Production Line
Packaging & Shipping
Logistics and Packaging
Frequently Asked Questions
What are the power requirements for this X-ray equipment?
The equipment typically operates on AC 220V±22V for models up to 32kW, while higher power models like the 50kW and 65kW versions require AC 380V.
Can this X-ray system be upgraded to a Digital Radiography (DR) system?
Yes, the system is designed with a rich DR upgrade reserve interface, making it easy to transition from traditional film or CR to a full digital radiography setup.
What is the range of the exposure time?
The exposure time ranges from a very fast 0.002 seconds up to 10 seconds, allowing for precise control depending on the clinical requirement.
Is the table movement manual or electronic?

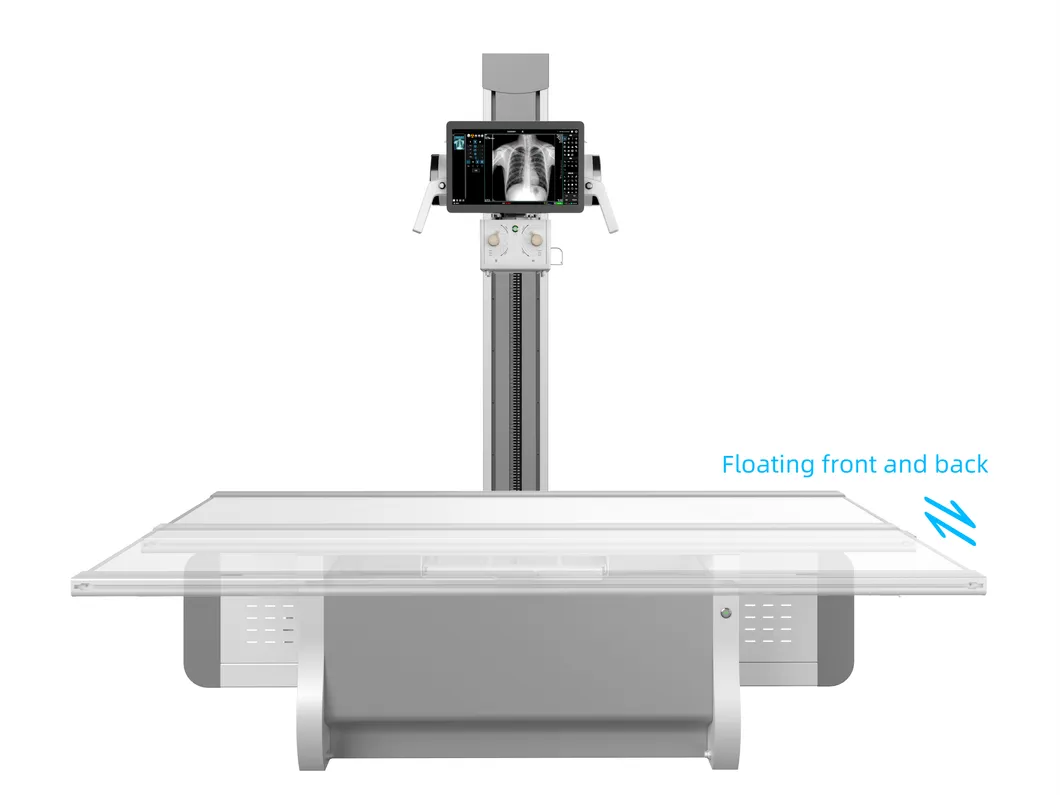

The radiographic table features an infrared photoelectric switch for four-way movement control, ensuring smooth and precise positioning of the patient.
Is the equipment suitable for obese patients?
Absolutely. With options for high kV (up to 150kV) and high power (up to 65kW), the system provides strong penetration capabilities required for imaging larger or obese patients effectively.
What kind of packaging is used for international transport?
The equipment is securely packed in high-quality wooden cases to ensure maximum protection against vibrations and impacts during sea or air freight.
