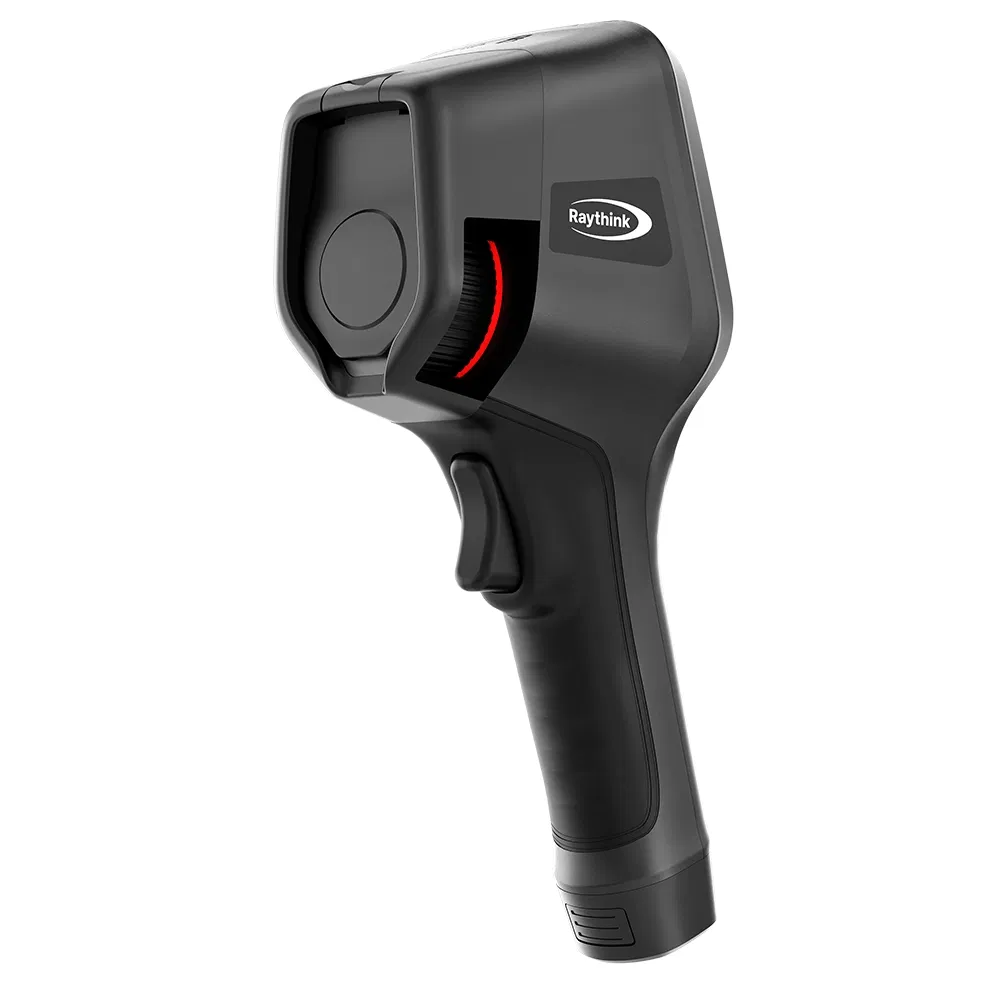

Equipped with a 640×512 customized band-pass filter detector to eliminate stray light interference; capable of distinguishing a temperature difference of 0.023°C, capturing gas microleakage. Spatial resolution as low as 0.63mrad, providing wider working distances or better gas details.

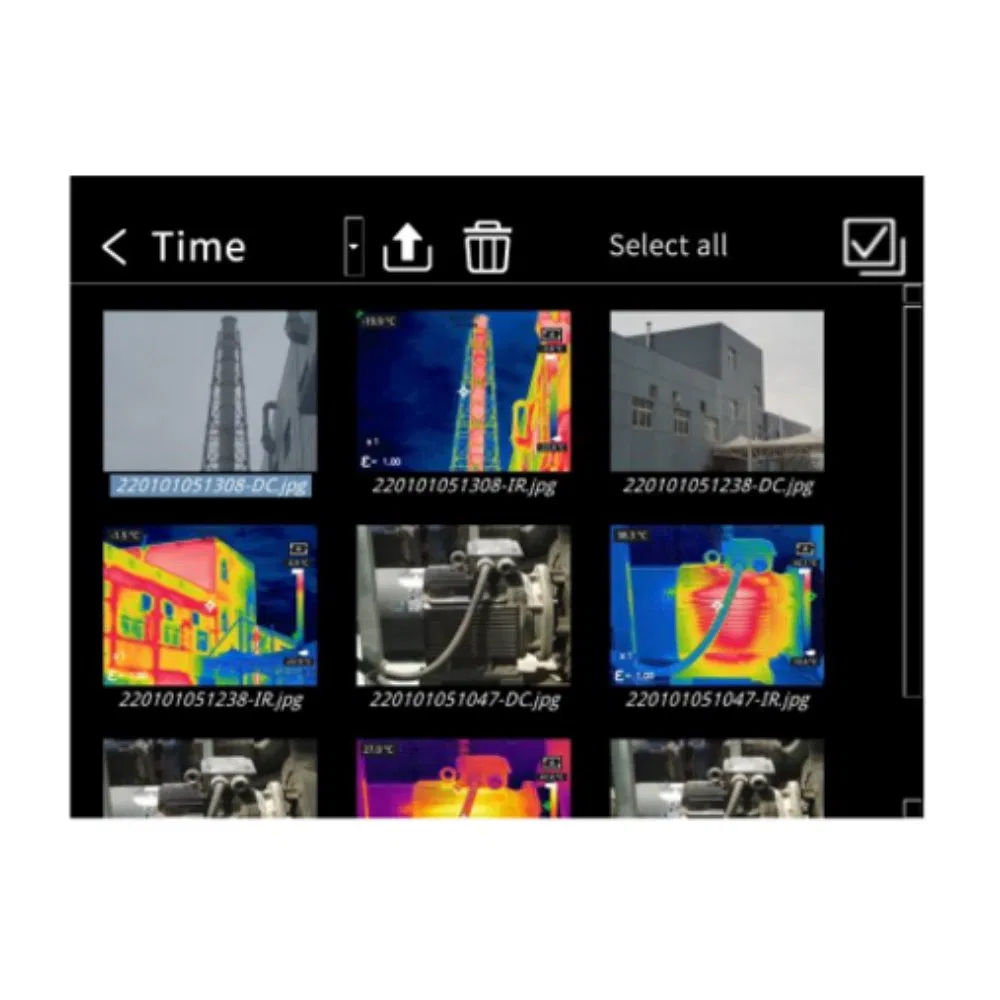

Simultaneous observation of thermal imaging and visible light to easily locate gas leaks. High accuracy of temperature measurement facilitates both leak detection and safety monitoring. Features a 3.5-inch touch screen with complete analysis functions.
Ex ic IIC T4 explosive-proof rated, suitable for security applications in high-risk environments such as oil and natural gas routine inspections.
| Thermal Imaging Parameters | |
|---|---|
| Detector Type | Uncooled infrared detector |
| Infrared Resolution | 640×512 |
| Spectral Band | 7.0~8.5μm |
| Gases Detectable | Methane, nitrous oxide, sulfur dioxide, phenol, ethyl acrylate, 2-ethylhexyl acrylate, freon (R13, R13B1, R123, R125,R134A, R417A, R422A, R508A) |
| Pixel Size | 12μm |
| NETD | 23mK |
| Frame Rate | 30Hz |
| FOV | 23°×18° |
| Measurement Range | -20°C~+120°C |
| Measurement Accuracy | ±2% or ±2°C |
| Hardware & Functional Parameters | |
| Image Mode | Infrared, visible light, dual-spectrum fusion, PIP |
| Visible Light Camera | 5 megapixels |
| Display Size | 3.5-inch touch screen (480×640) |
| Connecting Method | USB, SD card, Wi-Fi (AP mode or networking mode) |
| IP Grade | IP54(IEC 60529) |
| Drop Protection | 2m |

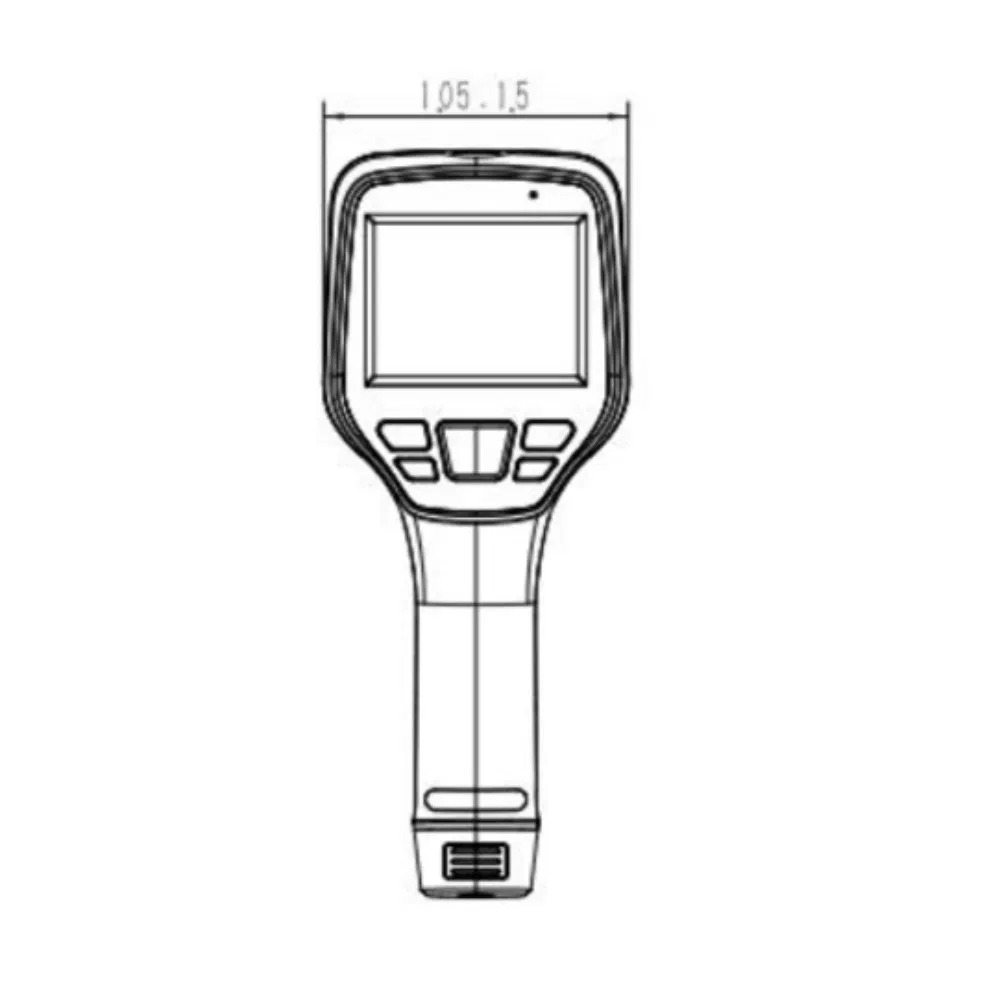

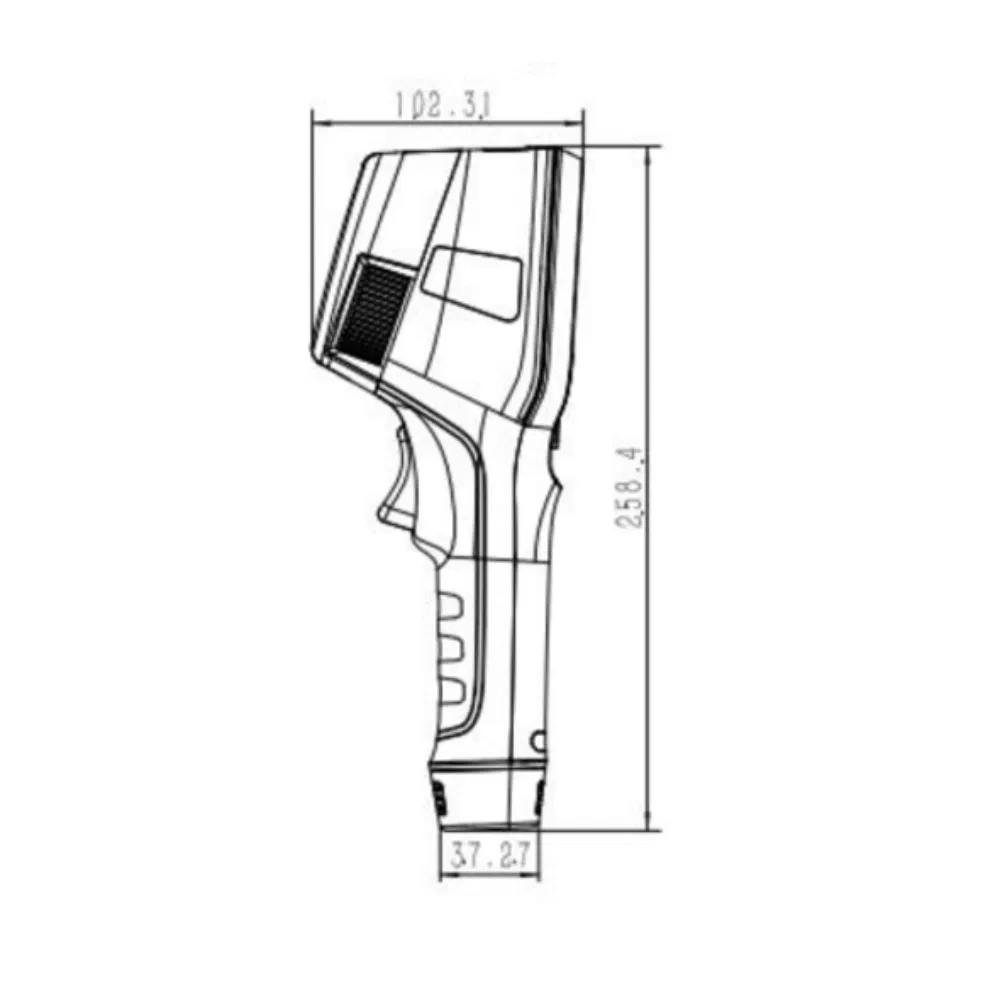

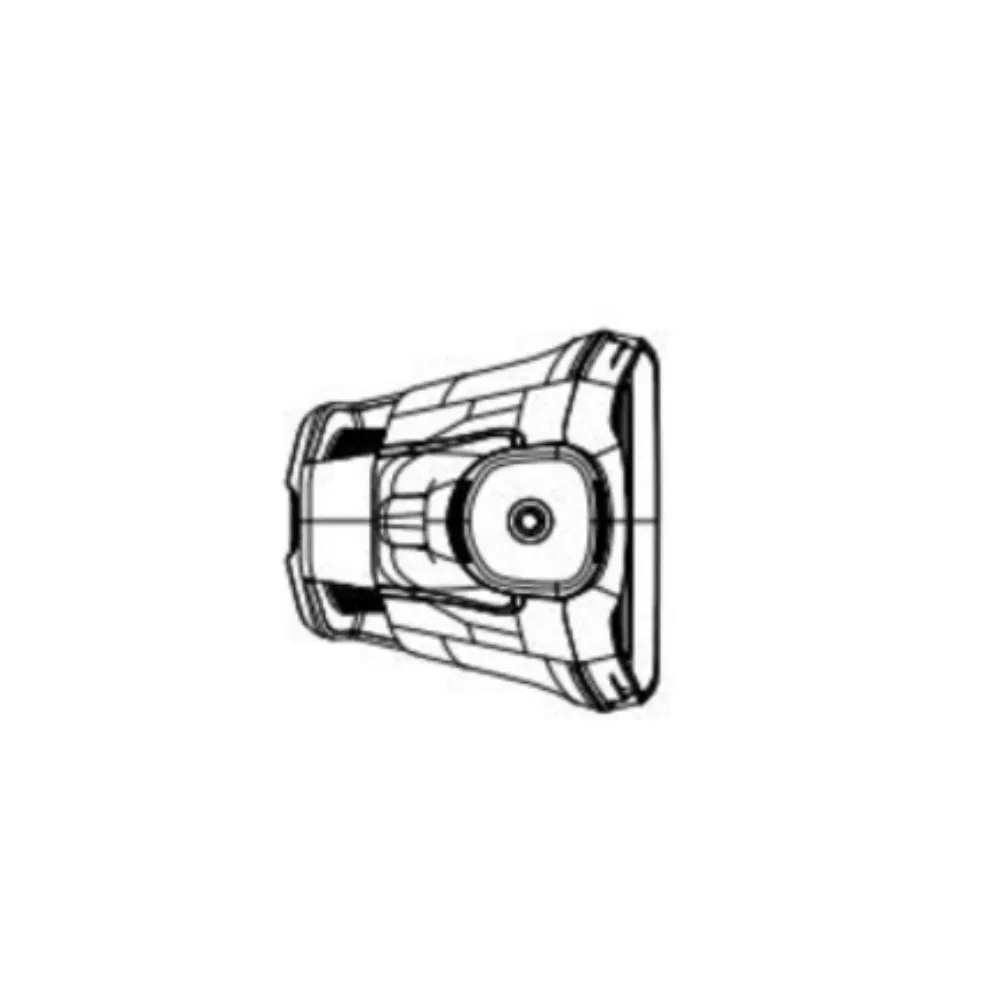

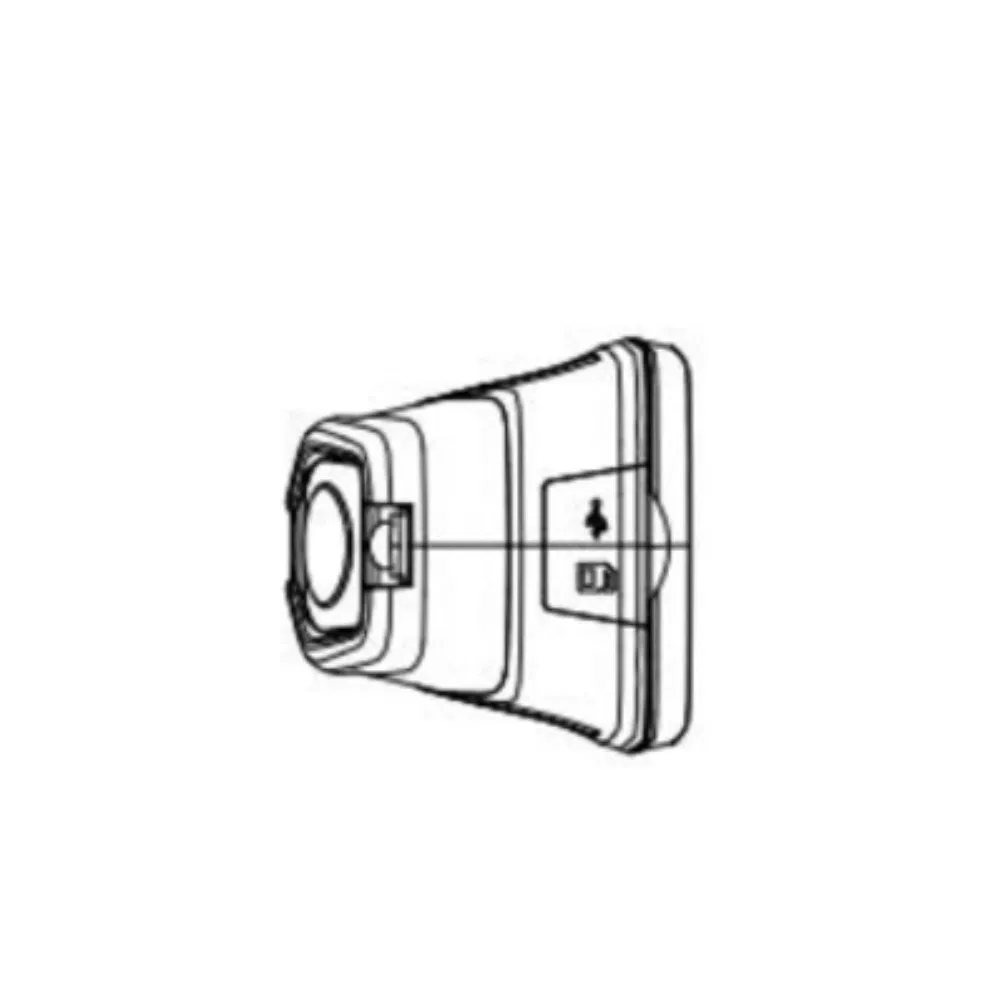

| Dimensions | 258.4 ×105.1 ×102.3(mm) |

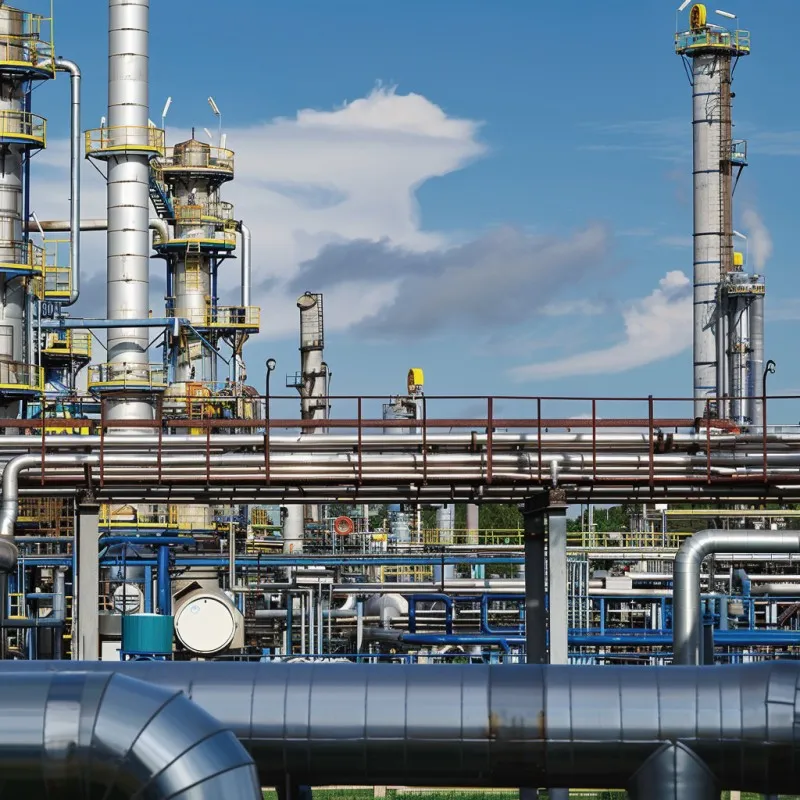

Petrochemical

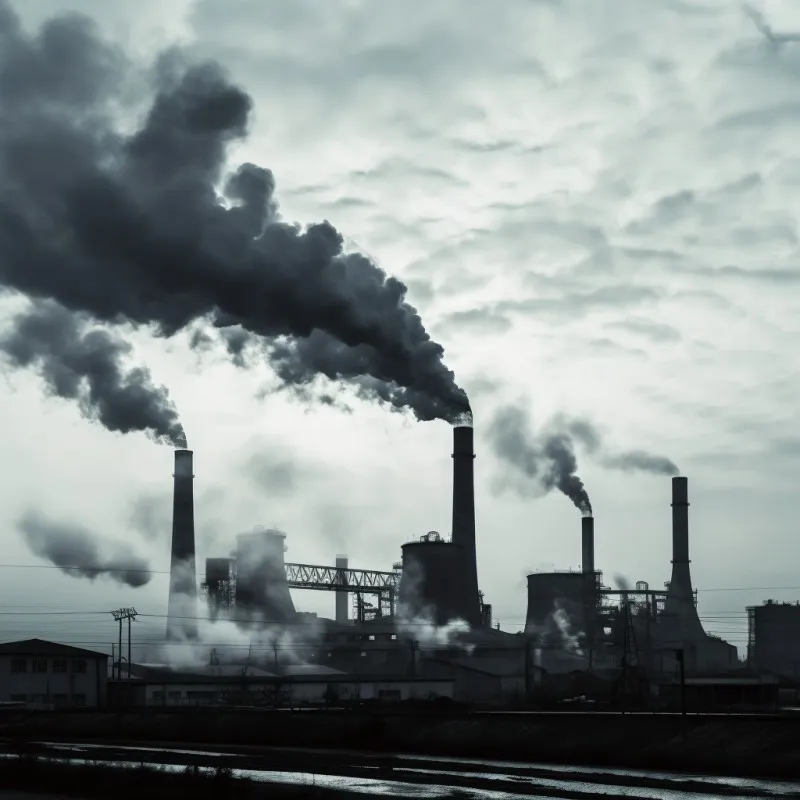

Emergency Response & Environmental Protection

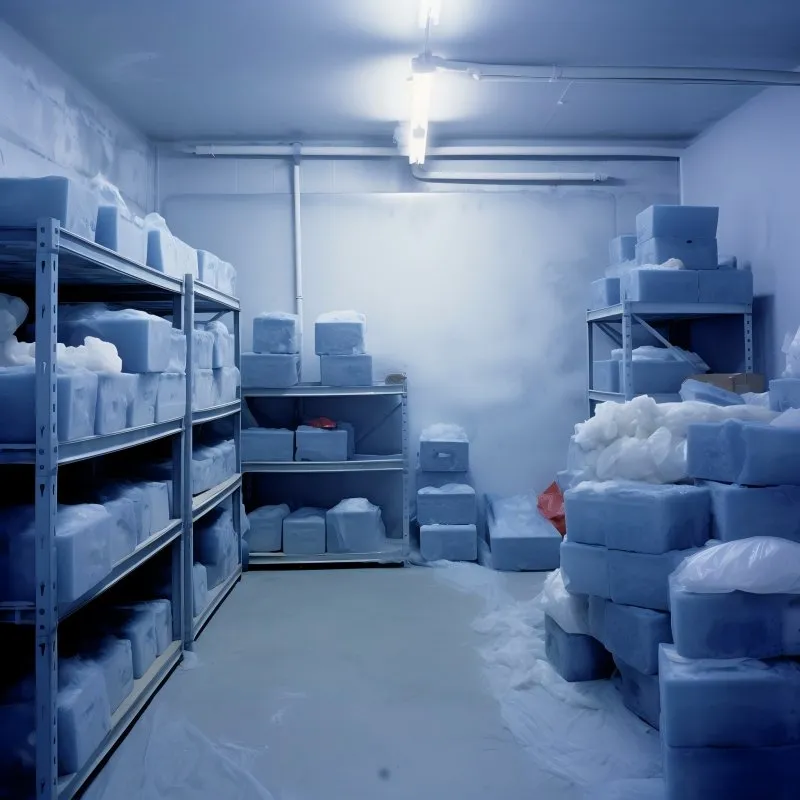

Cold-Chain and Cold Storage

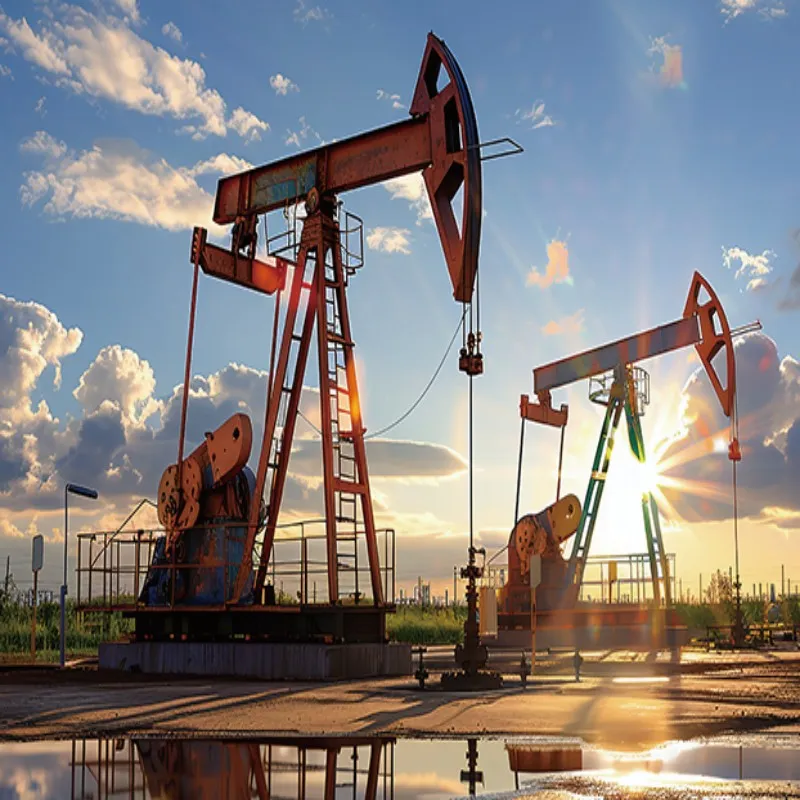

Oil Exploitation
