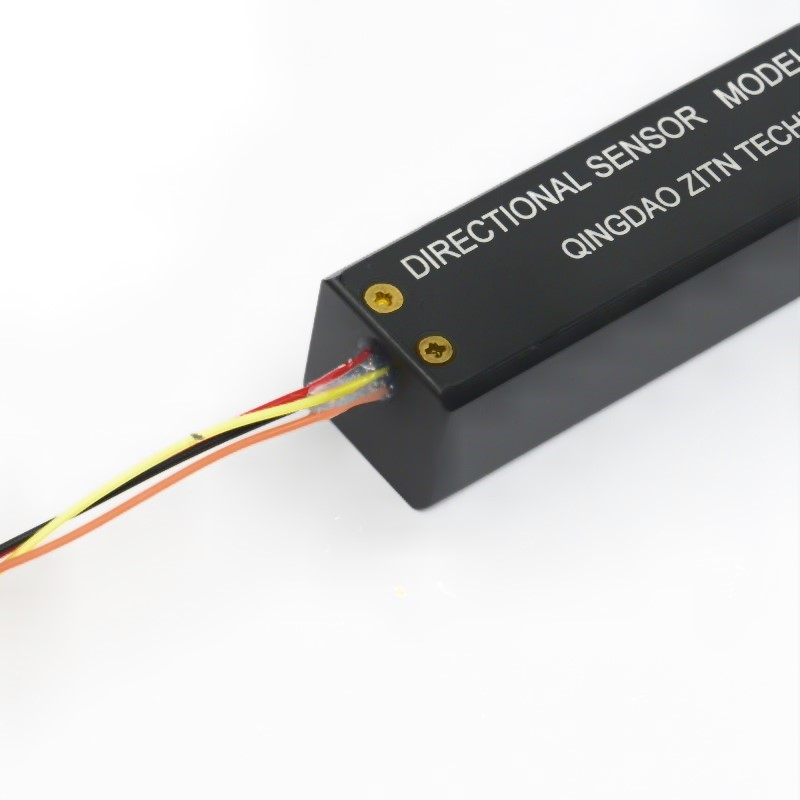

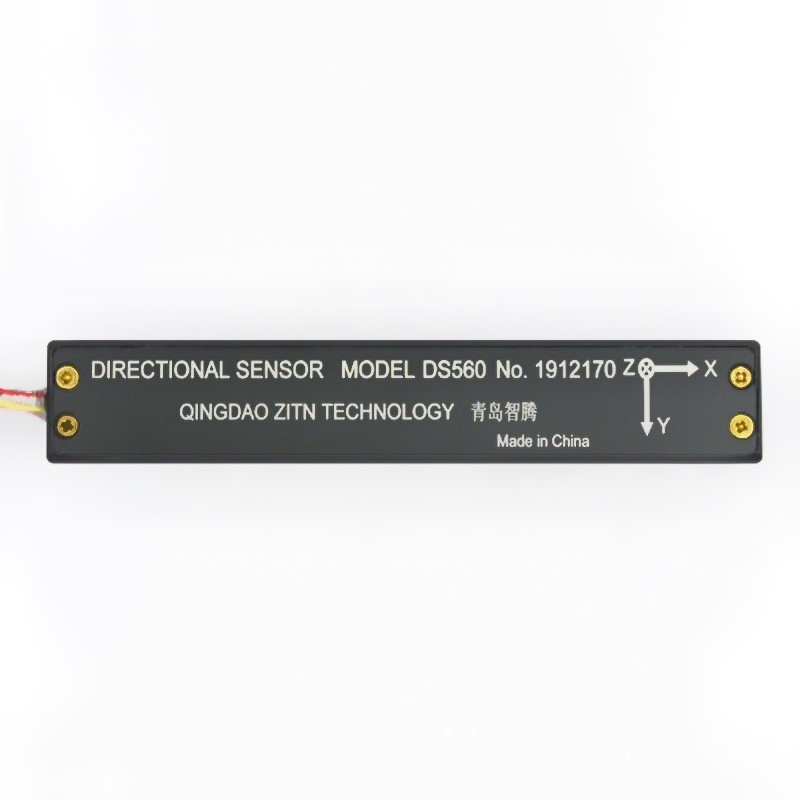

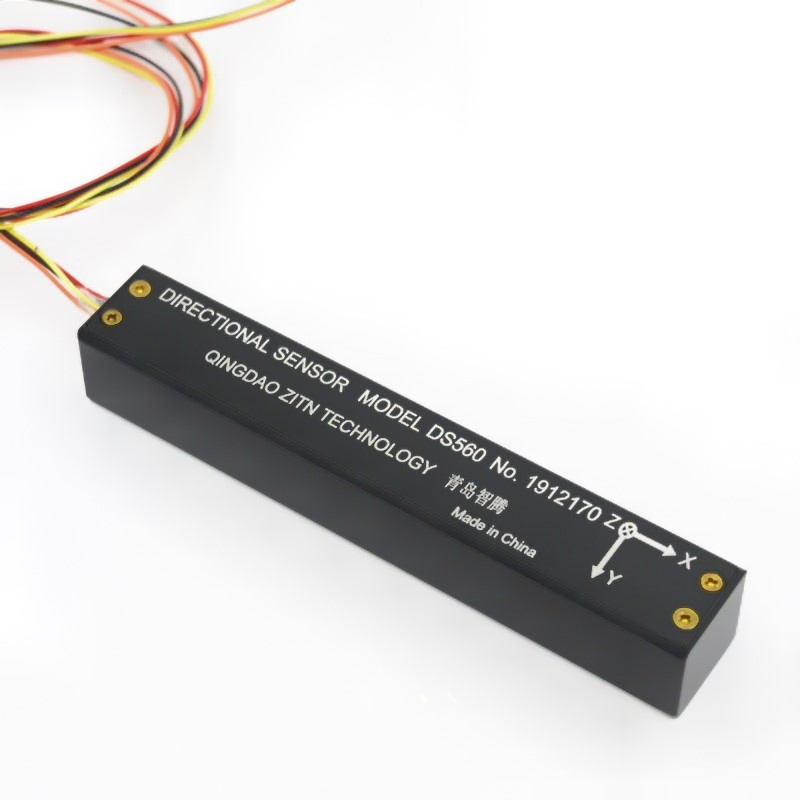

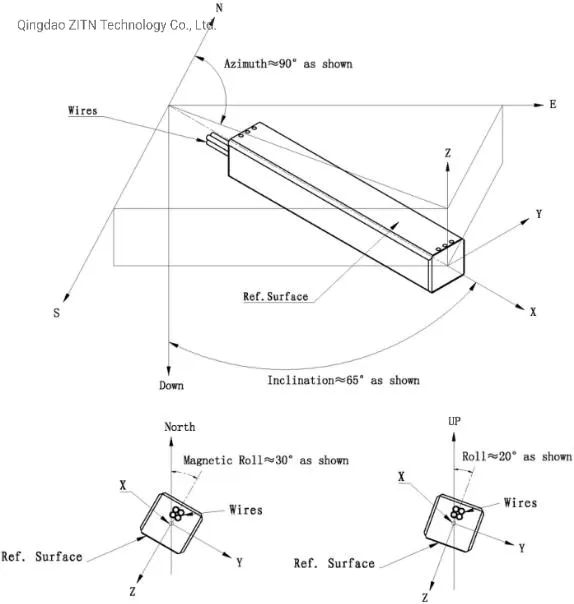

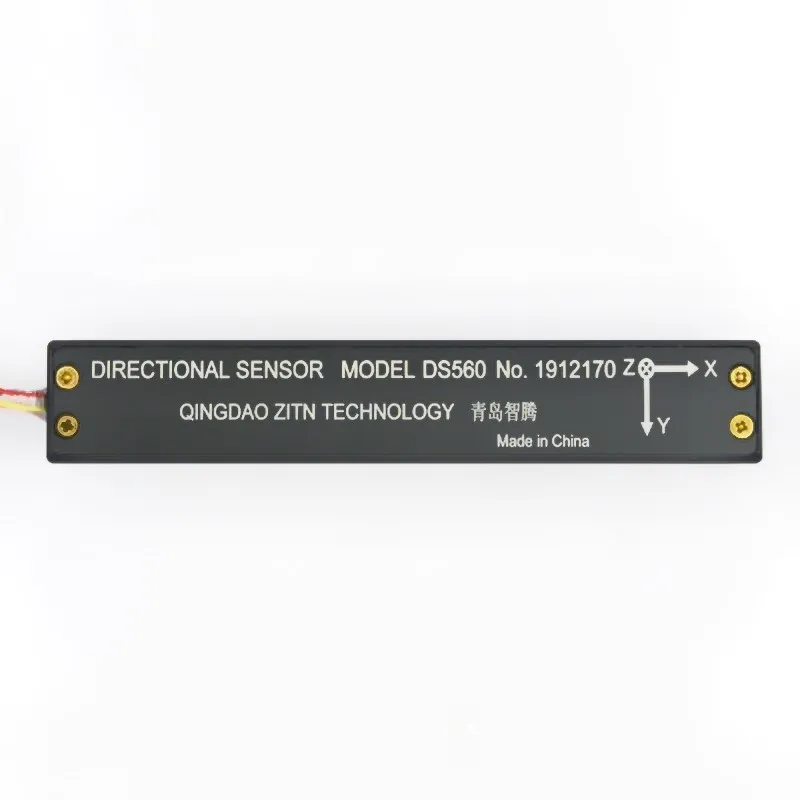

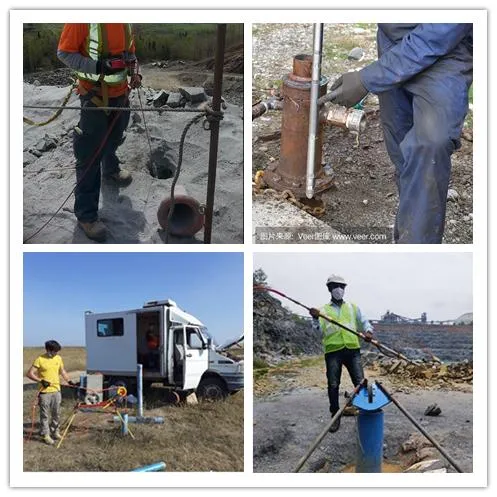

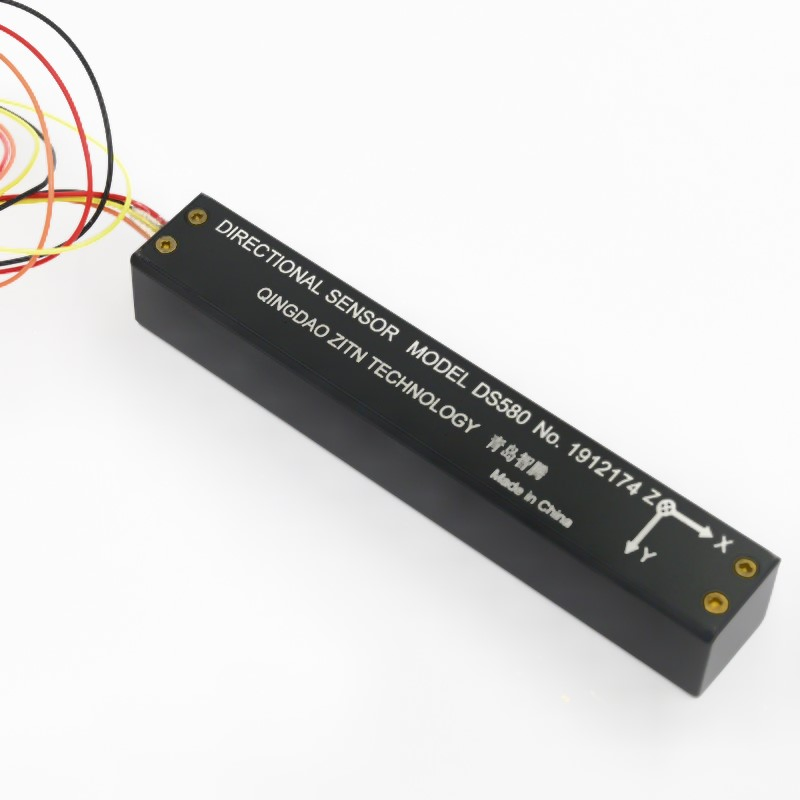

The DS560 directional module is designed to enable high accuracy measurement of the roll, axis alignment and azimuth orientation angles in borehole logging and drilling applications.
Using 4.9-12V DC voltage power supply and adopting UART asynchronous transmitter for digital transmission. It consists of 3-axis fluxgate magnetometers and 3-axis MEMS accelerometers.
The DS560 communicates with the outside world over a UART interface. It is compatible with TTL through logic level, and the baud rate is normally set at 9600~115200 to operate. Logic level 5V (customization), data update rate once per second.
| SN | Items | Value |
|---|---|---|
| 1 | Input Voltage Range | +5~+12V |
| 2 | Input Current | 30mA |
| 3 | Temperature Range | -40ºC~135ºC |
| 4 | Inclination Range | 0°~180° |
| 5 | Azimuth Range | 0°~360° |
| 6 | Roll (Toolface) Range | 0°~360° |
| 7 | Inclination (Drift) | ±0.1° |
| 8 | Azimuth Accuracy | ±0.3° to ±2° (based on inclination) |
| 9 | Roll (Toolface) Accuracy | ±0.2° |
| 10 | Logic Level | TTL/CMOS(+5V) |
| 11 | Baud Rate | 9600~115200 |

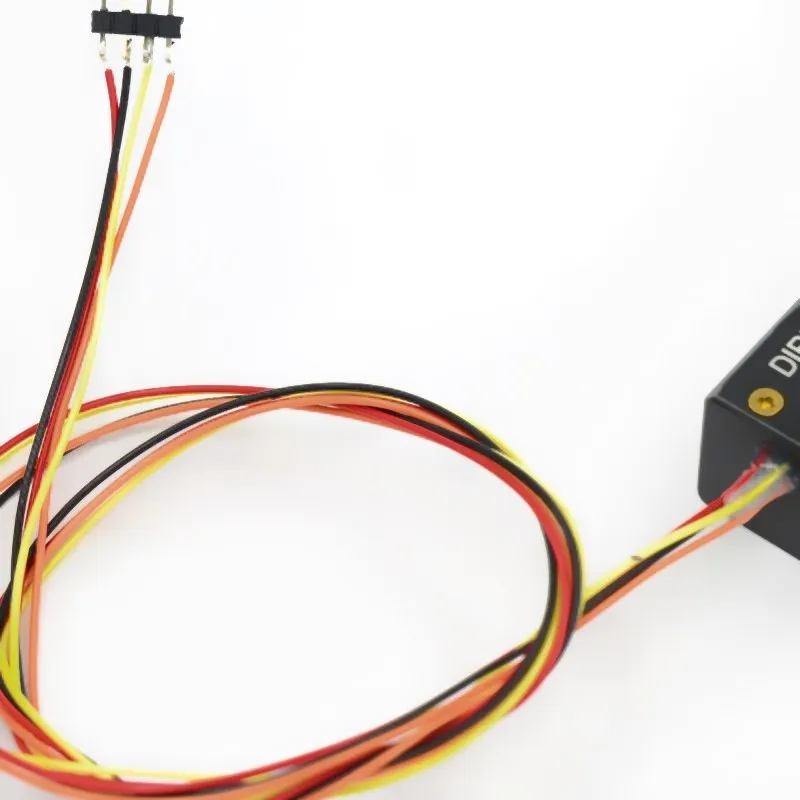

| Pin Name | Wire Color | Function |
|---|---|---|
| VIN | Red | +5~+12VDC |
| GND | Black | Ground |
| RX | Orange | Serial In |
| TX | Yellow | Serial Out |
High accuracy, cost-effective price, stable performance. Trusted name in orientation technology.
