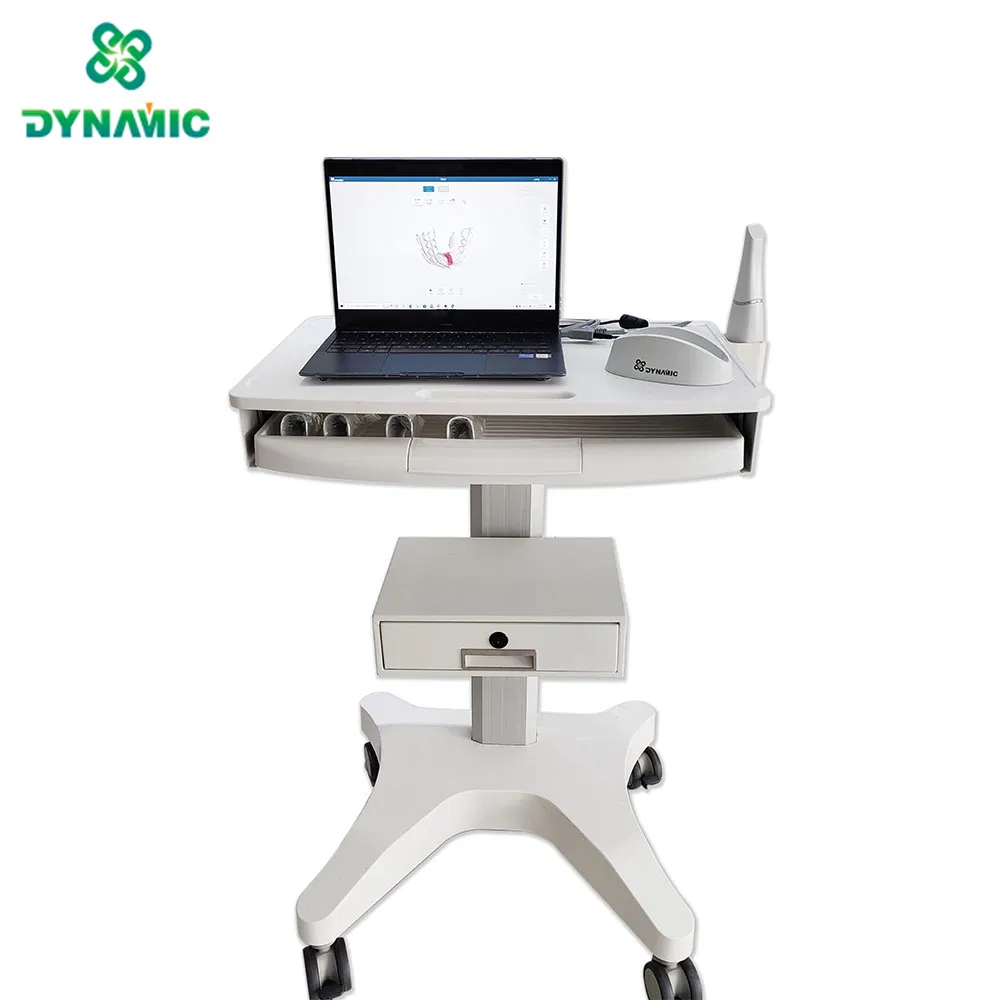

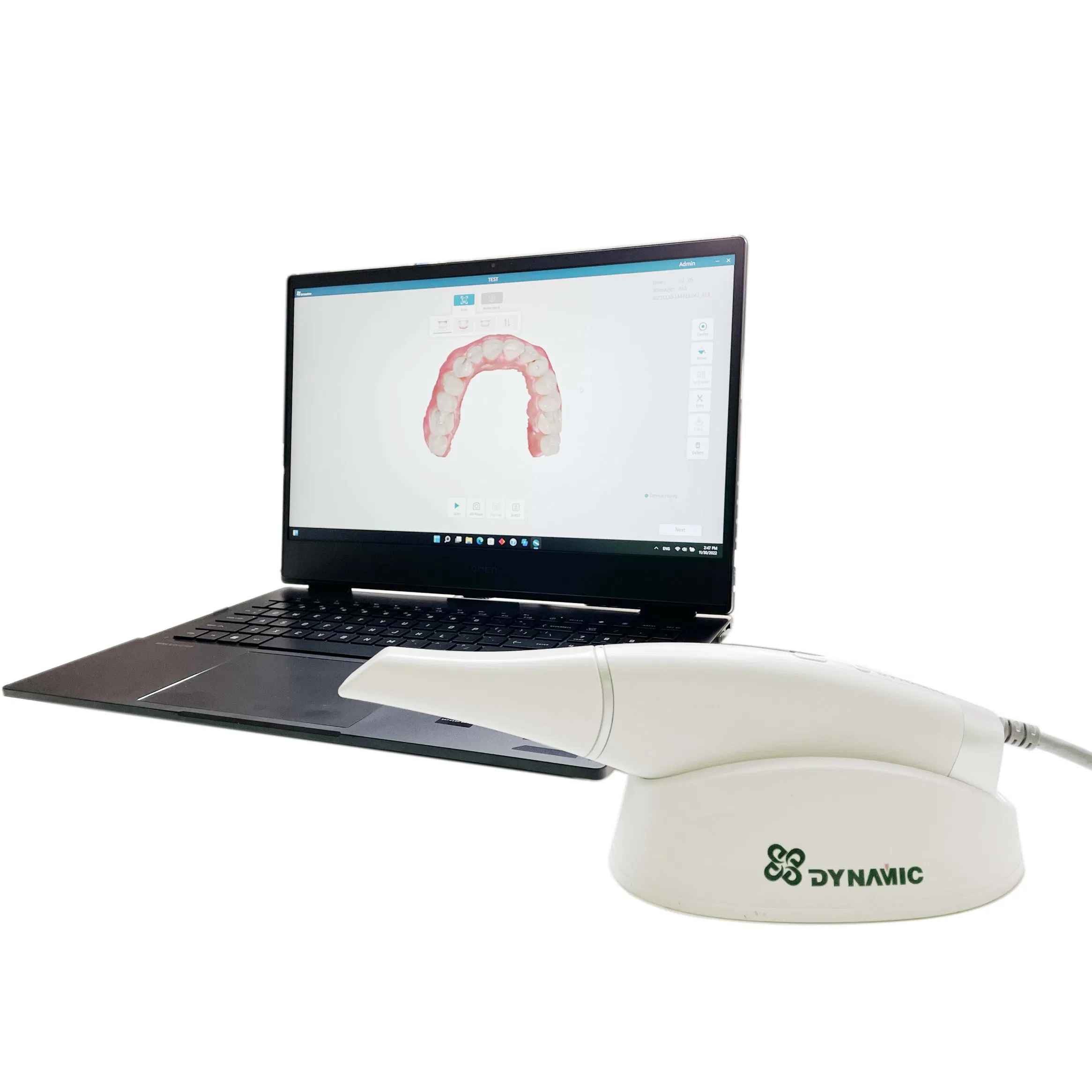

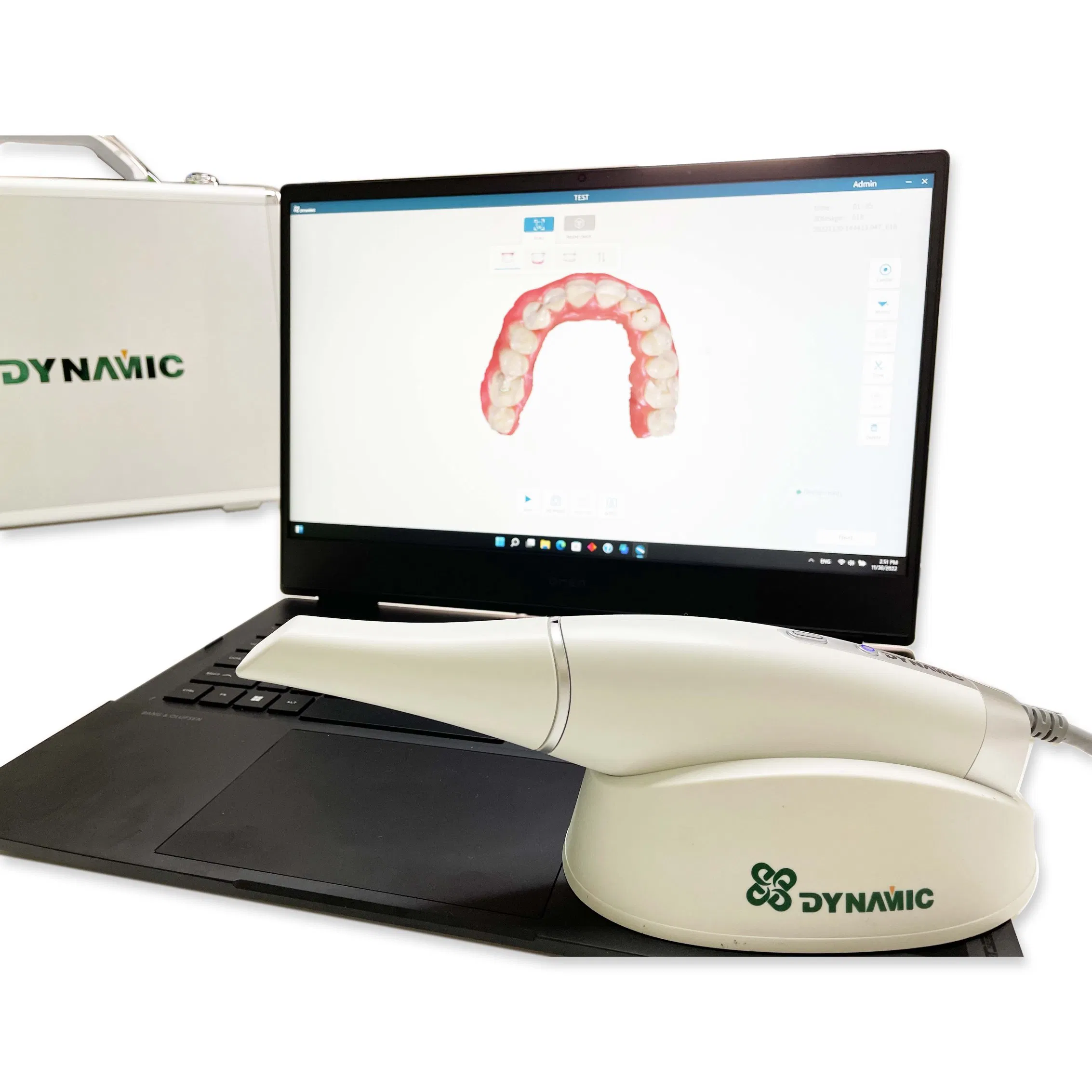

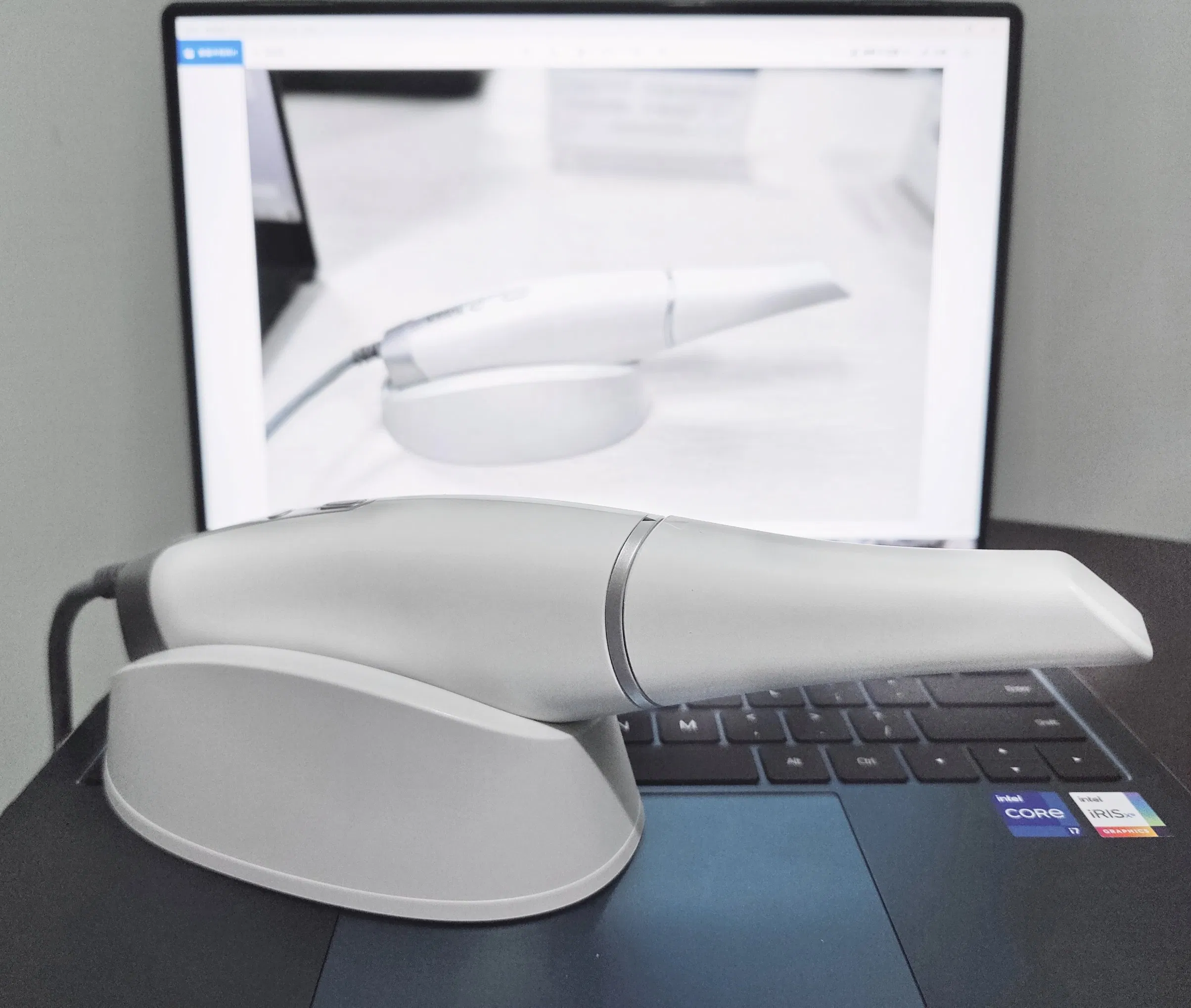

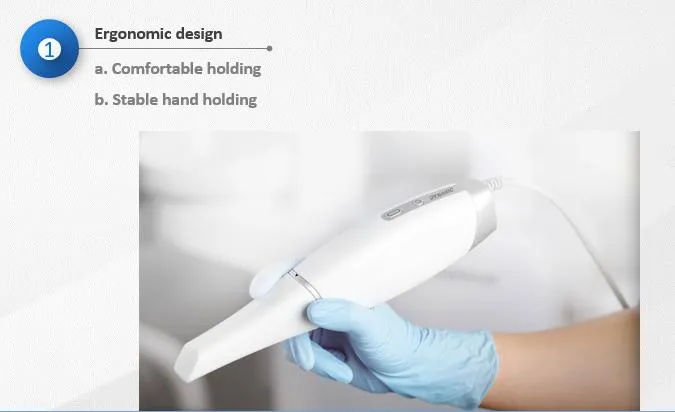

Our intraoral scanner DDS300 is designed to help you transition into digital dentistry with ease. It provides a comfortable scanning experience for both the dentist and the patient, ensuring high efficiency and precision.
| S/N | Item | Dynamic (DDS300) Details |
|---|---|---|
| 1 | Weight | 350g |
| 2 | Size | 240*39.8*57mm |
| 3 | Tip size | 18.5*19mm |
| 4 | Scan tech | Imaging technique-accur 3D |
| 5 | Scan time single arc | 30-45s |
| 6 | Scan depth | 15-20mm |
| 7 | AI scan | Support (automatic remove unnecessary parts like gloves, tongue) |
| 8 | Accuracy | 20um |
| 9 | Anti-fog tech | Support, built-in module |
| 10 | Disinfection way | Autoclave |
| 11 | Calibration | No need (directly use to save time) |
| 12 | Metal identification | Advanced metal material identification ability |
| 13 | Data format | STL, PLY, OBJ |
| 14 | Connector | USB 3.0 |
| 15 | Language | English/German/Russian/French/Portuguese |
The scanner supports STL, PLY, and OBJ formats, ensuring compatibility with most CAD/CAM software in the dental industry.

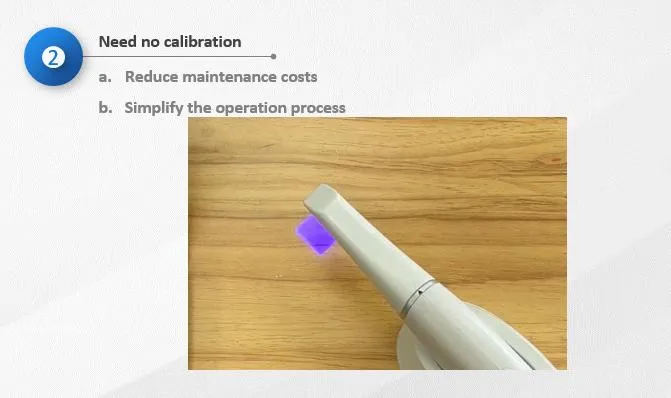

No, the DDS300 is designed to be used directly without the need for frequent calibration, which significantly saves time for the dental clinic.
A single arc can be scanned in approximately 30-45 seconds, and a full mouth scan typically takes around 3 minutes.

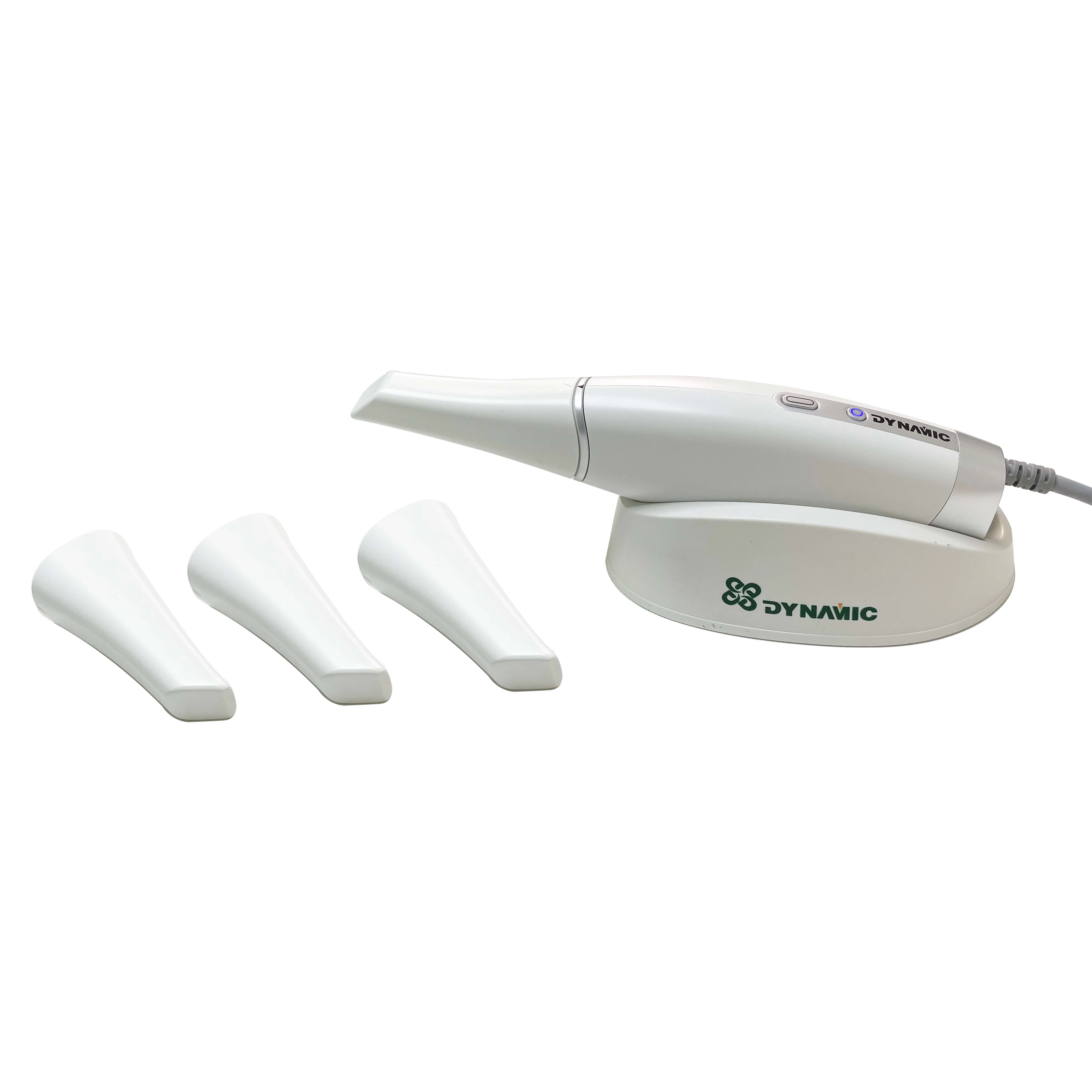

The scanner tips are autoclavable and can be sterilized using standard 121°C and 134°C autoclave methods.

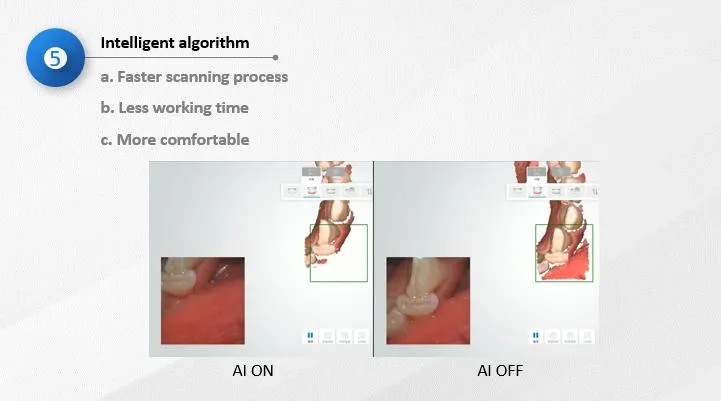

Yes, the intelligent AI algorithm automatically identifies and removes unnecessary data such as gloves, tongue, or cheeks for a cleaner 3D model.

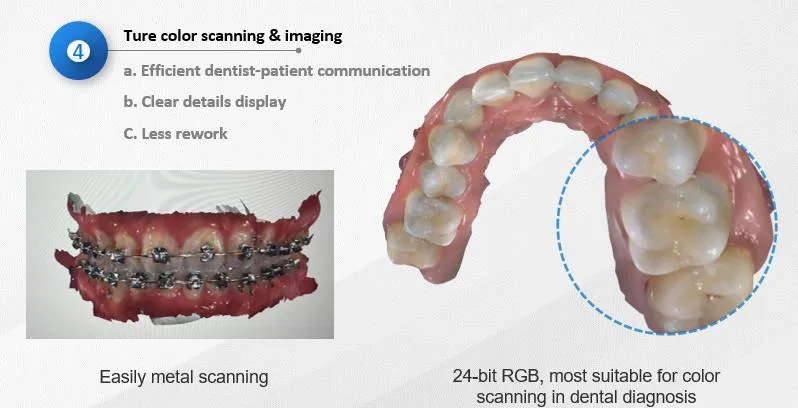

Yes, the DDS300 features enhanced metal identification capabilities, making it highly effective for scanning orthodontic brackets and other metal materials.
