Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
1 / 5
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis
Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis

Advanced Eye Health Monitoring Tool for Ophthalmic Precision Analysis

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Ultrasound Scanner
Send Inquiry

Product Description

📋 Basic Information
Model NO.
OD1-P
Certification
CE, ISO13485
Group
All
Use
for Human
Application
Acd, Lens, Vitreous, and Axl
Printer
Internal Thermal Printer
Transport Package
Standard Export Package
Specification
Main Unit + One 10MHz A Scan Probe
Origin
China
HS Code
9018500000
Production Capacity
5000 pieces/Per Year
🔍 Product Overview

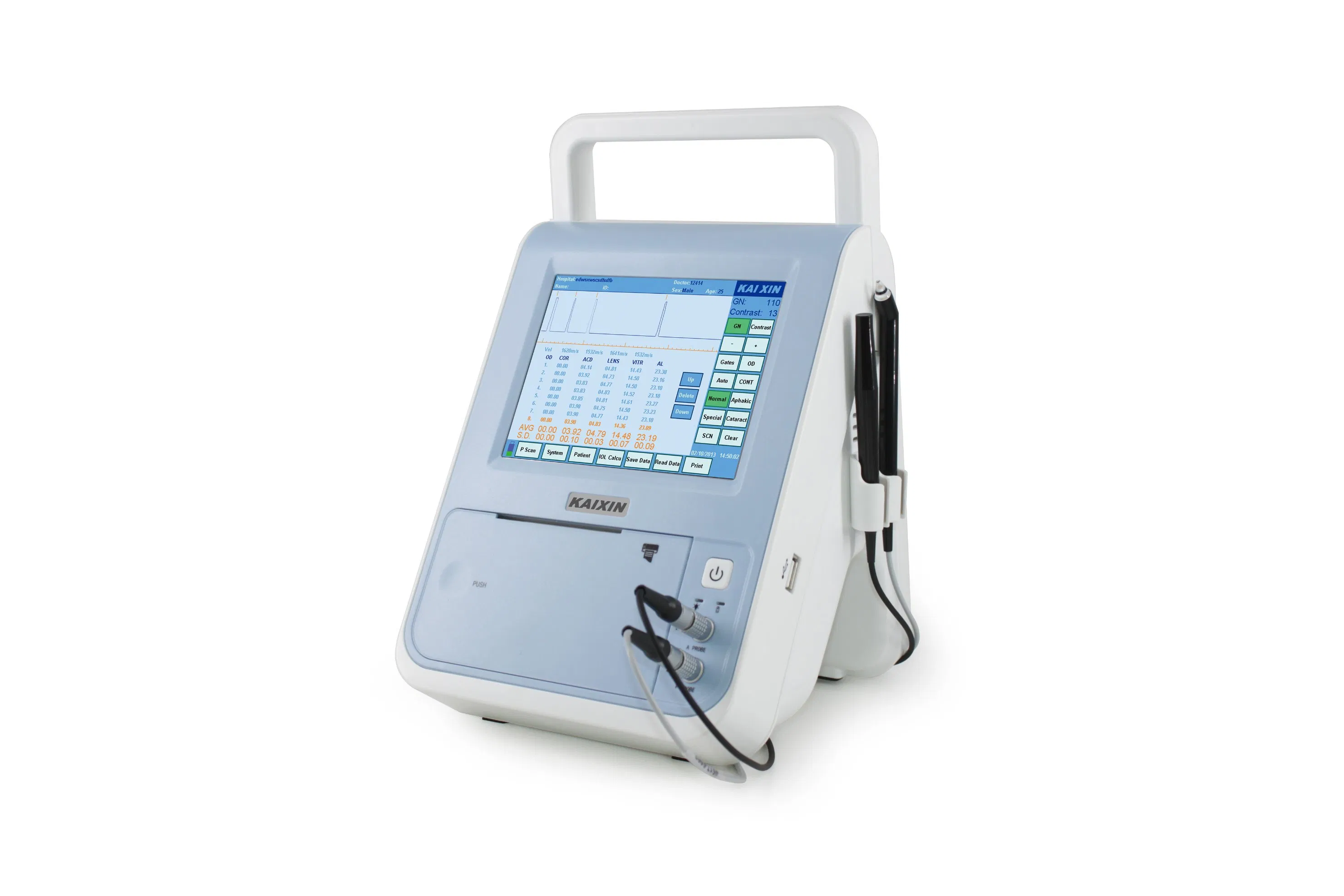

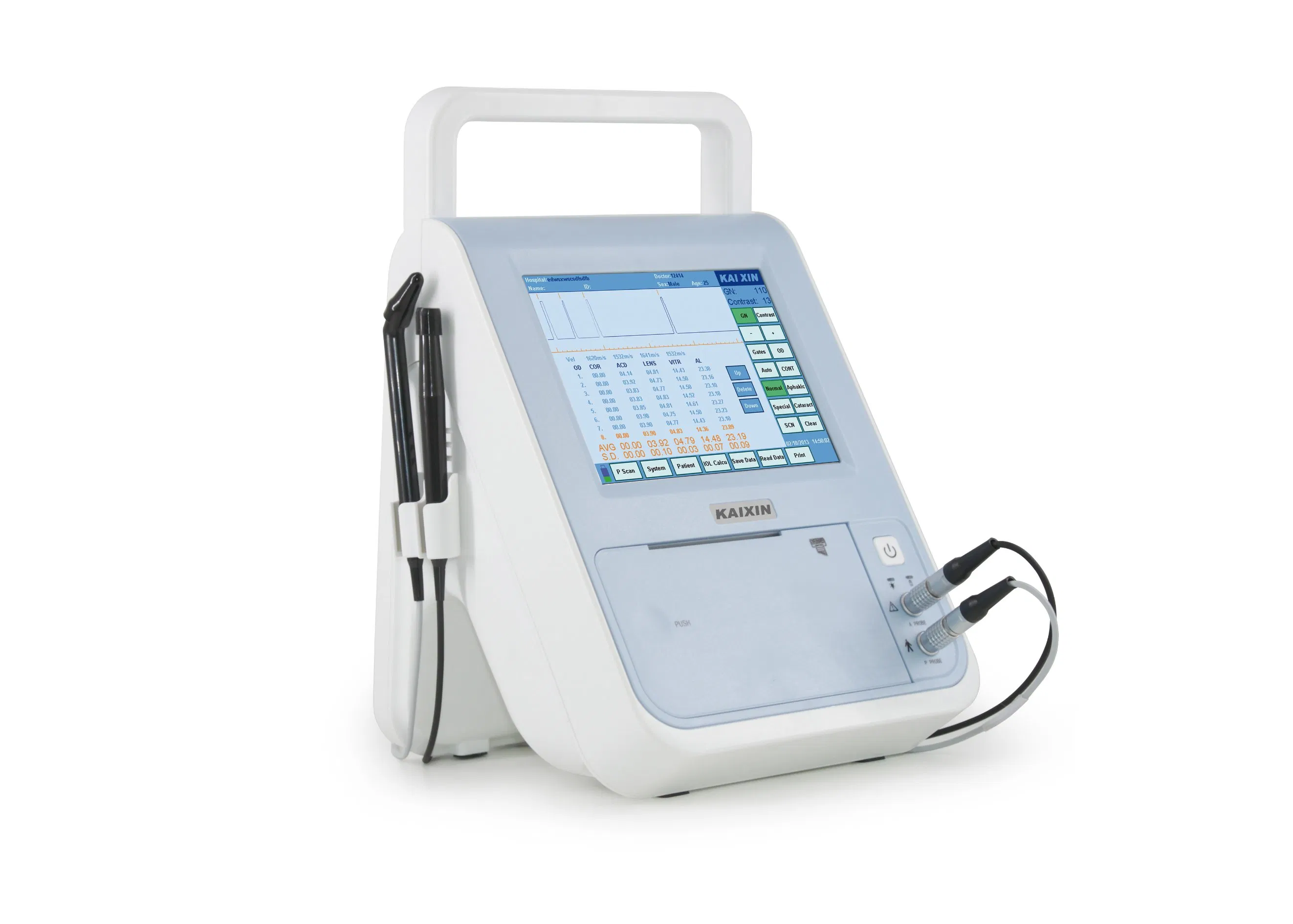

Biometer & Pachymeter OD1-P

General Parameters:

  • Triangular model, portable and firm.

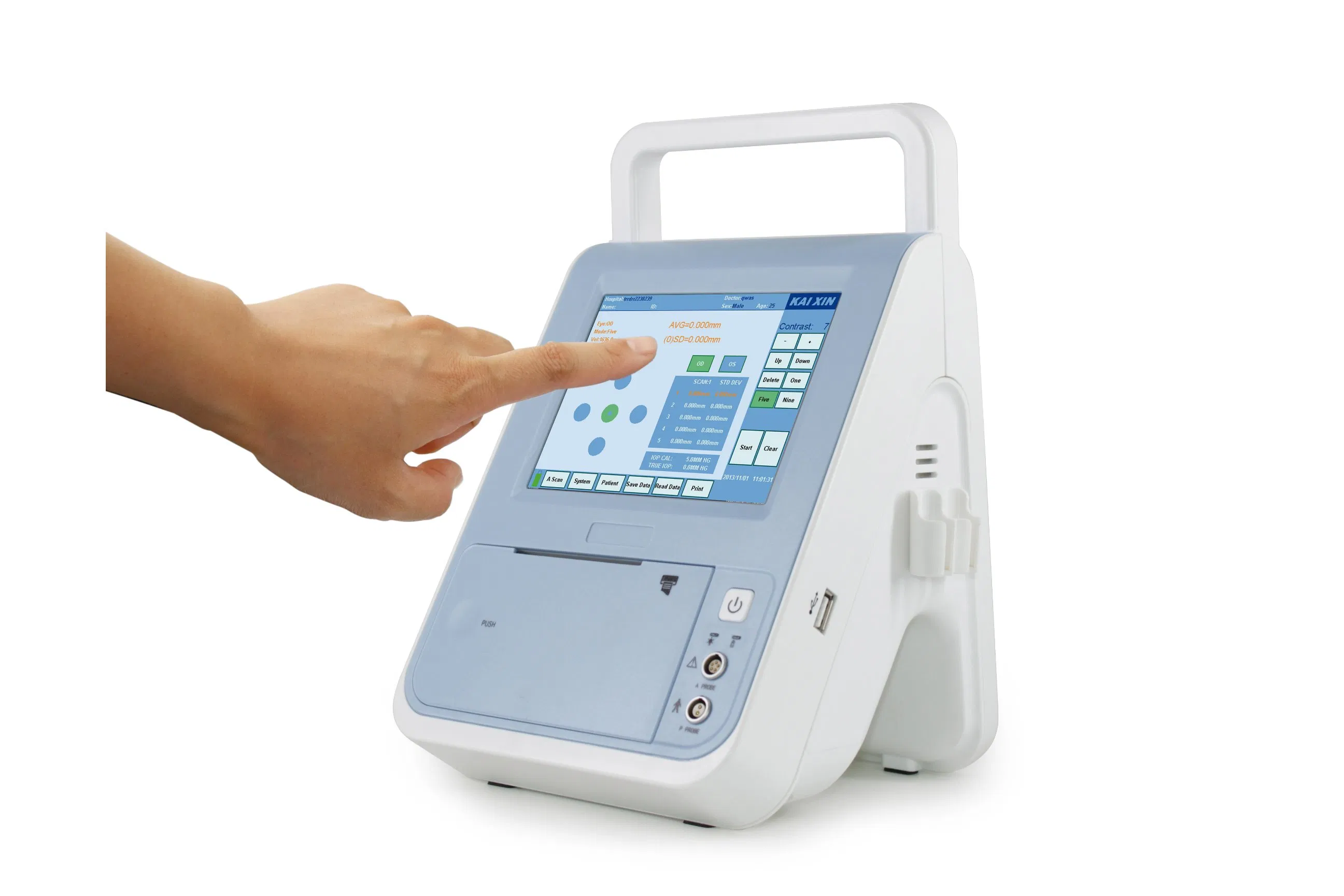

  • 5.7" inch color LED touch screen.
  • Standard workstation software, easily for transfer and manage data.
  • Free software upgrade via USB interface.

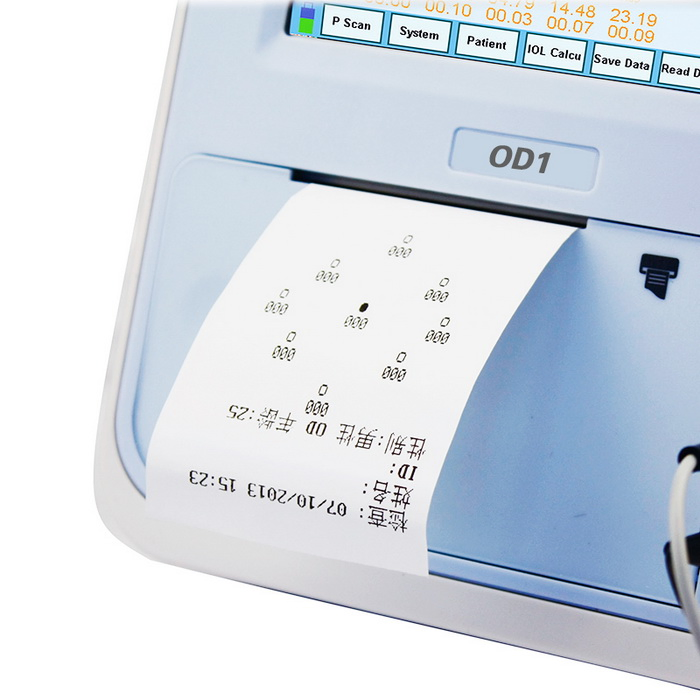

  • Built-in thermal printer, information output conveniently.
  • Internal optional battery, practical for out-clinic diagnose.
  • Probe frequency: 20 Mhz
  • Resolution: 1um
  • Measurement range: 0.23~1.3mm
  • Accuracy: ±5um
  • Power requirement: AC 100-240V 50-60Hz | Rate power: <= 45 VA
  • Dimension: 200*168*165 (mm, L*W*H)
OD1-A Biometer Specifications
  • Probe Frequency: 10 Mhz
  • Resolution: 0.01mm
  • Accuracy: ±0.02mm
  • Gain adjustable: 0-120dB
  • Measurement range: 15~35 mm (vel 1640m/s)
  • Measurements: ACD, Lens, Vitreous, and AXL
  • Examination modes: normal/aphakia/dense cataract/PMMA, Acrylic & Silicone.
  • Measurement mode: immersion and contact, auto and manual
  • IOL formulas: SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS
🛠️ Standard Configuration
1Main unit
220.0MHz P probe
3Adapter
4Gage block for calibration
5Touch screen pen
⚙️ Optional Configuration
1Lithium battery
2Battery charger
3Footswitch
4Prager shell for Immersion
🖼️ Product Gallery

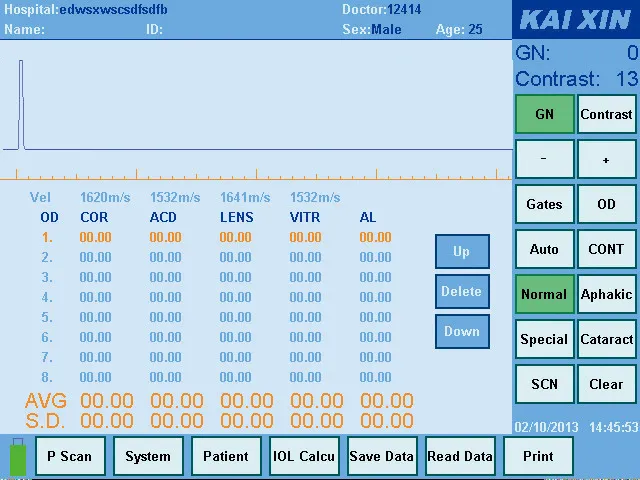

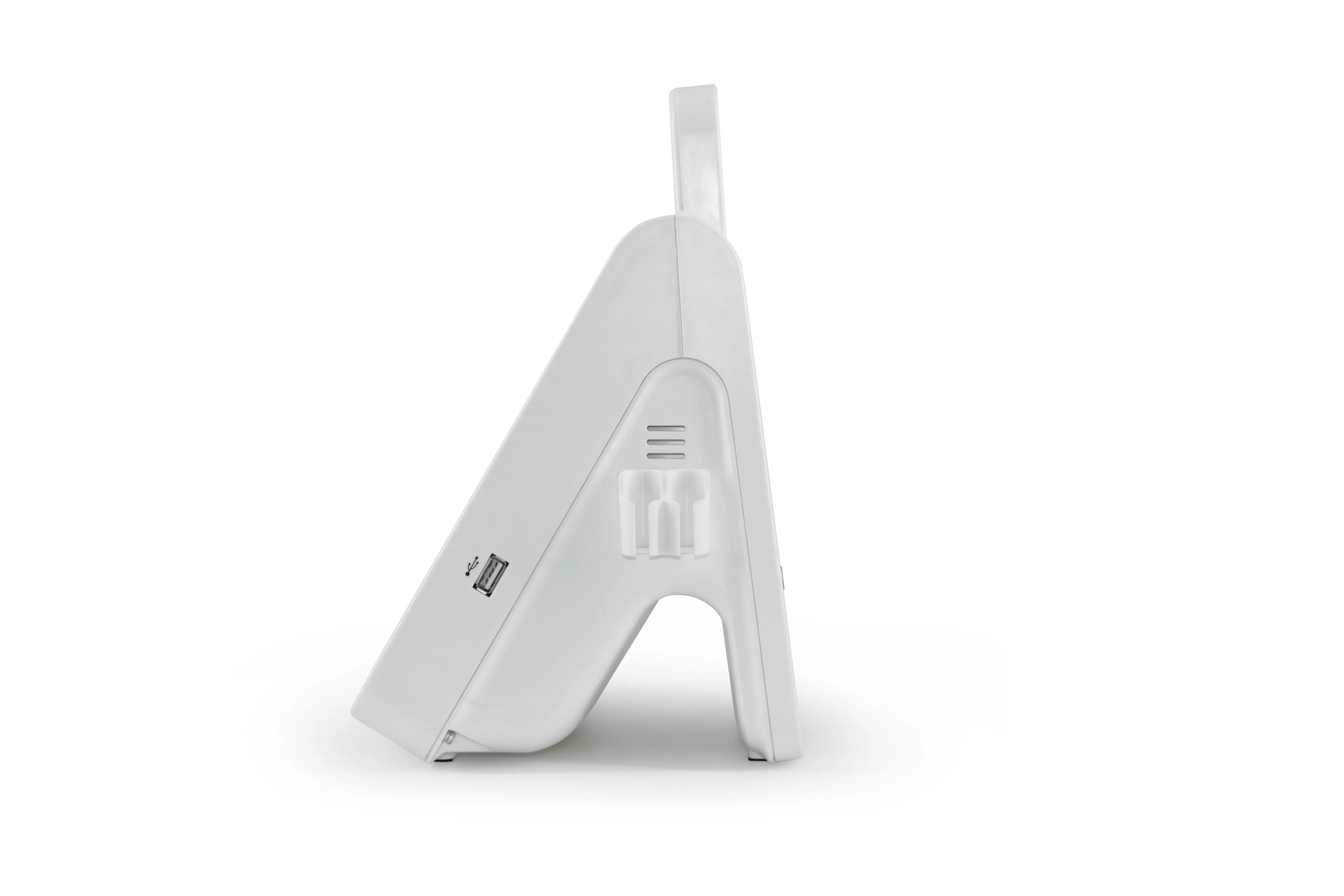

OD1-P View 1

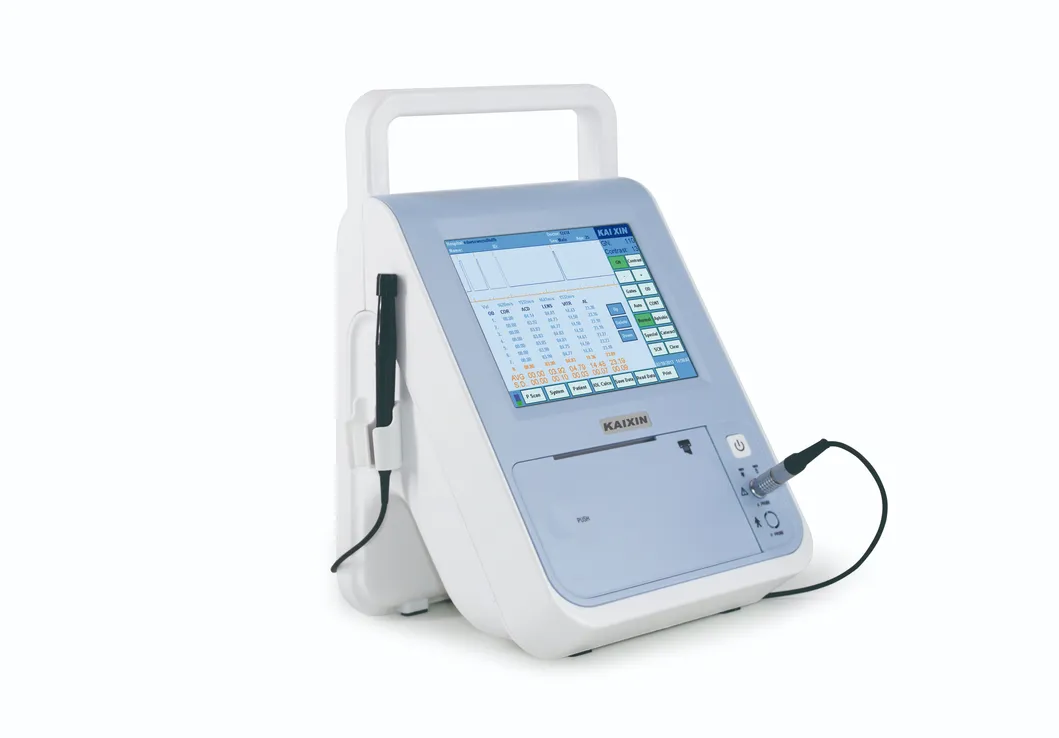

OD1-P View 2
OD1-P View 3
OD1-P View 4
OD1-P View 5
OD1-P View 6
Frequently Asked Questions
What is the primary function of the OD1-P?
The OD1-P is a dual-purpose ophthalmic device that functions as both a Biometer (for axial length measurements) and a Pachymeter (for corneal thickness measurements).
Can this device be used in portable settings?
Yes, it features a triangular portable design and offers an internal optional battery, making it highly suitable for out-clinic diagnostics and mobile use.
What IOL formulas are supported by the OD1-A Biometer?
It includes six major IOL formulas: SRK-II, SRK-T, BINKHORST, HOLLADAY, HOFFER-Q, and HAIGIS.
Does the system provide high-resolution corneal measurements?
Yes, the Pachymeter function uses a 20MHz probe providing a resolution of 1um and an accuracy of ±5um.
How can I export or manage the measurement data?
The device comes with standard workstation software for easy data transfer and management, and features a built-in thermal printer for immediate physical output.
