Basic Information
Certification
CE, FCC, RoHS, ISO9001
Pipeline Diameter
Above DN300
Product Description
X1-H5 Pipe Periscope
🚀 Key Highlights
◈
36 levels optical zoom, 12 levels digit zoom, 4 mega pixel resolution
◈
Laser measurement range: 3-400m
◈
Gas detection module: can react with over 300 kinds of VOC gases
◈
Extension pole: maximum length up to 25 meters
◈
Cloud platform connectivity for real-time video recording and location tracking

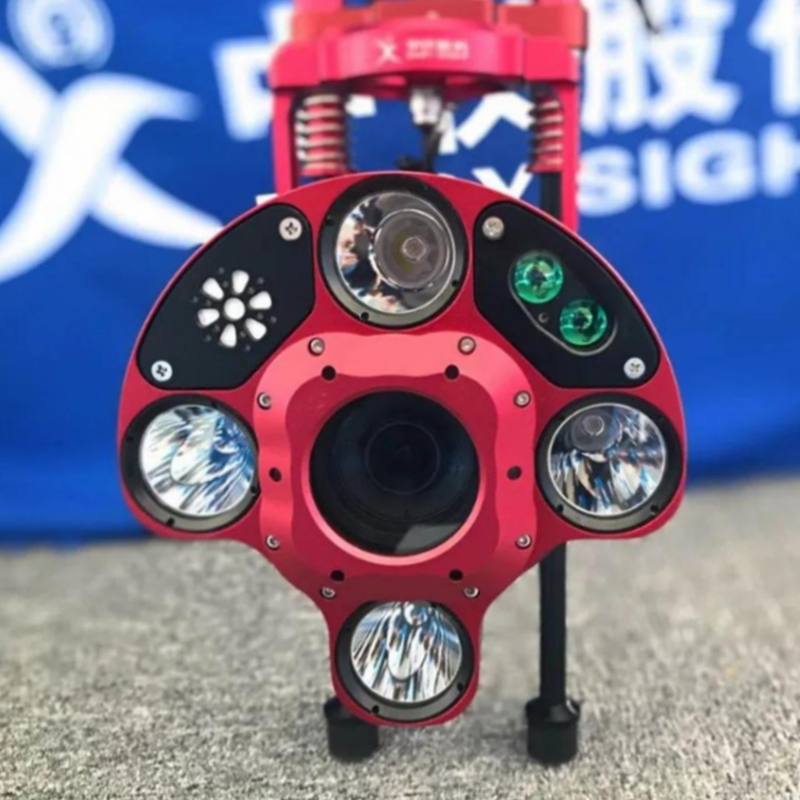

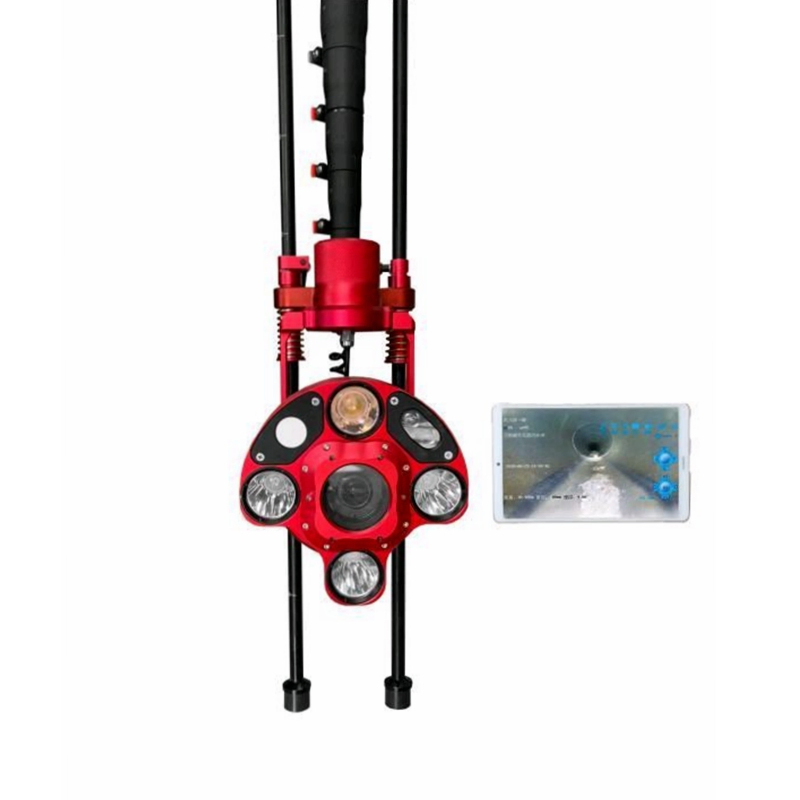

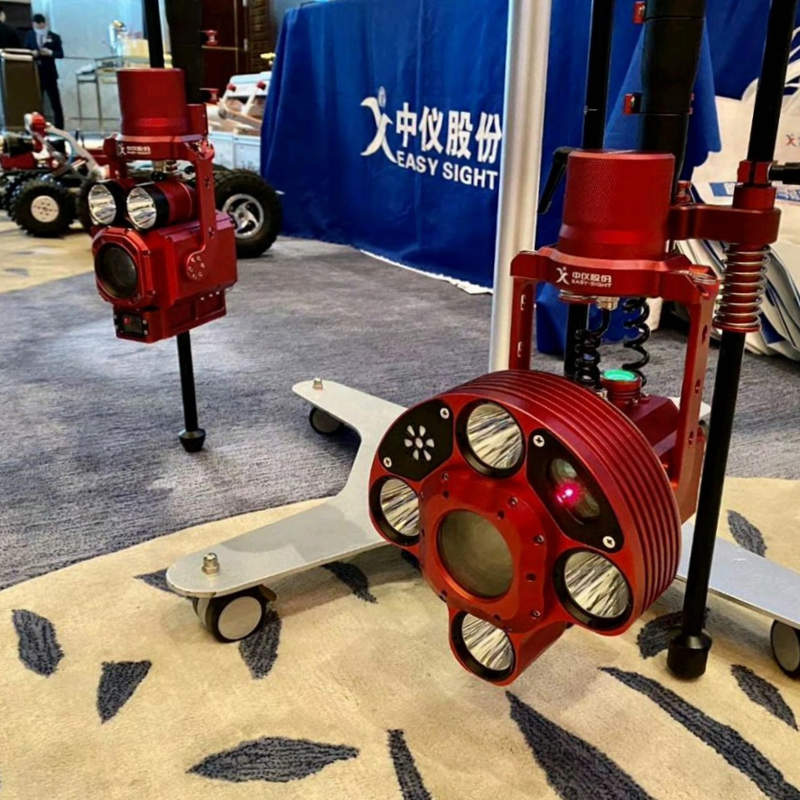

The X1-H5 comprehensive series of pipeline periscopes are primarily utilized for the rapid detection and diagnosis of internal conditions within industrial vessels or pipelines. By inserting the camera probe, equipped with its own light source, into the pipeline via an operating rod, structural and functional defects are clearly visualized. Our technology addresses industry challenges such as "wireless deep well transmission" and "antenna interference." With a detection depth reaching 30 meters and seamless data collection within 60 meters of the wellhead, the system ensures high-definition, smooth imaging.

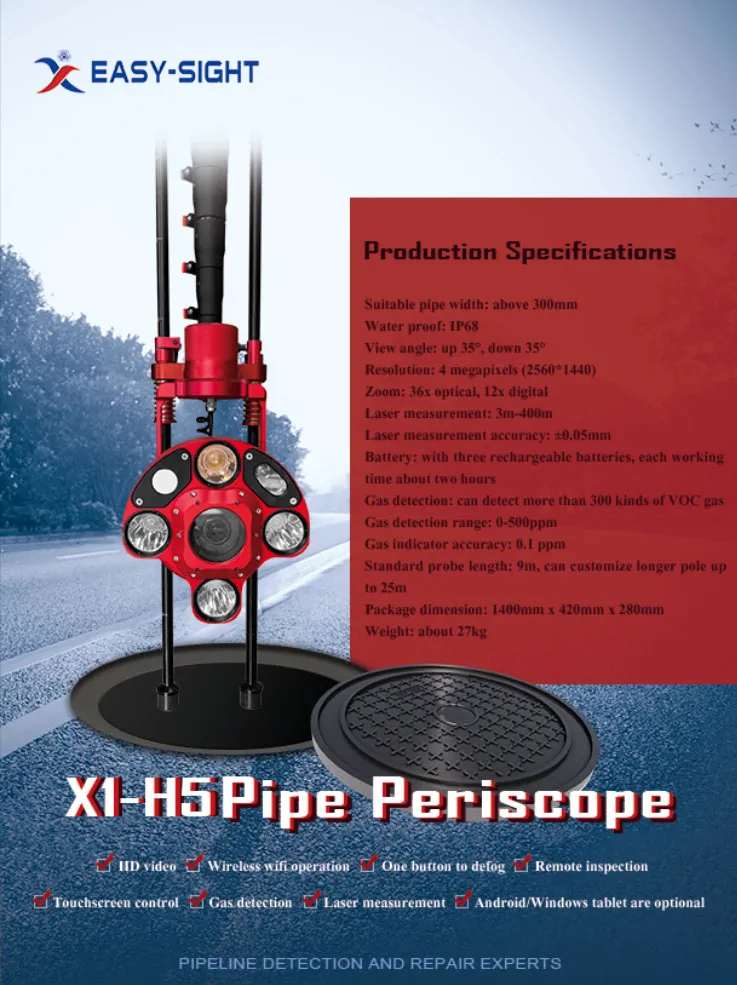

Technical Parameters
| Suitable Pipe Width |
Above 300mm |
| Waterproof Rating |
IP68 |
| View Angle |
Up 35°, Down 35° |
| Resolution |
4 Megapixels (2560*1440) |
| Zoom |
36x Optical, 12x Digital |
| Laser Measurement |
3m - 400m (Accuracy: ±0.05mm) |
| Battery |
Three rechargeable batteries (2 hours each) |
| Weight |
Approx. 27kg |
Core Advantages
| Portable |
Lightweight industrial-grade tablet control with versatile strap options. |
| Quick |
Wireless connection between host, lens, and action bars; no scene assembly required. |
| High Definition |

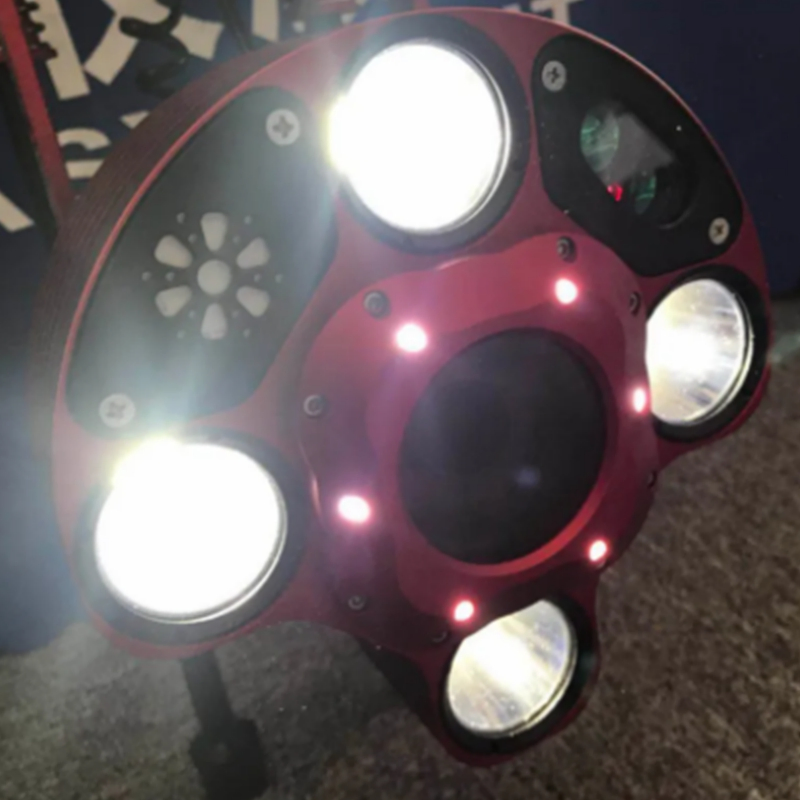

Professional HD cameras combined with high-intensity light sources. |
| Stability |
High protection levels, waterproof and explosion-proof design. |
Global Presence & Quality

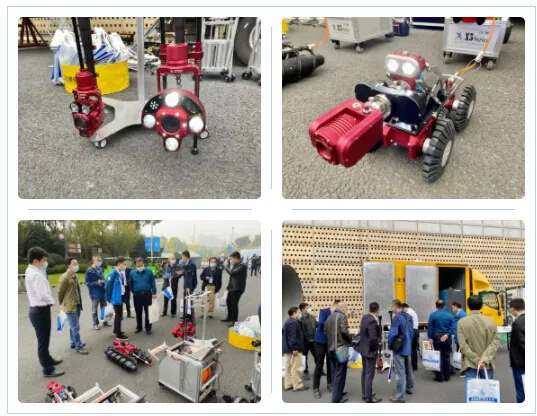

Our independent product series, including pipeline periscopes (QV), CCTV robots, and sonar imagers, are widely applied in infrastructure development, municipal construction, and water conservancy. We provide smart solution packages for urban drainage networks, focusing on expertise and research to lead the pipeline testing equipment sector.
Frequently Asked Questions
What is the maximum inspection depth of the X1-H5?
The system can reach a depth of 30 meters, and it supports data collection and smooth high-definition imaging within 60 meters around the wellhead.
How powerful is the zoom function on this pipe periscope?
The X1-H5 features a 36x optical zoom and a 12x digital zoom, allowing for detailed inspection of defects at significant distances.
Can it detect hazardous gases during inspection?
Yes, it includes a gas detection module that can react with over 300 kinds of VOC gases within a range of 0-500ppm.
Is the equipment waterproof?
The system is designed with an IP68 protection rating, making it fully waterproof and suitable for harsh industrial pipeline environments.
What pipe sizes are suitable for the X1-H5?
The X1-H5 is designed for pipes and vessels with a diameter or width above 300mm.
How long does the battery last in the field?
The system comes with three rechargeable batteries, each providing approximately two hours of continuous working time.
