Customization:	Available
Warranty:	1 Year
Magnification:	N/a

Send Inquiry

Product Description

Basic Information

Model NO.

MSS-C-ITD3L

Usage

Teaching, Research

Package

Carton (2KG)

Trademark

MSS

Origin

China

HS Code

8525892900

Capacity

5000 pieces/Year

Package Size

40.00cm * 50.00cm * 60.00cm

Product Description

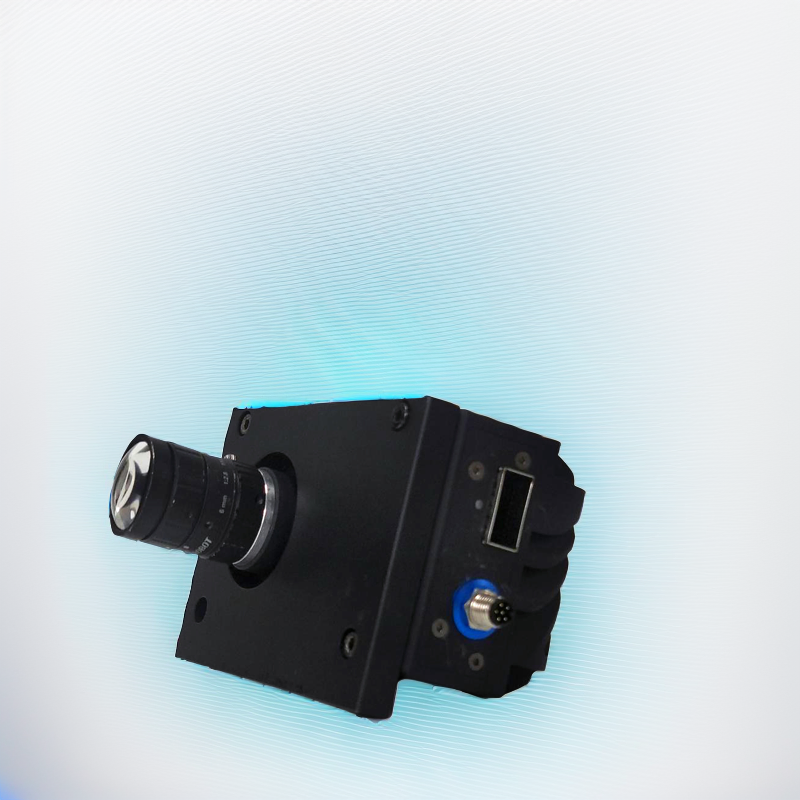

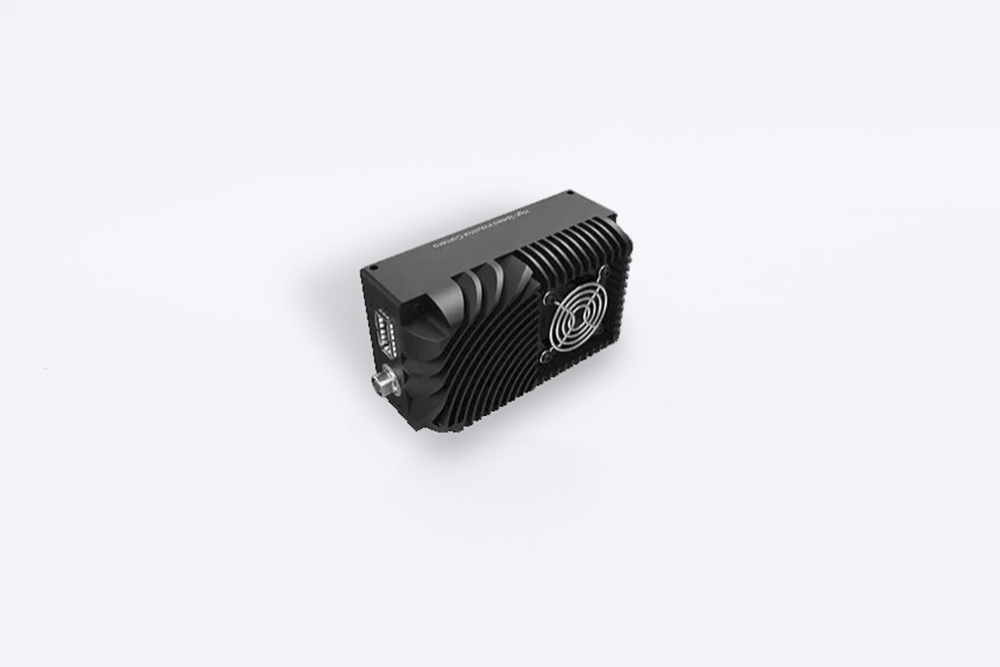

High Industrial Camera (Model: MSS-C-ITD3L)

✓ Ultra-high image acquisition system
✓ 1490fps @2048*1080 8 bit
✓ 2971fps @1024*1024 8 bit
✓ Standard C-mount
✓ 40G Optical fiber transmission
✓ Complete SDK and software support

Technical Parameters

Model	HPS-HSC2K	Resolution	2048x1080 (Pixel: 6μmx6μm)
Sensor Format	1" (12.3mm x 6.5mm)	Data Transfer Rate	1490 fps @2.2MP; 2971 fps @1MP
Dynamic Range	53dB (Linear) / ≥90dB (HDR)	Shutter Mode	Global shutter, Auto/Ext/SW Trigger
Image Processing	FPN denoising, PRNU, Gamma, ROI, Gain, Binning	Data Interface	40G Ethernet fiber interface
Digital I/O	Isolated Trigger I/O, SPI Master	Data Format	Mono 8 bit
Power Supply	12VDC, 17W	Temperature	Operating: 0~45ºC

Product Visualization

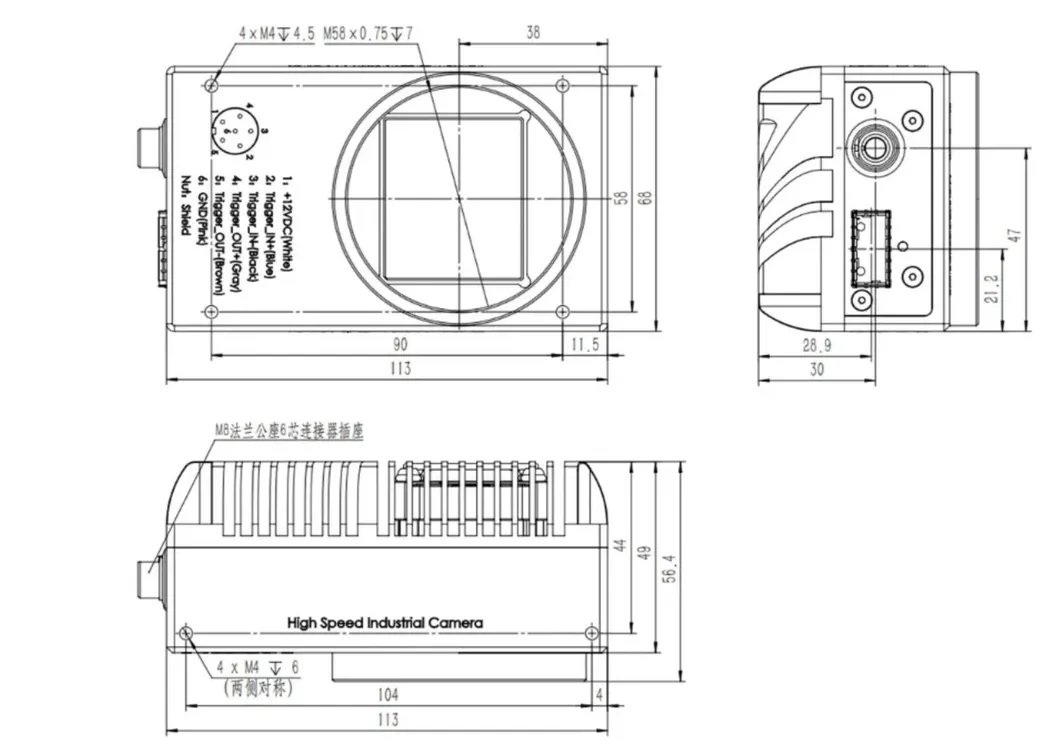

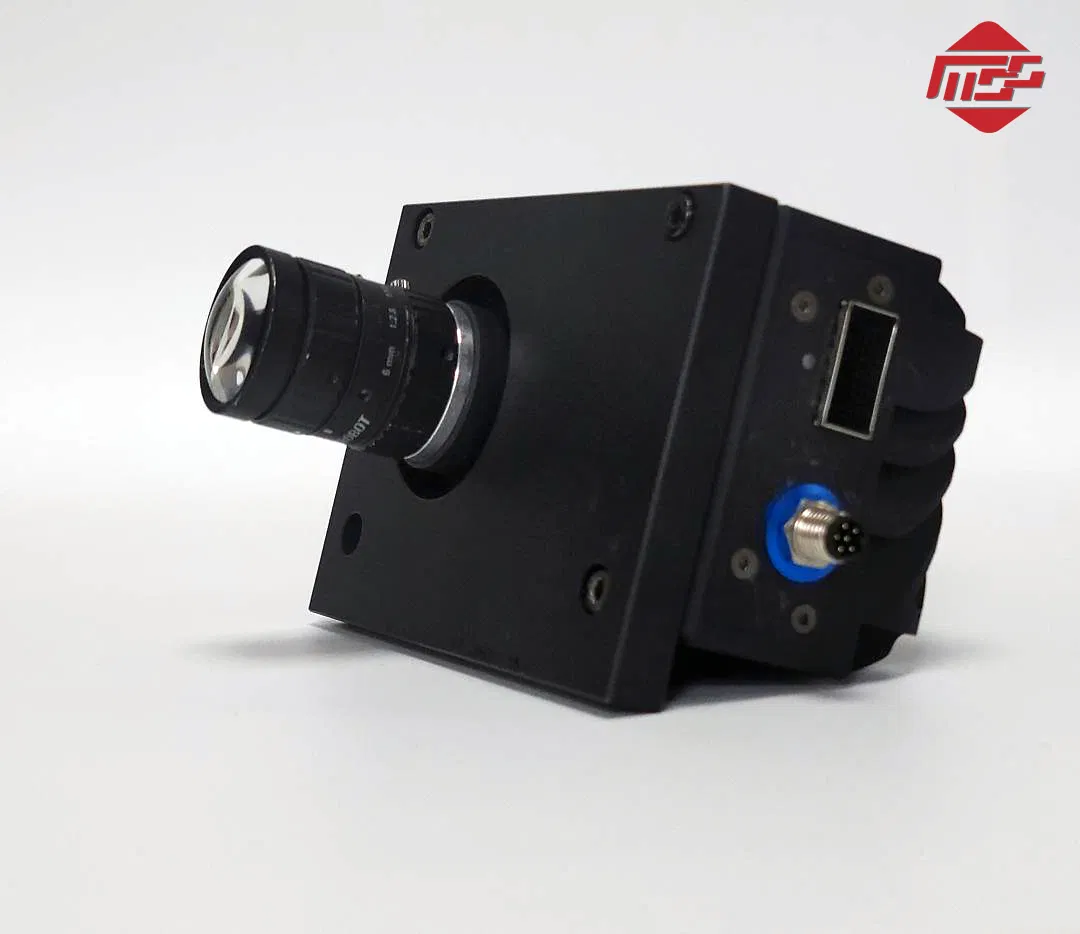

High-Speed Industrial Camera 1

High-Speed Industrial Camera 2

High-Speed Industrial Camera 3

High-Speed Industrial Camera 4

High-Speed Industrial Camera 5

Frequently Asked Questions

What is the maximum frame rate of the MSS-C-ITD3L?

The camera achieves up to 1490 fps at 2048x1080 resolution and can reach 2971 fps at 1024x1024 resolution in 8-bit mode.

What type of data interface does this camera use?

It features a 40G Ethernet fiber interface for ultra-high-speed data transmission and reliable connectivity.

Does the camera support High Dynamic Range (HDR)?

Yes, it supports HDR mode with a dynamic range of ≥90dB, alongside a standard linear mode of 53dB.

What lens mount is compatible with this model?

The MSS-C-ITD3L is equipped with a standard C-mount, making it compatible with a wide range of industrial lenses.

What are the primary applications for this camera?

This high-speed industrial camera is primarily designed for advanced teaching, scientific research, and high-precision image acquisition.

Is software development support available?

Yes, the product comes with a complete SDK and software support to facilitate integration into various systems.
