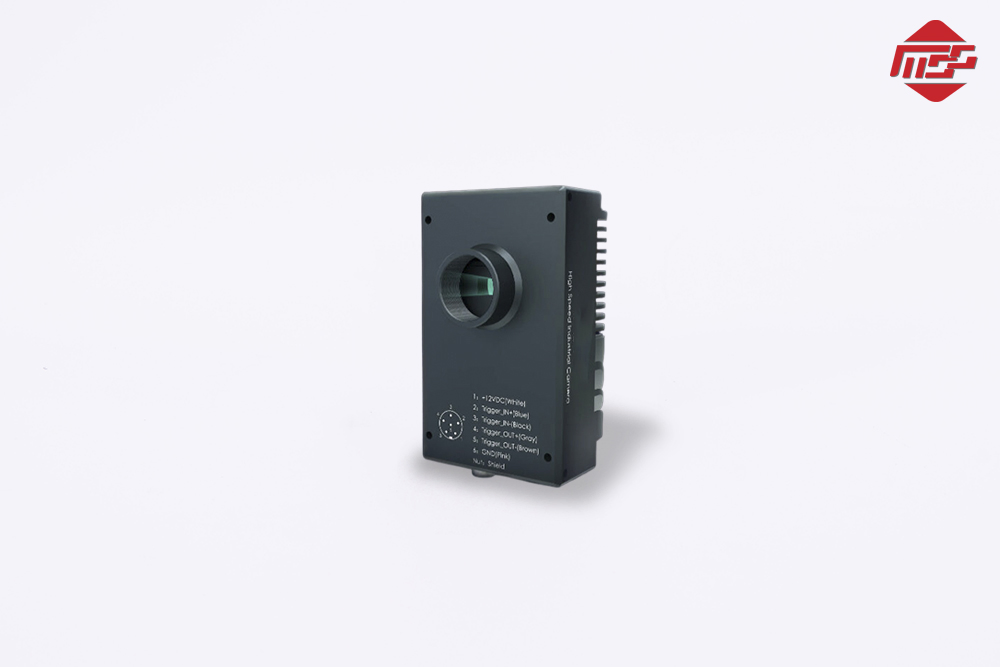

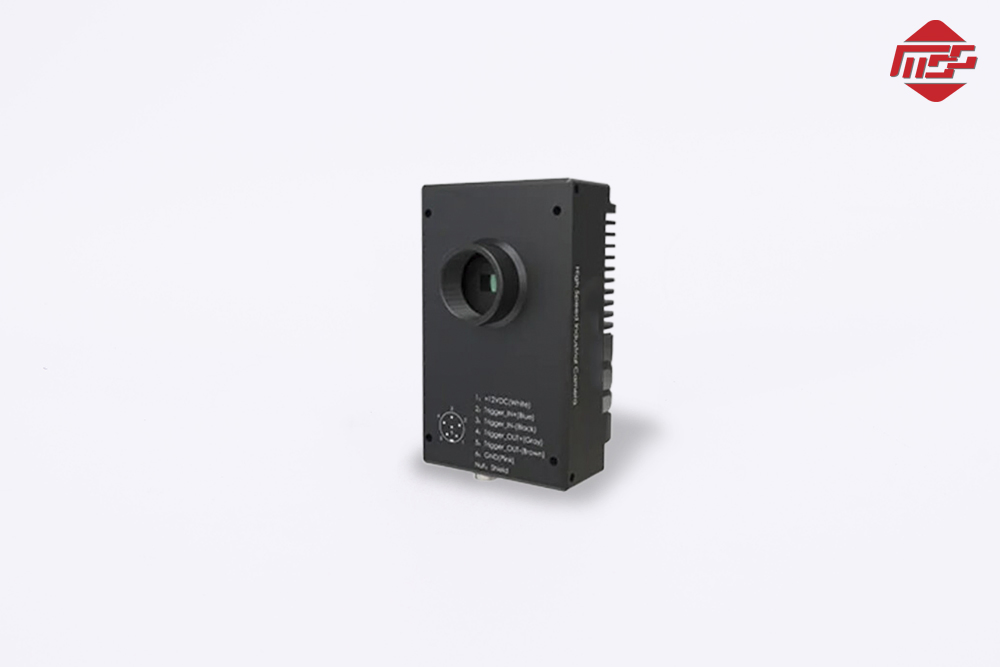

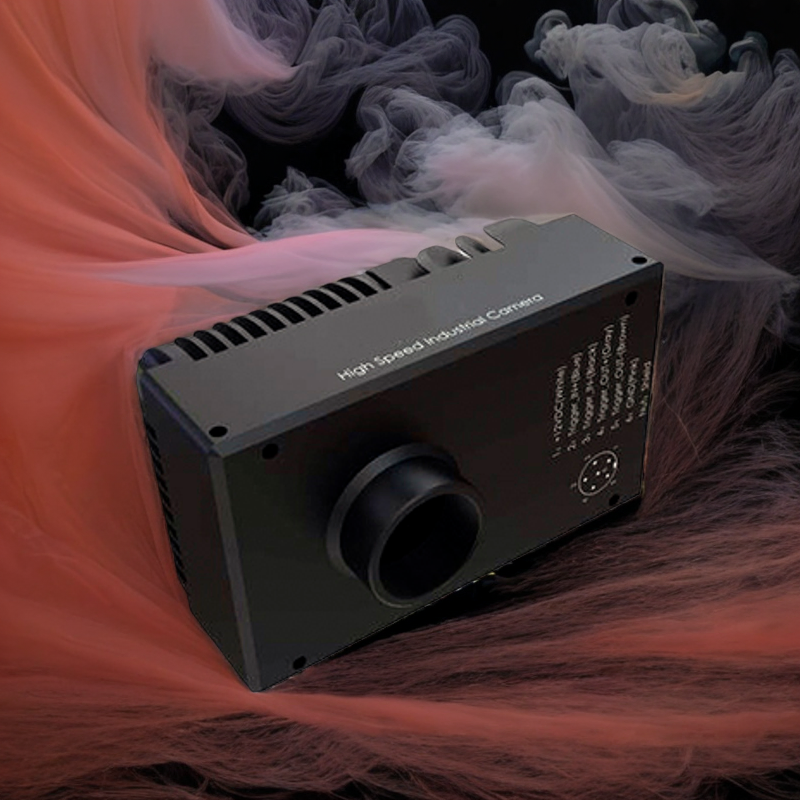

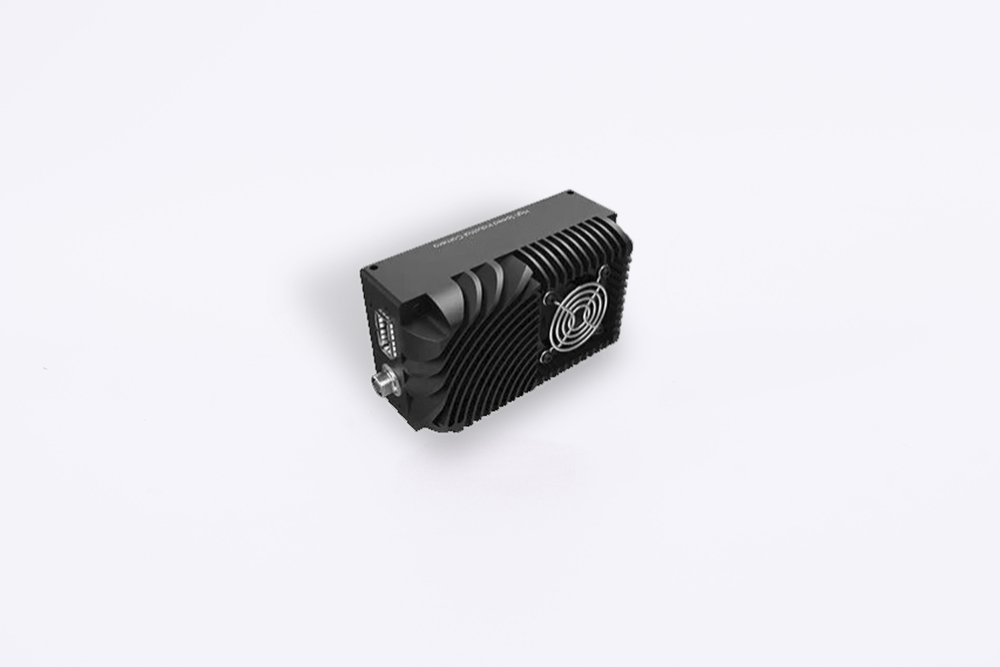

Ultra HD Microscope Camera for High-Speed 2971fps Imaging

1 / 5

Ultra HD Microscope Camera for High-Speed 2971fps Imaging

Customization:	Available
Warranty:	1 Year
Usage:	Teaching, Research

Send Inquiry

Product Description

Basic Specifications

Model NO.

MSS-C-ITD3L

Trademark

MSS

HS Code

8525892900

Origin

China

Production Capacity

5000pieces/Year

Specification

2KG

Packaging & Delivery

Package Size

40.00cm * 50.00cm * 60.00cm

Gross Weight

5.000kg

Transport Package

Carton

Product Features

High Performance Industrial Camera

Model: MSS-C-ITD3L

Ultra-high-speed image acquisition system
1490fps @2048*1080 8 bit high resolution imaging
2971fps @1024*1024 8 bit ultra-fast capture

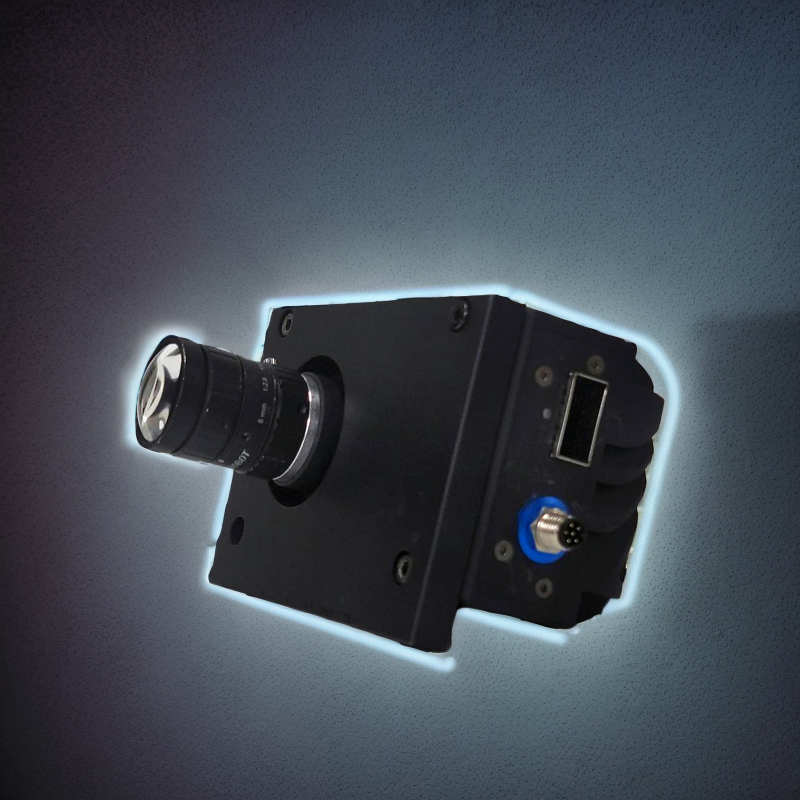

Standard C-mount for versatile lens compatibility
40G Optical fiber ultra-high-speed transmission
Complete SDK and professional software support

Technical Parameters

Model	HPS-HSC2K	Resolution	2048x1080 (Pixel: 6μmx6μm)
Sensor Format	1 " (12.3mm x 6.5mm)	Data Transfer Rate	1490 fps @2.2MP; 2971 fps @1MP
Dynamic Range	53dB (Linear) / ≥90dB (HDR)	Shutter Mode	Global shutter, Auto/External/Software trigger
Image Processing	FPN denoising, PRNU, Gamma, ROI, Gain, Binning	Data Interface	40G Ethernet fiber interface
Digital I/O	1x Trigger In, 1x Trigger Out, 8-PIN expansion	Data Format	Mono 8 bit
Power Supply	12VDC, 17W Typical	Temperature	Operating: 0~45ºC, Storage: -20~60ºC
Humidity	10 to 80% (non-condensing)	Weight	440g

Product Gallery

Frequently Asked Questions

Q1: What is the maximum frame rate of the MSS-C-ITD3L? A: The camera can reach up to 2971 fps at a resolution of 1024x1024 (1 megapixel) and 1490 fps at 2048x1080 (2.2 megapixel).

Q2: What type of data interface does this camera use? A: It utilizes a 40G Ethernet fiber interface for ultra-high-speed and stable data transmission.

Q3: Does the camera support external triggering? A: Yes, it supports global shutter mode with options for automatic exposure, external trigger exposure, and software trigger exposure.

Q4: What are the integrated image processing capabilities? A: The module includes FPN denoising, PRNU correction, gamma correction, lens correction, ROI, gain adjustment, and H/V Binning.

Q5: Is there software support available for developers? A: Yes, we provide a complete SDK and comprehensive software support for seamless integration into your systems.

Q6: What is the lens mount specification? A: The camera features a standard C-mount, making it compatible with a wide range of industrial lenses.
