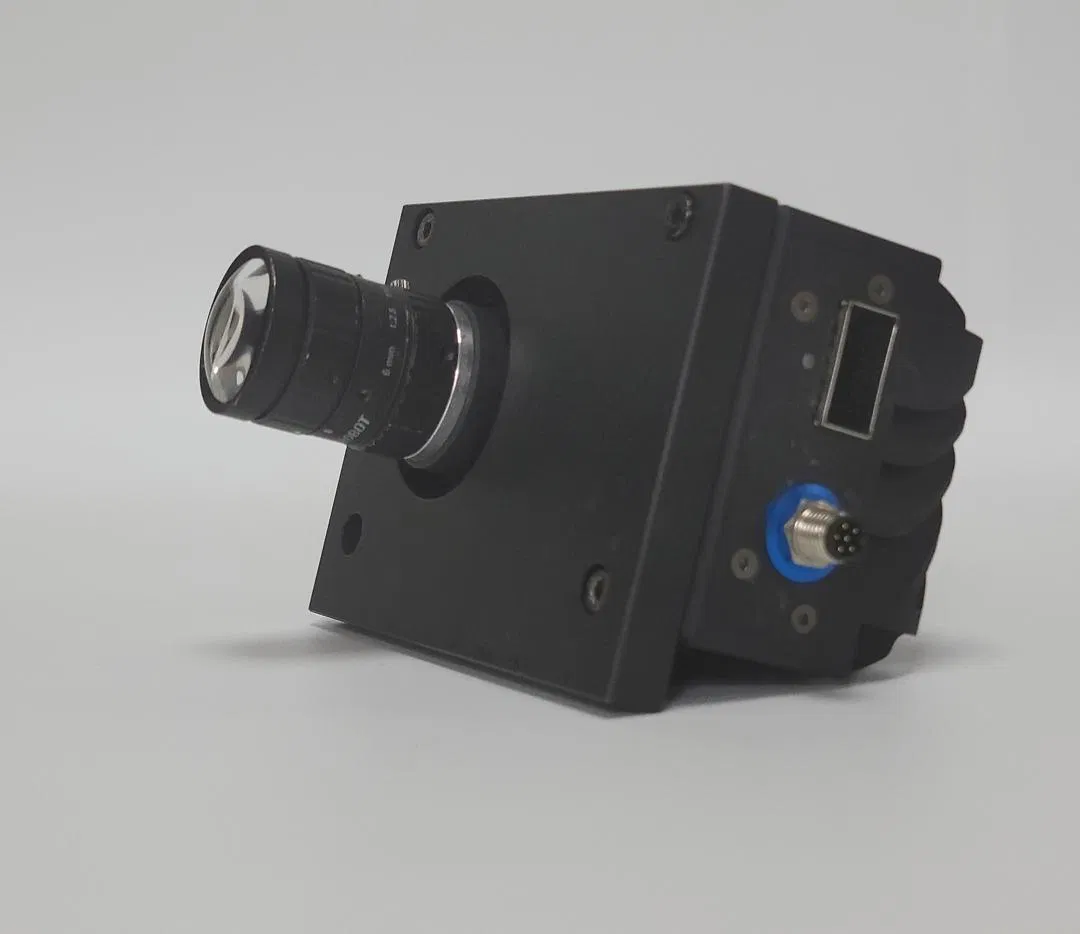

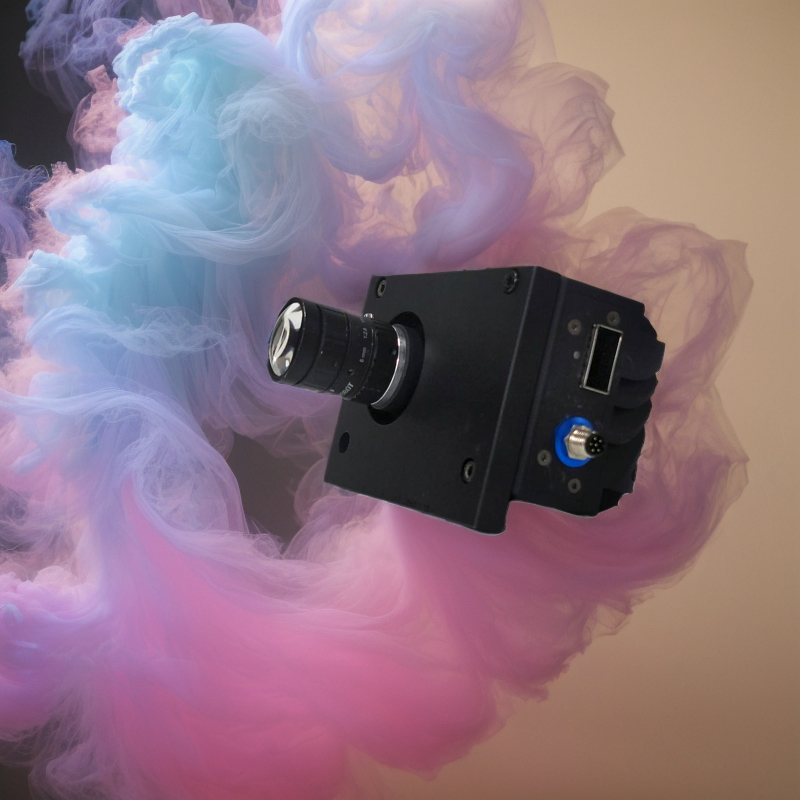

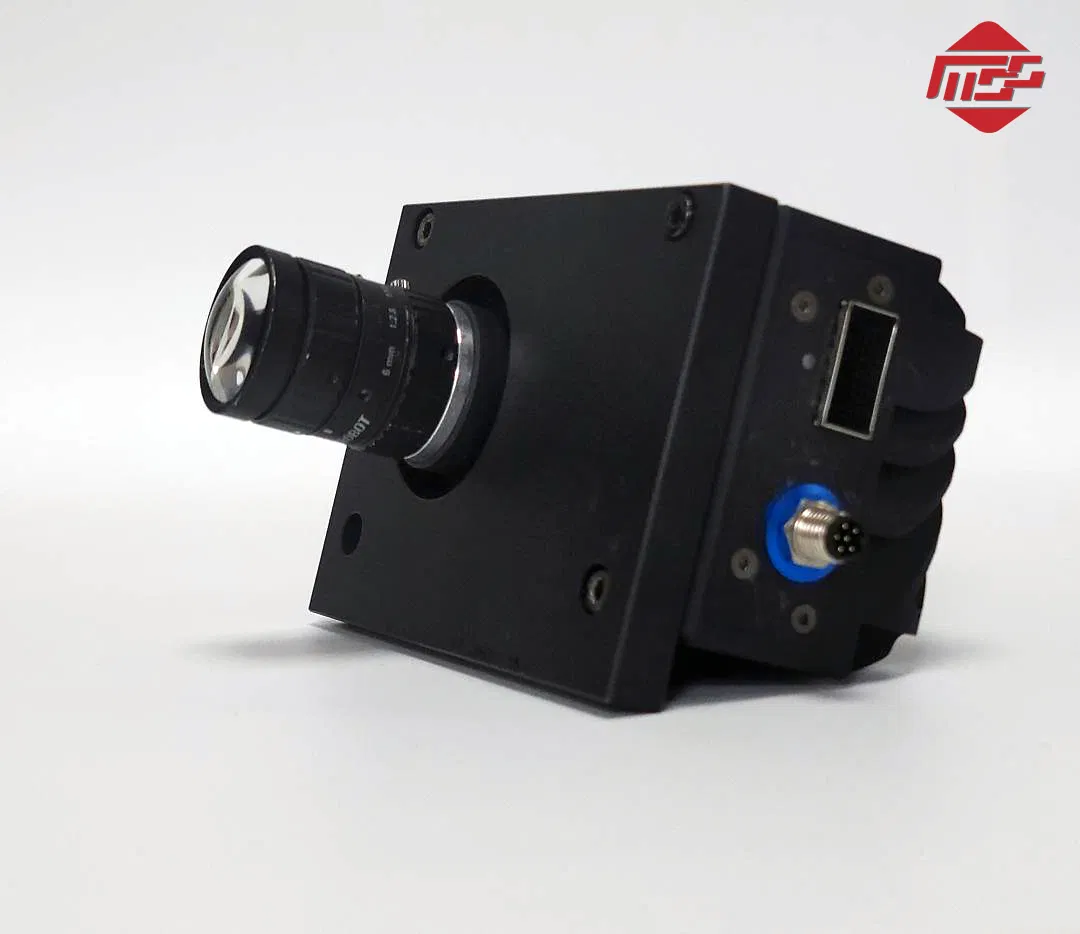

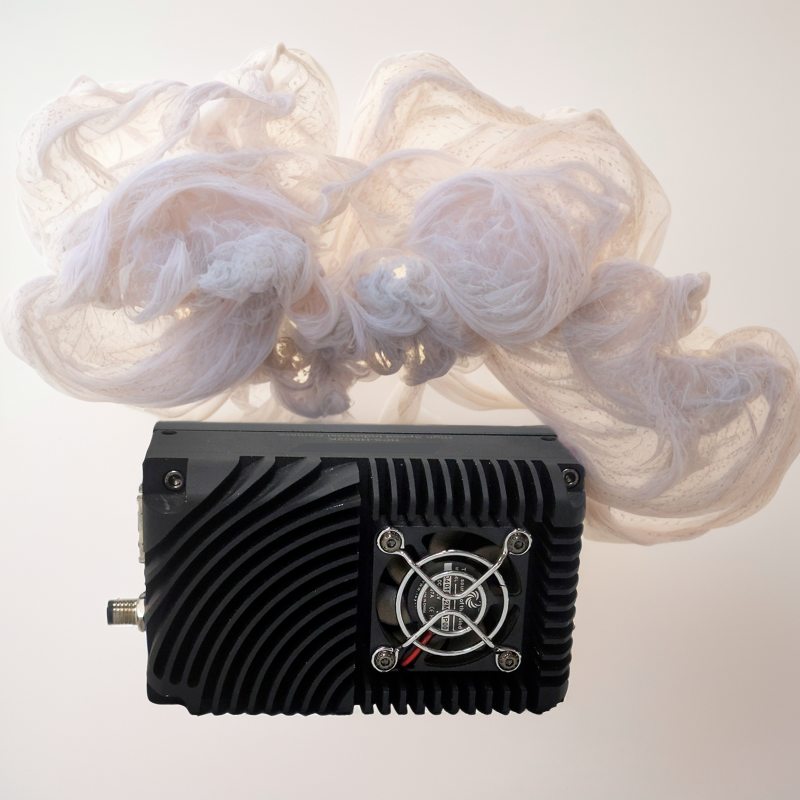

Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
1 / 5
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging
Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging

Ultra High-Speed Industrial Camera 2971fps for Exceptional Imaging

Customization: Available
Warranty: 1 Year
Usage: Teaching, Research
Send Inquiry

Product Description

Basic Information
Model NO. MSS-C-ITD3L
Trademark MSS
Origin China
HS Code 8525892900
Specification 2KG
Production Capacity 5000pieces/Year
Packaging & Delivery
Package Size 40.00cm * 50.00cm * 60.00cm
Package Gross Weight 5.000kg
Transport Package Carton
Product Description
High-Speed Industrial Camera System
Are you in need of an ultra-high-speed image acquisition system? Look no further than the MSS-C-ITD3L High-Speed Industrial Camera! With its impressive features and top-notch performance, this camera is perfect for all your industrial needs. When it comes to capturing high-quality images, the MSS-C-ITD3L doesn't disappoint. Its ultra-high-definition capabilities ensure that every detail is crystal clear, making it perfect for industrial use, microscopy, and more.
⚡
1490fps @2048*1080 8-bit resolution acquisition
🚀
2971fps @1024*1024 8-bit resolution acquisition
🔗
Standard C-mount for easy compatibility
🌐
40G optical fiber ultra-high-speed transmission
🛠️
Complete SDK and software support for seamless integration
🎯
Stable focus and high pixel resolution for sharp images
Technical Parameters
Model HPS-HSC2K Resolution 2048x1080 (Pixel: 6μmx6μm)
Sensor format 1 " (12.3mm x 6.5mm) Continuous Data Rate 1490 fps @2.2MP, 8 bit; 2971 fps @1MP, 8 bit
Dynamic range 53dB@Linear mode, ≥90dB@HDR mode Shutter mode Global shutter, Auto/Ext/Software Trigger
Image Processing FPN denoising, PRNU/Gamma/Lens correction, ROI, Binning Data interface 40G Ethernet fiber interface
Digital I/O 1 isolated In/Out, 8-PIN expansion (GPI, GPO, SPI) Data Format Mono 8 bit
Power 12VDC, Typical 17W Temperature Operating: 0~45ºC; Storage: -20~60ºC
Humidity 10 to 80% (non-condensing) Weight 440g
Product Showcase

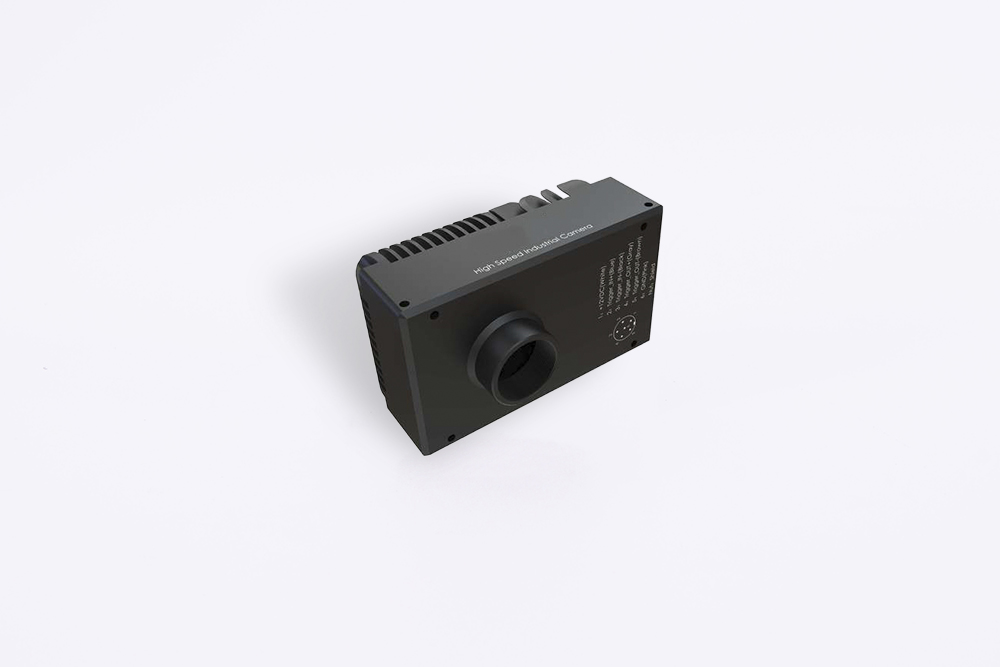

Ultra High-Speed Industrial Camera
Industrial Camera Detail
Camera Side View
Interface View

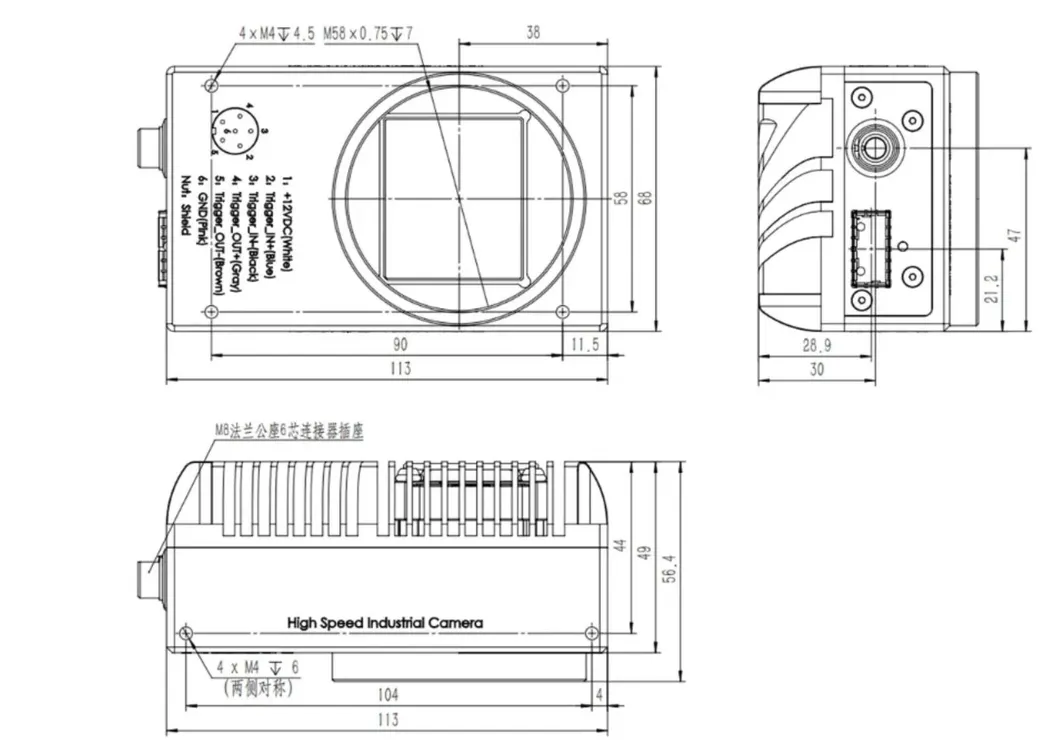

Technical Layout
Frequently Asked Questions
What is the maximum frame rate of the MSS-C-ITD3L camera?
The camera can achieve up to 1490 fps at 2.2 megapixel resolution (2048*1080) and up to 2971 fps at 1 megapixel resolution (1024*1024) in 8-bit mode.
What type of data interface does this camera use for transmission?
It features a 40G Ethernet fiber interface, ensuring lightning-fast and reliable ultra-high-speed data transmission.
Does the camera support automatic exposure?
Yes, it utilizes a global shutter and supports automatic exposure, as well as external trigger and software trigger exposure modes.
What kind of lens mount is compatible with this system?
The camera comes with a standard C-mount, making it easily compatible with a wide range of industrial lenses.
What image processing features are integrated into the module?
The integrated module includes FPN denoising, PRNU correction, gamma correction, lens correction, ROI, gain adjustment, and H/V Binning.
Is there software support for developers?
Yes, the camera comes with complete SDK and software support to allow for seamless integration into your specific industrial applications.
