Seismic Wave Analysis Software Underground Seismic Detection Tools Seismic Refraction Measurement Kit

Customization:	Available
Accuracy:	Refraction Seismograph
Horizontal Line:	Seismic Survey Equipment

Send Inquiry

Product Description

Basic Specifications

Model NO. WZG-24/48C

Vertical Lines Surface Wave Seimic Survey Equipment

Channels 12/24/48 Channels

Sample Stations 1024 to 16384

A/D Converter 24-Bit

Dynamic Range 144dB

Frequency Bandwidth 0.1Hz ~ 4000Hz

Application Refraction, Reflection, MASW

Data Format SEG-2 / SEG-Y

Origin China

Product Description

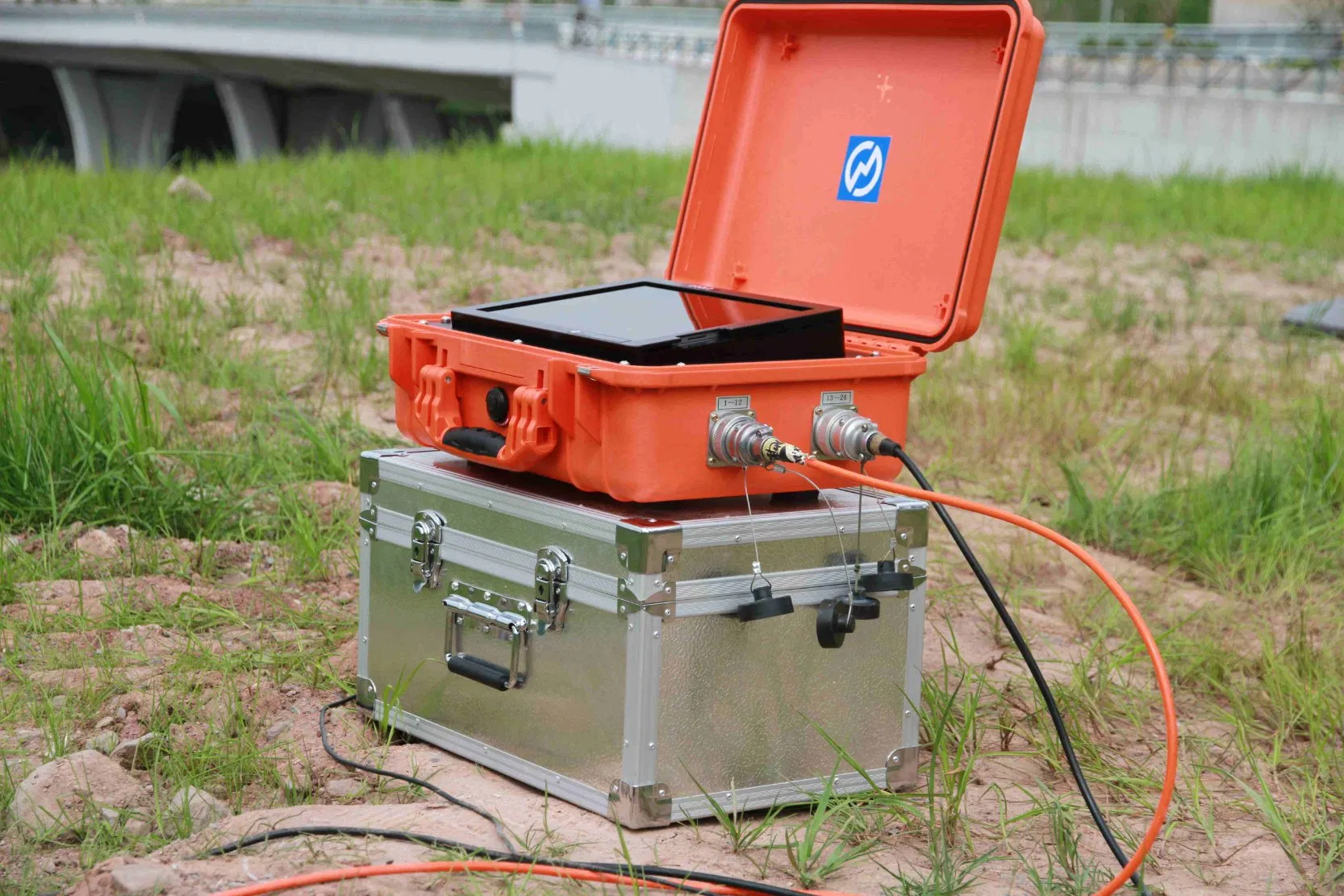

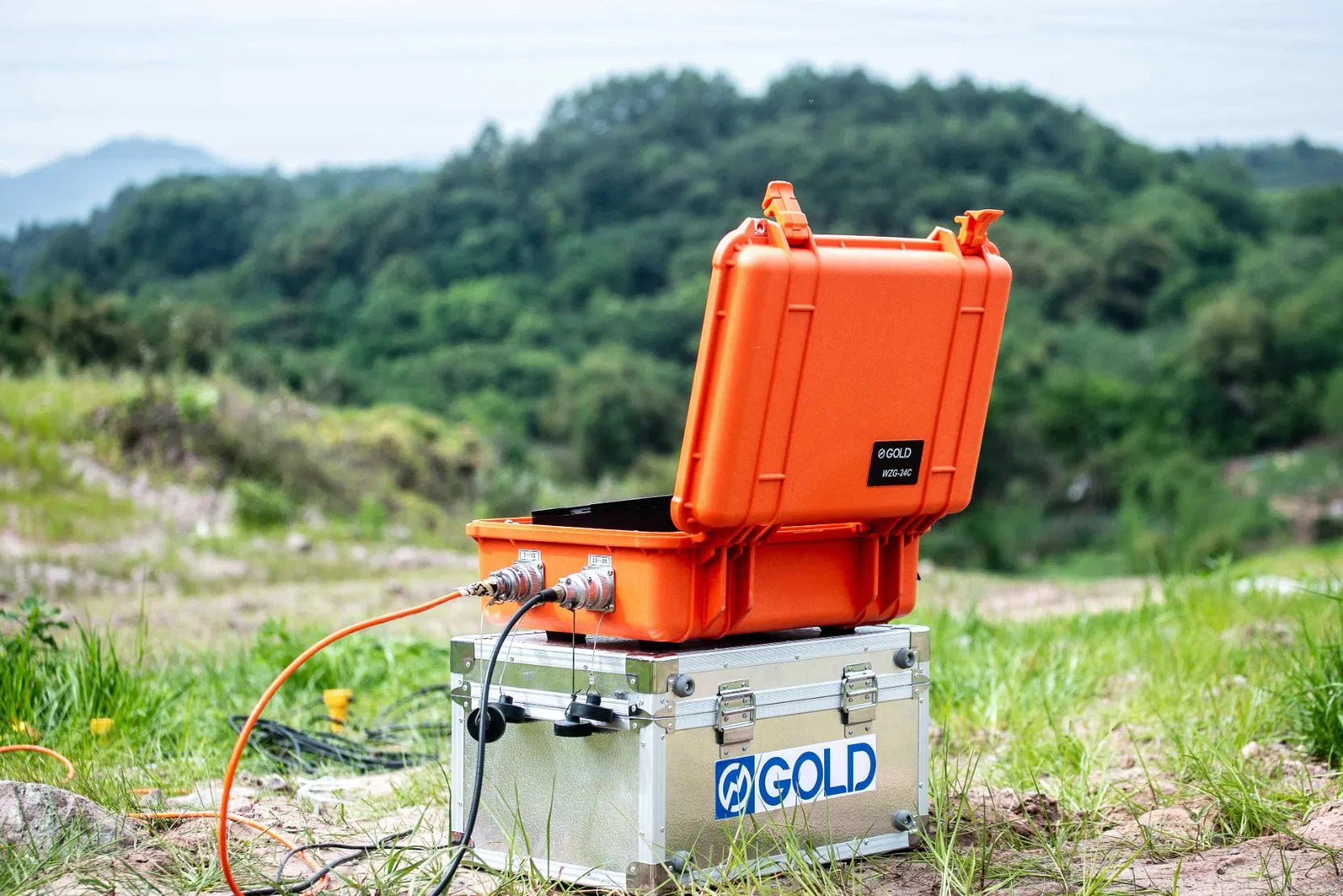

WZG-24C/48C Seismograph: Revolutionizing Field Data Collection

Engineered for professionals seeking speed, precision, and reliability, the WZG-24C/48C Engineering Seismograph redefines seismic exploration. With its sleek, portable design and intuitive touchscreen interface, this device empowers teams to tackle complex projects—from urban infrastructure assessments to mineral prospecting—with unmatched efficiency.

Standout Advantages

Uncompromised Accuracy
- 24-bit resolution and 144dB dynamic range capture subtle seismic signals.
- Advanced noise suppression (1µV) ensures clean data in challenging environments.
Designed for the Field
- All-day battery life (18+ hours) keeps projects moving without interruptions.
- Military-grade durability withstands extreme temperatures (-20°C-60°C) and humidity.
Smart Technology Integration
- Multi-touch display simplifies parameter adjustments and real-time monitoring.
- Plug-and-play expandability allows seamless upgrades to 48 channels.

Technical Specifications

Feature	Detail
Channels	24 or 48
Sampling Rate	10µs-20ms (programmable)
Data Storage	64GB SSD

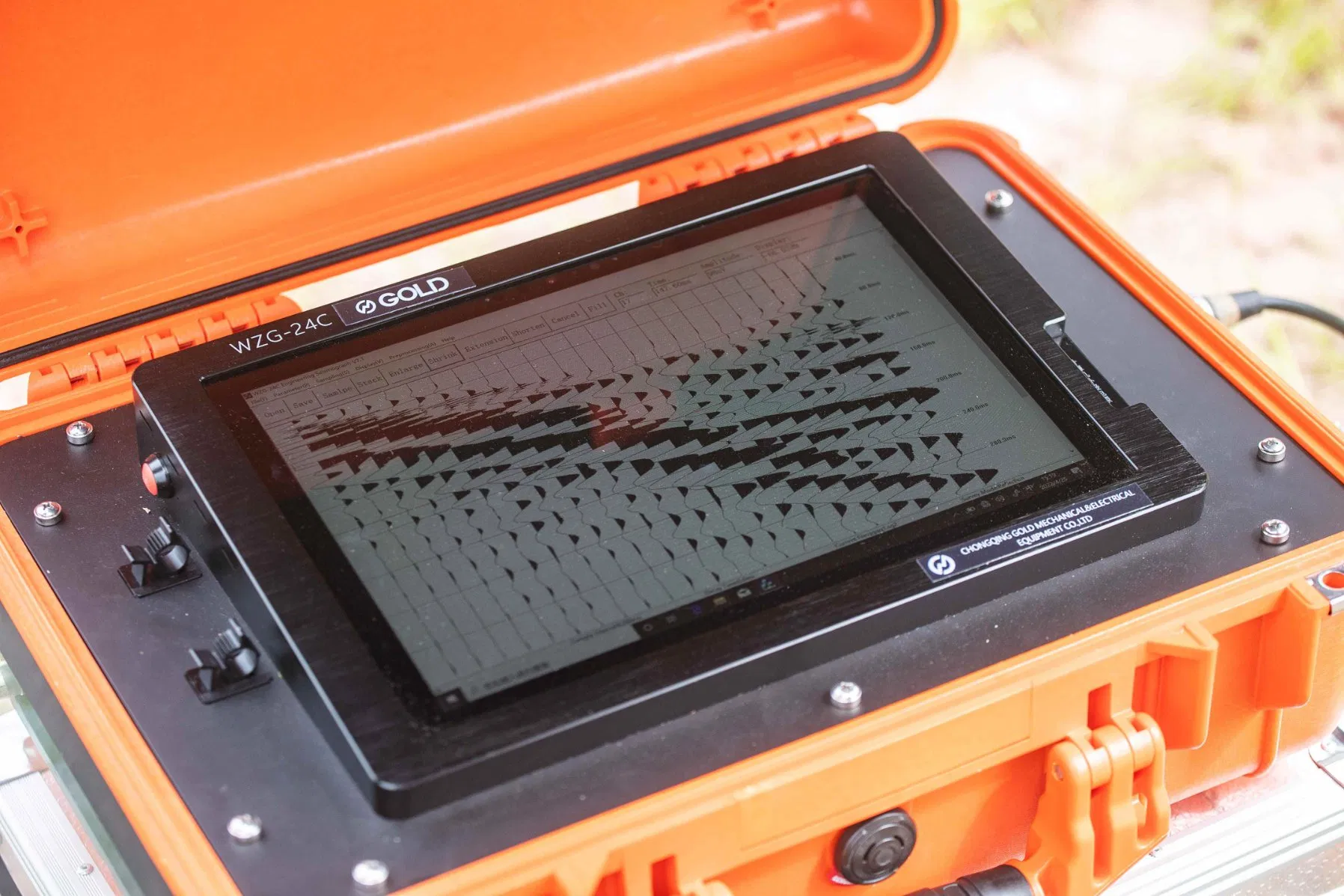

Display	12" HD Touchscreen (2160x1440)
Battery	18 hrs (acquisition) / 7+ hrs (tablet)
Weight	12.3kg-12.8kg
Operating System	Windows 8.1
Connectivity	3x USB, Wireless Sensors

Application & Impact

Rapid Site Characterization: Perform shear wave velocity tests and soil classification in minutes.
Infrastructure Safety: Monitor bridge vibrations and detect hidden defects in concrete structures.
Disaster Prevention: Identify landslide risks and assess fault activity with high-resolution imaging.

Why choose us?

Frequently Asked Questions

Q1: How many channels are available for the WZG series? The system is available in 24-channel and 48-channel configurations, with plug-and-play expandability options.

Q2: What is the typical battery life during field surveys? The acquisition unit provides up to 18 hours of continuous operation, ensuring a full day of field work without interruption.

Q3: What seismic sources are compatible with this equipment? It is fully compatible with hammer impact, sparker, and explosive sources, allowing for flexible survey setups.

Q4: Can the data be exported to other analysis software? Yes, data is exported in standard SEG-2 and SEG-Y formats, ensuring seamless integration with most third-party geophysical analysis tools.

Q5: Is the device suitable for extreme weather conditions? Absolutely. It features military-grade durability and is rated for temperatures ranging from -20°C to +60°C.

Q6: What type of storage does the seismograph use? It comes equipped with a high-speed 64GB SSD for reliable data storage and quick access.
