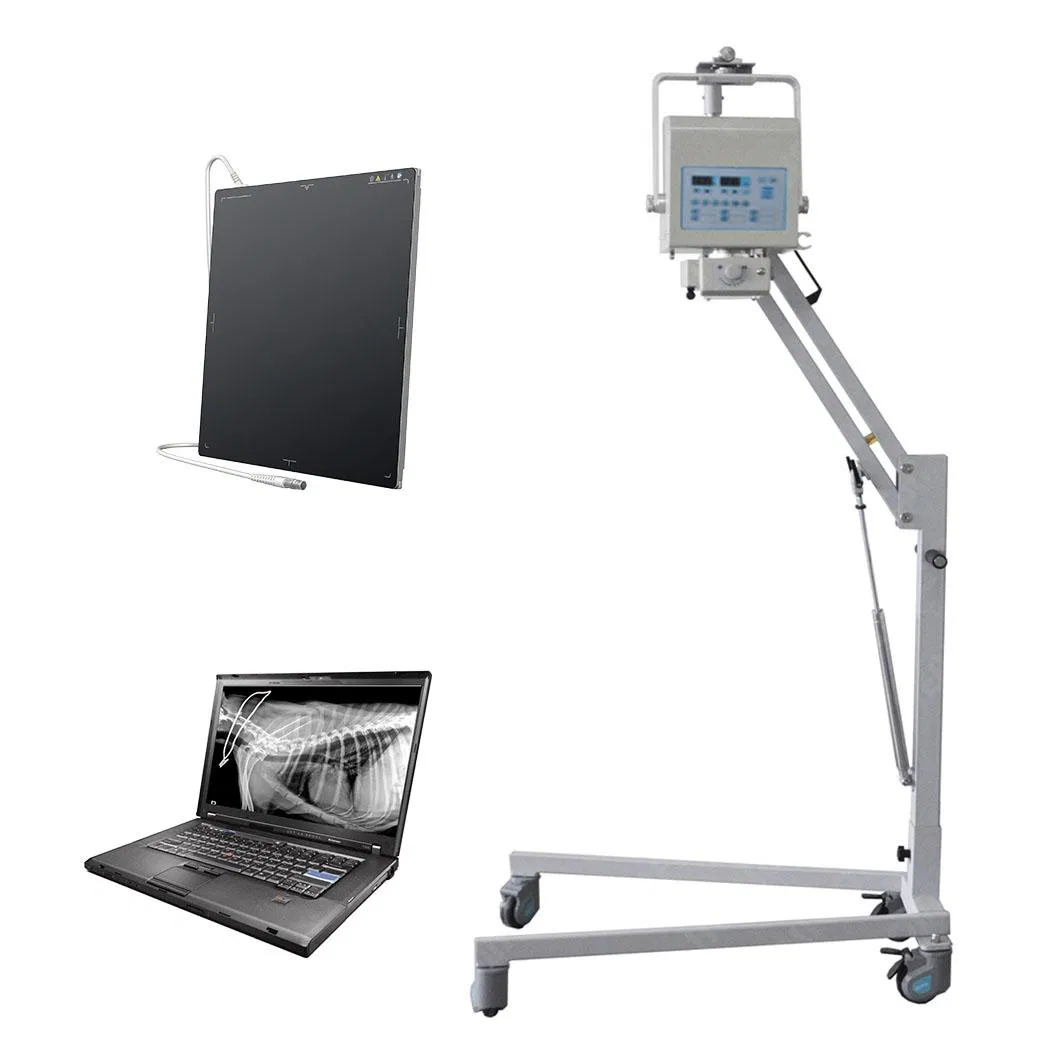

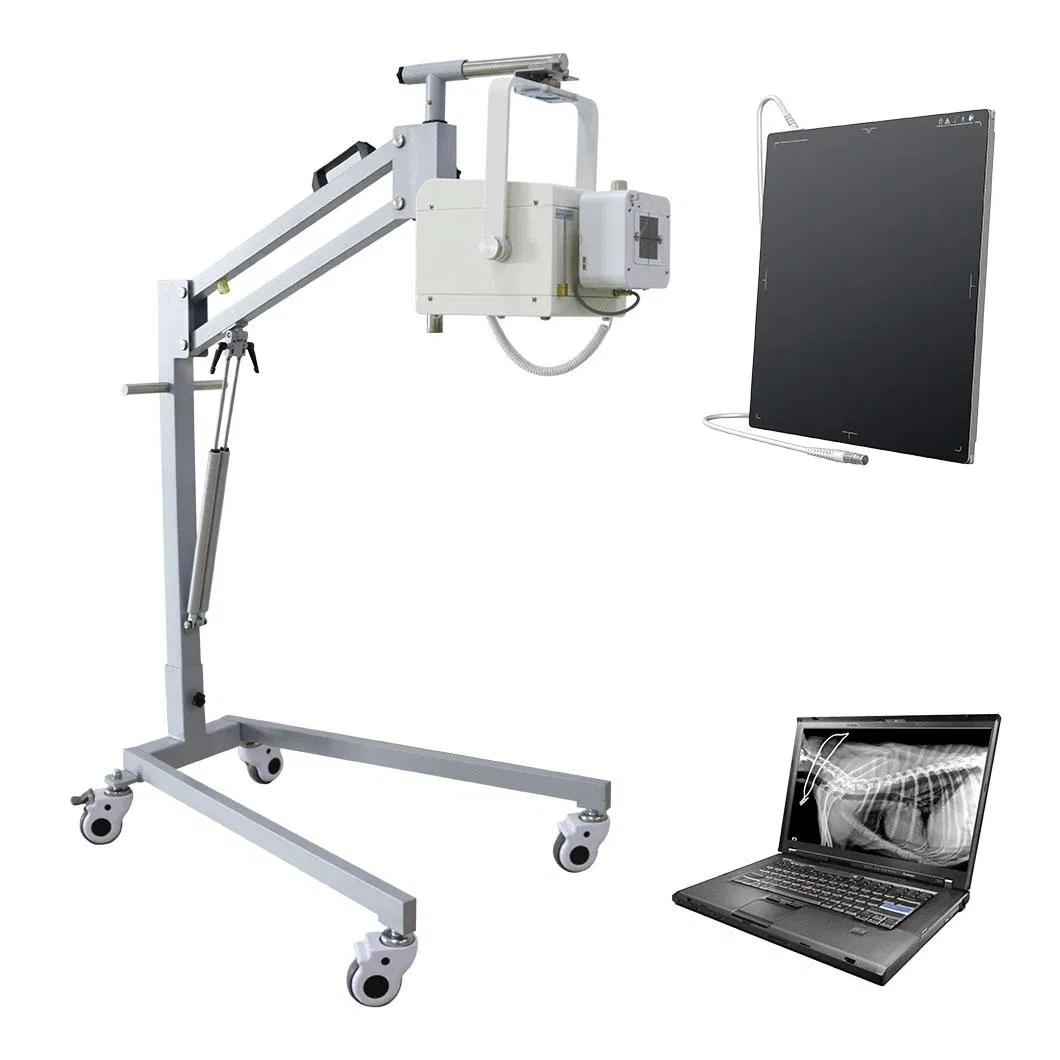

Veterinary Medical High Frequency X Ray Radiography Car Portable Diagnostic Equipment

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Info.
Model NO. WMDR-001
Transport Package Paper Box
Origin China
Capacity 50000PCS/Year
📸 Products Pictures

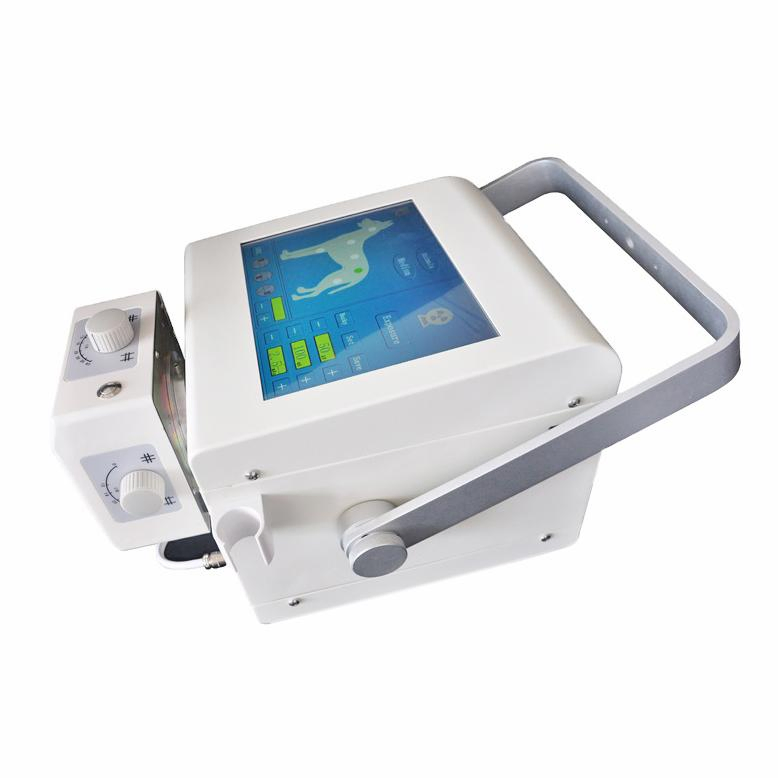

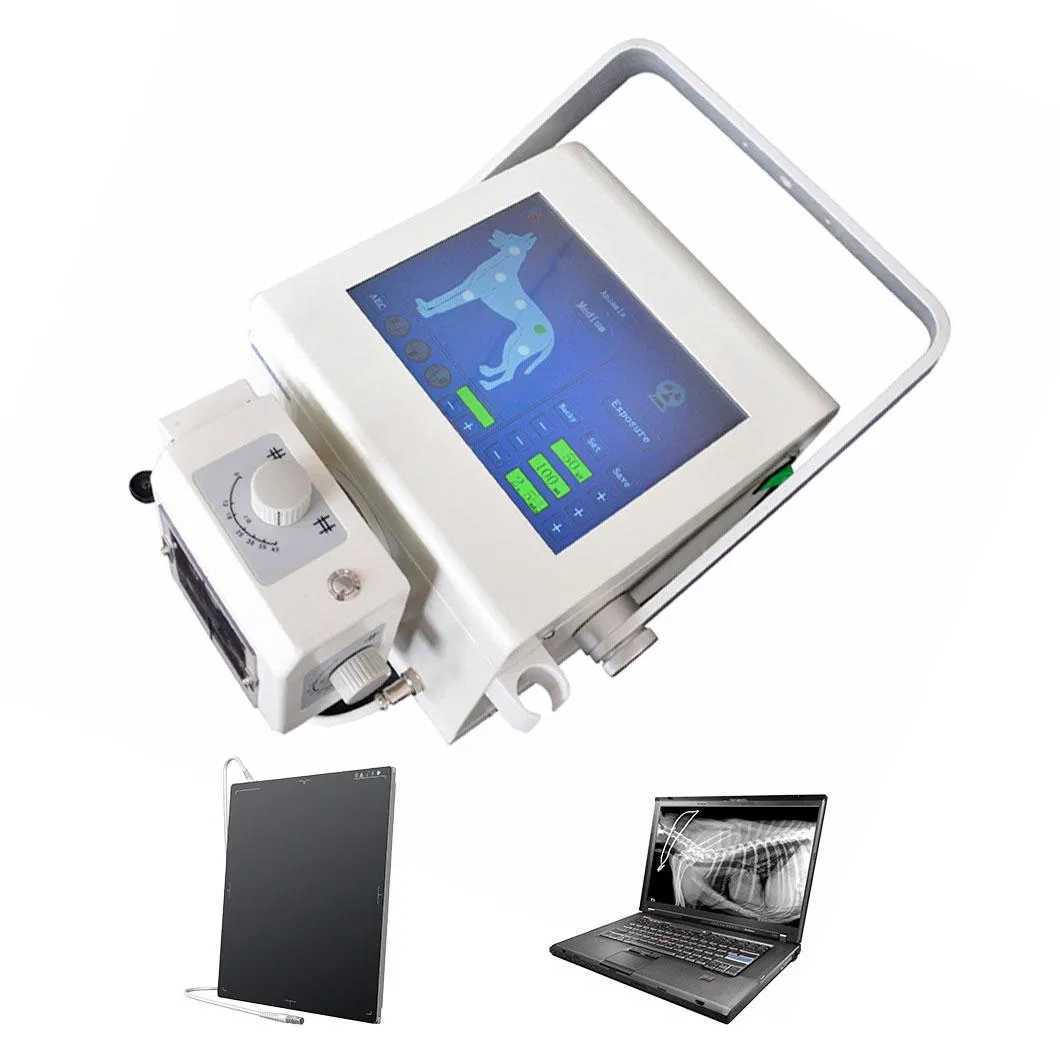

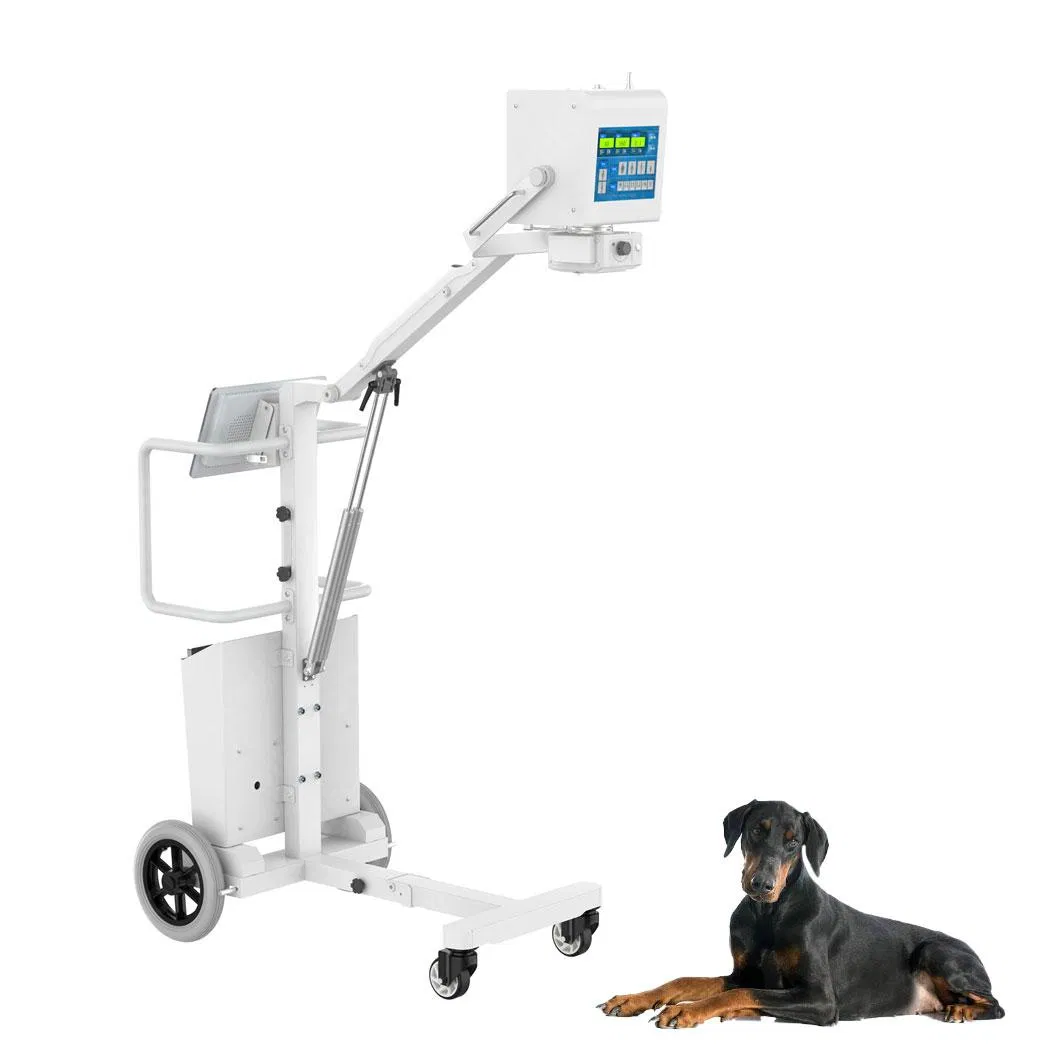

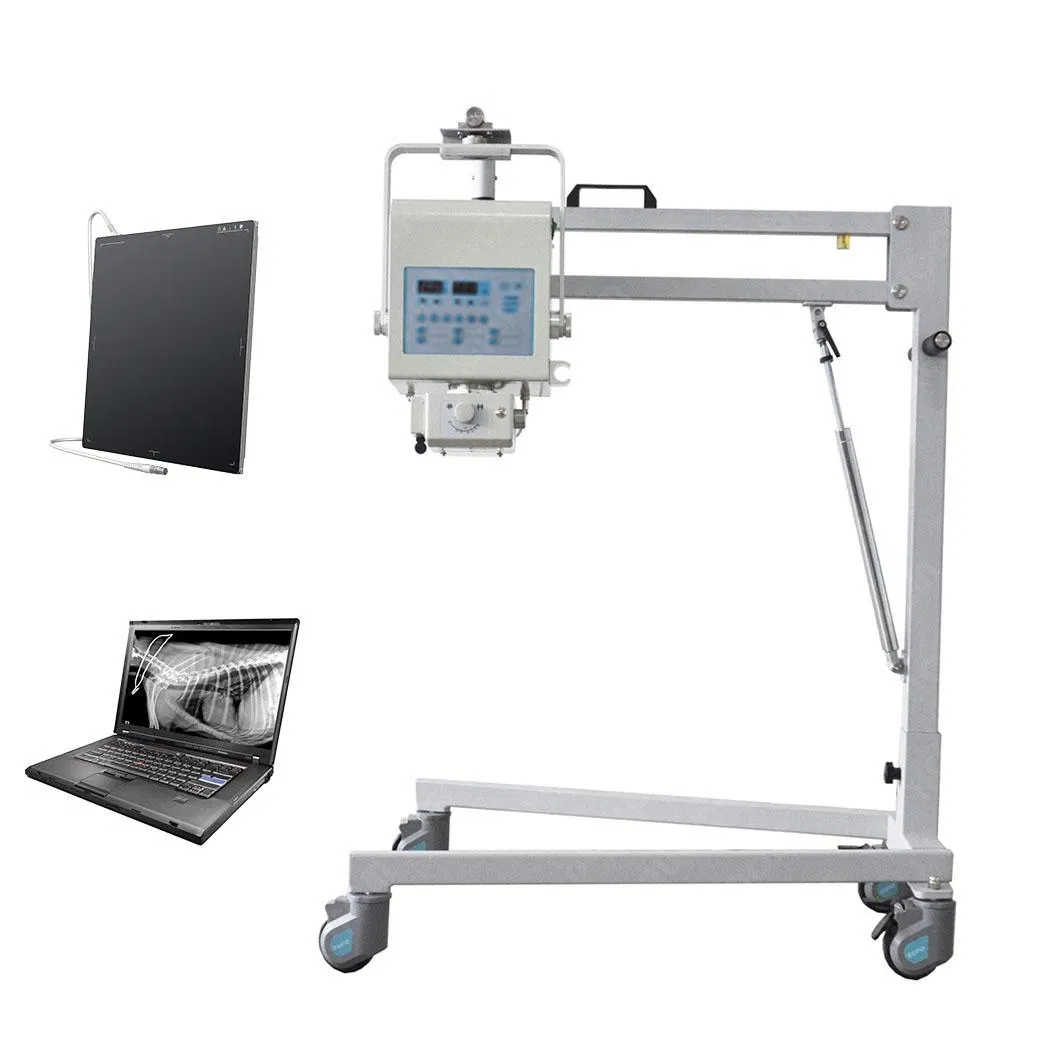

Portable Diagnostic Equipment
Portable Diagnostic Equipment
Portable Diagnostic Equipment
📝 Product Description
Product Description Detail

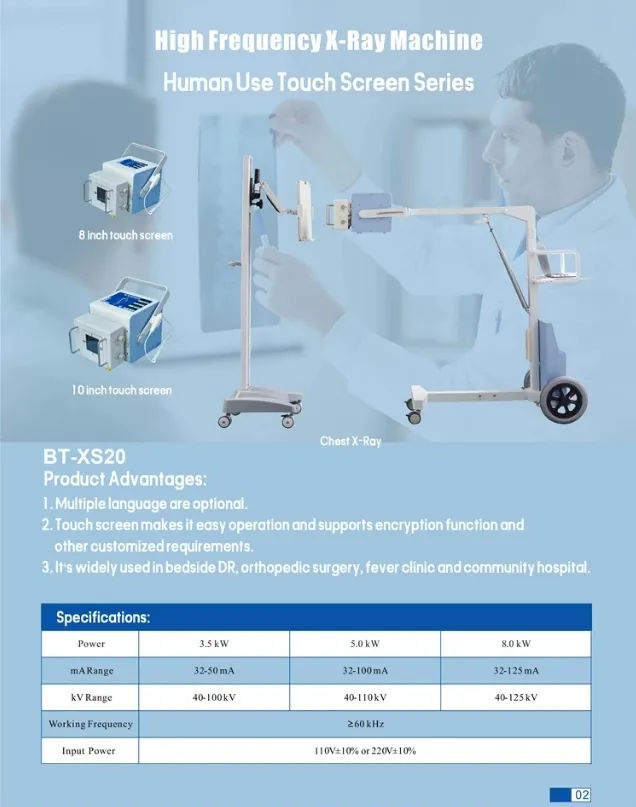

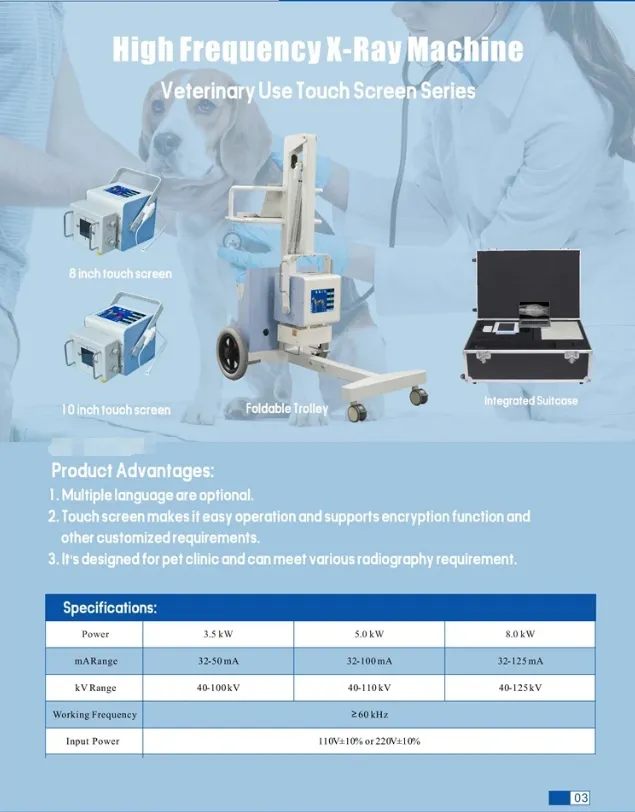

X-Ray Feature
X-Ray Feature
ModelDR-M100A & DR-M100AV
Input powerVoltage: AC220V±22V Frequency: 50/60Hz±1Hz
Maximum output power5kW
Nominal powerAC 220V, 50Hz
kV adjusting range40kV~110kV, Continuous adjustment step 1 kV
mA adjusting range20mA~100mA
mAs adjusting range0.2mAs~200mAs, shifted adjustment
s adjusting range10~4000ms
X-ray tubeFocus: 0.5/1.6mm; Anode heat capacity: 240kHU
Wire Flat Panel Detector17X17inch; Scintillator: CsI Direct Deposit; Pixel Pitch: 139; Max. 3.6LP/mm; Pixels: 3072*3072
LaptopModel: Lenovo; CPU: Intel Core i5; Memory: 4GB; Screen: 14 inch
X-ray machine size290×265×230mm
Weight19kg
Standard ConfigurationHand switch, remote control, detector, computer & LCD, suitcase, moveable stand

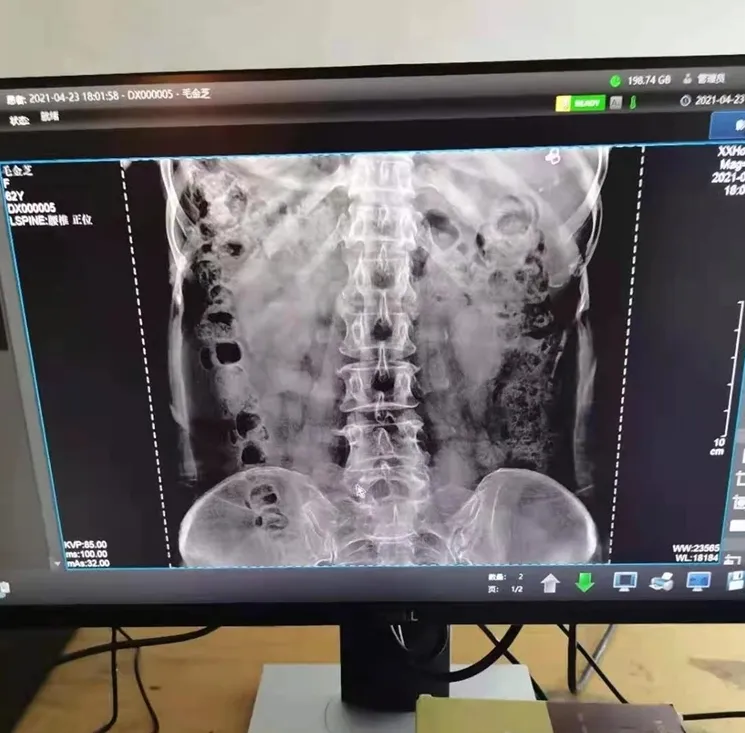

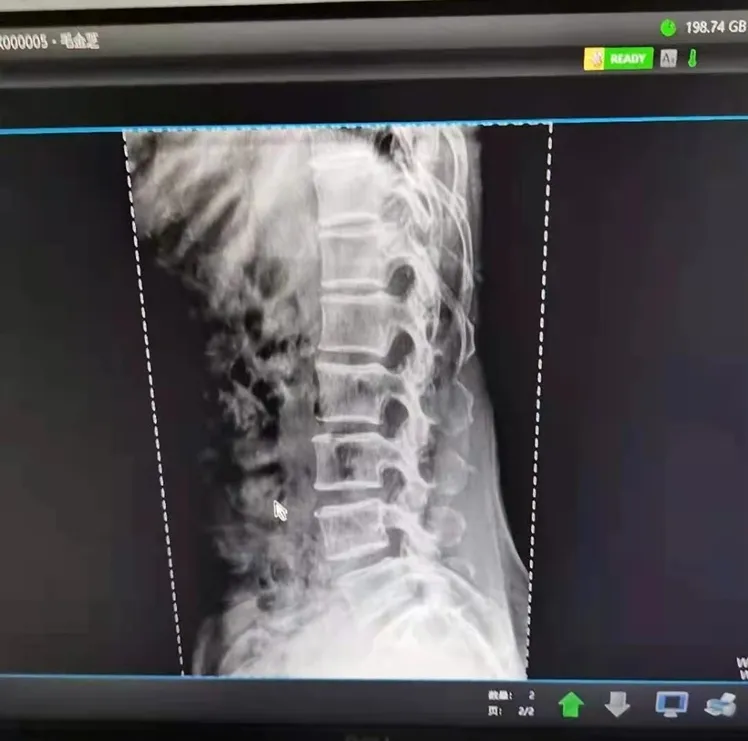

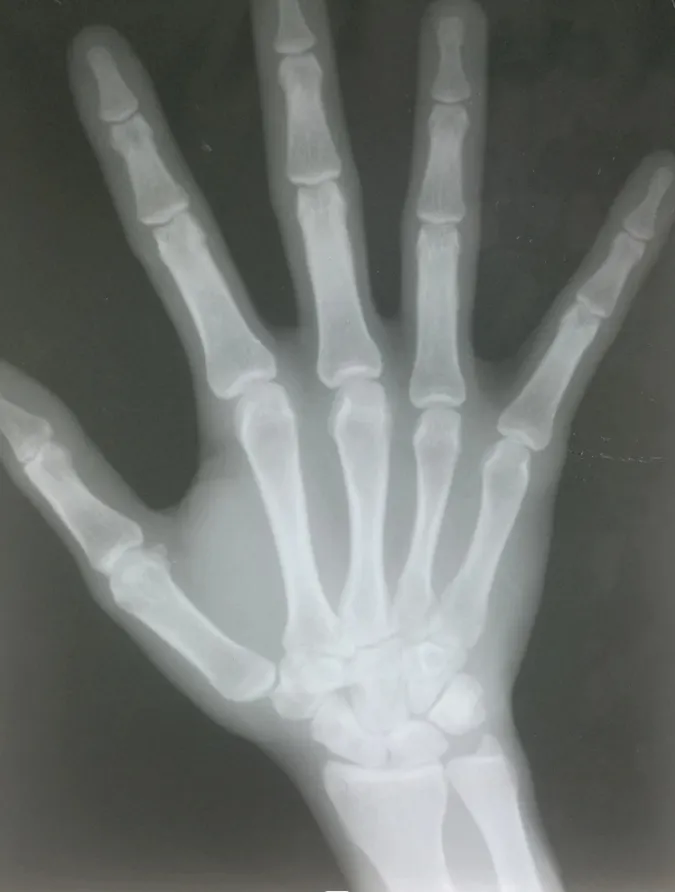

Equipment Detail
Equipment Detail
Equipment Detail

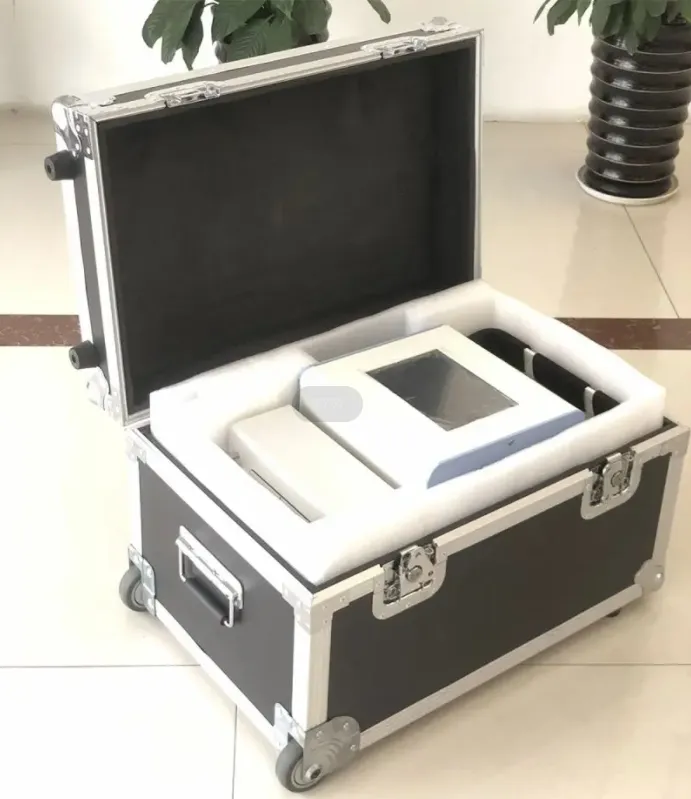

X-Ray Application
📜 Certificates
Certificates
🏭 Factory Overview
The company was founded in 2010. After several years' development, it is today one of the professional suppliers of medical equipment and veterinary equipment. The full range of products includes infusion & syringe pumps, ultrasound, anesthesia machines, ventilators, patient monitors, blood pressure monitors, stainless steel cages, and more. Familiar with high-quality standards in this area from the beginning, the company has been working with a quality management system according to ISO for years. Quality is always the first concern. Today, products are shipped all over the world, including Europe, Middle East, Africa, South America, and Asia.

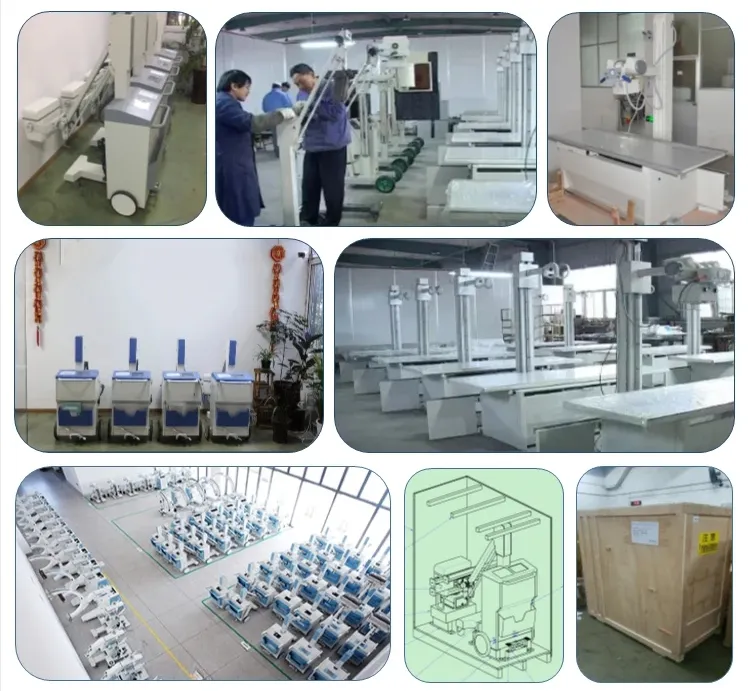

Factory View

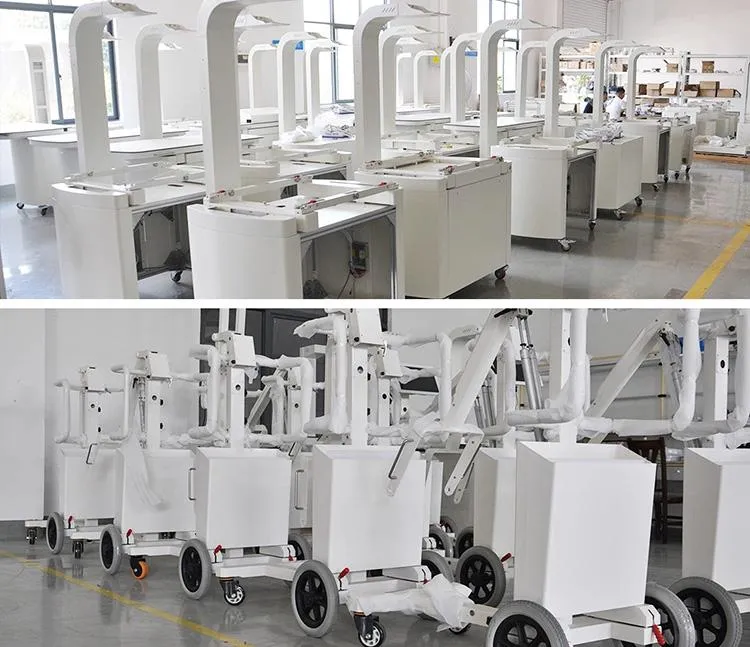

Factory Workshop
🤝 Exhibition & Customer Feedback
Exhibition
Exhibition

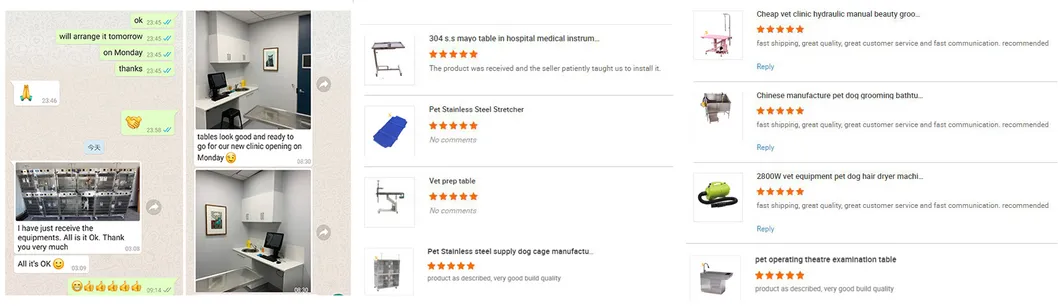

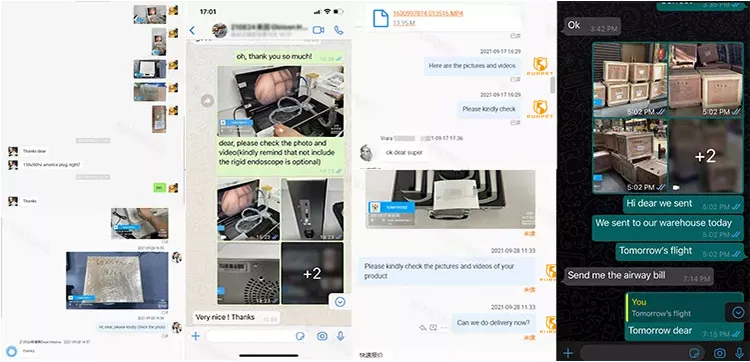

Customer Feedback
Customer Feedback
🔗 Related Products
Related Medical Equipment
Related Medical Equipment
Related Medical Equipment
FAQ
Q1: What is the kV adjustment range for the WMDR-001? A: The kV adjusting range is 40kV to 110kV with a continuous adjustment step of 1 kV.
Q2: Does the equipment support veterinary applications? A: Yes, the model DR-M100AV is specifically designed for veterinary medical radiography.
Q3: What are the dimensions and weight of the X-ray unit? A: The machine size is 290×265×230mm and it weighs approximately 19kg, making it highly portable.
Q4: What type of detector is included in the standard configuration? A: It includes a 17x17 inch Wire Flat Panel Detector with a CsI Direct Deposit scintillator.
Q5: What is the anode heat capacity of the X-ray tube? A: The X-ray tube features an anode heat capacity of 240kHU.
Q6: What comes in the standard configuration package? A: The standard set includes a hand switch, remote control, detector, computer & LCD, suitcase, and a moveable stand.
