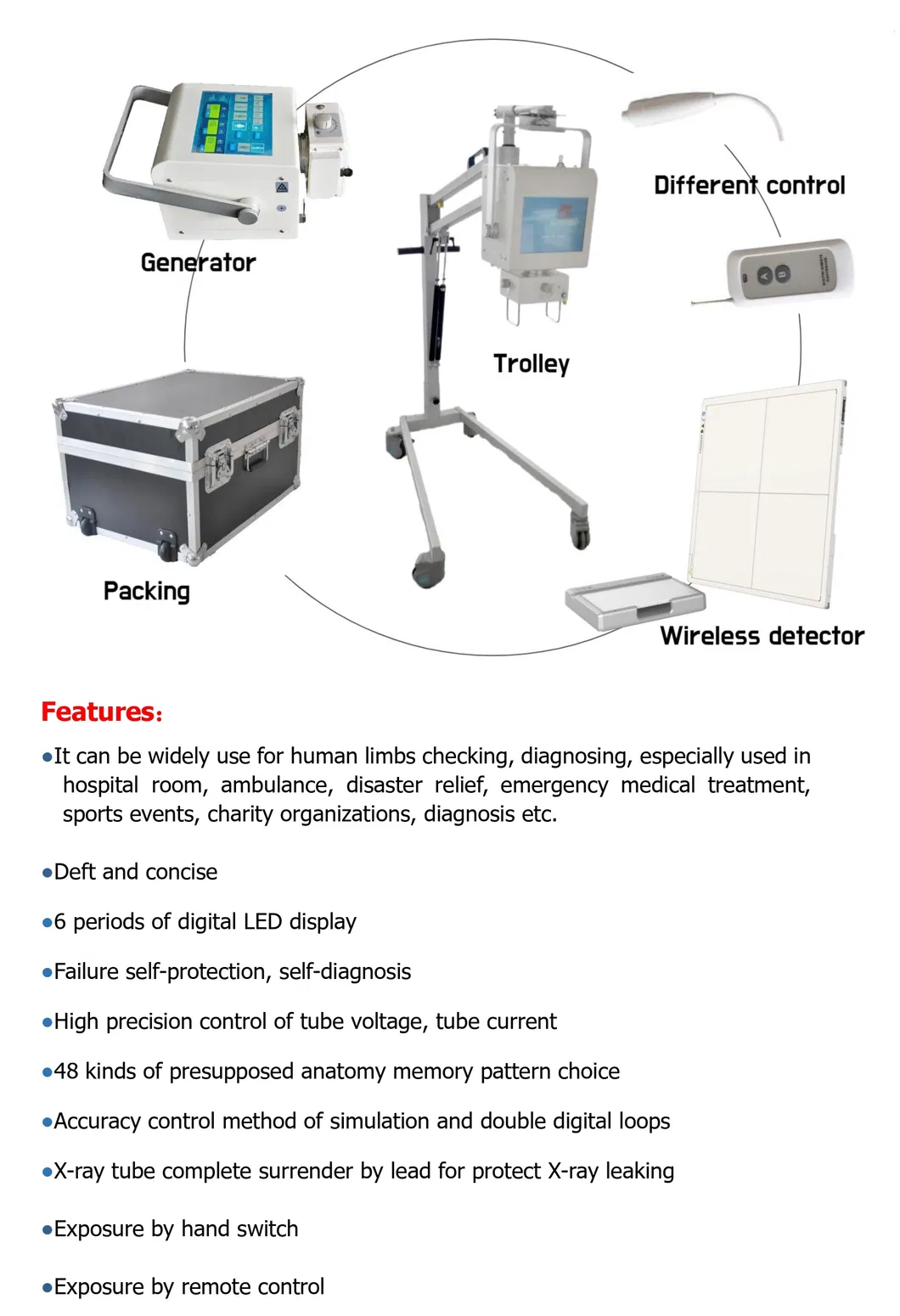

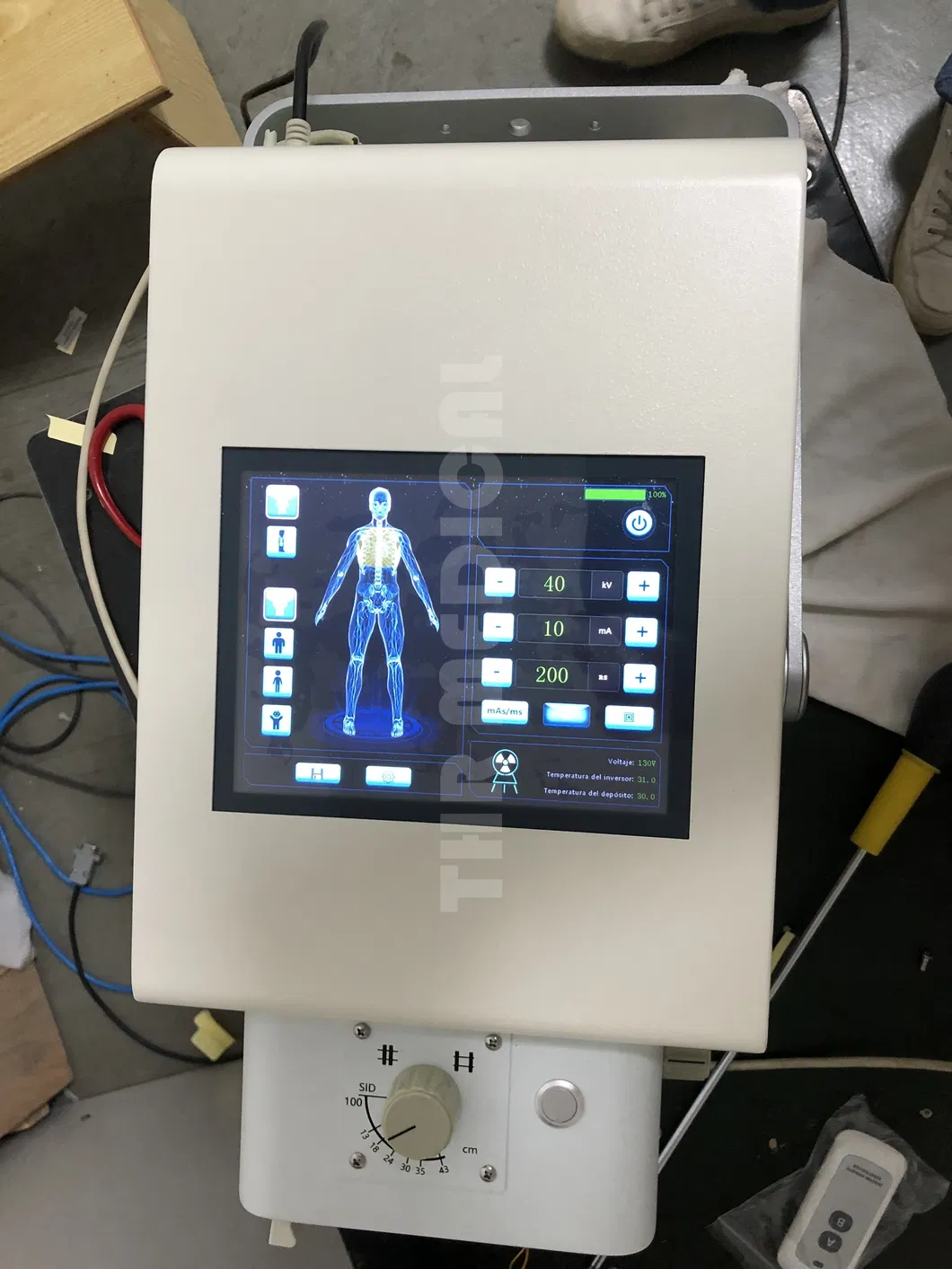

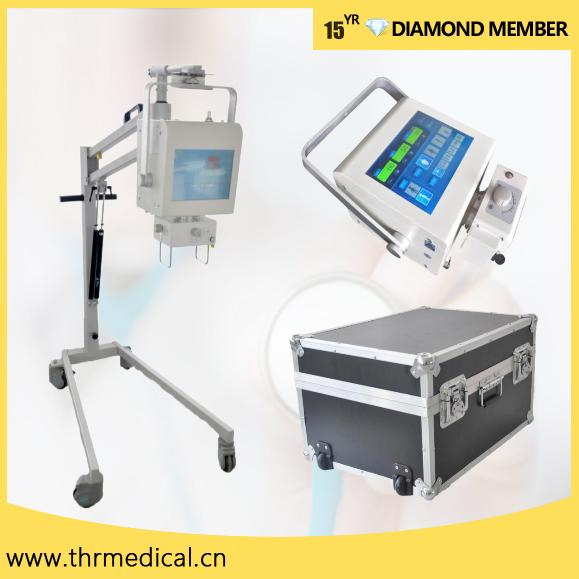

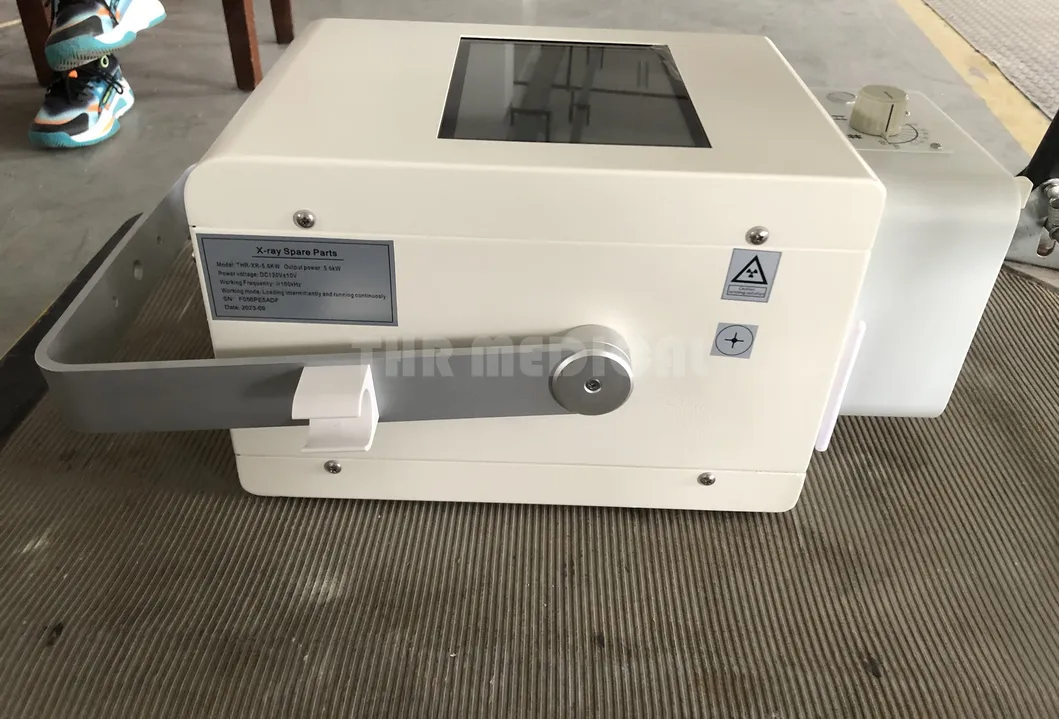

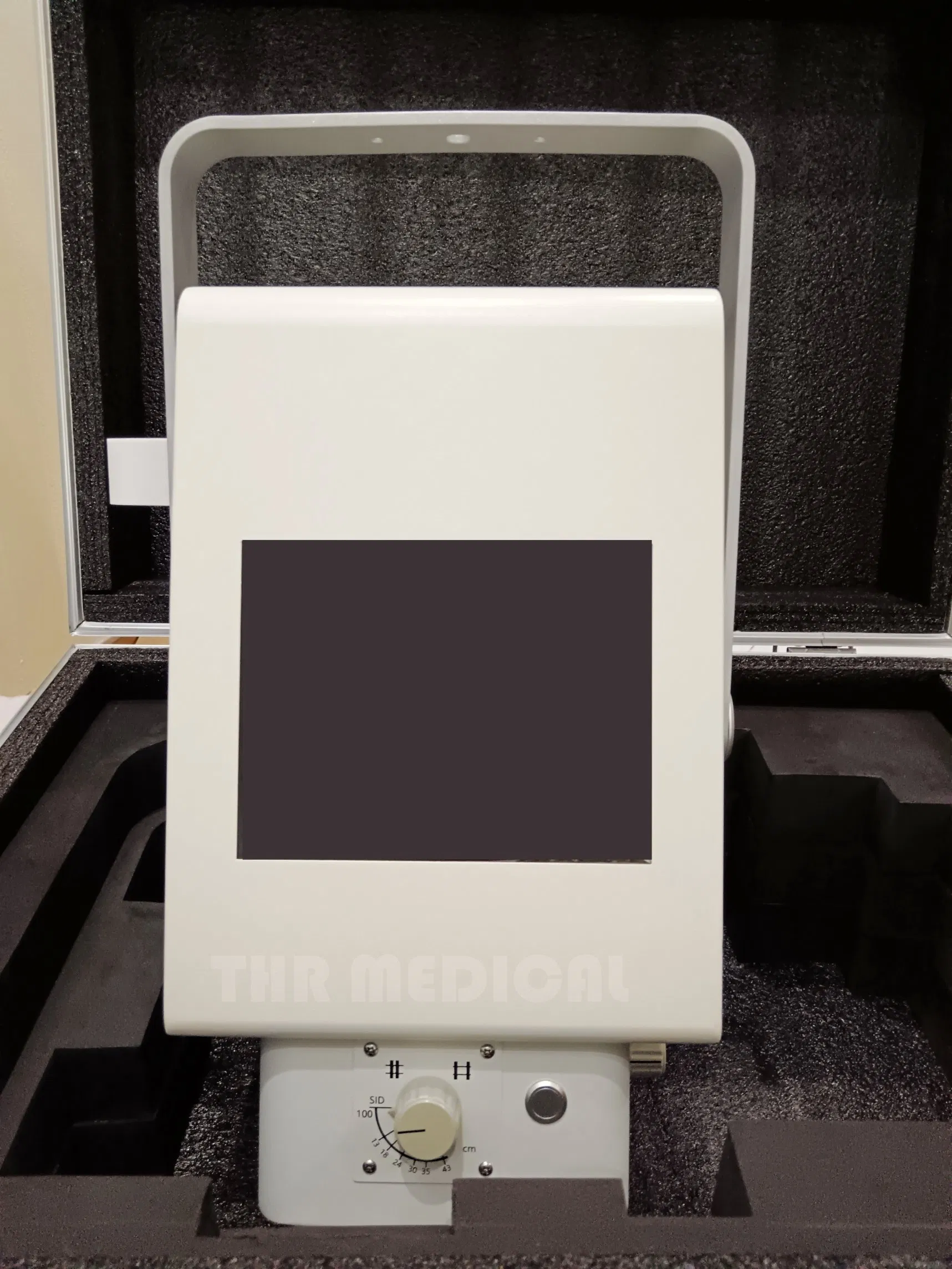

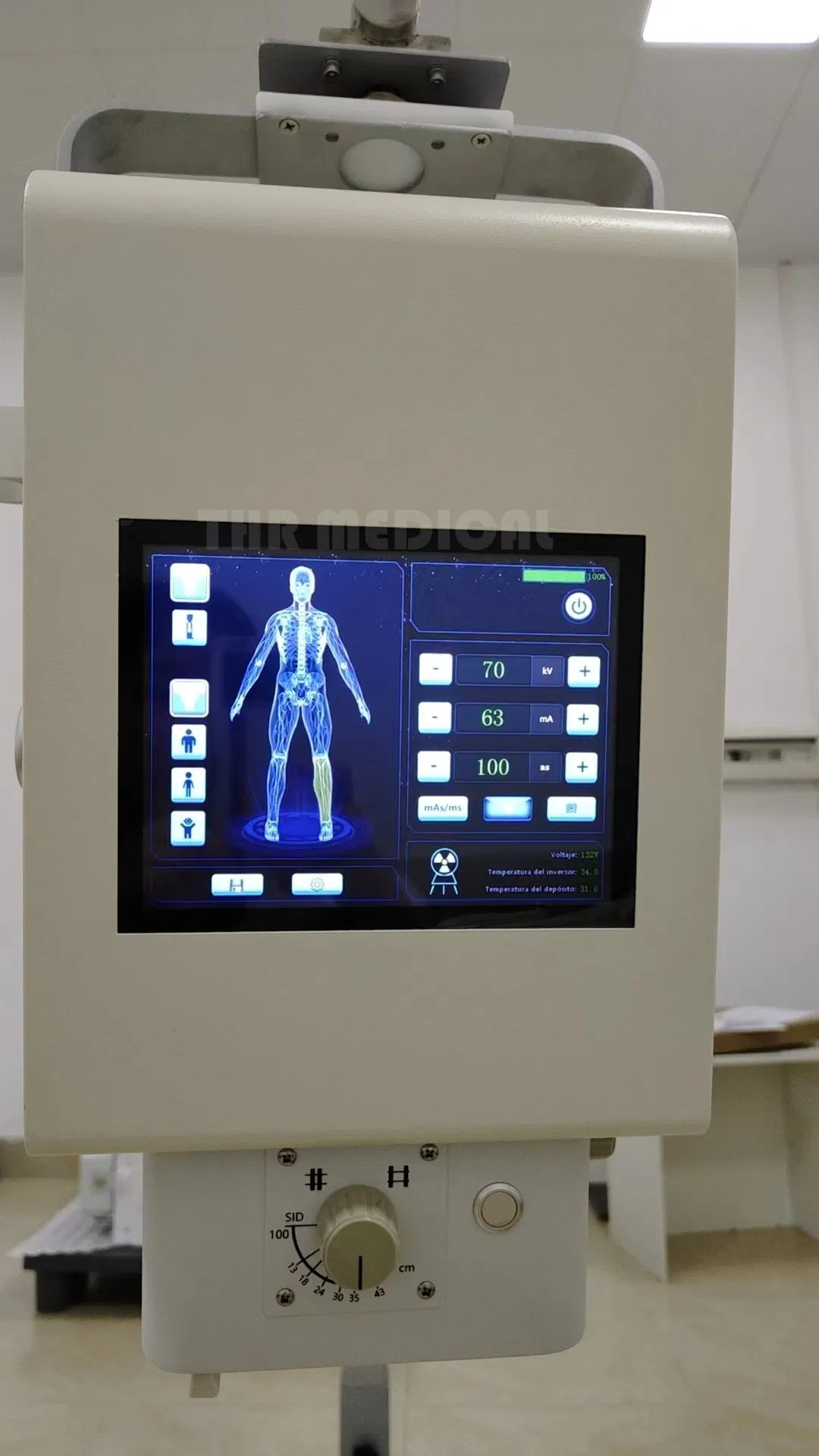

The Touch Screen Series portable X-Ray generator offers simple workflow and high-quality diagnosis images of various parts of the body such as the head, chest, abdomen, spine, and limbs. Since they can be easily transport and positioning, making them perfect choice for bedside, ICU rooms, isolation rooms, and emergencies.
Working Condition:
a) Environmental temperature: +10ºC ~ +40ºC
b) Relative humidity: 30% ~ 75%
c) Atmospheric pressure: 70kpa ~ 106kpa
Charger Power Requirements:
a) Input voltage: 110V±11V
b) Output voltage: DC138V-148V 3.5A
c) Power frequency: 50/60Hz±1Hz
d) Power capacity: 2500VA
| Maximum output power | P=70kVx80mA = 5.6kW |
| Nominal power | 100kV, 50mA, 0.1s, 5kW |
| Photography tube voltage | 40kV ~ 120kV |
| Photography tube current | 10mA ~ 100mA |
| Current time product | 0.1mAs ~ 200mAs |

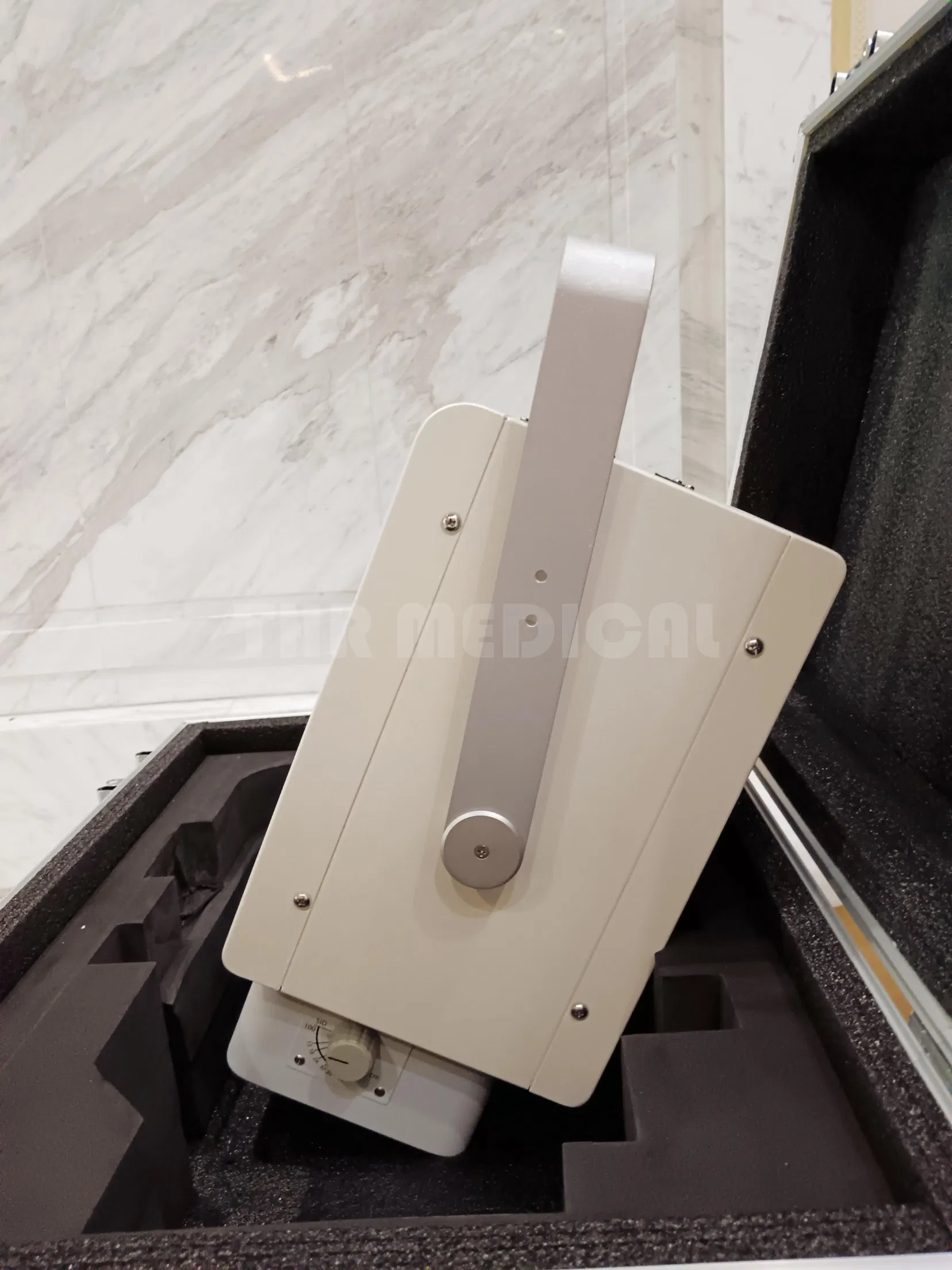

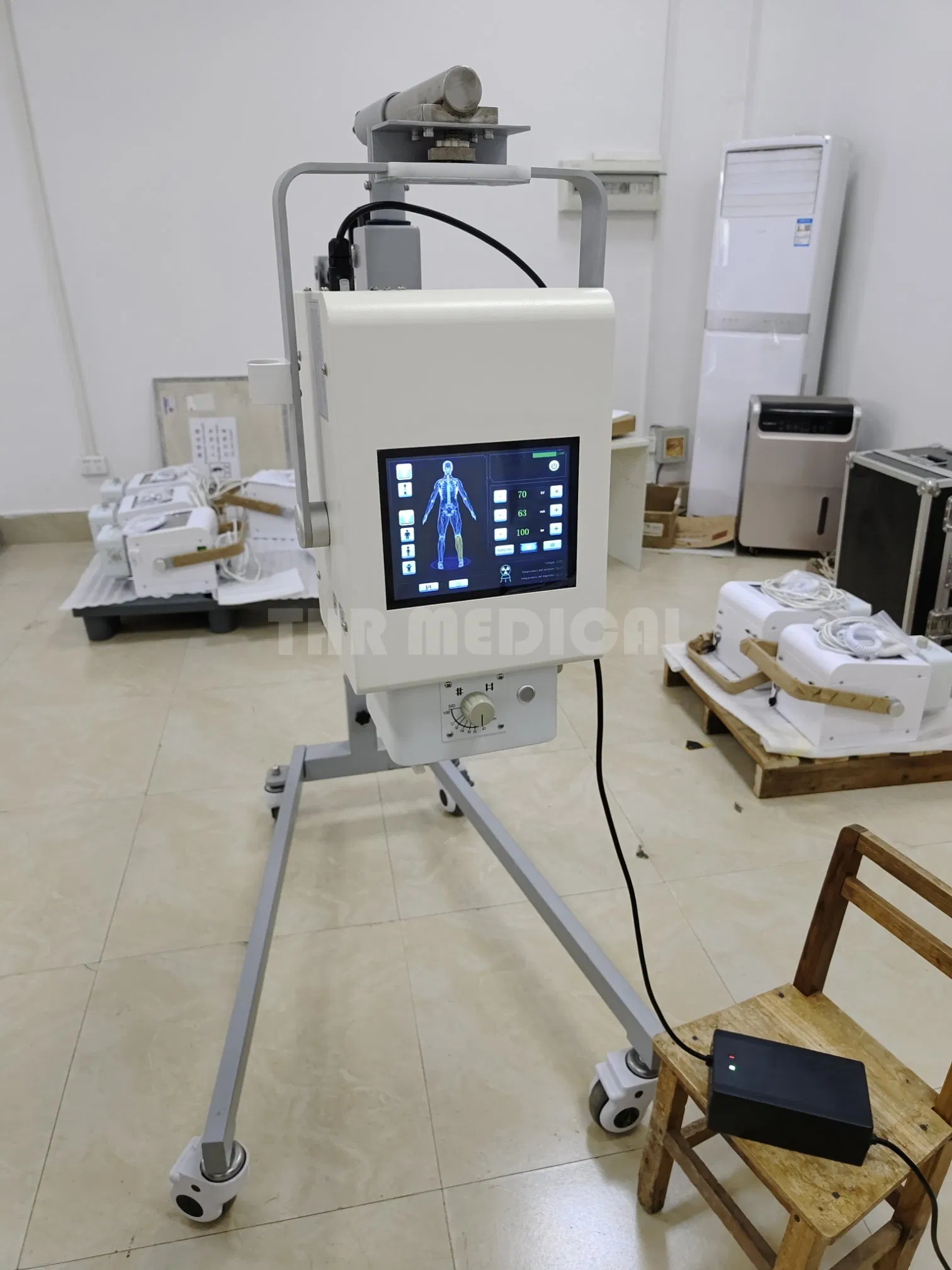

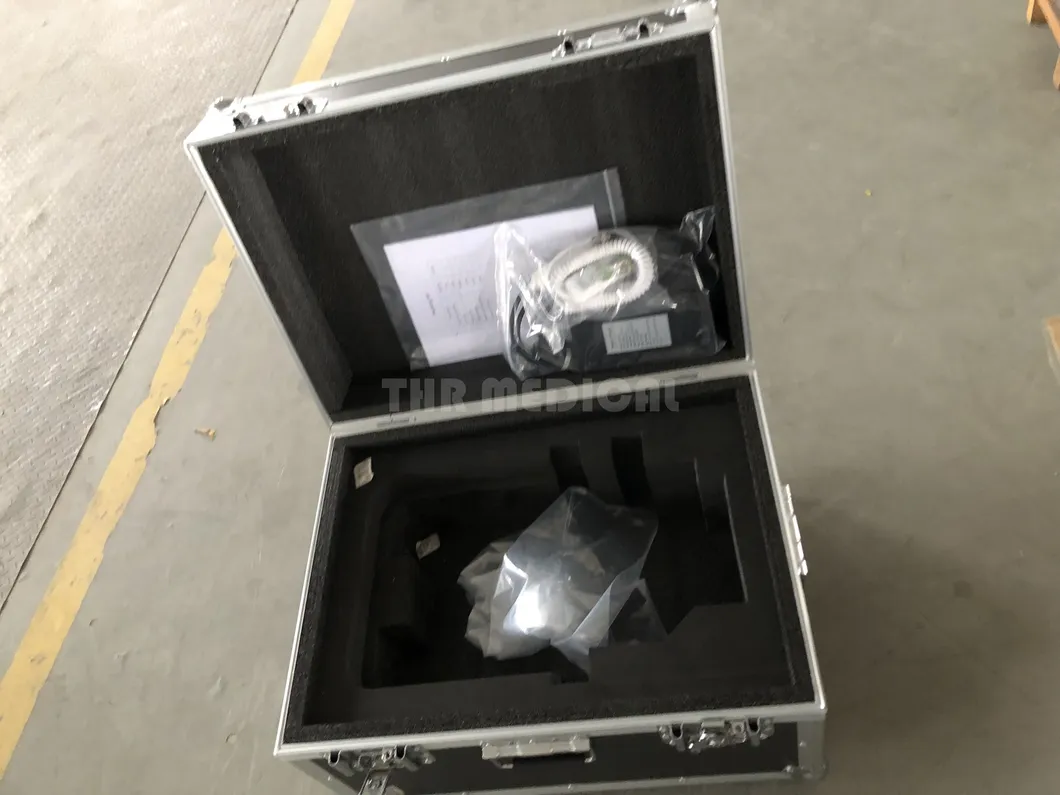

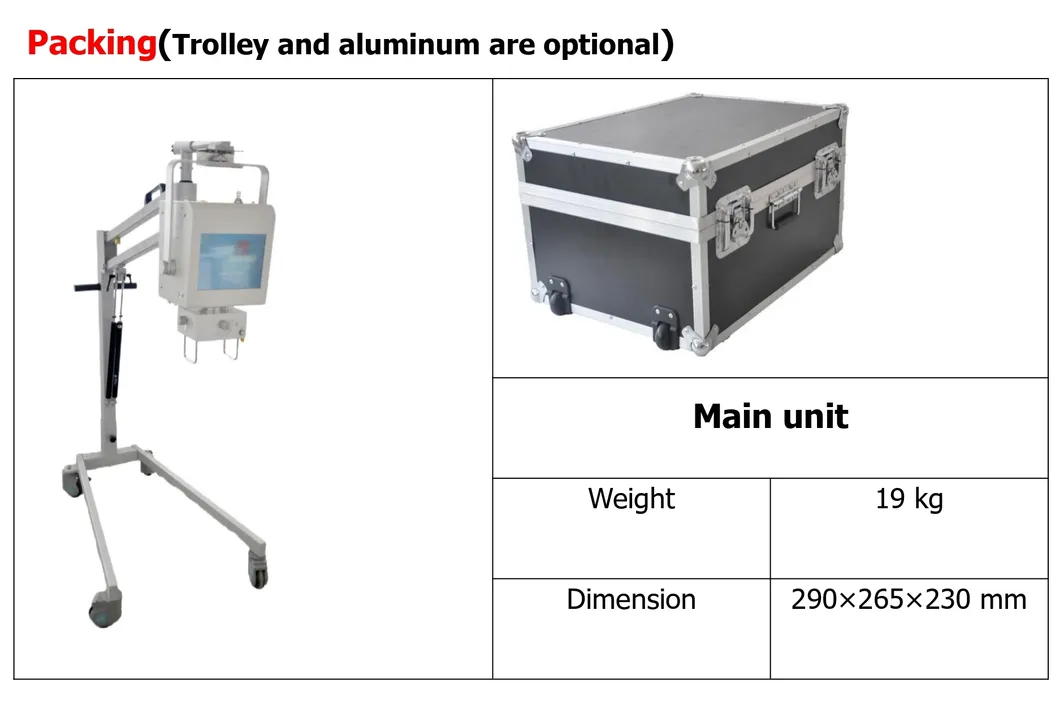

Mobile Stand Design: The mobile stand is flexible and convenient to meet various positions. The suitcase can be placed on the main X-ray machine. It's easy to transport and carry due to its special compact structure.
