Collimator: Manual operation with 1.5mm Al inherent filtration
Wall Bucky Stand: Vertical range 610mm with mechanical lock
Imaging Workstation
Windows Operating System
CPU: i5 / 3.3 GHz
RAM: 8 GB
Storage: 1TB Hard Drive
Display: 24-inch professional monitor
Product Gallery
Frequently Asked Questions

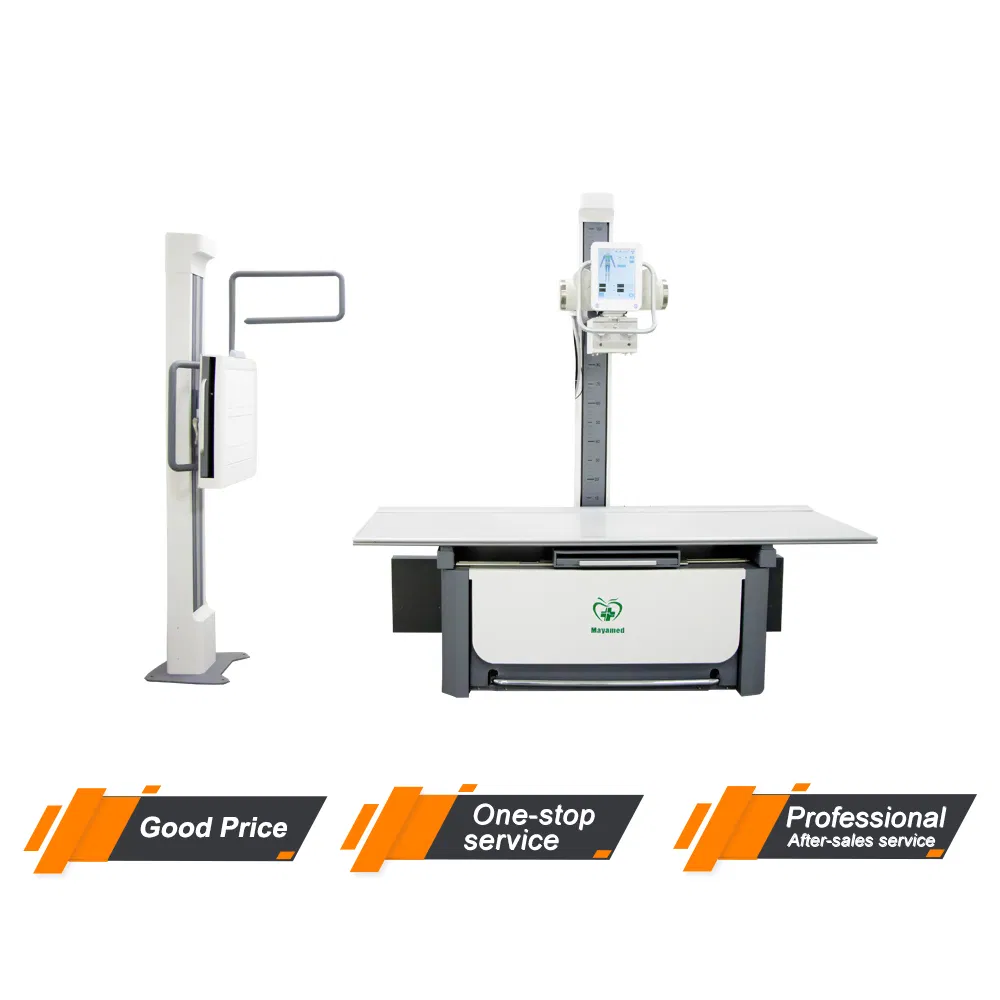

1. What is the power rating of the MY-D023G X-ray machine?
The MY-D023G features a 50KW high-frequency generator, providing consistent and powerful performance for clinical diagnostic needs.

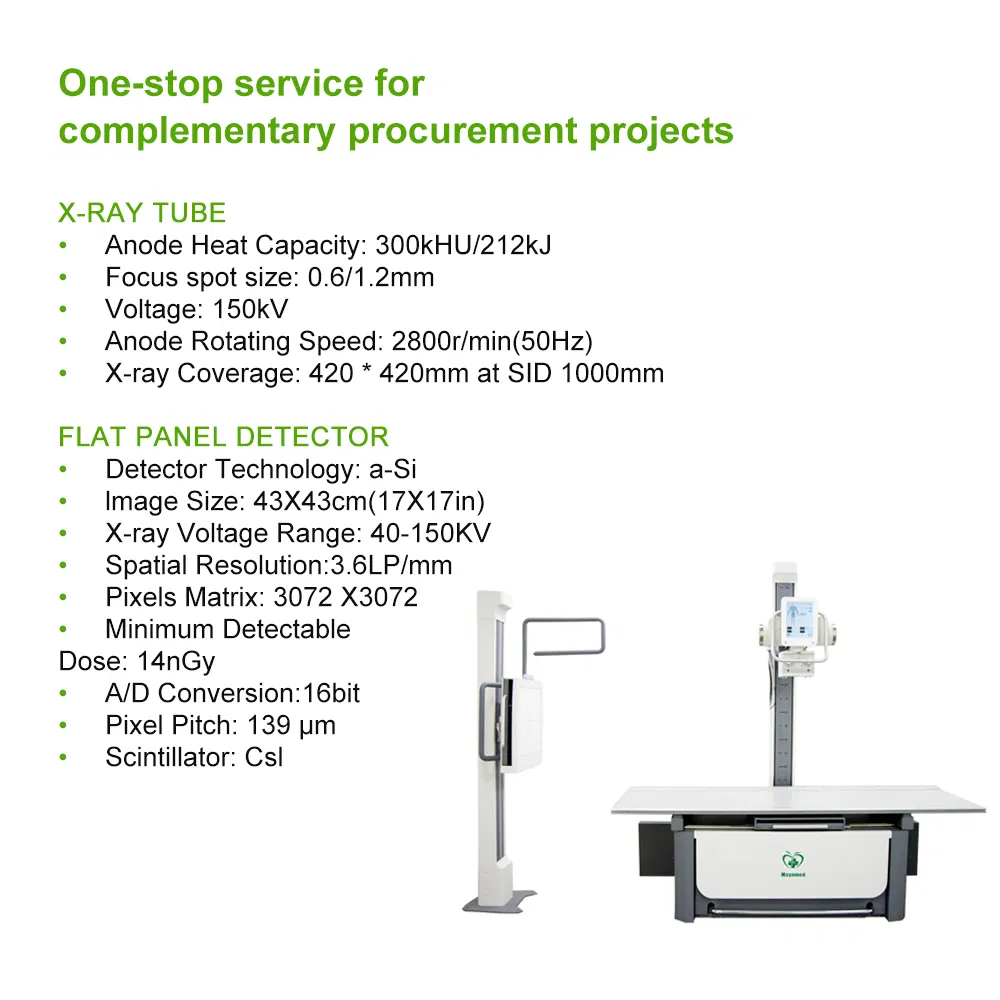

2. What are the specifications of the digital detector?
It uses a-Si (Amorphous Silicon) technology with a Cesium Iodide (Csl) scintillator. The imaging size is a large 17x17 inches (43x43cm) with a 3072x3072 pixel matrix.
3. What is the maximum voltage and current range?
The system supports a kV range of 40 to 150KV and a mA range of 10 to 630mA, allowing for a wide variety of clinical applications.
4. Does the table support movement for patient positioning?
Yes, it includes a 4-way floating table (2200*740mm) with electromagnetic locks, allowing for 570mm longitudinal and 210mm lateral movement.

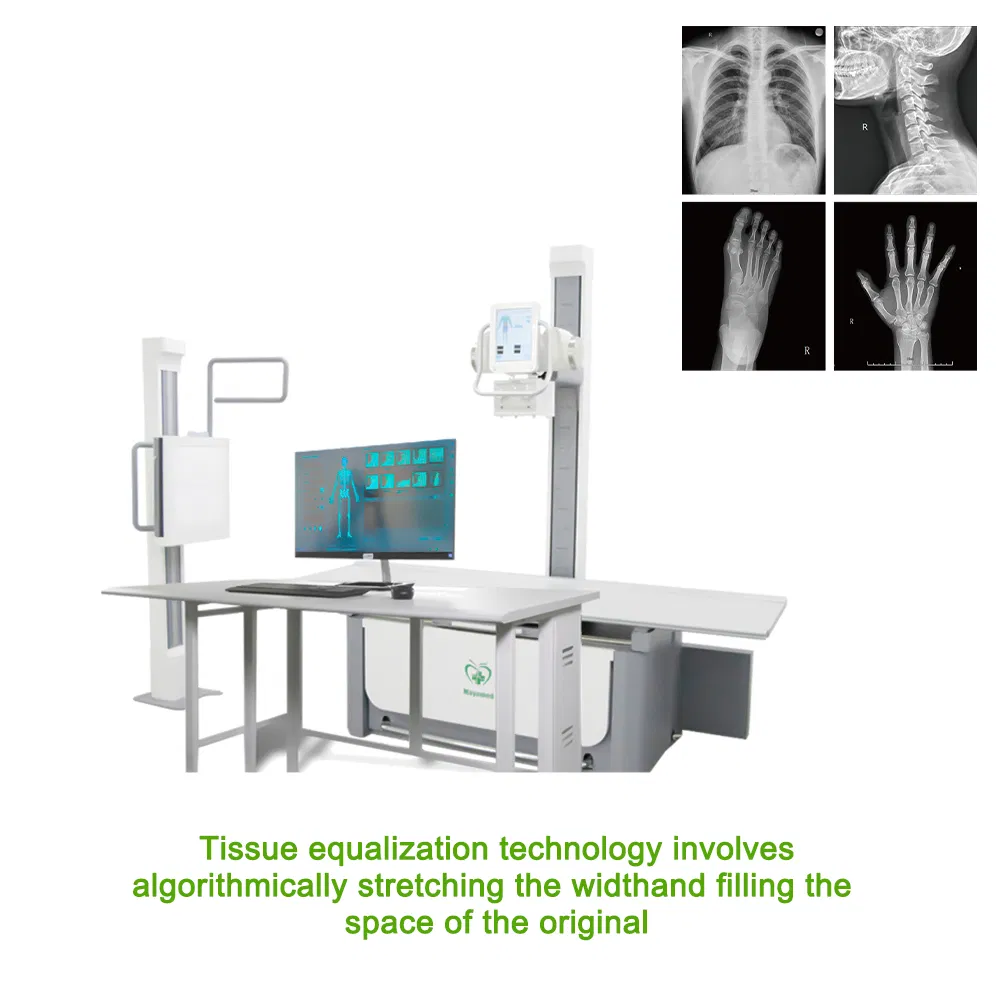

5. What kind of workstation is included with the system?
The system comes with a Windows-based workstation powered by an i5 3.3GHz processor, 8GB RAM, 1TB storage, and a professional 24-inch image display.

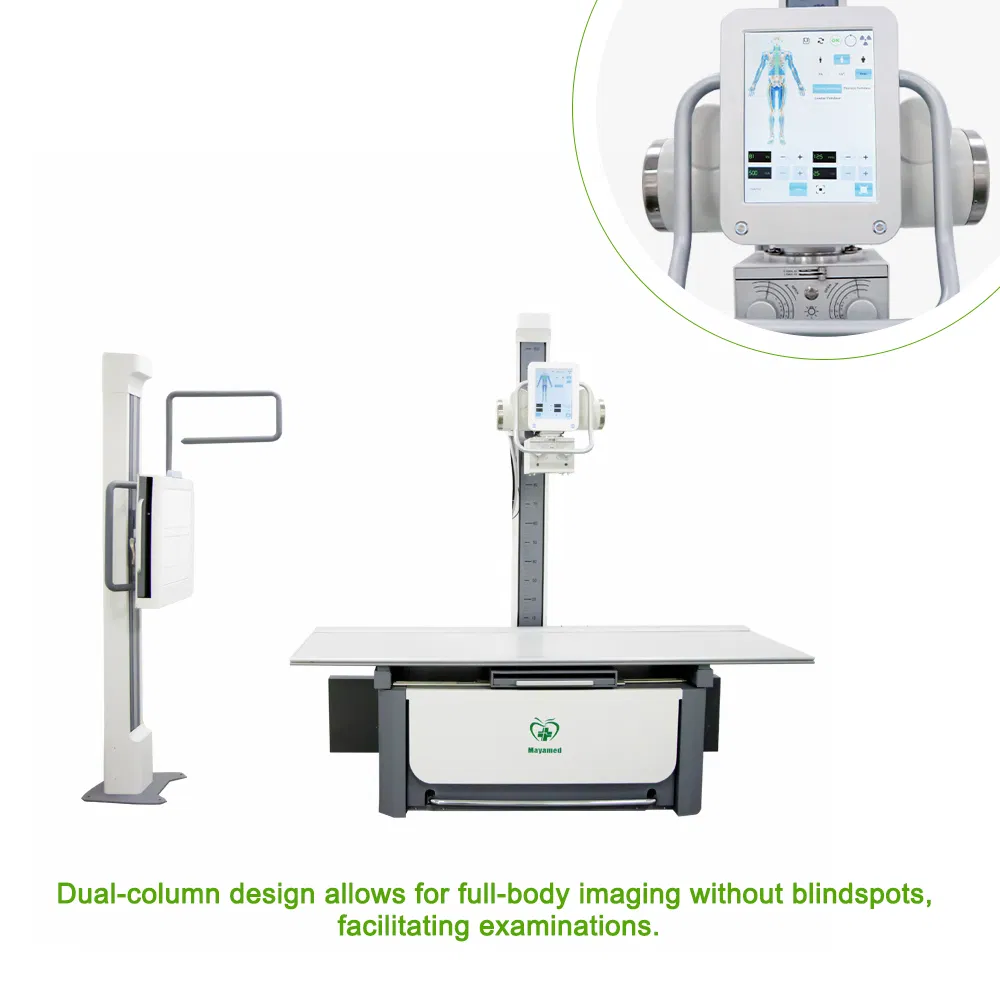

6. What is the rotation capability of the X-ray tube?
The X-ray tube supports a rotation angle of ±90°, while the column itself can rotate ±180°, offering exceptional flexibility for different imaging angles.
