📋 Basic Information
Certification
CE, ISO13485
Production Capacity
50 units/Month
🔬 Product Description

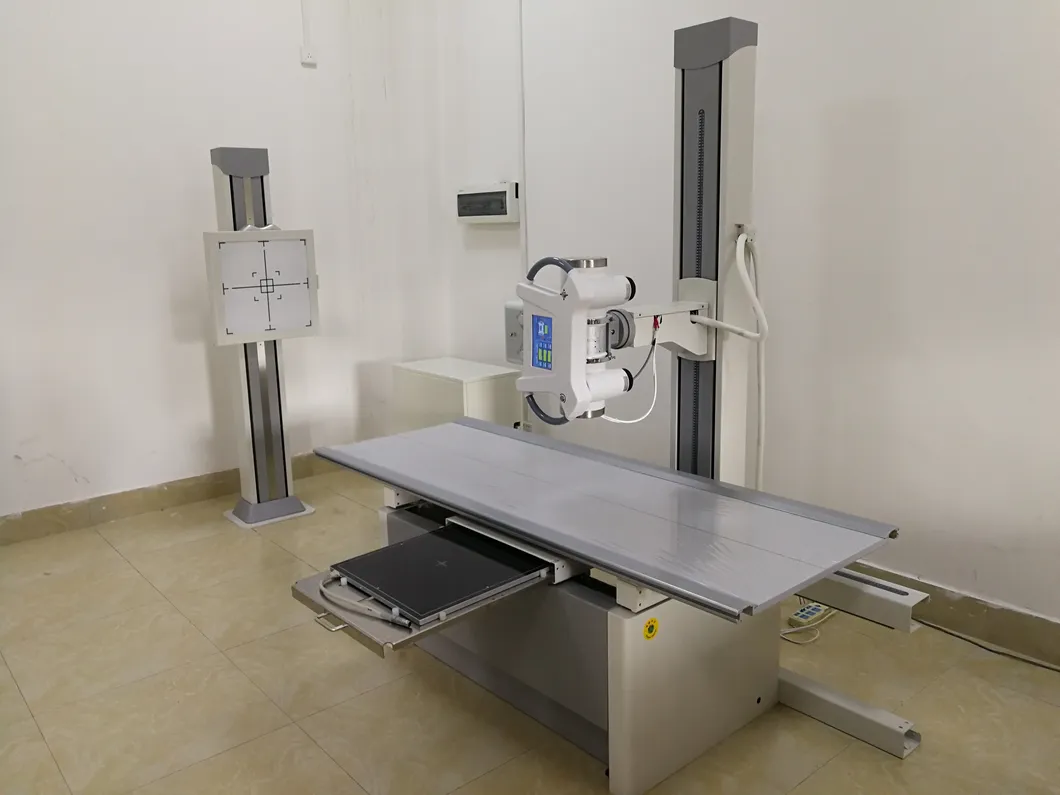

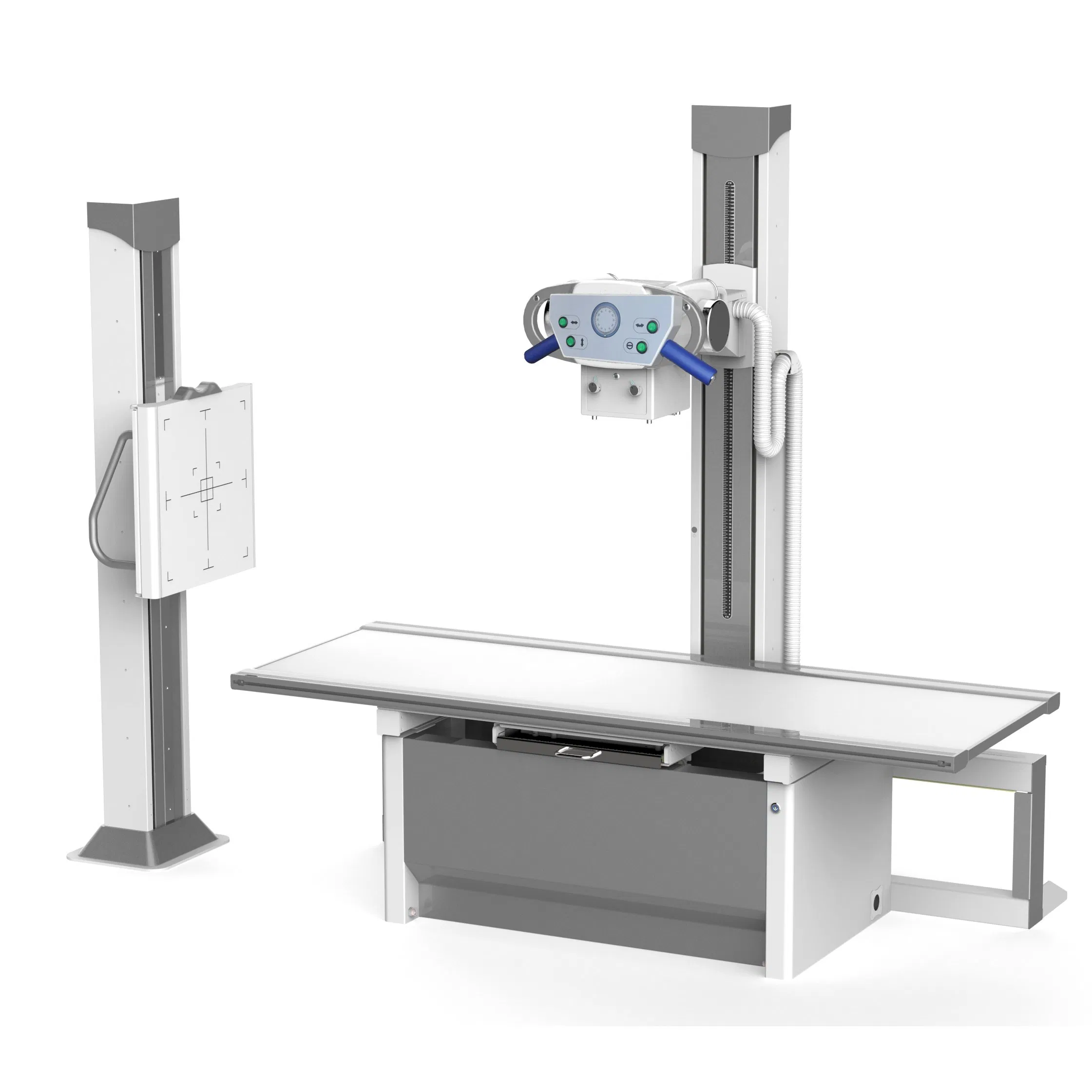

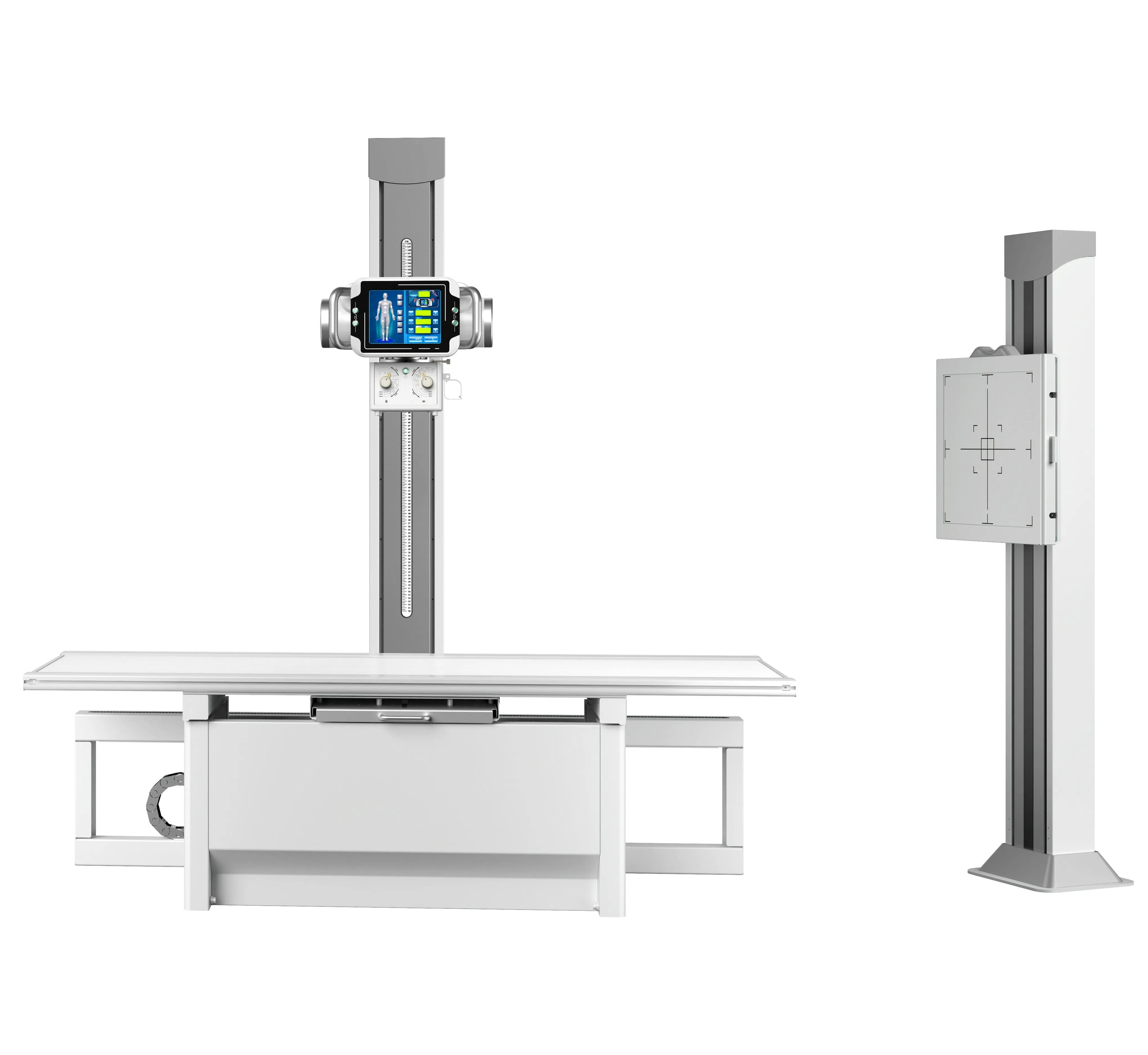

Introducing our state-of-the-art Analogue High Frequency X-Ray Radiography Medical Equipment, featuring an impressive 500mA capacity, designed specifically for top-tier medical use.
| Main Component |
Technical Specifications |

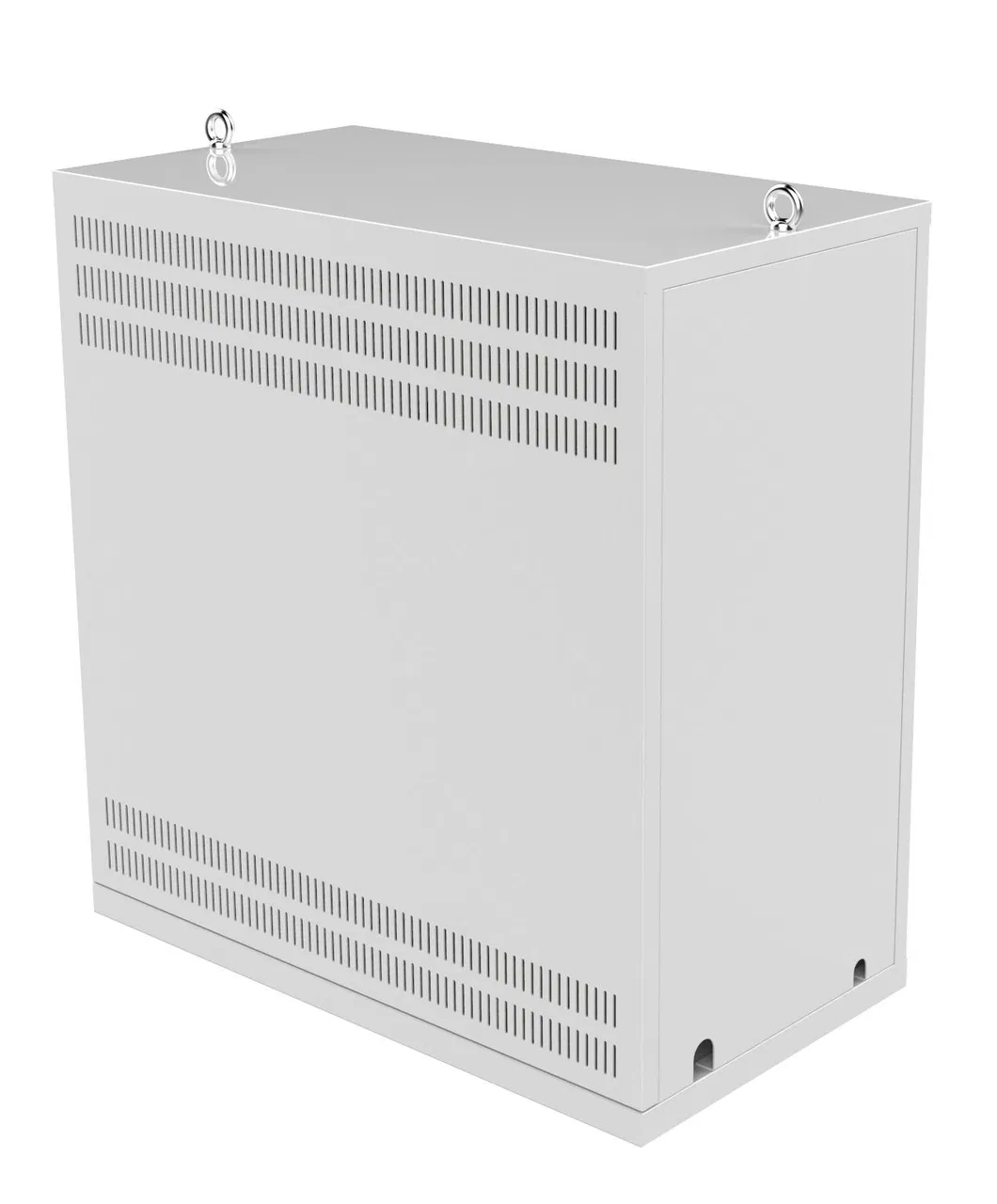

X-ray generator
(include console) |
Output Power |
40KW |
| Power Voltage |
380V±38V |
| kV range |
40~125kV |
| mA range |
32~500mA |
| mAs range |
0.32 ~500mAs |
| Exposure time |
0.002~6.3S |

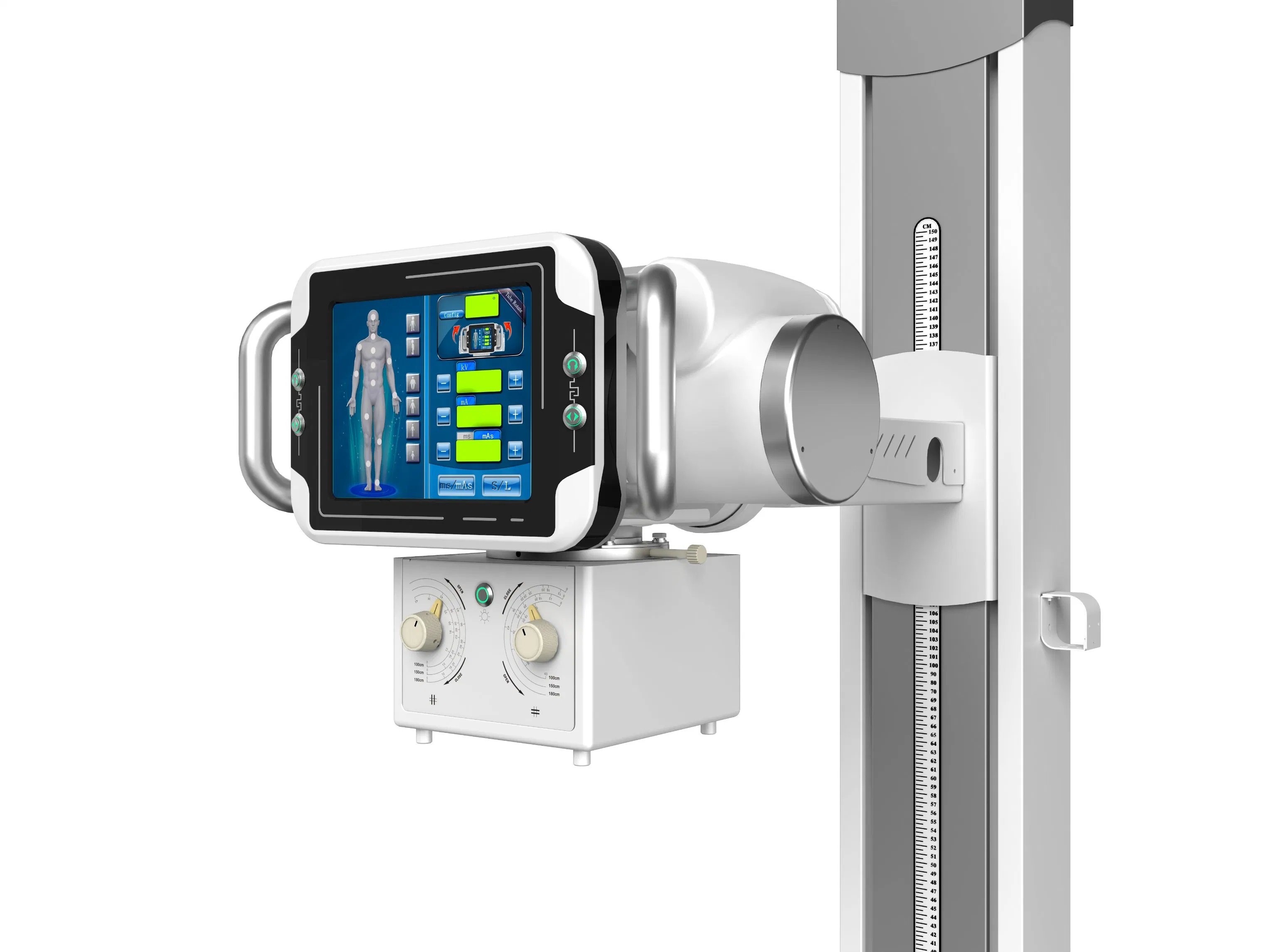

| X-ray tube |
Anode Heat Storage |
240kHU |
| Small focus |
1.0 |
| Large focus |
2.0 |
| Anode speed |
3000r/min |
| Collimator |
Inherent filtration |
1.0mm Al /75kV |
| Light Source |
LED |

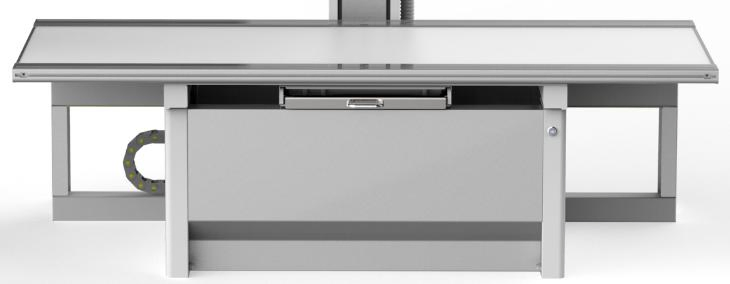

| Radiographic Table |
Top Table Size |
2100X800X650mm |
| Bucky Size |
18X18inch |
| Table movement |
≥900mm |
| Cassette movement |
≥500mm |
✨ Key Features & Advantages
✔
DR Upgrade Ready: Boasting a rich DR upgrade reserve interface for seamless digital integration.
✔
Self-Diagnosis: Equipped with fault self-diagnosis and protection features for maximum safety.
✔
Auto-Calibration: Automatic tube current calibration ensures optimal performance and accuracy.
✔
Extended Lifespan: X-ray tube includes a filament dormancy function to reduce maintenance costs.
✔
AEC Function: Selectable ionization chambers provide adaptability across diverse radiographic needs.
✔
High Penetration: High kV and high power ensure effective imaging even for obese patients.
❓ Frequently Asked Questions
Q1: What is the maximum mA output for this equipment?
The YZ-500C1 features a powerful 500mA capacity, ideal for high-precision medical radiography.
Q2: Can this analogue system be upgraded to Digital Radiography (DR)?
Yes, the equipment is designed with a rich DR upgrade reserve interface for seamless future digital integration.
Q3: What are the focal spot sizes for the X-ray tube?
The tube utilizes a double-focus system with a small focus of 1.0 and a large focus of 2.0.
Q4: Does the machine include safety protection features?
Absolutely. It includes automatic fault self-diagnosis and protection systems to ensure operational safety and reliability.
Q5: Is it suitable for imaging larger or obese patients?
Yes, with high kV and high current capabilities, the system provides strong penetration for effective imaging of all patient types.
Q6: What is the standard power requirement?
The standard power voltage required for this unit is 380V±38V.
