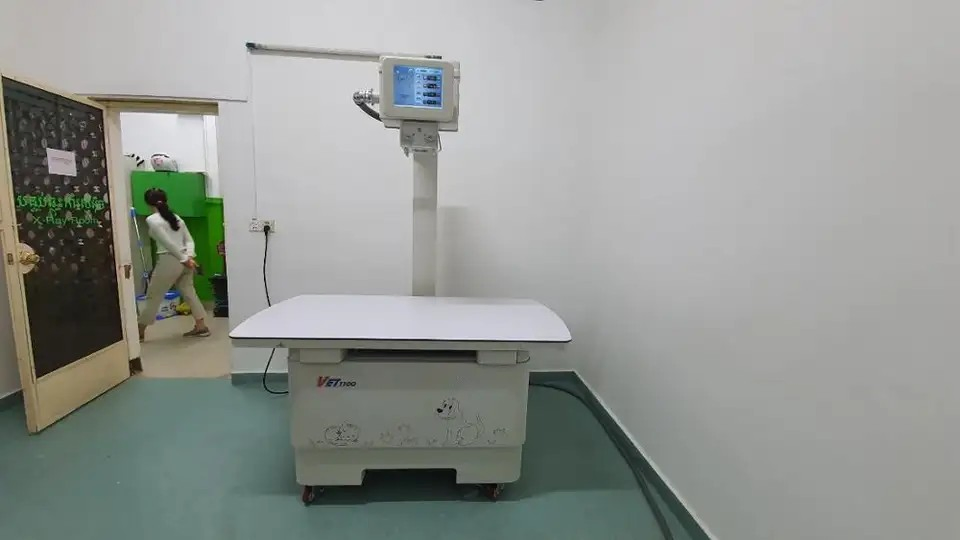

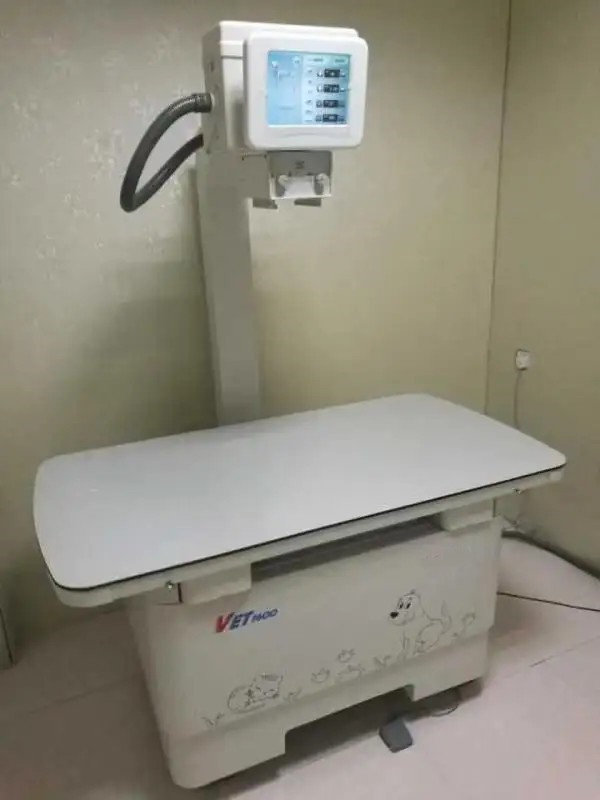

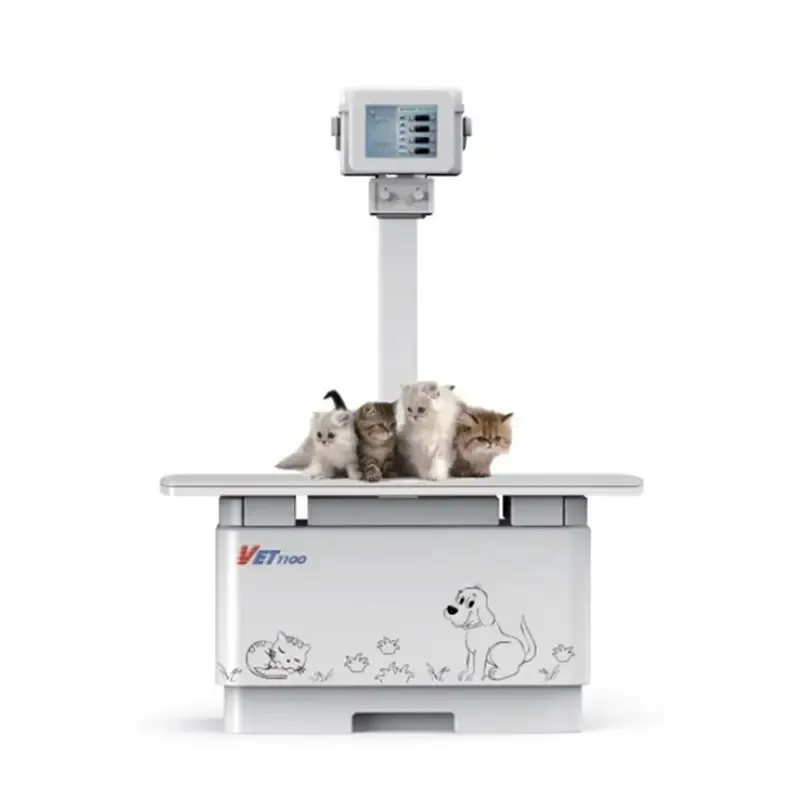

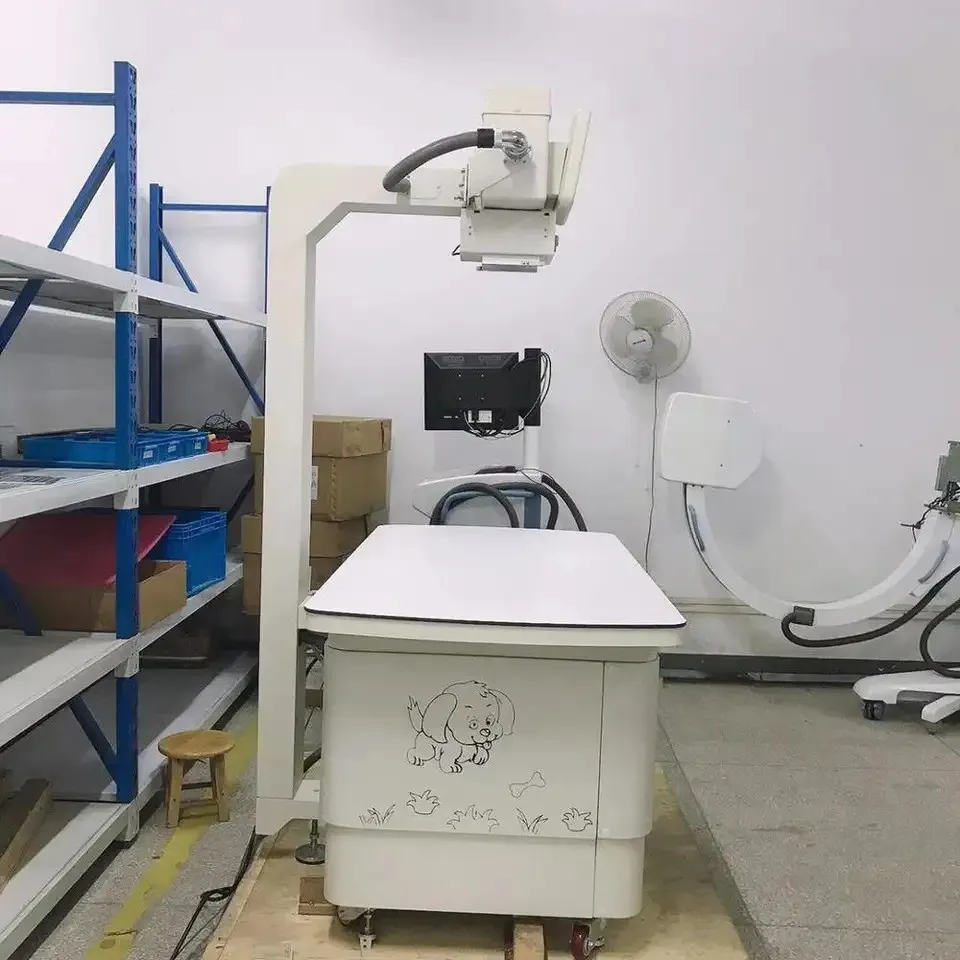

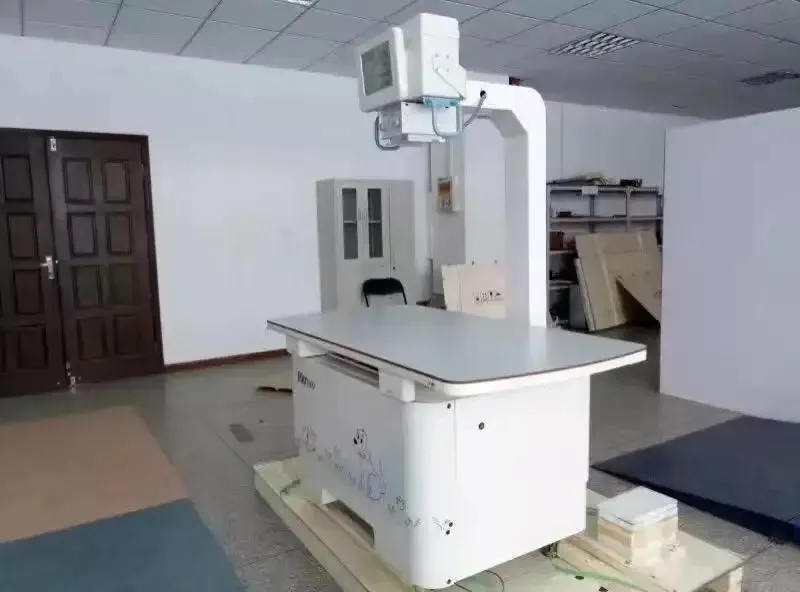

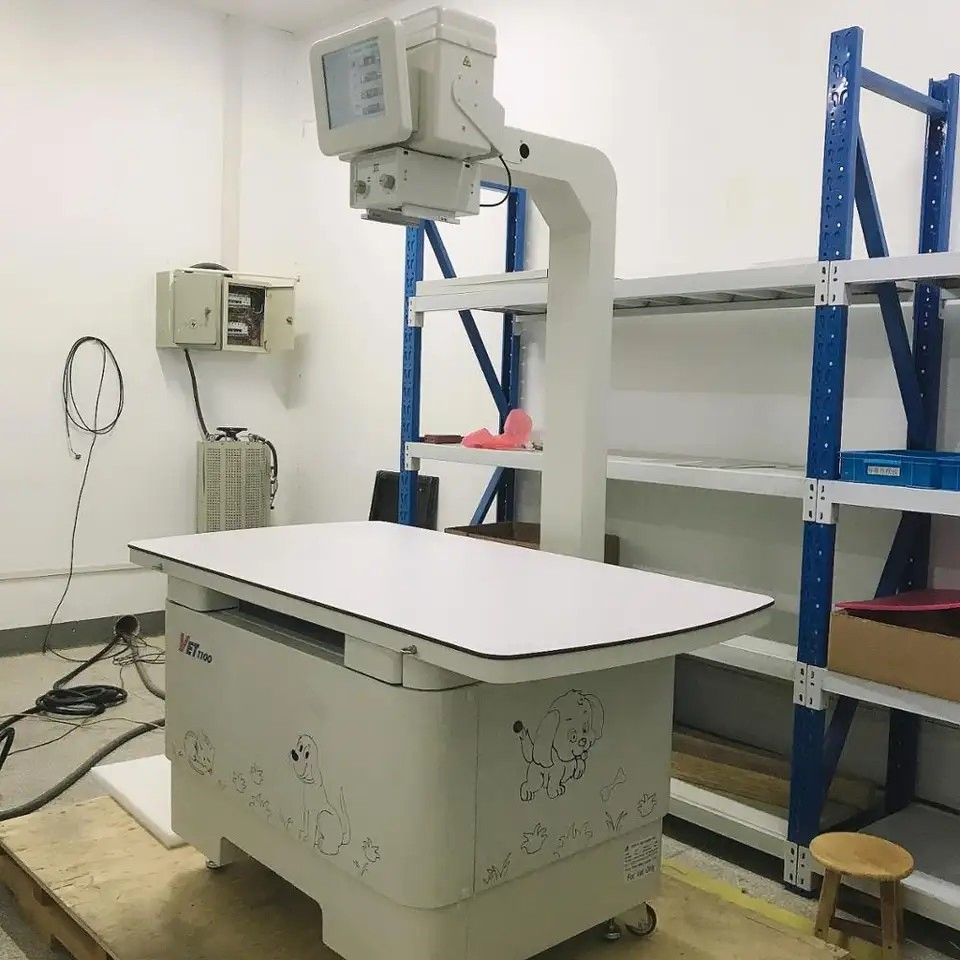

Vet Digital Radiography System (4.5kw) - Model: JRVET1100
JRVET1100 is a digital high frequency X-ray radiography system specifically designed for veterinary use. It satisfies the radiography requirements of animals of different body types and is ideal for pet hospital radiology rooms and clinics.
Technical Parameters
- Output power: 4.5KW | Main inverter frequency: ≥40kHz
- X-ray tube: XD6C-0.55, 4/125
- Tube voltage: 40kV~120kV | Tube current: 20mA~100mA
- mAs: 1.0mAs~180mAs
- Power condition: 220V, single phase
- Exposure method: wire control / remote control
- Touch screen console
Digital Imaging System
- Flat panel detector: 1717M (A-si)
- Valid size: 17" x 17" inch
- Pixel pitch: 139um | Pixel matrix: 3072 x 3072
- Resolution: 3.6lp/mm | A/D conversion: 14 bits
Mechanism Parameters
- Table length: 1520mm ±5%
- Complete machine height: 1900mm ±5%
- Table horizontal movement: 400mm ±5%
- Table transverse movement: 200mm ±5%
Key Features
- High frequency inverter technology for stable, clear images with high contrast.
- Microcomputer real-time control of kV and mAs for dose accuracy.
- Multiple preset radiography programs, fully customizable by users.
- High quality mono-block generator to reduce radiation for environment and operators.
- Professional workstation with DICOM 3.0 standard support and precise image processing.
- Equipped with automatic failure protection and alarm display.
Standard Configuration
- One set of X-ray tube and JRVET1100 Rack.
- 24" Integrated computer workstation with DICOM 3.0.
- 17*17" Detector (1717M) and Workstation Software.
