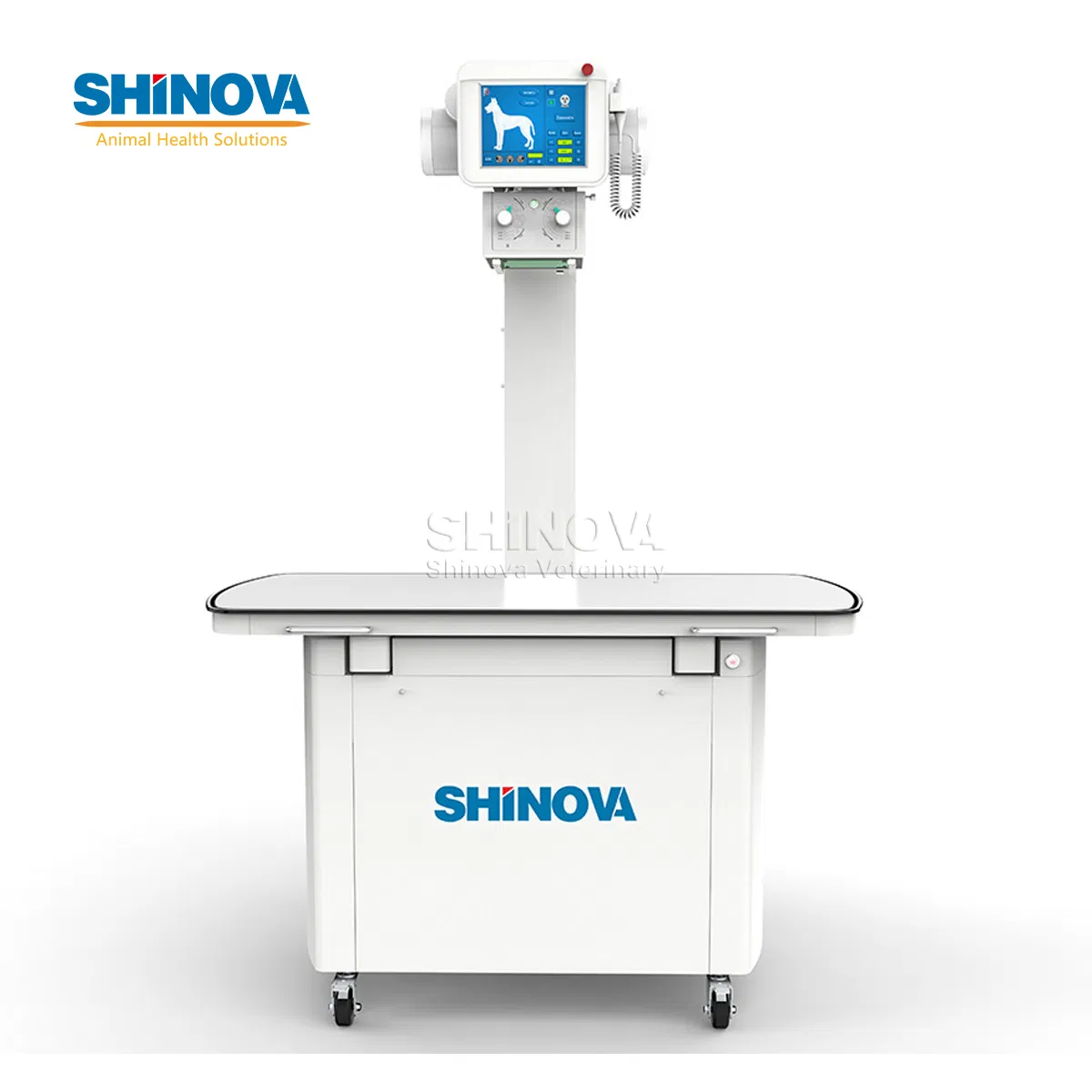

⚡ 320mA Veterinary Digital X-ray Machine
Model: DR-320
Soft touch user panel
Digital displays of kV, mAs and time
High frequency inverter type generator
Overload protection for kV, mA, Time and Temp
Self-manageable APR function with memory keys
⚙️ Technical Specifications
1. Generator (320mA)
| Parameter | Details |
|---|
| Maximum output power | 20kW |
| Range of tube current | 32~320mA |
| Tube voltage range | 40kv~120kv |
| Exposure time range | 10ms ~ 5000ms |
| mAs range | 0.32mAs~320mAs |
| Input voltage | AC 220V±22V |
| Communication interface | RS-232 |
| Safety Features | Capacity lock, fault diagnosis, self-protection |
2. X-ray Tube
| Max. Tube voltage | 120kV |
| Focus | Small: 1.0mm / Large: 2.0mm |
| Anode input power | Small: 20KW / Large: 40KW |
| Anode speed | 2800 R/M |
| Target angle | 17.5° |
| Anode heat content | 100kJ (140kHU) |
3. Radiography Table
| Size (L*W*H) | 1400mm * 700mm * 850mm |
| Bearing weight | 150kg |
| Movement | Equipped with wheels |
| Tabletop Movement | Four-way movement |
| Positioning | Soundless manual brakes |
4. Flat Panel Detector (FPD)
| Material | CSI |
| Scanning Area | 17 * 17 inch |
| A/D Conversion | 16 Bit |
| Total Pixel matrix | 3328(h) * 3328(v) (11 million pixels) |
| Pixel Size | 127μm |
| Image Preview Time | ≤ 2s |
5. Imaging Workstation
| CPU / Memory | ≥2.8GHz / 4GB |
| Disk Capacity | 500GB |
| Monitor | 19″ Medical LCD |
| Software Functions | Zoom, brightness/contrast adjustment, rotation, rollovers |
| Connectivity | 100M network, Dicom 3.0, Print/Query/Edit |
🛠️ Standard Configuration
- 320mA HF generator & Console
- Collimator
- X-ray tube
- Veterinary radiography table
- Grid (18"x18", 10:1 ratio)
- Flat panel detector (Wireless optional)
- Imaging workstation & LCD monitor
🖼️ Product Display
❓ Frequently Asked Questions
What is the maximum output power of the DR-320?
The DR-320 features a high-frequency inverter type generator with a maximum output power of 20kW.
What are the dimensions and load capacity of the radiography table?
The table measures 1400mm * 700mm * 850mm and can bear a maximum weight of 150kg, suitable for various animal sizes.
How fast can I see the X-ray images?
The flat panel detector provides an image preview time of no more than 2 seconds, ensuring a fast diagnostic workflow.
Does the system support digital image management?
Yes, the imaging workstation supports Dicom 3.0 for image transmission, query, editing, and printing, along with animal information management.
Is the flat panel detector wireless?
The standard configuration includes a high-quality CSI flat panel detector; however, a wireless FPD version is available as an optional upgrade.
What safety protections are built into the machine?
The system includes automatic fault diagnosis, capacity locking, and overload protection for kV, mA, time, and temperature to ensure safe operation.
