Product Description
Introduction

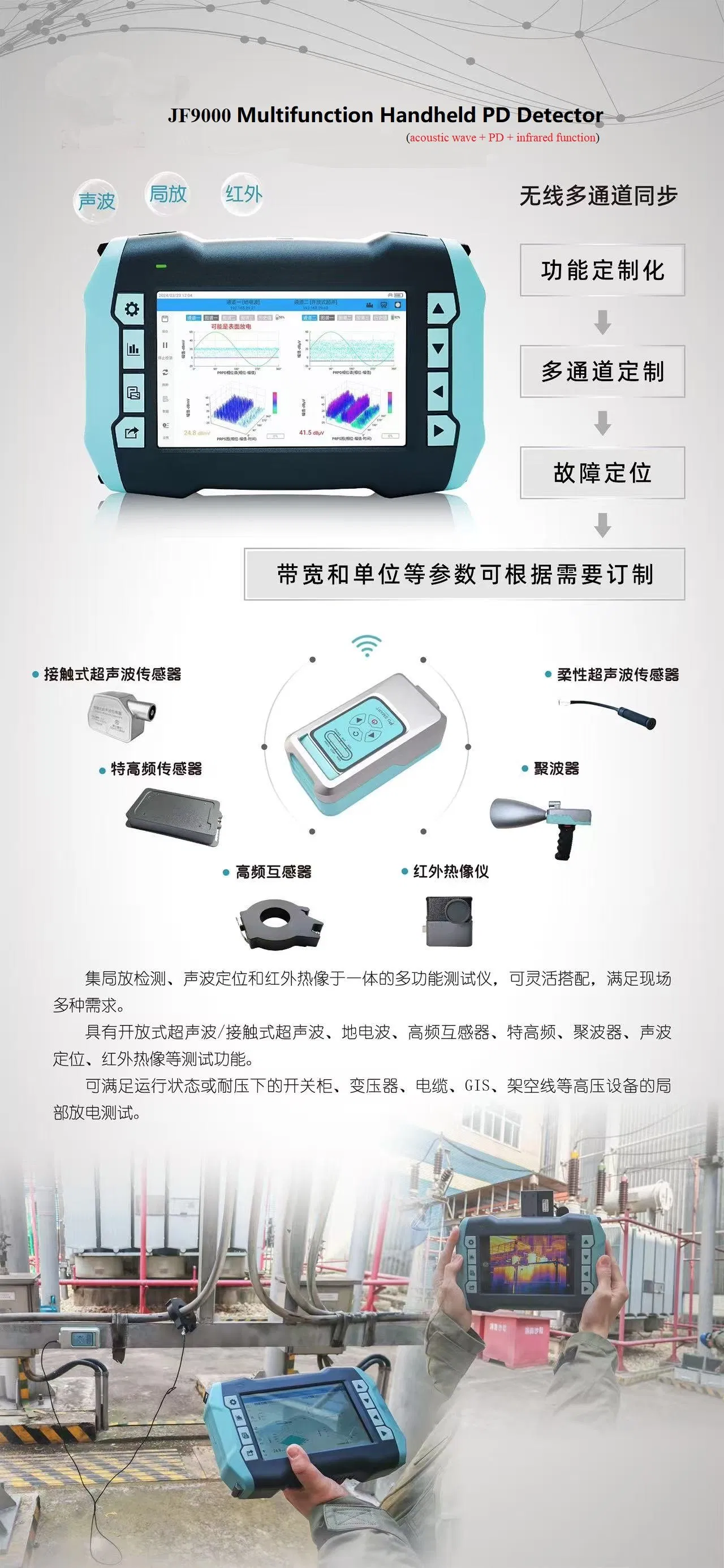

Ultrasonic PD Detector Wave Partial Discharge Test Kit

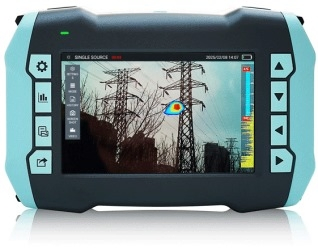

The Multi-Function Detector integrates acoustic wave, partial discharge, and infrared functions. Utilizing microphone array technology, it collects acoustic data combined with a high-definition camera to achieve precise acoustic wave positioning. Through beamforming technology, the device generates a sound-image cloud image, displayed dynamically on the screen for real-time fault analysis.
- Wireless multi-channel synchronization
- Advanced fault location technology
- Compatibility with diverse specialized sensors
- Independent data acquisition and diagnosis
Technical Features & Capabilities
This system is designed for high-efficiency detection of gas leaks and partial discharge in high-voltage electrical equipment. By scanning space sound waves and determining fault locations through phase differences, it creates an "acoustic image" for intuitive diagnostics.

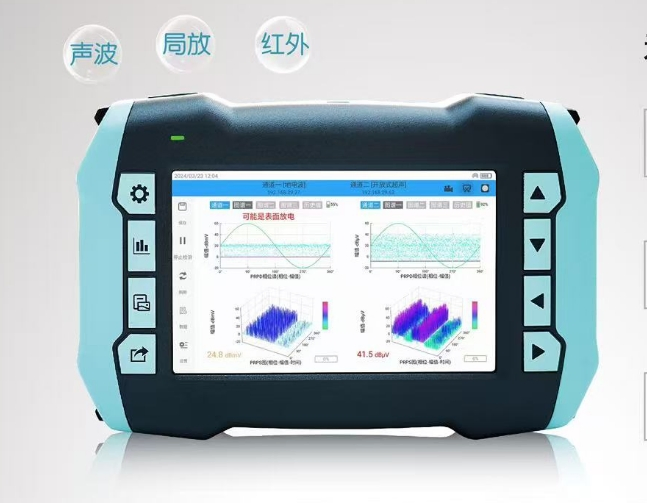

- Comprehensive Mapping: Provides time domain, PRPD, PRPS maps, histograms, and time-of-flight maps.
- Connectivity: Features Wireless WiFi and Bluetooth connection for exporting test reports and audio playback.
- Universal Application: Configurable for GIS, transformers, overhead lines, and cables.
- Non-Invasive Testing: No power failure required during the test process, eliminating the need for additional high-voltage sources.
- Wide Bandwidth: Operates within 30kHz to 3.0GHz, covering various frequency bands for versatile detection.
Standard Accessories
| Serial Number |
Name |
Quantity |
| 1 | Mainframe | One Unit |
| 2 | Specification Manual | One Copy |
| 3 | Inspection Report | One Copy |
| 4 | Certification | One Copy |

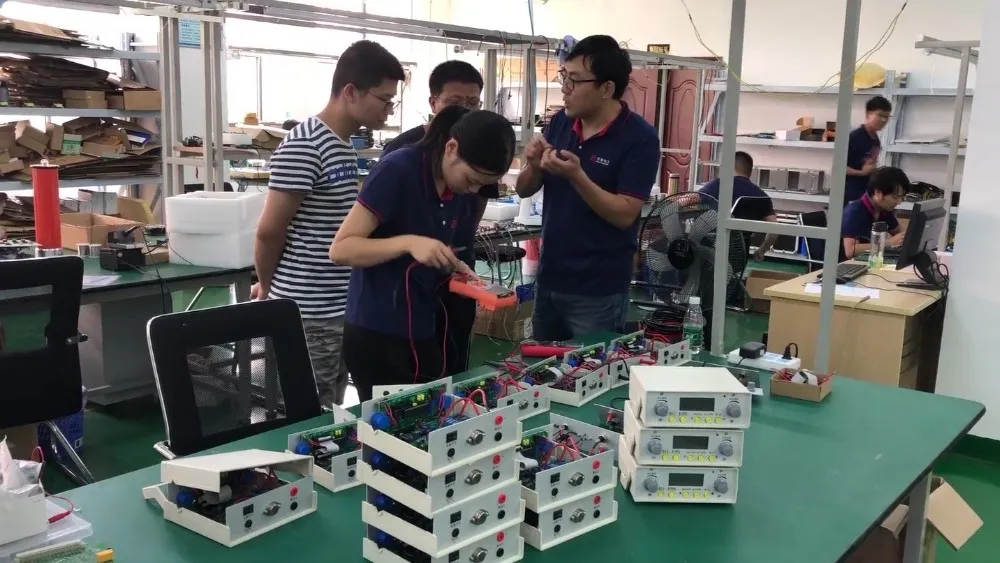

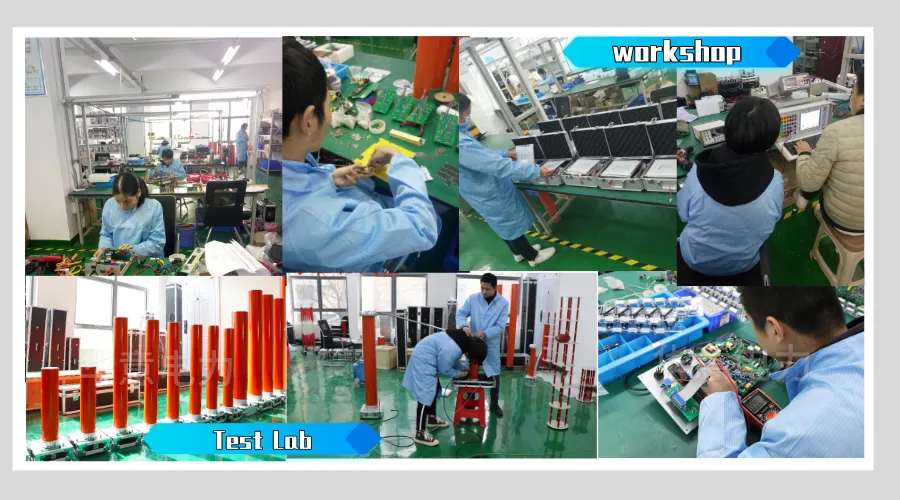

Production & Facilities
As a professional manufacturer with over 15 years of industry experience, we focus on high-performance high voltage testers. Our facility is ISO qualified, supported by a strong R&D team and dedicated after-sales engineers.
Frequently Asked Questions
How do I choose the most suitable model for my needs?
Please provide your detailed requirements regarding testing environment and equipment types. Our technical team will recommend the most appropriate configuration based on your specific application.
What is the Minimum Order Quantity (MOQ)?
Generally, our MOQ is 1 set. We support both single-unit orders for end-users and bulk orders for distributors.
What payment methods are accepted?
We accept various payment terms, including T/T (Telegraphic Transfer), Western Union, and other standard international payment methods.
How is the equipment protected during international transport?

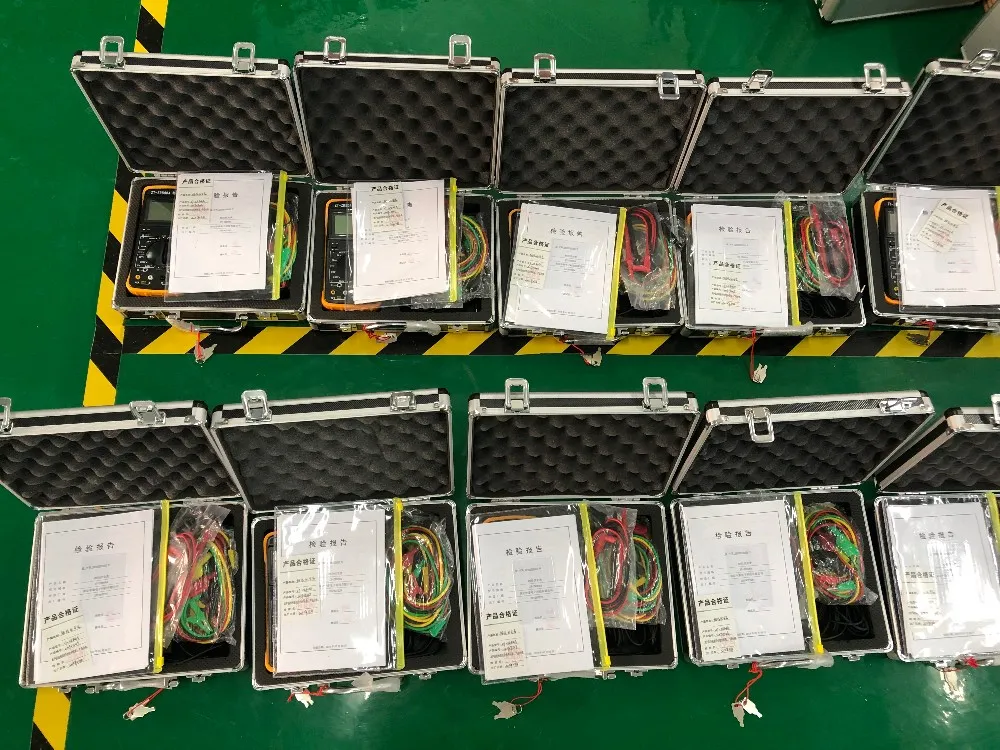

All equipment is packed using standard export-grade wooden cases or plywood crates to ensure maximum protection against impact and vibration during transit.
Is technical support available if I encounter operation issues?
Yes. Every unit comes with a comprehensive user manual. Additionally, our engineers provide remote technological support via video call or email to assist with setup and operation.
Does this device require a power shutdown for testing?
No, this is a non-invasive detection system. It allows for live testing of high-voltage equipment without any need for power interruptions.
