Ultra High-Speed Camera From China - 1490fps 1080P Video Capture

Customization:	Available
Warranty:	1 Year
Usage:	Teaching, Research

Send Inquiry

Product Description

📋 Basic Information

Model NO.

MSS-C-ITD3L

Transport Package

Carton

Specification

2KG

Trademark

MSS

Origin

China

HS Code

8525892900

Production Capacity

5000pieces/Year

📦 Packaging & Delivery

Package Size

40.00cm * 50.00cm * 60.00cm

Package Gross Weight

5.000kg

📷 Product Description

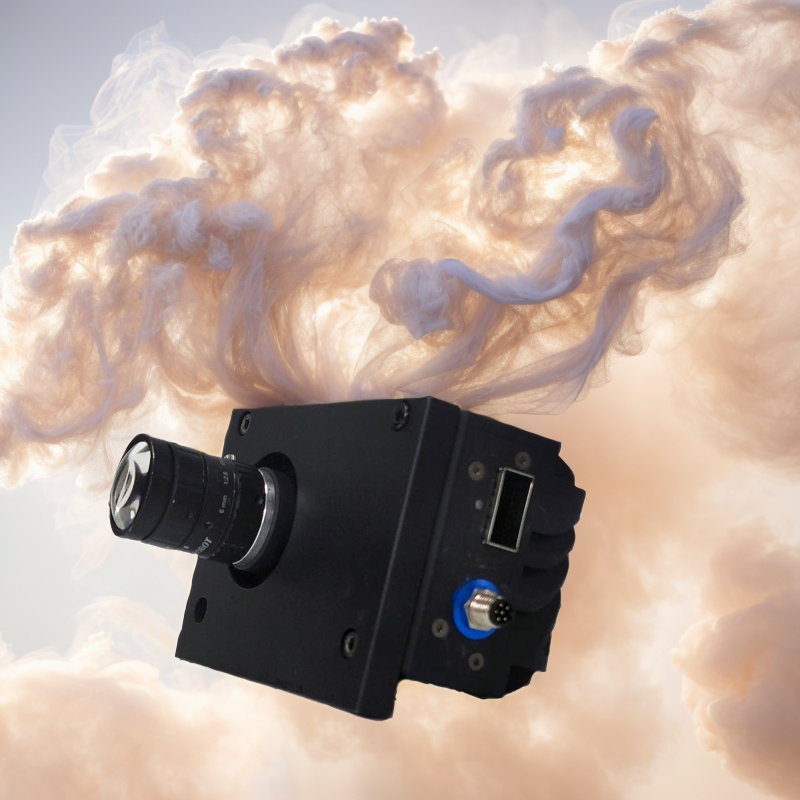

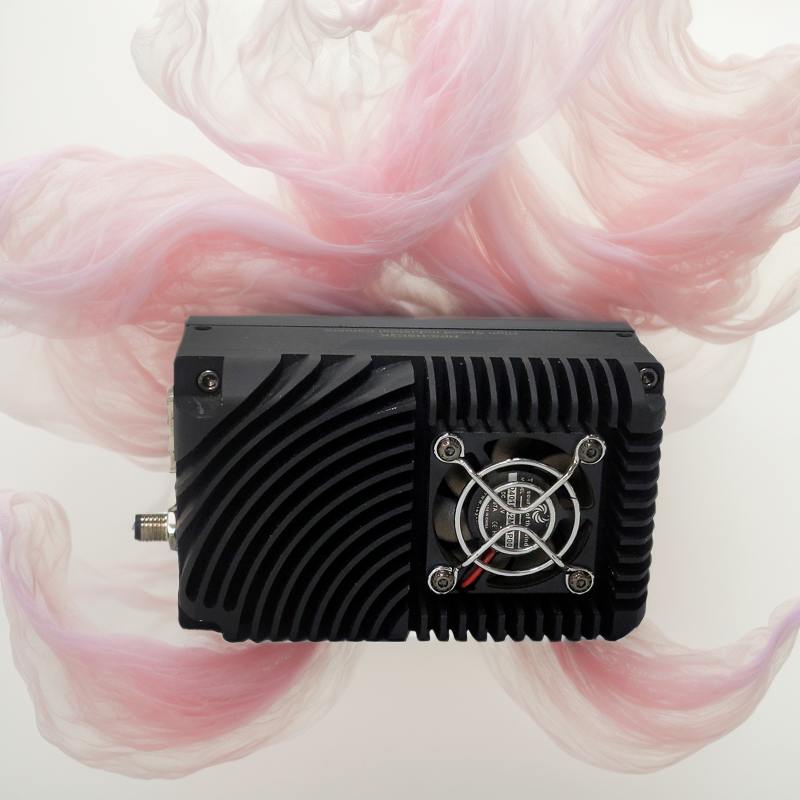

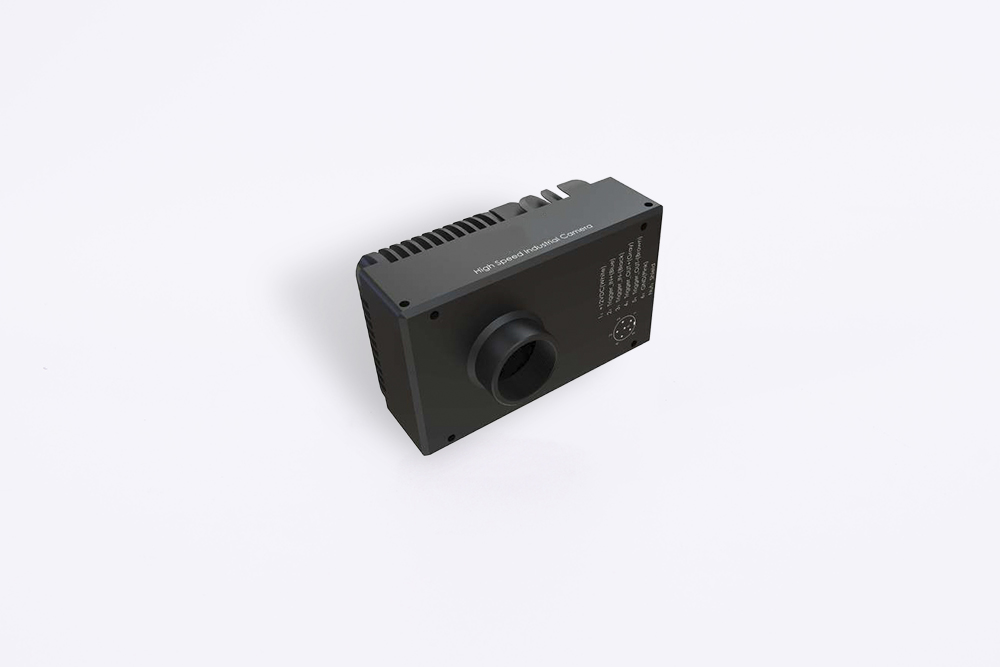

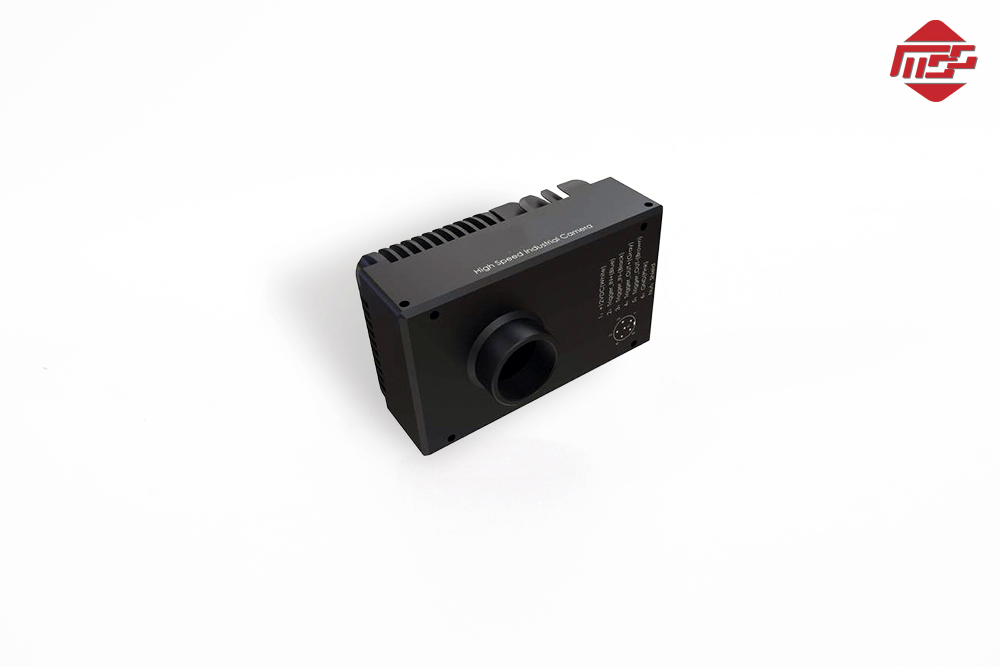

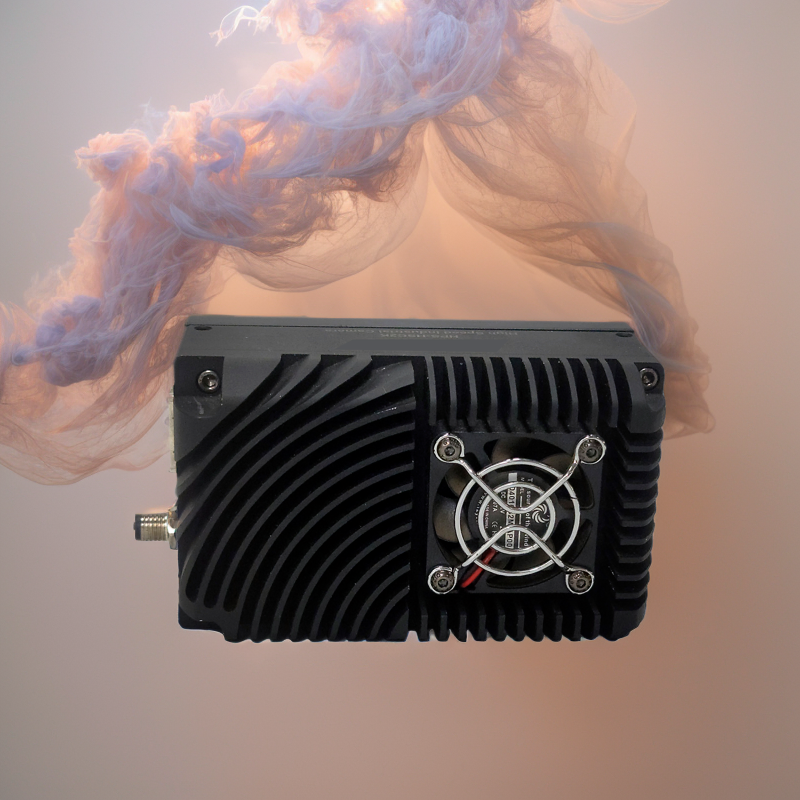

Model: MSS-C-ITD3L

Experience the ultimate in image acquisition with our ultra-high-speed Industrial Camera! With its cutting-edge features and top-of-the-line performance, this camera is a game-changer for professionals in various industries.

✔

Ultra-high-speed image acquisition system for superior performance.

✔

Stunning visuals with 1490fps @2048*1080 8 bit resolution.

✔

Incredible capture at 2971fps @1024*1024 8 bit resolution.

✔

Standard C-mount for easy compatibility with existing equipment.

✔

40G optical fiber ultra-high-speed data transmission.

✔

Comprehensive SDK and software support for seamless integration.

This industrial camera is the epitome of excellence in the industry. With its China origin and impressive specifications, it is a must-have for professionals seeking ultra-high picture quality and definition.

Whether you're in the industrial sector, working with microscopes, or need a versatile camera system, this camera has got you covered. Its stable focus, high pixel count, and autofocus capabilities ensure that you capture every detail with precision.

🛠 Technical Parameters

Model	HPS-HSC2K	Resolution	2048x1080 (Pixel: 6μmx6μm)
Sensor format	1" (12.3mm x 6.5mm)	Continuous data transfer rate	1490 fps @2.2 megapixel, 8 bit; 2971 fps @1 megapixel, 8 bit
Dynamic range	53dB@Linear mode, ≥90dB@HDR mode	Shutter mode	Global shutter, support automatic/external/software trigger exposure
Image processing	FPN denoising, PRNU/Gamma/Lens correction, ROI, Gain adjustment, H/V Binning	Data interface	40G Ethernet fiber interface
Digital I/O	1 isolated trigger in/out, 8-PIN expansion (GPI, GPO, SPI Master)	Data Format	Mono 8 bit
Power Supply	12VDC, Typical 17W	Temperature	Operating: 0~45ºC, Storage: -20~60ºC
Humidity	10 to 80% (non-condensing)	Weight	440g

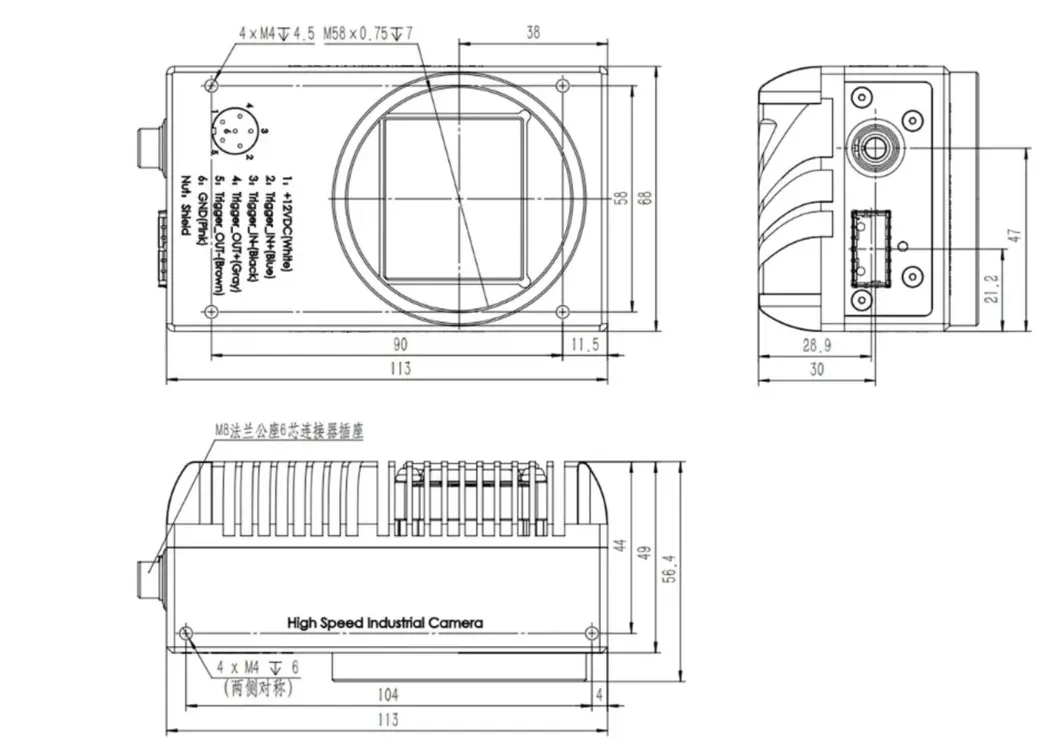

🖼 Product Showcase

Frequently Asked Questions

What is the maximum frame rate of the MSS-C-ITD3L camera?

The camera supports ultra-high speeds of up to 1490fps at 2.2 megapixel (2048x1080) resolution and up to 2971fps at 1 megapixel (1024x1024) resolution.

What type of data interface does this camera use?

It utilizes a 40G Ethernet fiber interface to ensure stable and ultra-high-speed data transmission for large-scale image acquisition.

Does the camera support different lens mounts?

Yes, the camera comes with a standard C-mount, making it easily compatible with a wide range of industrial and microscopy lenses.

What image processing features are integrated?

The camera includes built-in modules for FPN denoising, PRNU correction, gamma correction, lens correction, ROI (Region of Interest), and gain adjustment.

Is it suitable for high-dynamic-range (HDR) applications?

Absolutely. While the linear mode offers 53dB, the HDR mode extends the dynamic range to ≥90dB, capturing details in both highlights and shadows.

What are the power and environmental requirements?

The camera operates on a 12VDC power supply with a typical consumption of 17W. It is designed to function in temperatures ranging from 0 to 45ºC.
