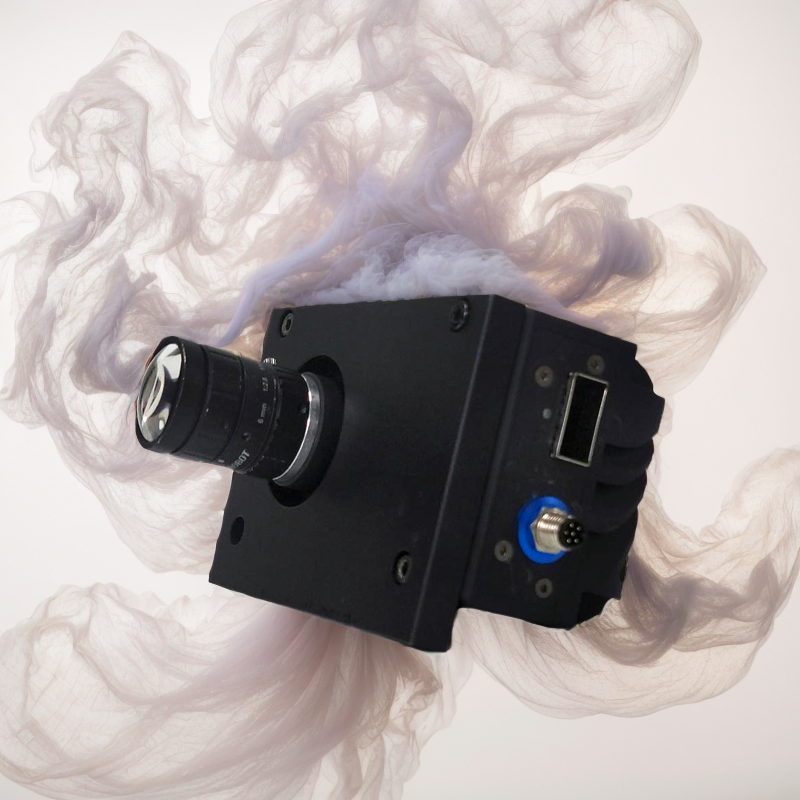

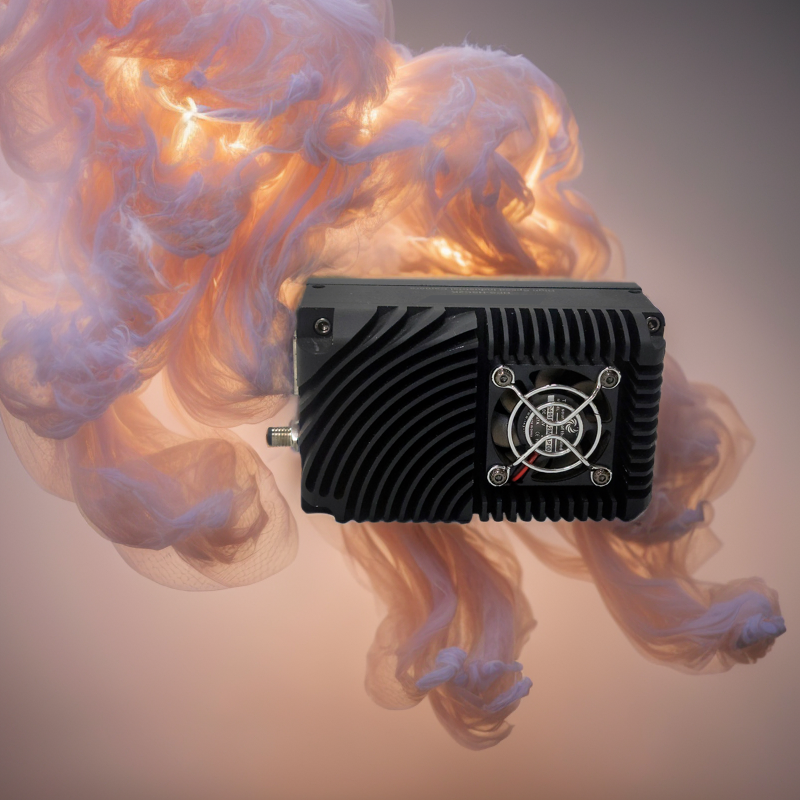

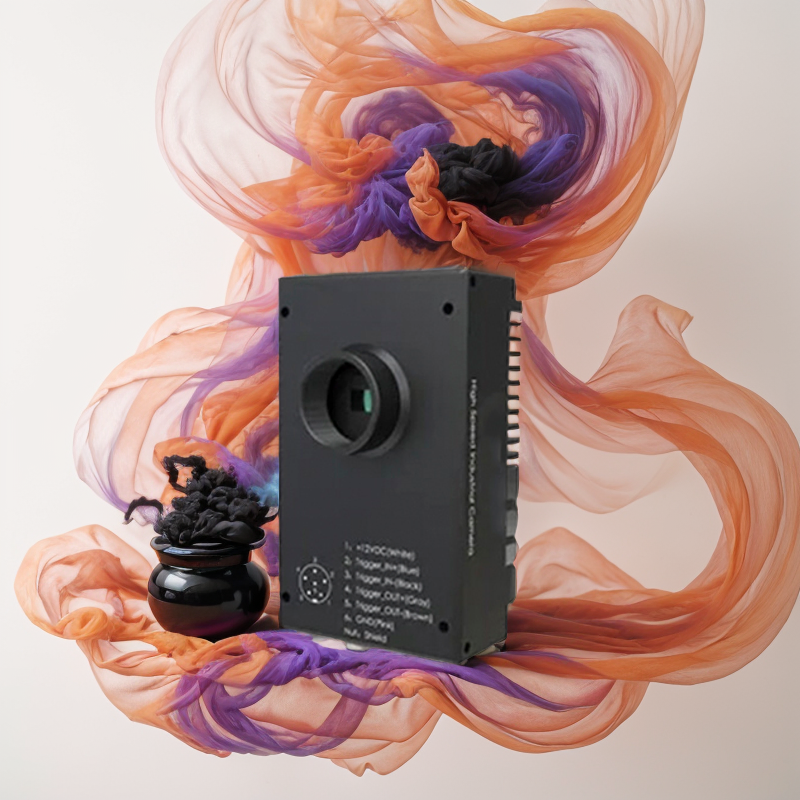

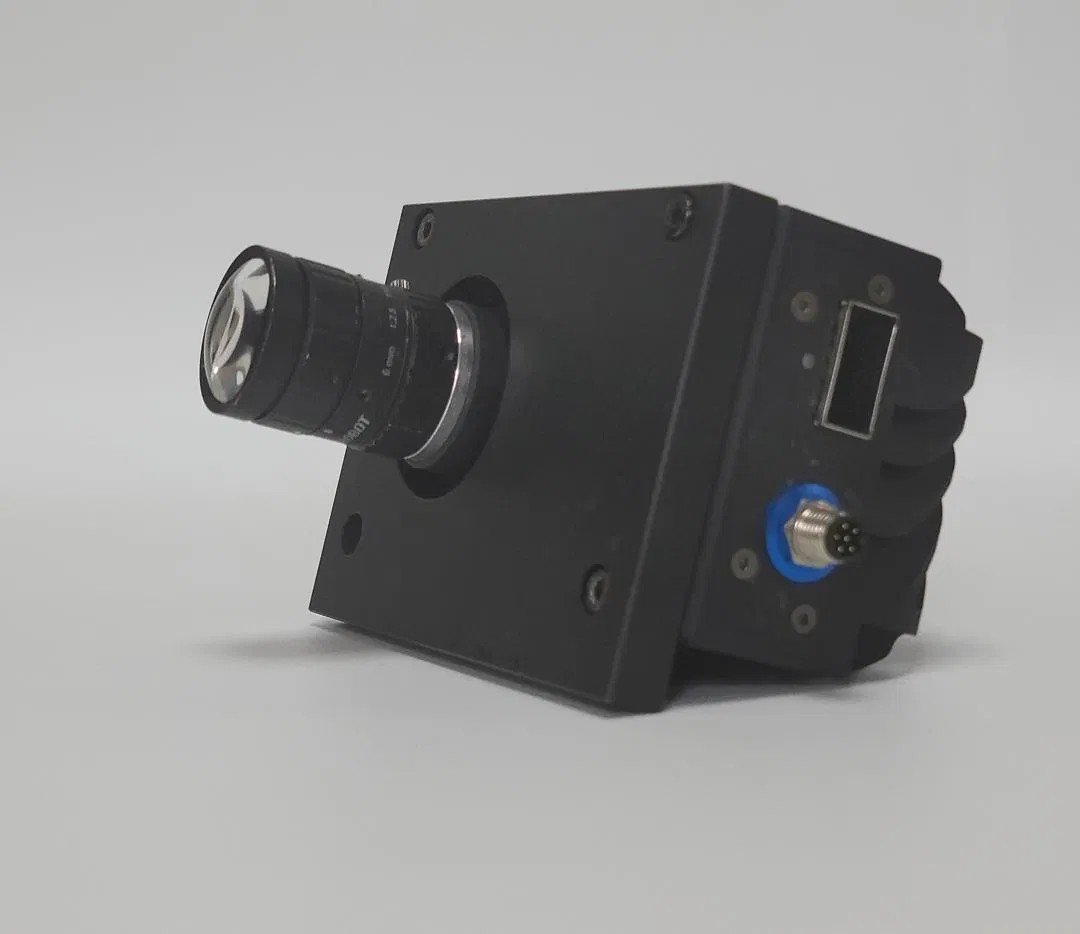

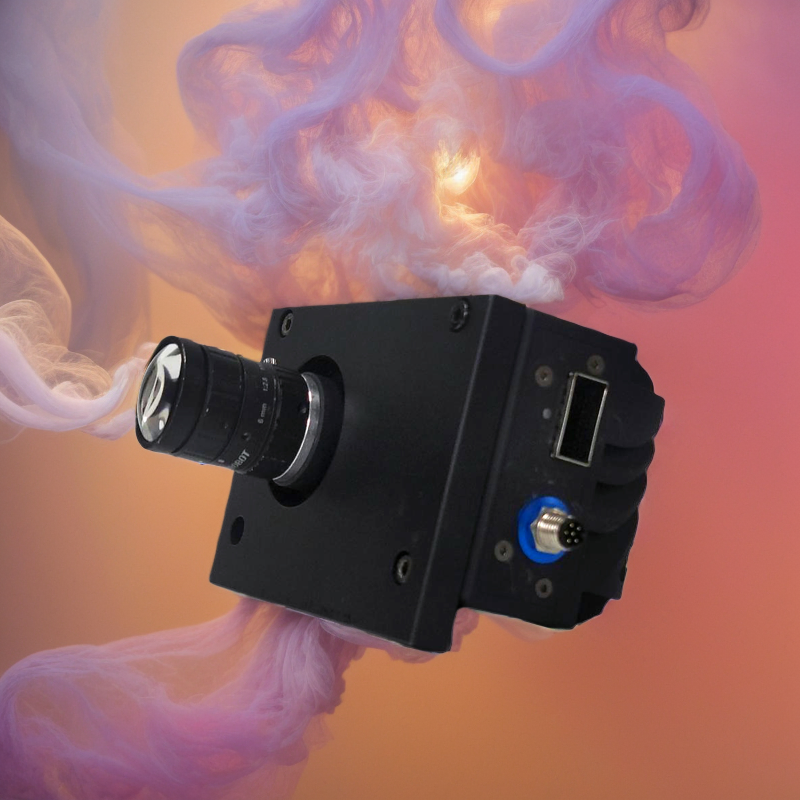

Introducing the High Speed Industrial Camera! Designed to meet the demands of ultra-high-definition imaging, this camera is perfect for industrial applications and microscope imaging solutions.
Equipped with a standard C-mount, our camera offers easy compatibility with various lenses, providing you with flexibility in your imaging setup. Plus, with its 40G optical fiber ultra-high-speed transmission, you can transfer data quickly and efficiently.
Our High Speed Industrial Camera comes complete with a software development kit (SDK) and software support, making it a breeze to integrate into your existing systems. You'll have all the tools you need to optimize your imaging experience.
Experience stable focus and high pixel autofocus with our camera's advanced features. It's a high-resolution imaging device that delivers ultra-clear and high-definition images, ensuring you never miss a detail.

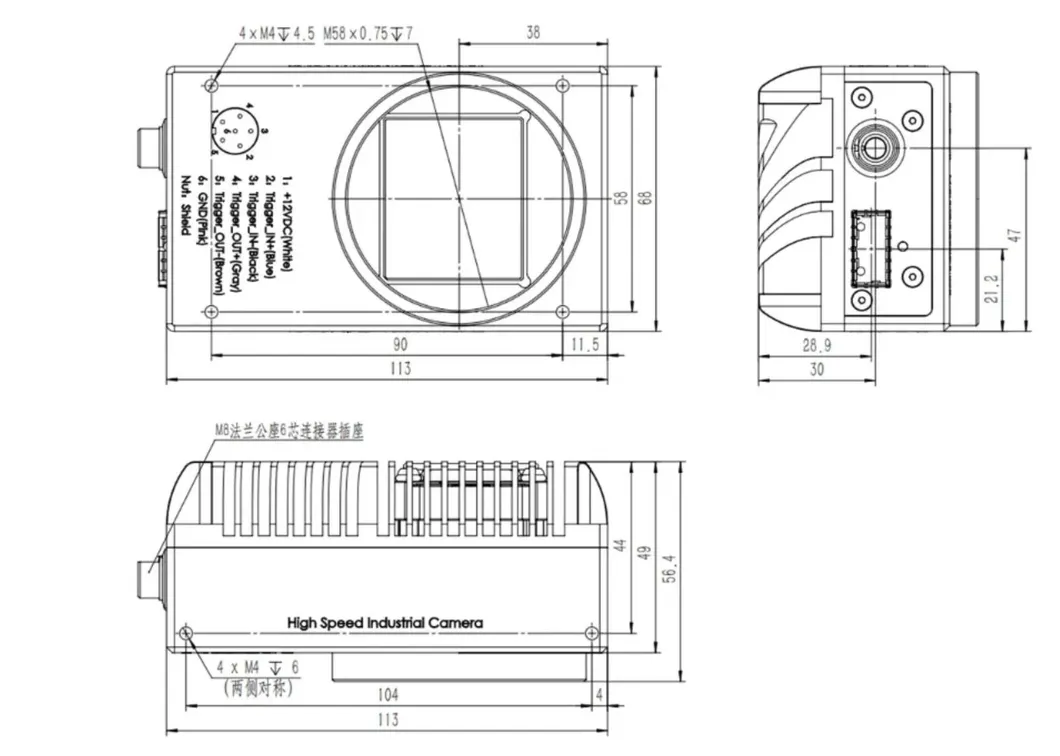

| Model | HPS-HSC2K | Resolution | 2048x1080 (Pixel: 6μmx6μm) |
| Sensor format | 1 " (12.3mm x 6.5mm) | Data transfer rate | 1490 fps @2.2MP; 2971 fps @1MP |
| Dynamic range | 53dB (Linear) / ≥90dB (HDR) | Shutter mode | Global shutter, Auto/External/Software trigger |
| Image Processing | FPN denoising, Gamma, ROI, Gain, Binning | Data interface | 40G Ethernet fiber interface |
| Digital I/O | 1 Trigger In/Out, 8-PIN expansion (SPI/GPI/GPO) | Data Format | Mono 8 bit |
| Power | 12VDC, Typical 17W | Temperature | Operating: 0~45ºC; Storage: -20~60ºC |
| Humidity | 10 to 80% (non-condensing) | Weight | 440g |
