Ultra HD Industrial Camera for Accurate Imaging Solutions

1 / 5

Ultra HD Industrial Camera for Accurate Imaging Solutions

Customization:	Available
Warranty:	1 Year
Usage:	Teaching, Research

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

MSS-C-ITD3L

Trademark

MSS

Specification

2KG

Origin

China

HS Code

8525892900

Production Capacity

5000pieces/Year

Transport Package

Carton

Package Size

40.00cm * 50.00cm * 60.00cm

Gross Weight

5.000kg

🔍 Product Overview

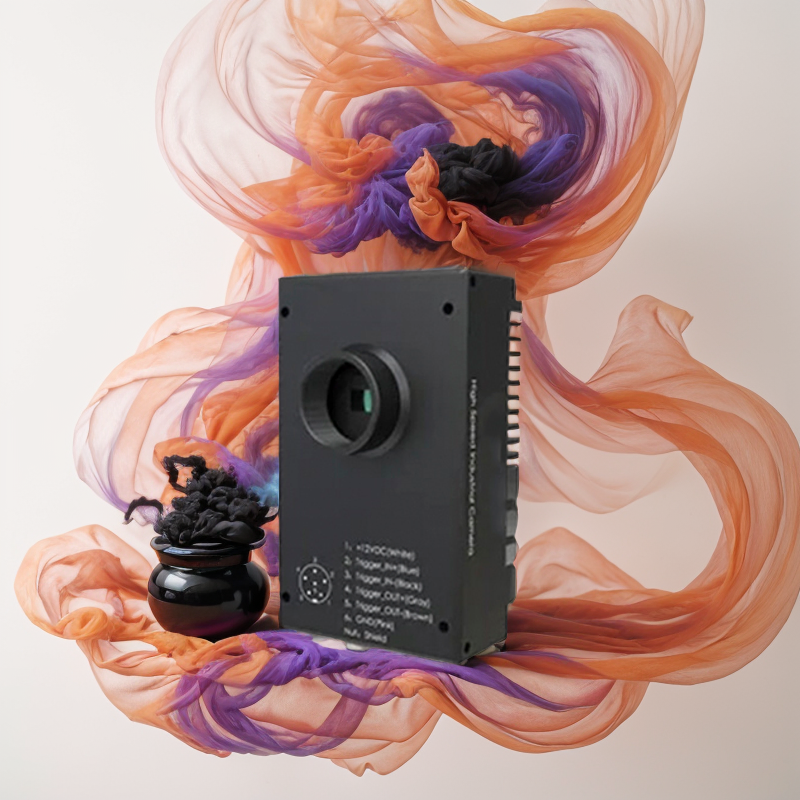

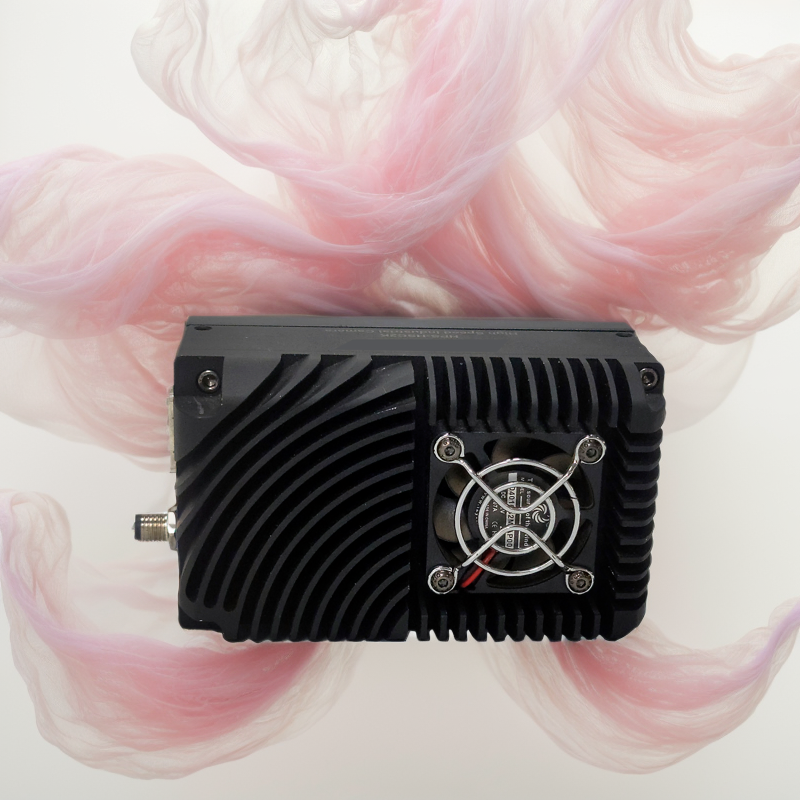

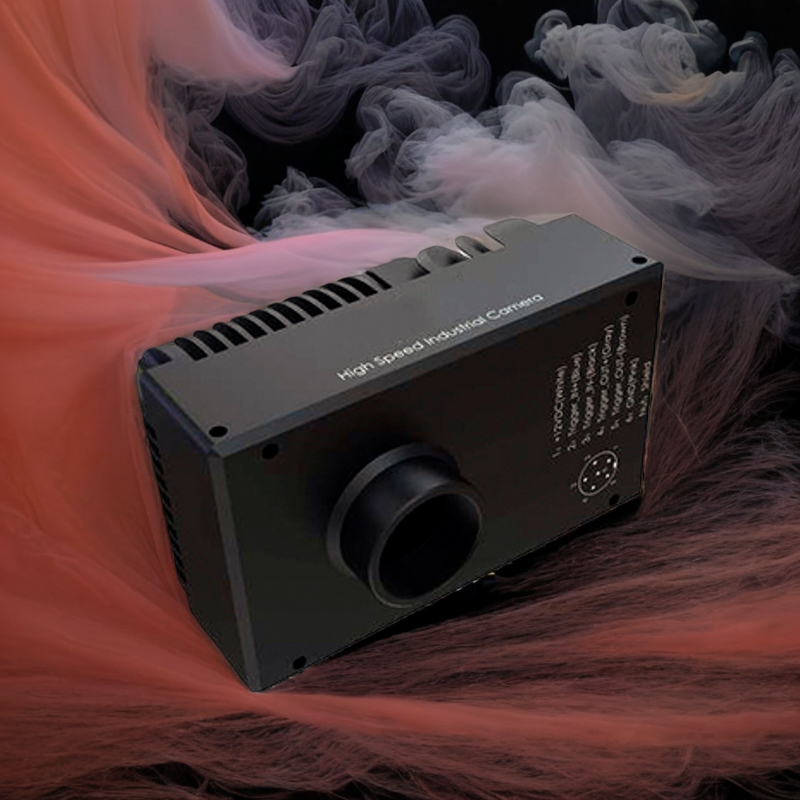

Ultra High Picture Quality Industrial Camera

Model: MSS-C-ITD3L

✔Ultra-high-resolution image acquisition system

✔Stunning quality: 1490fps @2048*1080 8 bit

✔Smooth footage: 2971fps @1024*1024 8 bit

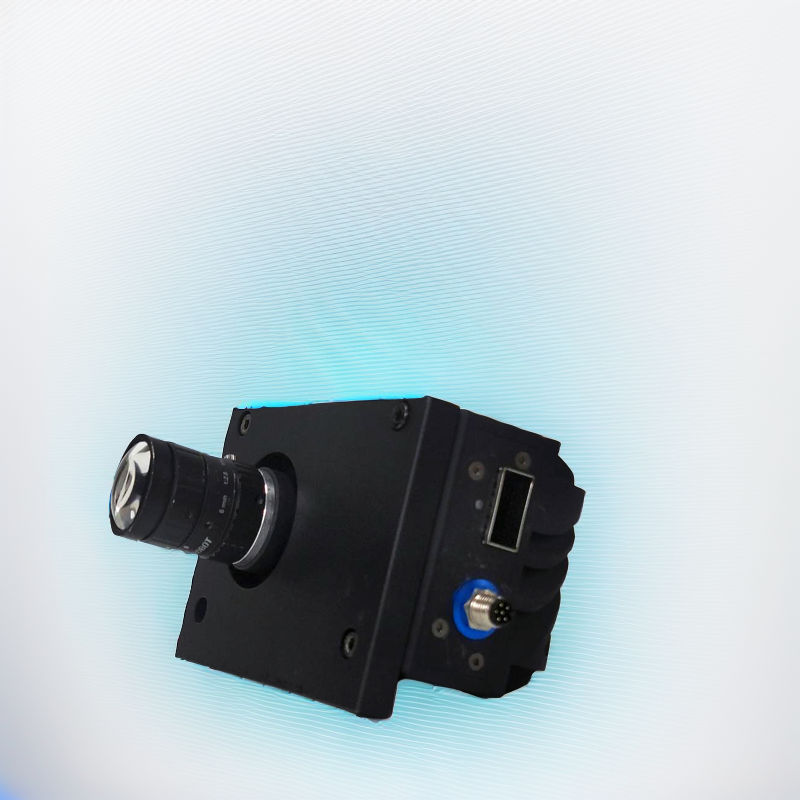

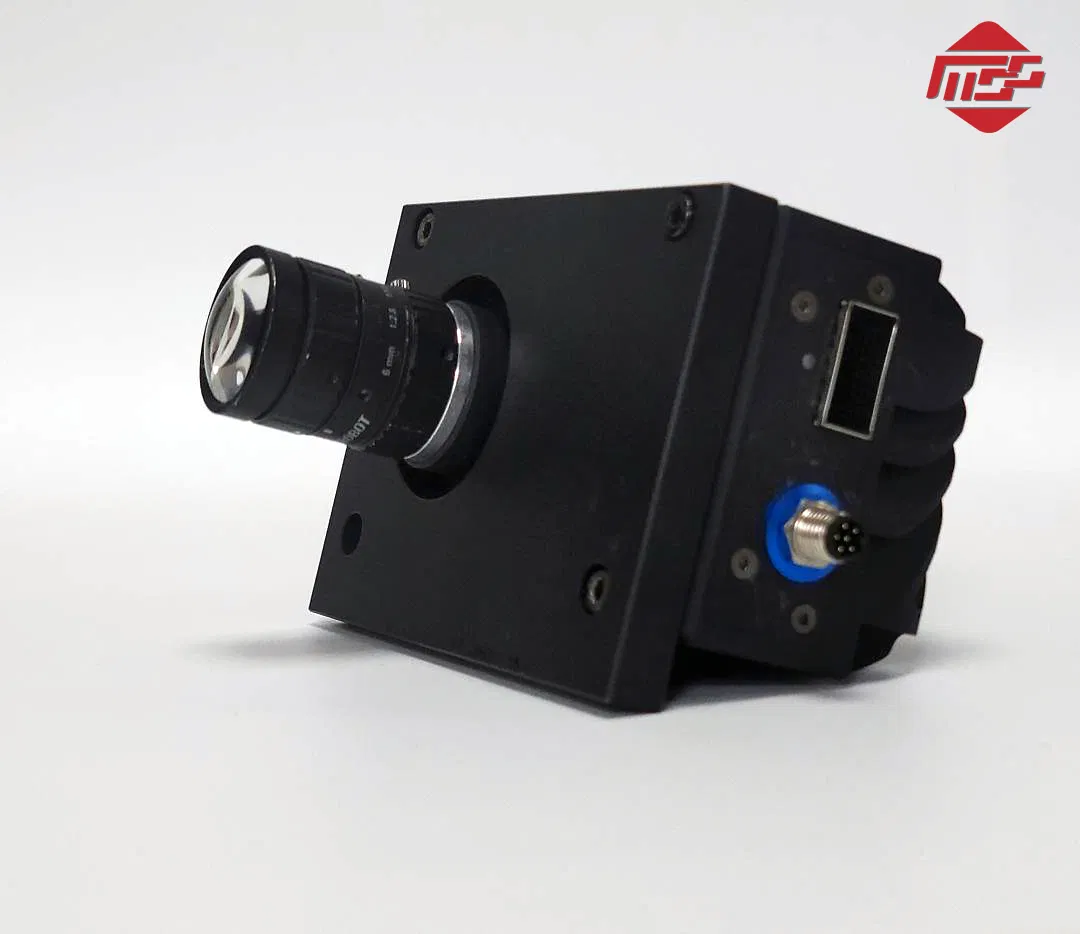

✔Standard C-mount for easy compatibility

✔40G optical fiber for ultra-high-speed transmission

✔Complete SDK and software support included

⚙️ Technical Parameters

Model	HPS-HSC2K	Resolution	2048x1080 (Pixel: 6μmx6μm)
Sensor Format	1 " (12.3mm x 6.5mm)	Transfer Rate	1490 fps @2.2MP; 2971 fps @1MP (8 bit)
Dynamic Range	53dB (Linear) / ≥90dB (HDR)	Shutter Mode	Global shutter; Auto/External/Software trigger
Image Processing	FPN denoising, PRNU/Gamma/Lens correction, ROI, Gain, Binning	Data Interface	40G Ethernet fiber interface
Digital I/O	1 isolated input/output; 8-PIN expansion (GPI, GPO, SPI)	Data Format	Mono 8 bit
Power	12VDC, Typical 17W	Temperature	Op: 0~45ºC; Storage: -20~60ºC
Humidity	10 to 80% (non-condensing)	Weight	440g

🖼️ Product Gallery

❓ Frequently Asked Questions

Q1: What is the maximum frame rate of the MSS-C-ITD3L? A: The camera supports up to 1490 fps at 2048x1080 resolution and up to 2971 fps at 1024x1024 resolution (8 bit).

Q2: What type of data interface does this camera use for high-speed transmission? A: It utilizes a 40G Ethernet fiber interface to ensure effortless and stable ultra-high-speed data transmission.

Q3: Does the camera support High Dynamic Range (HDR) imaging? A: Yes, it features an HDR mode with a dynamic range of ≥90dB, in addition to a 53dB linear mode.

Q4: What lens mount is compatible with this industrial camera? A: The camera is designed with a standard C-mount, making it easily compatible with a wide range of industrial lenses.

Q5: What image processing features are integrated into the module? A: It includes FPN denoising, PRNU correction, gamma and lens correction, ROI, gain adjustment, and horizontal/vertical inverted readout.

Q6: Is software support provided for system integration? A: Yes, the camera comes with a complete SDK and software support to ensure seamless integration into your existing systems.
