Ultra HD Precision Camera for Stunning Photography Results

Customization:	Available
Warranty:	1 Year
Usage:	Teaching, Research

Send Inquiry

Product Description

Basic Information

Model NO.

MSS-C-ITD3L

Trademark

MSS

Origin

China

HS Code

8525892900

Specification

2KG

Production Capacity

5000 pieces/Year

Packaging & Delivery

Transport Package

Carton

Package Size

40.00cm * 50.00cm * 60.00cm

Package Gross Weight

5.000kg

Product Description

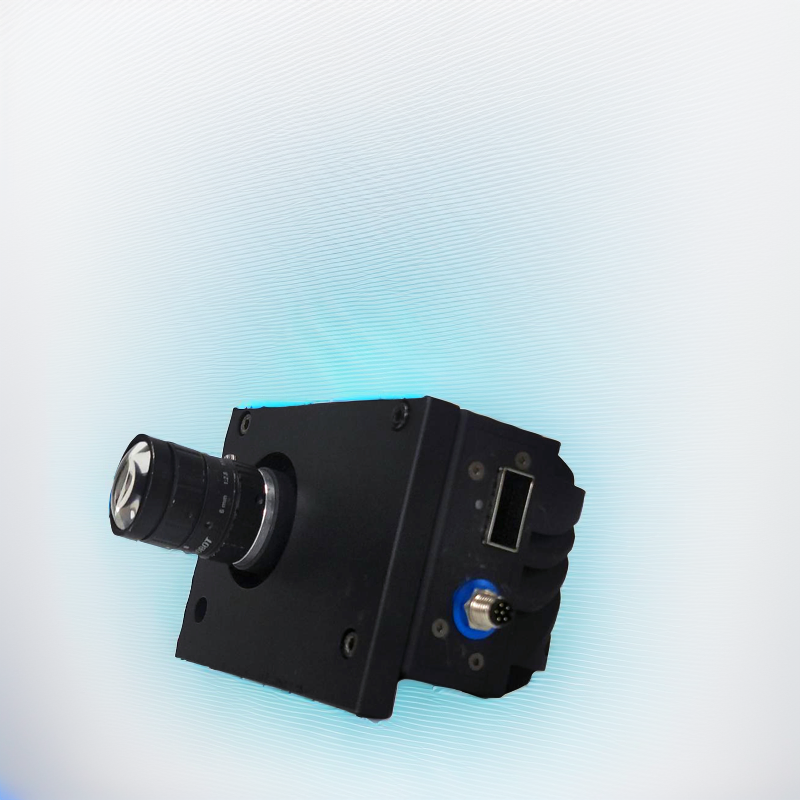

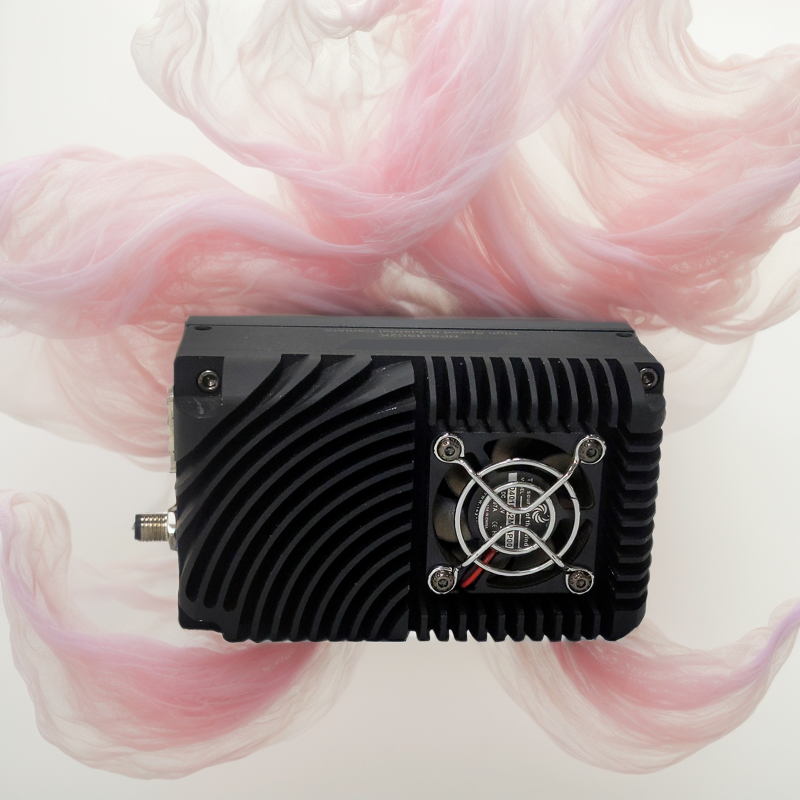

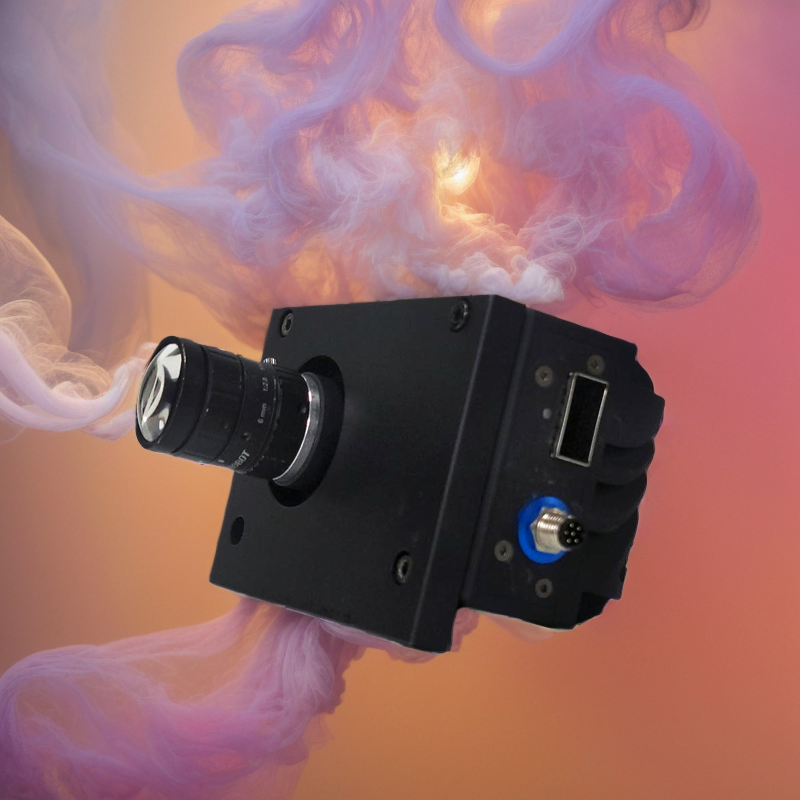

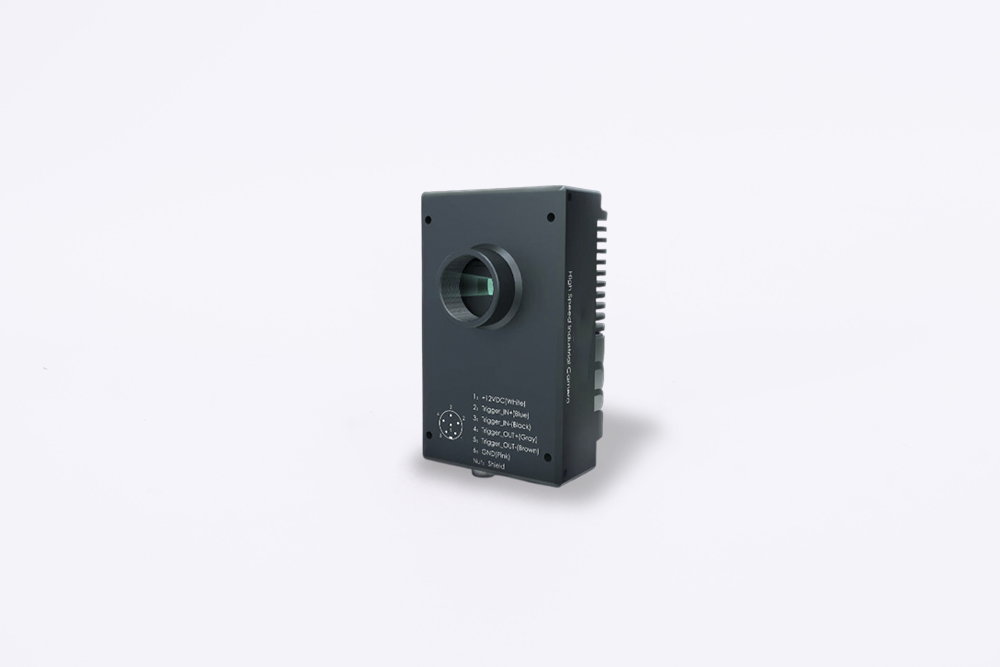

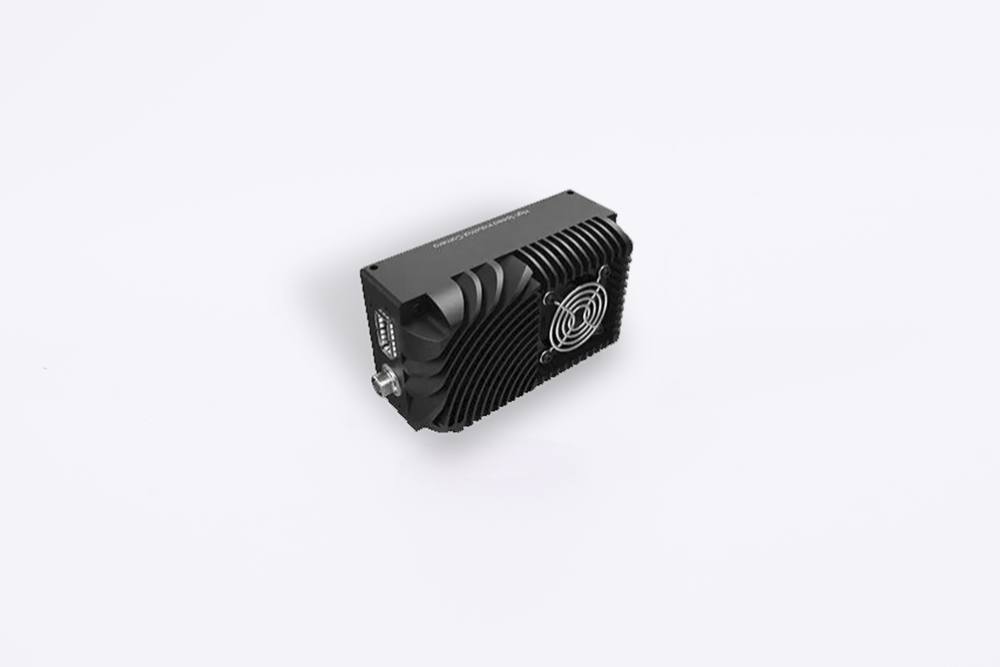

The MSS-C-ITD3L High Precision Industrial Camera is an ultra-high-speed image acquisition system designed for demanding industrial imaging needs. With cutting-edge technology and impressive features, this system ensures stable focus and ultra-high picture quality.

Key Features:

Ultra-high-precision image acquisition
Stable Focus High Pixel Technology
Microscope Compatibility
40G Optical fiber transmission
Ultra High Definition Resolution
Autofocus Capabilities
Standard C-Mount Interface
Complete SDK and Software Support

The MSS-C-ITD3L captures high-quality images at incredible speeds, offering 1490fps at 2048*1080 (8 bit) and up to 2971fps at 1024*1024 (8 bit). Its 40G optical fiber transmission ensures fast and reliable data transfer for real-time analysis.

Technical Parameters

Model	HPS-HSC2K	Resolution	2048x1080 (Pixel: 6μmx6μm)
Sensor format	1 " (12.3mm x 6.5mm)	Data transfer rate	1490 fps @2.2MP; 2971 fps @1MP
Dynamic range	53dB (Linear) / ≥90dB (HDR)	Shutter mode	Global shutter, Auto/Ext/Soft Trigger
Image Processing	FPN denoising, Gamma, ROI, Gain, Binning	Data interface	40G Ethernet fiber interface
Digital I/O	Isolated Input/Output, 8-PIN expansion	Data Format	Mono 8 bit
Power Supply	12VDC, Typical 17W	Temperature	Operating: 0~45ºC; Storage: -20~60ºC
Humidity	10 to 80% (non-condensing)	Weight	440g
