Ultra HD Autofocus Camera for Exceptional Image Clarity

Customization:	Available
Warranty:	1 Year
Usage:	Teaching, Research

Send Inquiry

Product Description

Basic Information

Model NO.

MSS-C-ITD3L

Trademark

MSS

Specification

2KG

Origin

China

HS Code

8525892900

Production Capacity

5000pieces/Year

Transport Package

Carton

Packaging & Delivery

Package Size

40.00cm * 50.00cm * 60.00cm

Package Gross Weight

5.000kg

Product Description

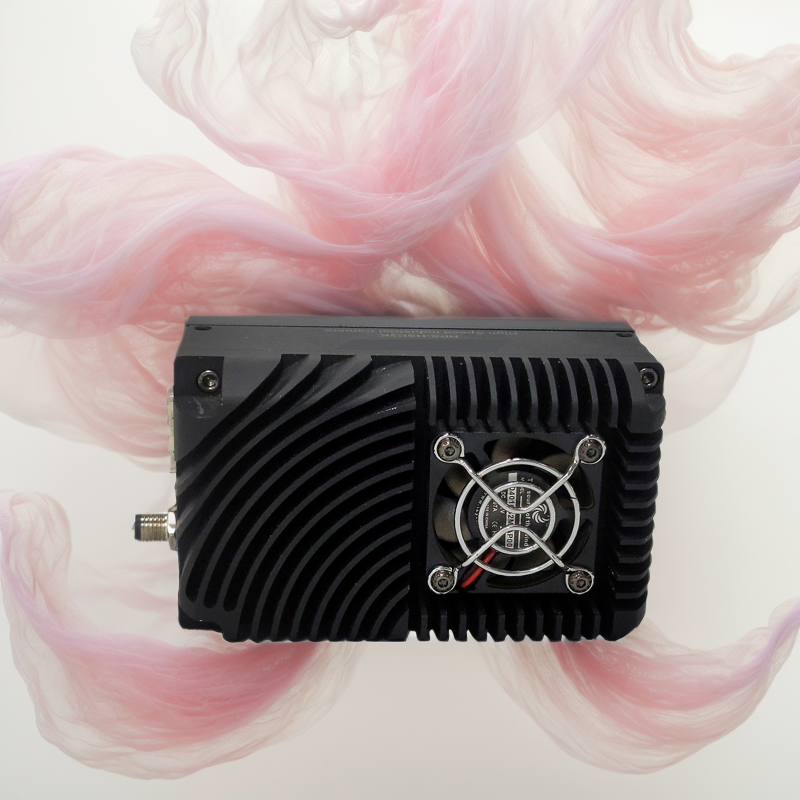

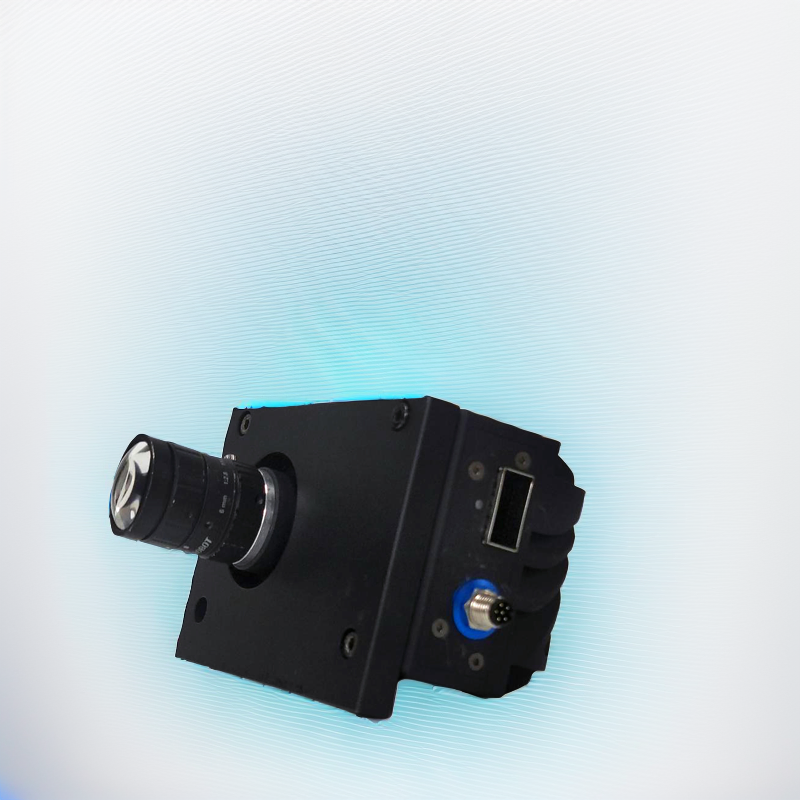

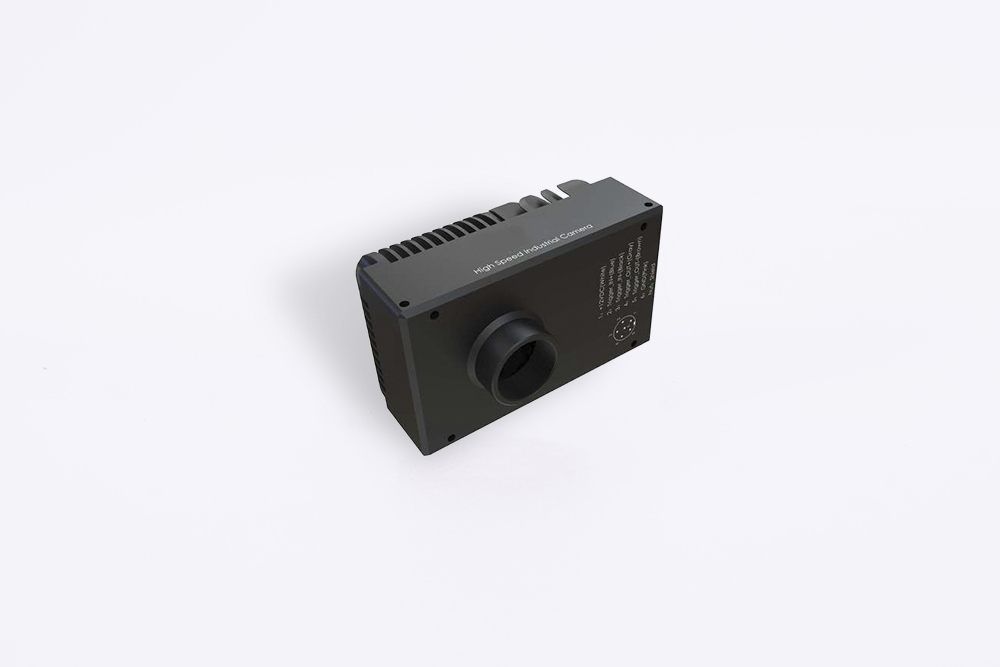

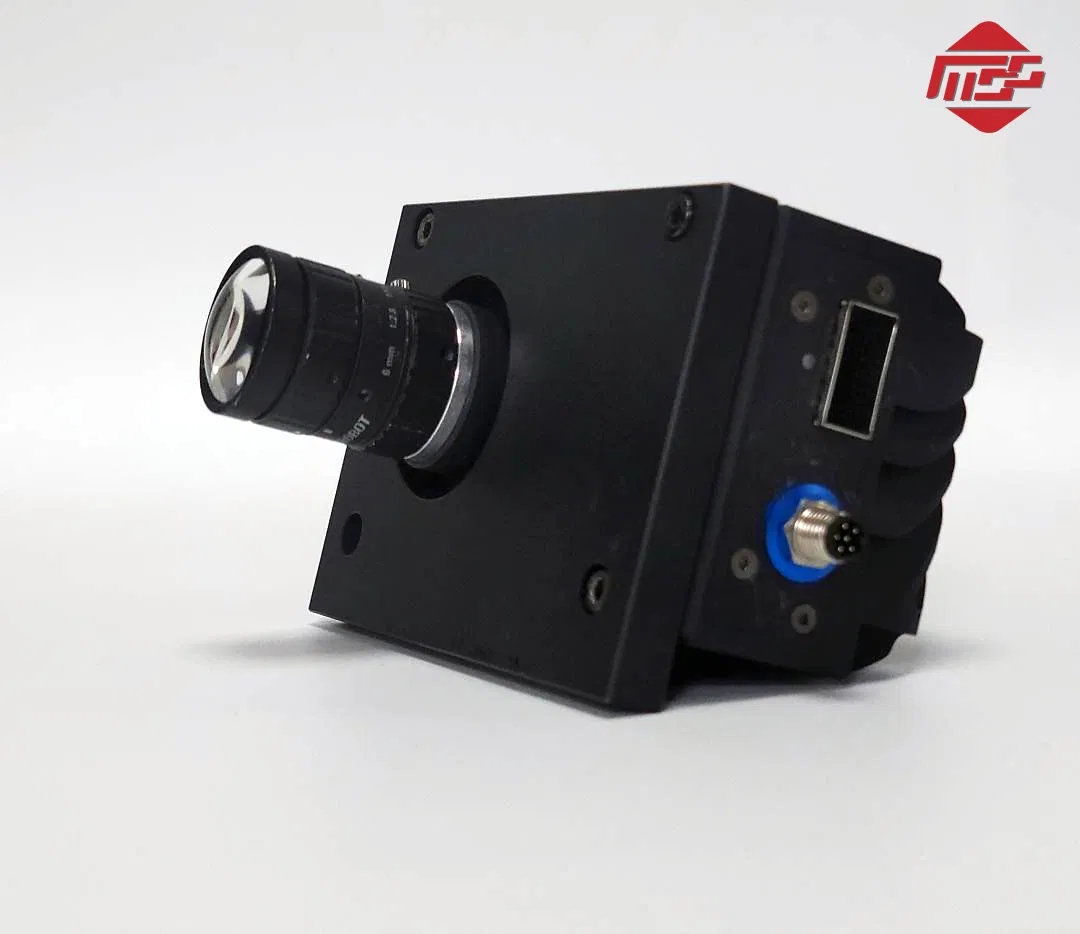

High Industrial Camera

Model: MSS-C-ITD3L

Key Features

Ultra-high image acquisition system
1490fps @2048*1080 8 bit
2971fps @1024*1024 8 bit
Standard C-mount
40G Optical fiber ultra-high transmission
Complete SDK and software support

Technical Parameters

Model	HPS-HSC2K	Resolution	2048x1080 (Pixel: 6μmx6μm)
Sensor format	1 " (12.3mm x 6.5mm)	Data transfer rate	1490 fps @2.2MP; 2971 fps @1MP (8 bit)
Dynamic range	53dB (Linear) / ≥90dB (HDR)	Shutter mode	Global shutter; Auto/External/Software trigger
Image Processing	FPN denoising, PRNU, Gamma, Lens correction, ROI, Gain, Binning	Data interface	40G Ethernet fiber interface
Digital I/O	1x Trigger In, 1x Trigger Out, 8-PIN expansion (GPI/GPO/SPI)	Data Format	Mono 8 bit
Power Supply	12VDC, Typical 17W	Temperature	Op: 0~45ºC, Storage: -20~60ºC
Humidity	10 to 80% (non-condensing)	Weight	440g

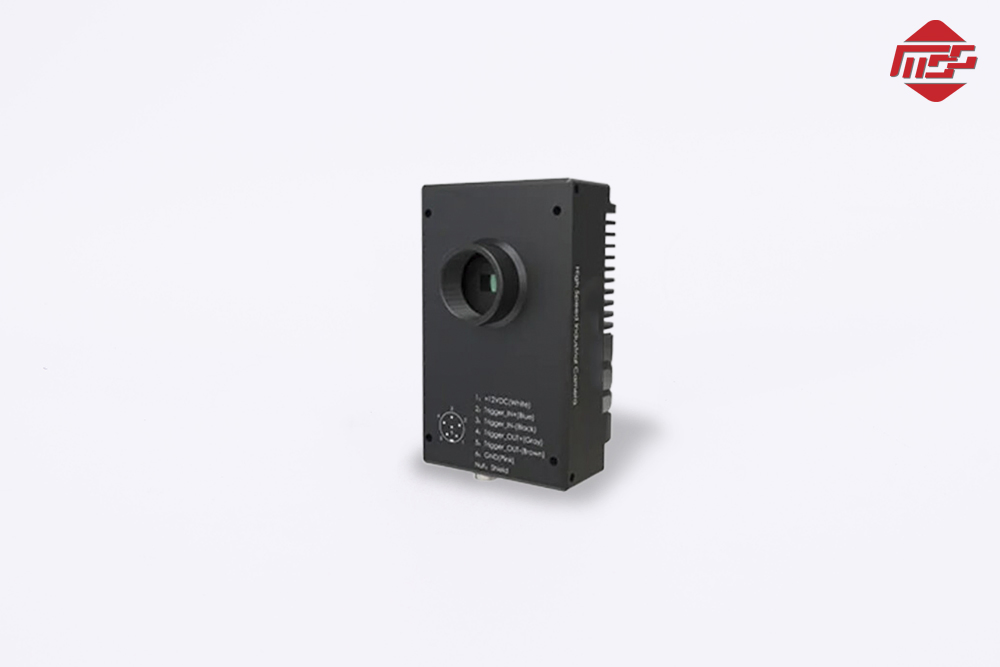

Product Gallery

Frequently Asked Questions

What is the maximum frame rate of the MSS-C-ITD3L camera?

The camera supports ultra-high-speed acquisition, reaching up to 1490fps at 2048x1080 resolution and up to 2971fps at 1024x1024 resolution (8-bit).

What type of data interface does this camera use?

It utilizes a 40G Ethernet fiber interface to ensure stable and high-speed data transmission for large-scale image processing.

Does the camera support high dynamic range (HDR) imaging?

Yes, the camera features a dynamic range of 53dB in linear mode and ≥90dB in HDR mode, making it suitable for challenging lighting conditions.

What lens mount is compatible with this model?

The MSS-C-ITD3L is equipped with a standard C-mount, allowing for a wide range of industrial lens compatibility.

What image processing features are integrated into the module?

The integrated module supports FPN denoising, PRNU correction, gamma correction, lens correction, ROI (Region of Interest), gain adjustment, and H/V Binning.

Is there software support available for developers?

Yes, we provide a complete SDK and comprehensive software support to facilitate easy integration into various industrial systems.
