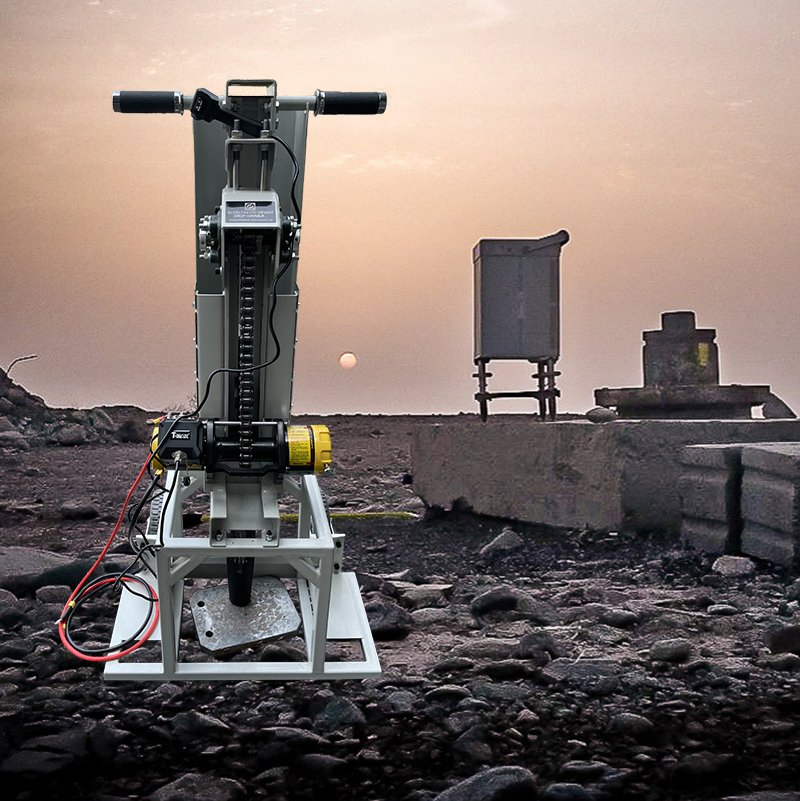

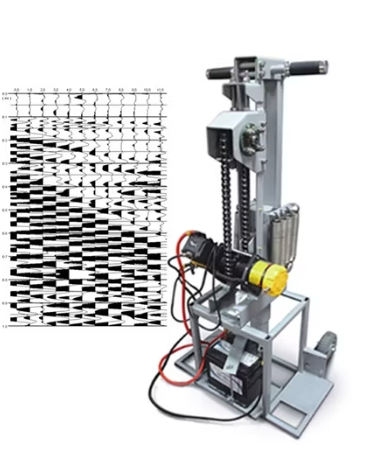

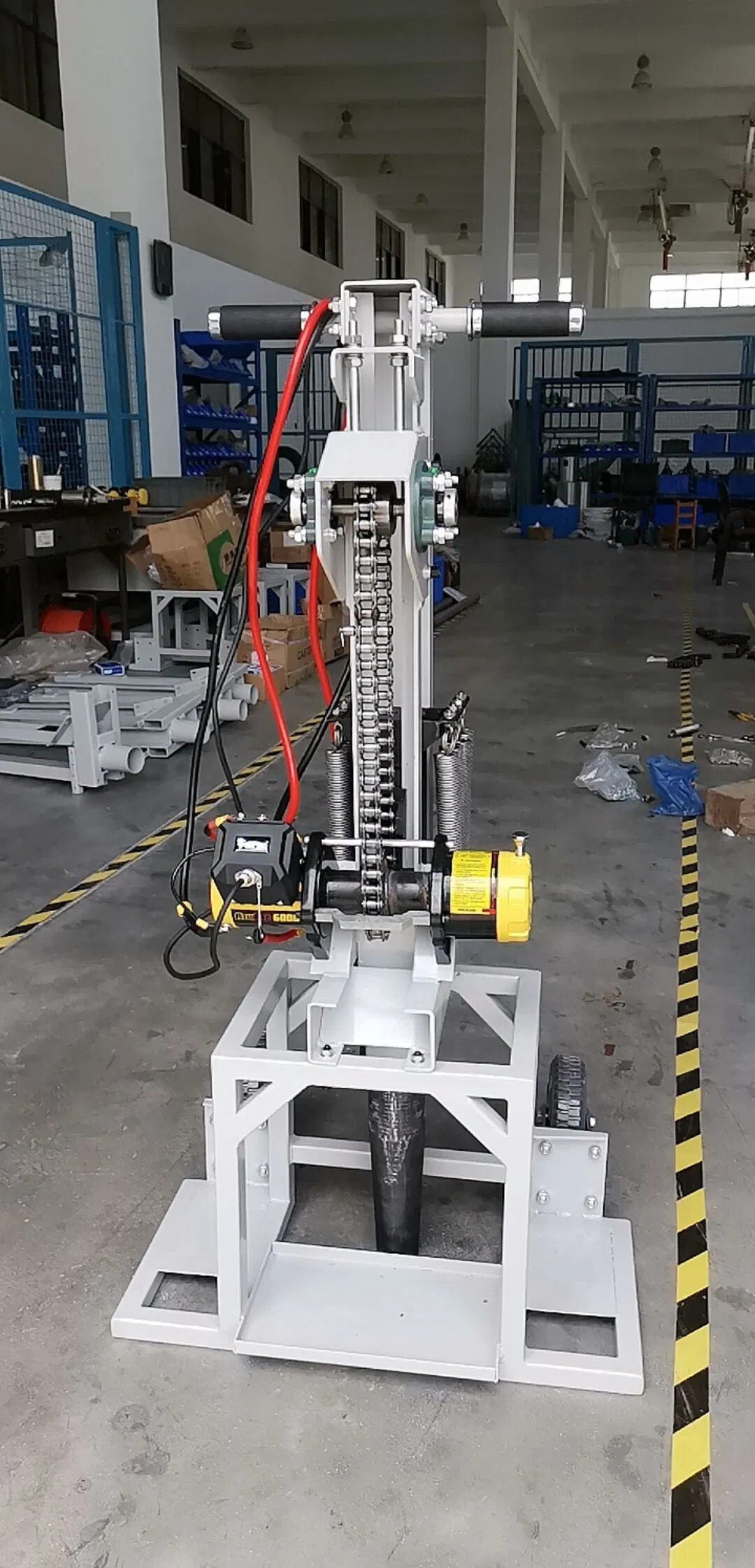

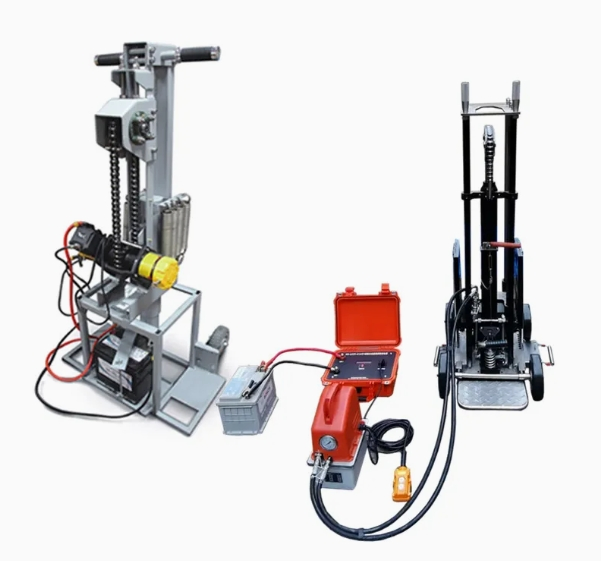

Unwavering Performance in Demanding Environments: The GD-600 Industrial Seismic Source
For geophysical teams operating in remote or challenging locations, equipment reliability is non-negotiable. The GD-600 Ruggedized Impact Source delivers exceptional durability without compromising data quality. Constructed with military-grade components and tested under extreme conditions, this system outperforms conventional hammers, explosives, and vibroseis technology where failure is not an option.
Generating a powerful 600-joule impact with each activation, the GD-600 maintains energy consistency within 2% variance across thousands of operations. This remarkable stability ensures uniform data quality throughout extended survey campaigns.
The optimized mass acceleration system produces dominant low-frequency energy below 35Hz, enabling reliable 200m+ depth investigation in consolidated rock formations. critical for mineral exploration and geothermal mapping.
Engineered for global operations, the system features:
The sealed mechanical system requires:
Field teams achieve full operational status in under 10 minutes through:
Operating seamlessly on 85-264V AC or 12-24V DC power, adapting to European grids, North American systems, and off-grid solar configurations with automatic voltage regulation.
| Performance Attribute | GD-600 Standard | Unit |
|---|---|---|
| Impact Mechanism | Electromagnetic Acceleration | - |
| Rated Energy Output | 600 J ± 2% | Joules |
| Frequency Emphasis | 5-150 Hz (Peak @ 28Hz) | Hertz |
| Environmental Rating | IP67 Sealed | Protection Class |
| Operational Temperature | -40°C to +65°C | Celsius |
| Power Input Range | 85-264V AC/12-24V DC | Volts |
| Deployment Time | <10 Minutes | Set-up |
| Maintenance Interval | 5,000 Operations | Cycles |
The system is designed for reliable depth investigation of 200 meters or more in consolidated rock formations, thanks to its optimized low-frequency energy output.
The GD-600 maintains exceptional stability with energy consistency within a 2% variance across thousands of operations, ensuring high data uniformity.
Yes, it features an IP67 weatherproof rating and is built from marine-grade aluminum, allowing it to operate in temperatures ranging from -40°C to +65°C.
No, the system features a sealed mechanical design with no lubrication points or field adjustments required, significantly reducing downtime and maintenance costs.
The system is globally compatible, supporting 85-264V AC or 12-24V DC power inputs, including compatibility with off-grid solar configurations.
Thanks to the auto-leveling tripod and tool-free assembly mechanism, field teams can achieve full operational status in less than 10 minutes.
