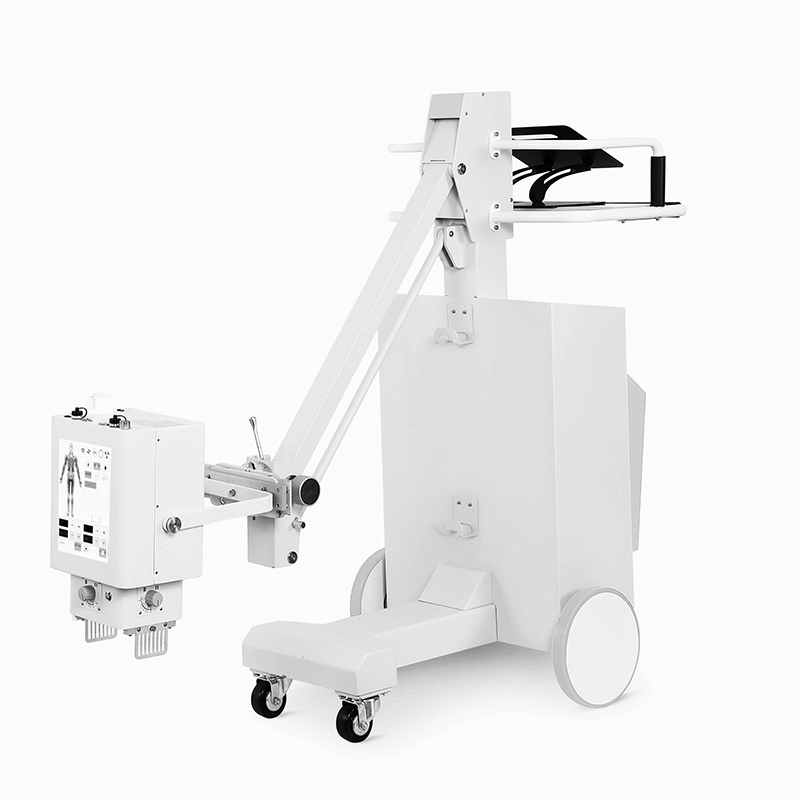

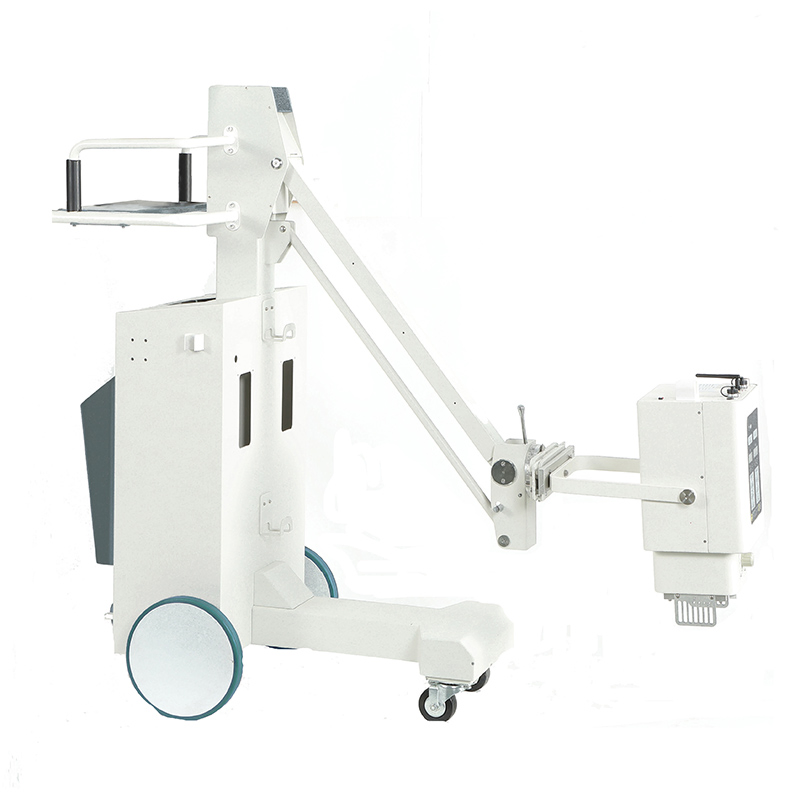

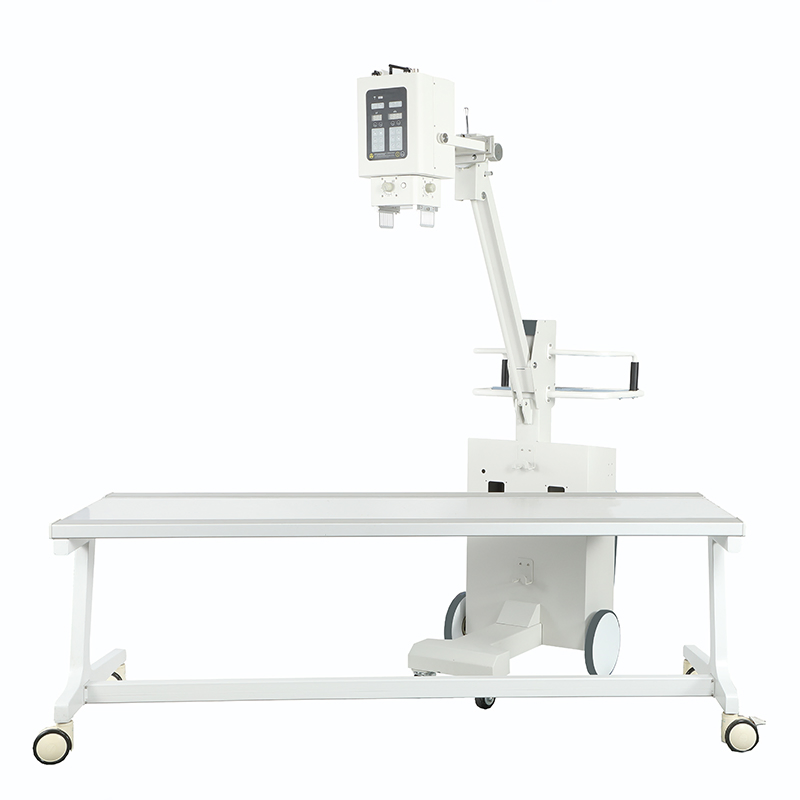

5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
1 / 5
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II
5.6kw Portable Medical Digital Radiography Systems Mpd56c-II

5.6kw Portable Medical Digital Radiography Systems Mpd56c-II

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

i

Basic Information

Model NO.
MPD56C-II
Certification
CE
Target Group
All People
Power Supply
90-264VAC, 50/60Hz
Transport Package
Wooden Case
Specification
80kHz-200kHz
HS Code
9022199090
Capacity
500 Sets/Year
P

Product Description

Portable Medical Digital Radiography Systems MPD56C-II

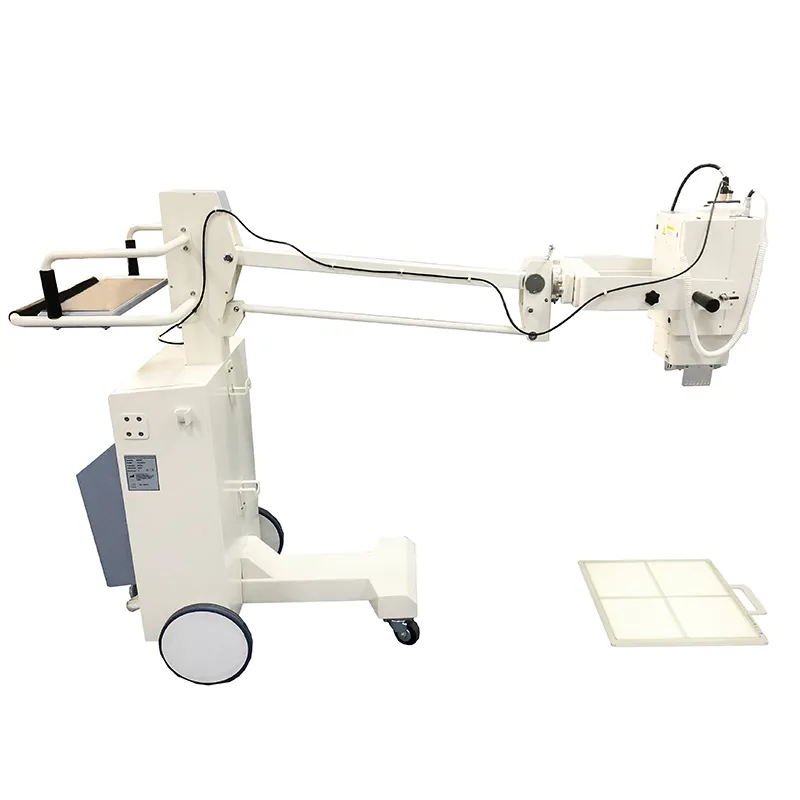

Medical Digital Radiography System 1
Medical Digital Radiography System 2

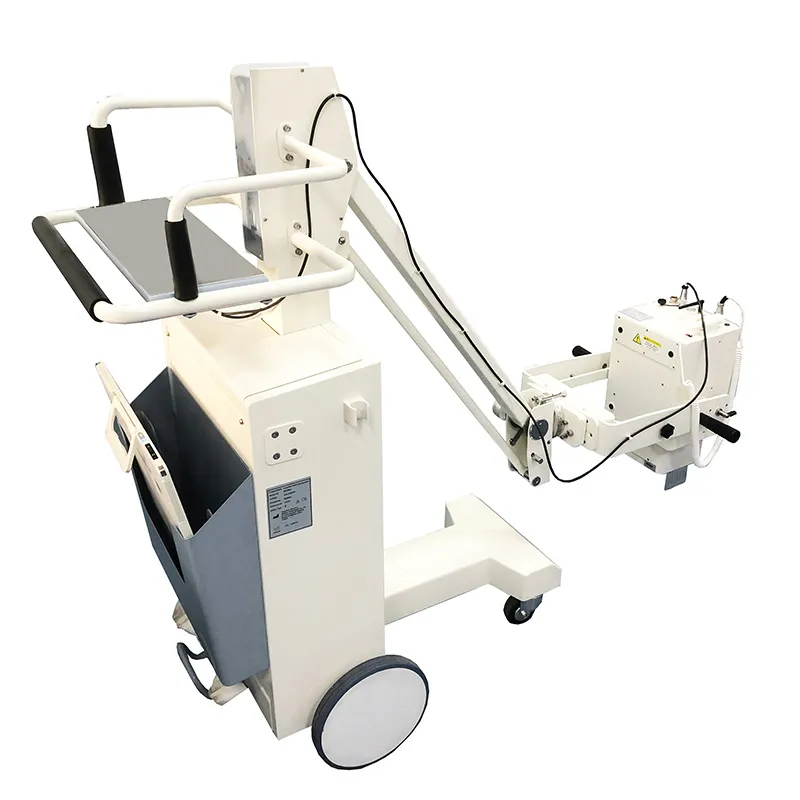

Medical Digital Radiography System 3
Medical Digital Radiography System 4
Medical Digital Radiography System 5
T

Technical Specifications

Category Feature MPD56C-I MPD56C-II
Portable X-Ray Source Normal Power 5.6kW
Frequency 80kHz-200kHz
KV Range 40-125kV
mA Range 5-100mA
Interface WiFi, RS232 RS232
Battery 3000mAh N/A
Flat-Panel Detector Scintillator Csl
Pixel Matrix 3072×3072
Effective Area 427mm x 427mm
Spatial Resolution 3.6 lp/mm (no grid) 3.4 lp/mm (no grid)
Data Interface WiFi Gigabit Ethernet
Power Supply 24VDC
Battery 4180mAh N/A
System Banner
?

Frequently Asked Questions

What is the main power output of the MPD56C-II system?
The system provides a normal power output of 5.6kW, suitable for various medical radiography needs.
Does the MPD56C-II support wireless connectivity?
The MPD56C-II model primarily utilizes RS232 and Gigabit Ethernet for data interfacing. For integrated WiFi support, the MPD56C-I model is also available.
What type of detector technology is used?
It uses an Amorphous Silicon Flat-Panel Detector with a Cesium Iodide (CsI) scintillator for high-quality digital imaging.
What are the power requirements for this equipment?
The system is compatible with a wide range of power supplies, supporting 90-264VAC at 50/60Hz.
Is the system suitable for all patient groups?
Yes, the portable medical digital radiography system is designed for use with all people across different clinical environments.
How is the equipment packaged for international transport?
The systems are securely packed in professional wooden cases to ensure safety and integrity during transit.
