My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
1 / 5
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System
My-D046 CCD Ceiling Suspension Digital X-ray Radiography System

My-D046 CCD Ceiling Suspension Digital X-ray Radiography System

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

Basic Specifications
Model NO.
MY-D046
Certification
CE
Generator
CPI High Frequency (Canada)
Power
50kw
Frequency
100kHz
Photography (Mas)
0.1-630mas
Photography (Kv)
40-150kv
X-ray Tube
Toshiba (Japan)
Image Size
17 X 17 Inch
Capacity
50 Units/Month
Product Overview

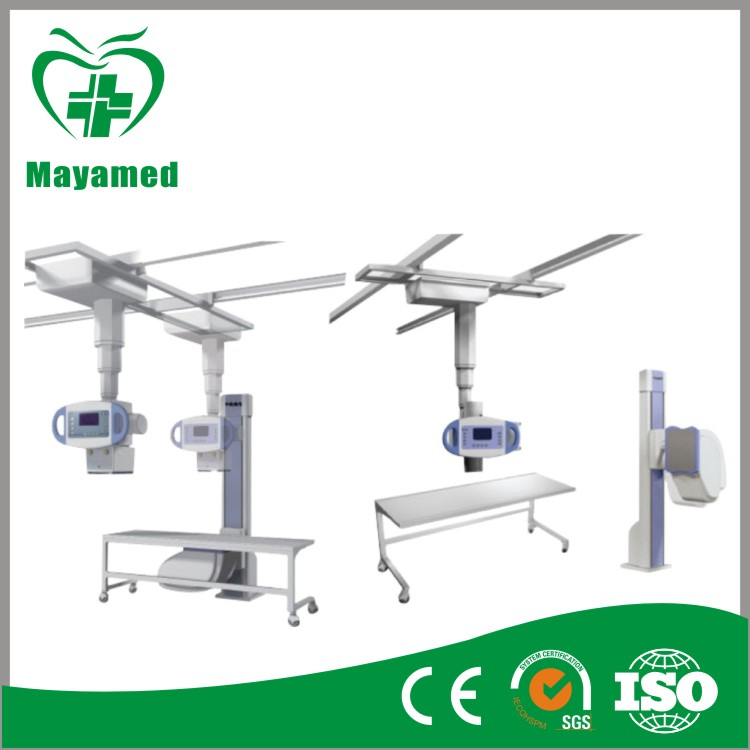

MY-D046 CCD Ceiling Suspension Digital X-ray Radiography System

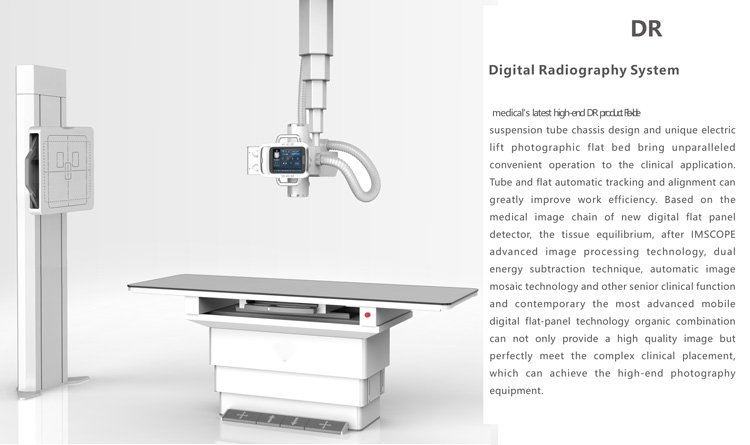

The Ceiling Suspension Digital X-ray Radiography System (CCD-DR) is a high-performance medical imaging solution. Equipped with a 50KW generator and a high-resolution detector (up to 16.8 megapixels optional), it provides exceptional image clarity. The system features an Automatic Exposure Control (AEC) to measure X-ray doses in real-time and a One-Button Hand Brake for streamlined clinical workflows.

MY-D046 Digital X-ray System
Technical Parameters
Component Technical Specifications
Generator System
TypeCPI High Frequency High Voltage (Made in Canada)
Power / Frequency50KW / 100KHZ
Photography Range40-150KV / 0.1-630mAs
X-Ray Tube (Standard)
BrandToshiba Tube (Made in Japan)
Focus / Heat Capacity0.6/1.5MM / 200KHU
CCD Detector
Image Size17 x 17 inch
Resolution≥ 9 Megapixel (Standard) / 16.8 Megapixel (Optional)
Imaging / Transmission Time≤ 10 S / ≤ 2 S
A/D Conversion16 bit / 65535 degree

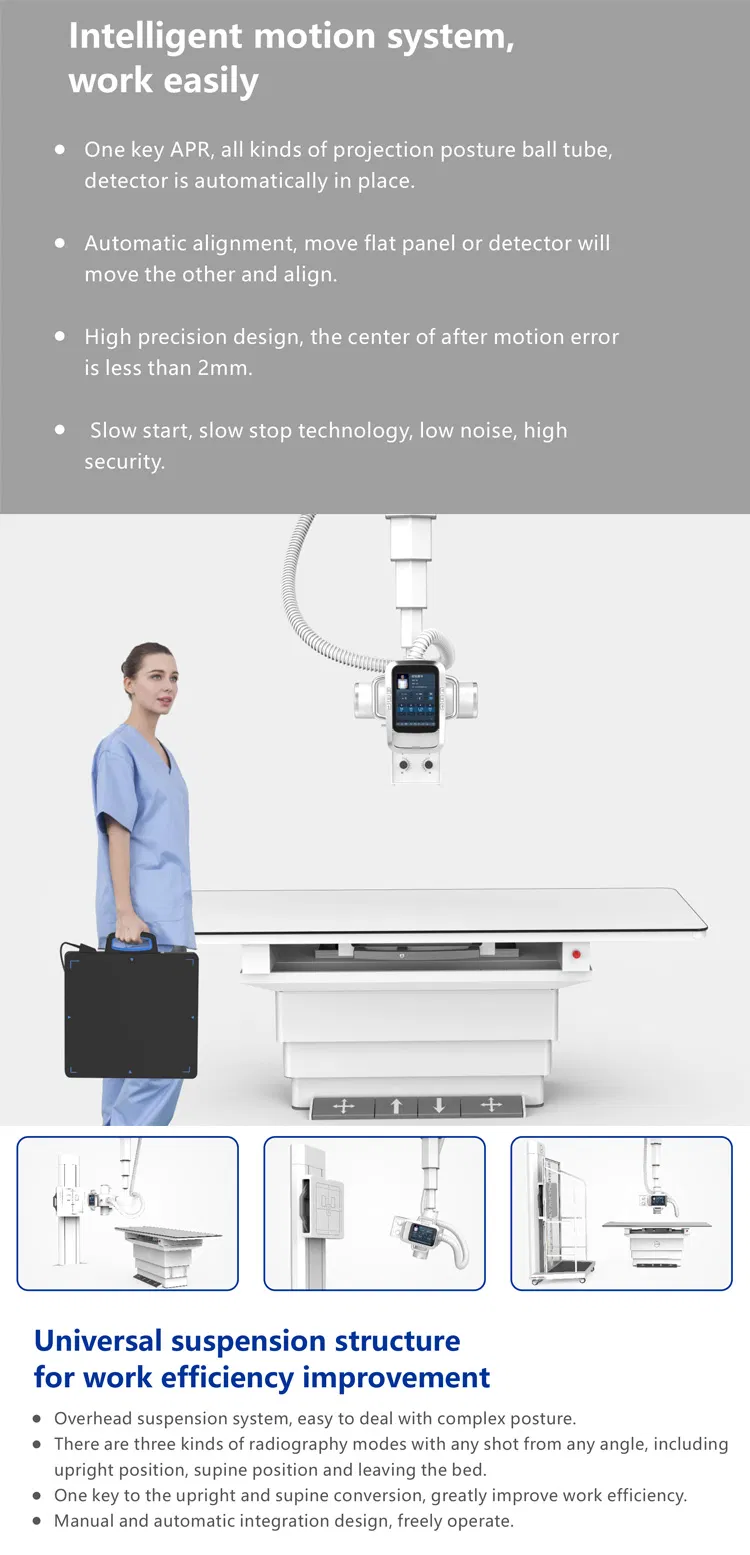

Mechanical Structure
Ceiling StandMotor-driven, 360° rotation, 150cm vertical movement
Vertical StandMotor-driven, 120cm range, 0-90° rotation
Radiography Table200cm x 65cm, Mechanical locking
Core Features & Services
★Advanced Software Multifunctional processing: automatic window width/level, image rotation, noise suppression, and edge enhancement.
★AEC System Optional Automatic Exposure Control measures real-time doses for enhanced safety in Radiology and Oncology.
★Professional Support 24-hour inquiry response, professional technical team, and experienced engineers for product guidance.
★Warranty & OEM One-year free warranty with lifelong after-sales service. OEM services including custom logo printing are available.
Packaging & Logistics
Packaging
Standard export corrugated cartons or wooden boxes
Pallet Options
Plastic or Wooden pallets available
Shipping Methods
Sea Freight, Air Freight, or Express Courier (DHL, FEDEX, UPS, TNT)
Frequently Asked Questions
What is the imaging resolution of the MY-D046 system?
The standard configuration features a 9 Megapixel CCD detector, with an optional upgrade to 16.8 Megapixels for higher clarity.
How long does it take to see the image after exposure?
The imaging time is less than or equal to 10 seconds, with a transmission time of less than 2 seconds to the workstation.
What is the warranty period for this X-ray system?
We provide a one-year free warranty from the date of commissioning. After-sales service remains available after the warranty expires.
Does the system support DICOM 3.0?
Yes, the workstation includes a DICOM 3.0 interface supporting Print, Storage, Worklist, and Query/Retrieve functions.
What are the movement capabilities of the ceiling suspension?
The ceiling stand is motor-driven with a vertical movement of 150cm, lateral movement of 180cm, and longitudinal movement of 250cm.
How is the product protected during international shipping?
The system is packed in standard export-grade wooden cases or heavy-duty corrugated cartons to ensure safety during sea or air transit.
