My-D016 400mA Medical X-ray Equipment
My-D016 400mA Medical X-ray Equipment
My-D016 400mA Medical X-ray Equipment
My-D016 400mA Medical X-ray Equipment
My-D016 400mA Medical X-ray Equipment
1 / 5
My-D016 400mA Medical X-ray Equipment
My-D016 400mA Medical X-ray Equipment
My-D016 400mA Medical X-ray Equipment
My-D016 400mA Medical X-ray Equipment
My-D016 400mA Medical X-ray Equipment

My-D016 400mA Medical X-ray Equipment

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Send Inquiry

Product Description

Basic Information
Model NO.
MY-D016
Certification
CE
Fluoroscopy
0.3-5mA Continuous Currency
Radiography
45-125kv Continuous Voltage
Power
50Hz±1Hz
X-ray Assembly
Xd51-20.40/125
Beam Device
Automatic, Adjusted Field of View
Diagnostic Table
-15°~0°~90°automatic
Package
Carton Box
Origin
China
Product Description

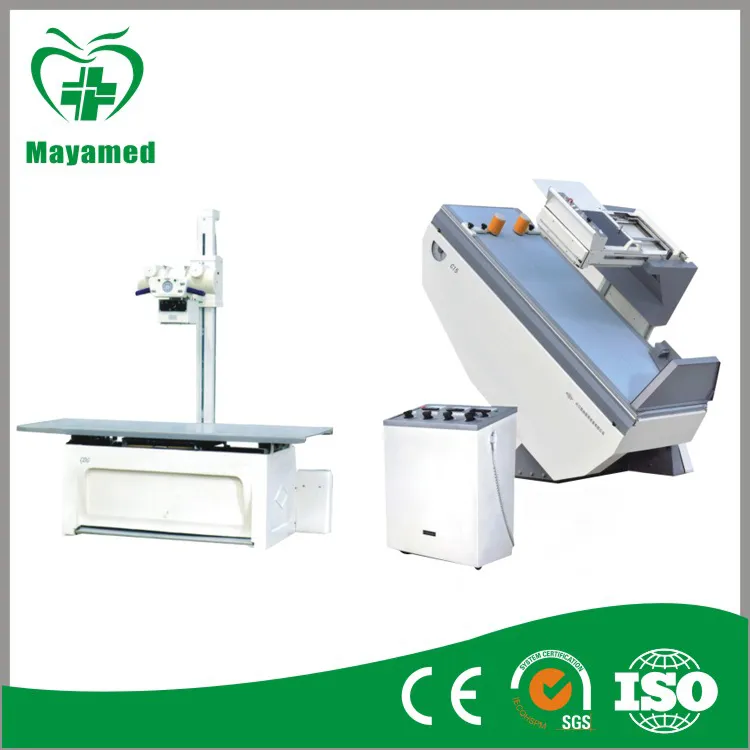

MY-D016 400mA Medical X-ray Equipment

Medical X-ray Equipment
Equipped with double diagnostic table and x-ray tubes, tube voltage is 125kV, tube currency is 400mA, single direct bridge full-wave commutation.
  • Safety Protection: X-ray tube capacity protection, anode starting-up protection, and radiograph time-limit protection device.
  • Advanced Control: Semi-conduct controlled, fluoroscopy computed time device, and x-ray tube over-hot protection to ensure long-term safe operation.
  • Precision: Improved accuracy of kV, mA, and S parameters.
  • Flexible Operation: Bigger scope of rotation diagnostic table, movable multi-item spot-film device, radiation-proof design.
  • Ergonomic Design: Radiography table can move lengthways and crossover, supporting all kinds of dark boxes.
  • Broad Application: Suitable for all hospital radiography including general body, beam filtration, and chest exams.
Technical Parameters
Department Sub-system Parameters Specifications
High Voltage Generator Fluoroscopy Tube Current / Voltage 0.3-5mA / 45-110KV Continuous
Radiography Tube Current / Voltage 50-400mA / 45-125KV
Exposure Time Range 0.03-5s, 23 shifts
Power Supply 380V±10%, 50Hz, ≥30KVA
X-ray Assembly Type Model XD51-20.40/125
Anode Focus / Speed 1×1.2×2 double focal / 2800r/min
Diagnostic Table C15 Table Rotation / Moving -15°~0°~90° / 700mm distance
Radiography Table CDG Multi-function Grid Density / Ratio 28L/cm / 8:1
Our Services
  • Professional inquiry response within 24 hours.
  • Professional team providing expert product recommendations.
  • One-year free warranty with lifetime after-sales service support.
  • OEM services available, including customized logo printing on products.
  • Experienced engineers available to assist with product utilization and training.
Packaging & Shipping

Packaging: Standard export corrugated paper board cartons or secure wooden boxes.

Pallet Options: Plastic or Wooden pallets available based on requirements.

Shipping Methods: Flexible delivery via Sea, Air, or International Couriers (DHL, FEDEX, UPS, TNT).

Frequently Asked Questions
How can I purchase this medical X-ray equipment?
You can place an order directly. If the item is in stock, it will be prepared for shipment once payment is confirmed. For non-stock items, production begins immediately upon receiving payment.
What is the warranty period for the MY-D016 model?
We provide a one-year free warranty starting from the date the equipment is commissioned and qualified for use.
Is it possible to visit the manufacturing facility?
Yes, we welcome professional visits to our factory. Please coordinate with us in advance to schedule your visit.
How long is the price quotation valid?
Generally, our quotations are valid for one month. Prices may be adjusted slightly based on market fluctuations of raw materials.
What is the expected production lead time?
Production time depends on the order quantity. Typically, mass production takes approximately one week to complete.
What shipping options are available for international orders?
We offer comprehensive shipping solutions including sea freight, air freight, and express courier services such as DHL, FEDEX, UPS, and TNT.
