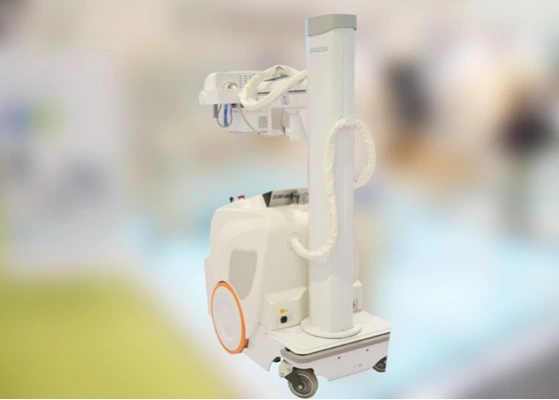

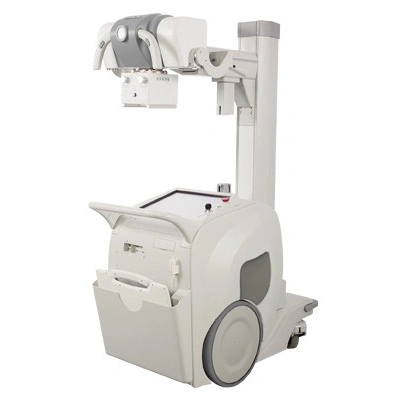

Mobile Digital Radiography DR System BTR-M400/MW400
The MW400 is a highly intelligent mobile DR system designed to provide abundant operational functions. It combines a humanized design with simple operation, making it an ideal solution for modern clinical environments.
| S# | Description | Parameters |
|---|---|---|
| 1 | X-ray Generator | 40kW Max Output |
| 1.1 | HF Inverter H.V. Generator | YES |
| 1.3 | Max Tube Voltage | 150kV |
| 1.5 | Max Output mA | 400mA |
| 2 | X-ray Tube | Dual Focus |
| 2.2 | Focus Specification | 0.6mm / 1.2mm |
| 2.6 | Heat Capacity | 150KHU |
| 3 | Movable Frame | Electric Auxiliary Drive |
| 3.2 | Vertical Rotating Range | ±270º |
| 3.4.1 | Lifting Range | 570mm ~ 1800mm |
| 5 | Flat Panel Detector | A-Si Scintillator |
| 5.2 | Imaging Area | 14'' × 17'' |
| 5.8 | Connection Method | Wireless |
| 6 | Workstation | Core i3 / 1TB HDD |
| 6.2 | Storage Capacity | ≥ 40,000 images |
| 6.11 | Operation System | Windows based (English) |
