Cutting-Edge Microscope Camera with Superior Image Acquisition Technology

Customization: Available
Warranty: 1 Year
Usage: Teaching, Research

Product Description

Basic Information

Model NO.
MSS-C-ITD3L
Transport Package
Carton
Specification
2KG
Trademark
MSS
Origin
China
HS Code
8525892900
Capacity
5000pieces/Year
Package Size
40.00cm * 50.00cm * 60.00cm

Product Description

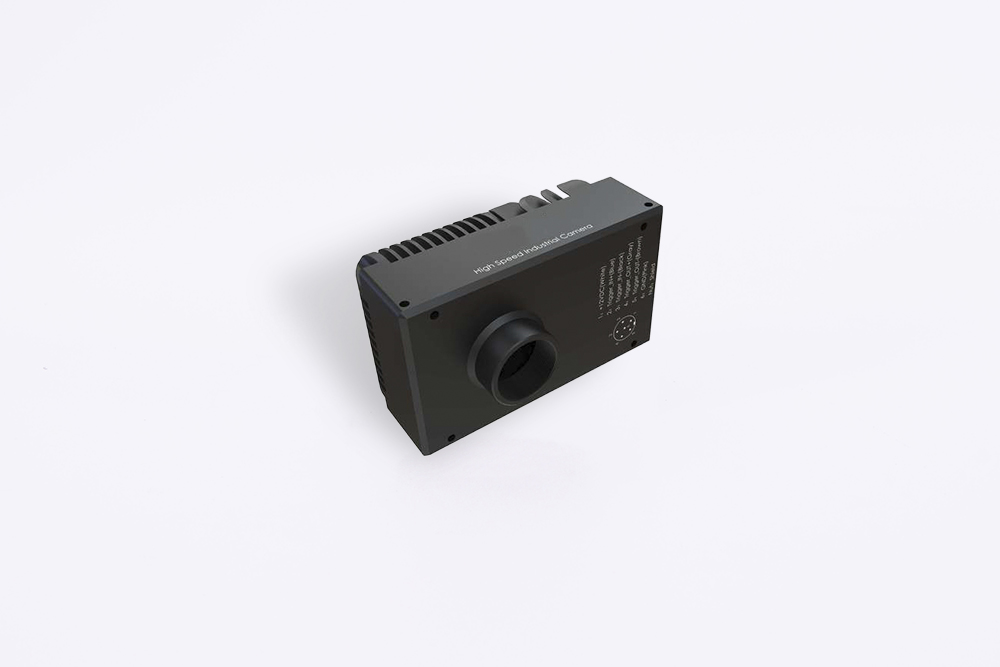

Introducing the Microscope Camera with Ultra-High-Speed Image Acquisition System. This high-speed industrial camera delivers exceptional image quality and performance for professional applications.

Key Features:

  • Ultra-high-speed image acquisition system for lightning-fast results
  • Experience stunning visuals with 1490fps @2048*1080 8 bit and 2971fps @1024*1024 8 bit
  • Standard C-mount for easy compatibility with various devices
  • Enjoy seamless ultra-high-speed transmission with 40G optical fiber technology
  • Complete SDK and software support for a hassle-free experience

With this Microscope Camera, you can capture images with unparalleled speed and precision. Whether you're conducting research, analyzing data, or performing intricate tasks, this camera is designed to meet your needs.

Thanks to its advanced image acquisition technology, you can expect real-time image processing and ultra-fast image transfer. The enhanced image clarity and optimized image quality ensure that every detail is captured with utmost precision.

The high-resolution imaging system and high pixel camera guarantee exceptional image quality. Plus, its stable focus and autofocus capabilities make it a reliable tool for any application, offering flexible imaging solutions adapted to specific requirements.

Technical Parameters

Model HPS-HSC2K Resolution 2048x1080 (Pixel: 6μmx6μm)
Sensor format 1 " (12.3mm x 6.5mm) Data Transfer Rate 1490 fps @2.2MP; 2971 fps @1MP
Dynamic range 53dB (Linear) / ≥90dB (HDR) Shutter mode Global shutter, Auto/External/Software trigger
Image Processing FPN denoising, PRNU/Gamma/Lens correction, ROI, Gain Data interface 40G Ethernet fiber interface
Digital I/O Isolated Trigger I/O, 8-PIN expansion (GPI/GPO/SPI) Power 12VDC, Typical 17W
Temperature Op: 0~45ºC, Storage: -20~60ºC Weight 440g

Product Gallery

Frequently Asked Questions

What is the maximum frame rate of this camera?
The camera supports ultra-high speeds up to 1490fps at 2048*1080 resolution and up to 2971fps at 1024*1024 resolution in 8-bit mode.
What type of data interface does the system use?
The system utilizes a 40G Ethernet fiber interface for seamless and stable ultra-high-speed data transmission.
Does the camera support automated exposure?
Yes, the global shutter mode supports automatic exposure, as well as external trigger and software trigger exposure modes.
Is there built-in image processing?
Yes, the camera includes an integrated module for FPN denoising, PRNU correction, gamma correction, lens correction, and ROI adjustments.
What mounting standard is compatible with this camera?
The camera features a standard C-mount, ensuring easy compatibility with a wide range of microscope and industrial lenses.
What is included in the software package?
We provide a complete SDK and specialized software support to ensure a hassle-free integration and operation experience.
