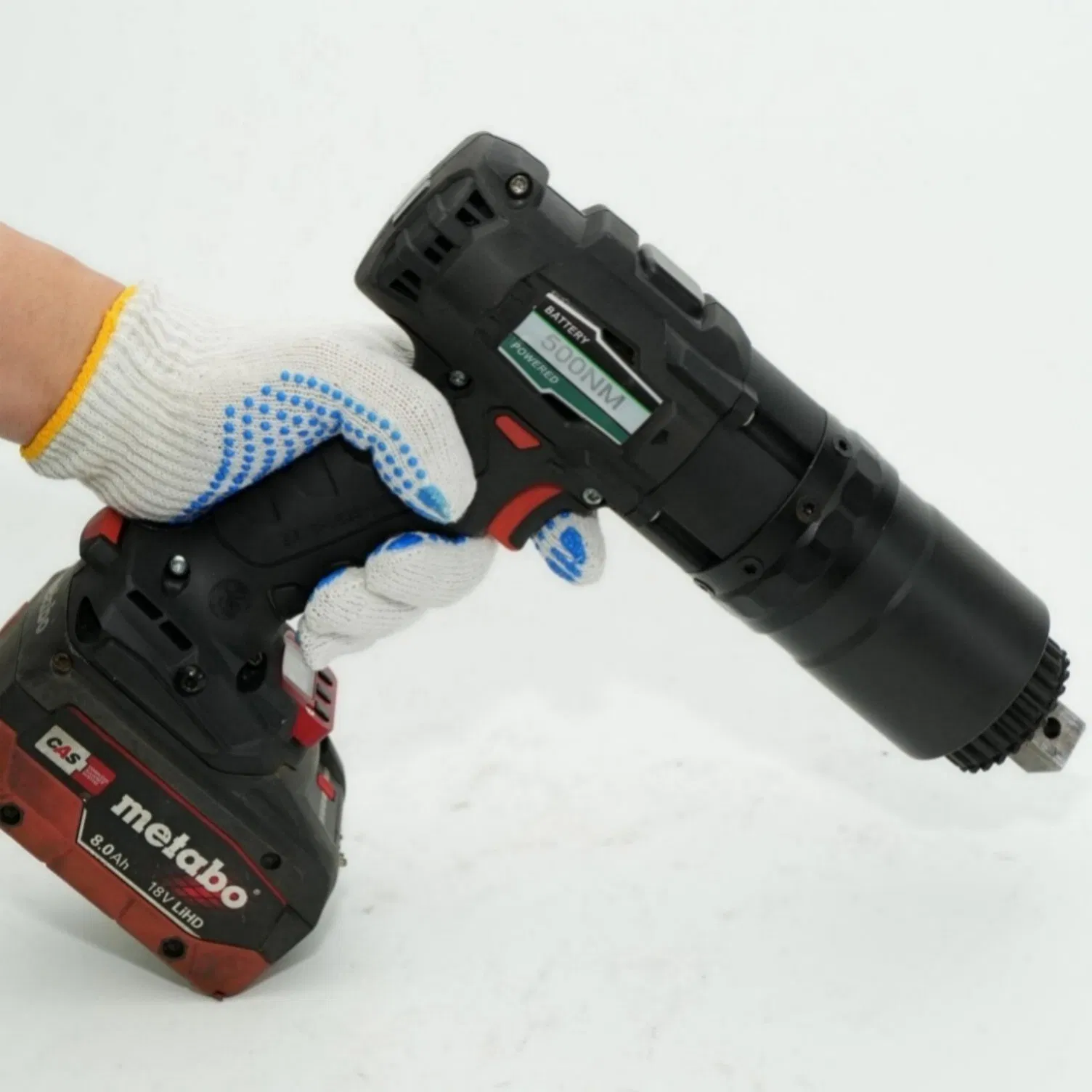

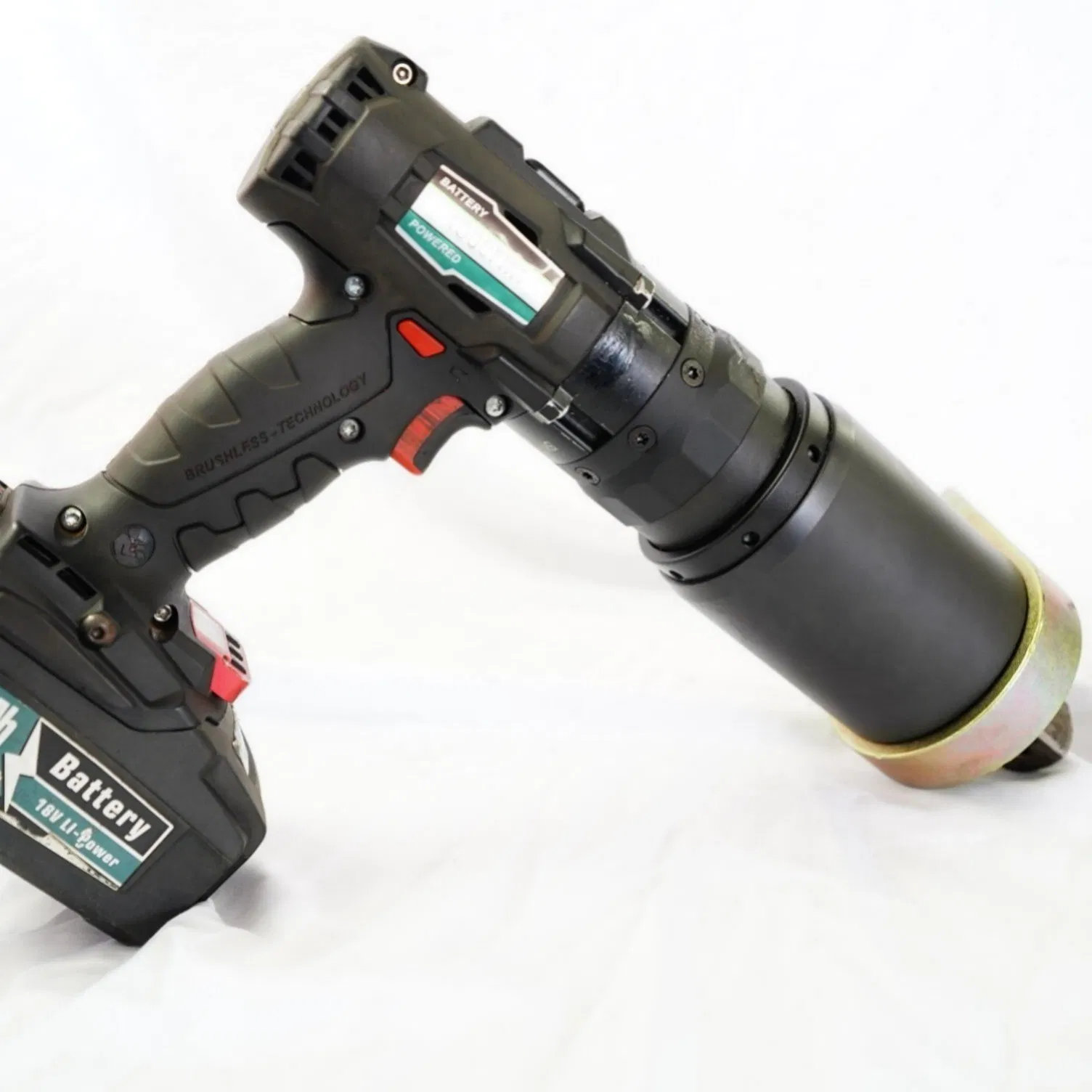

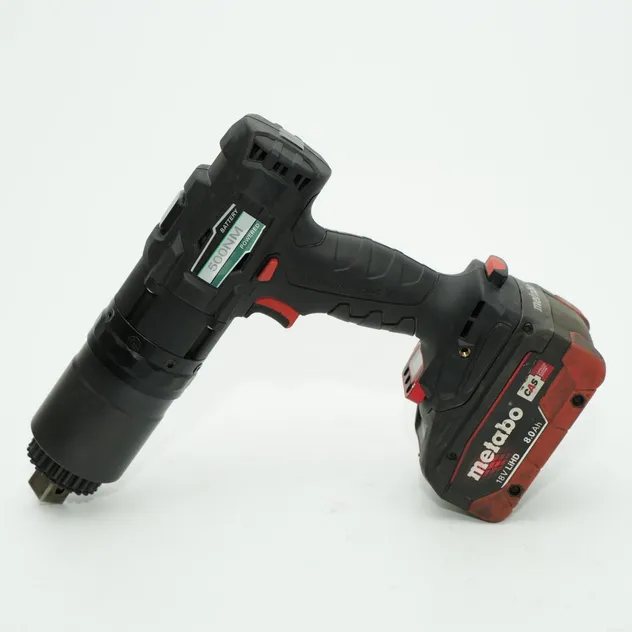

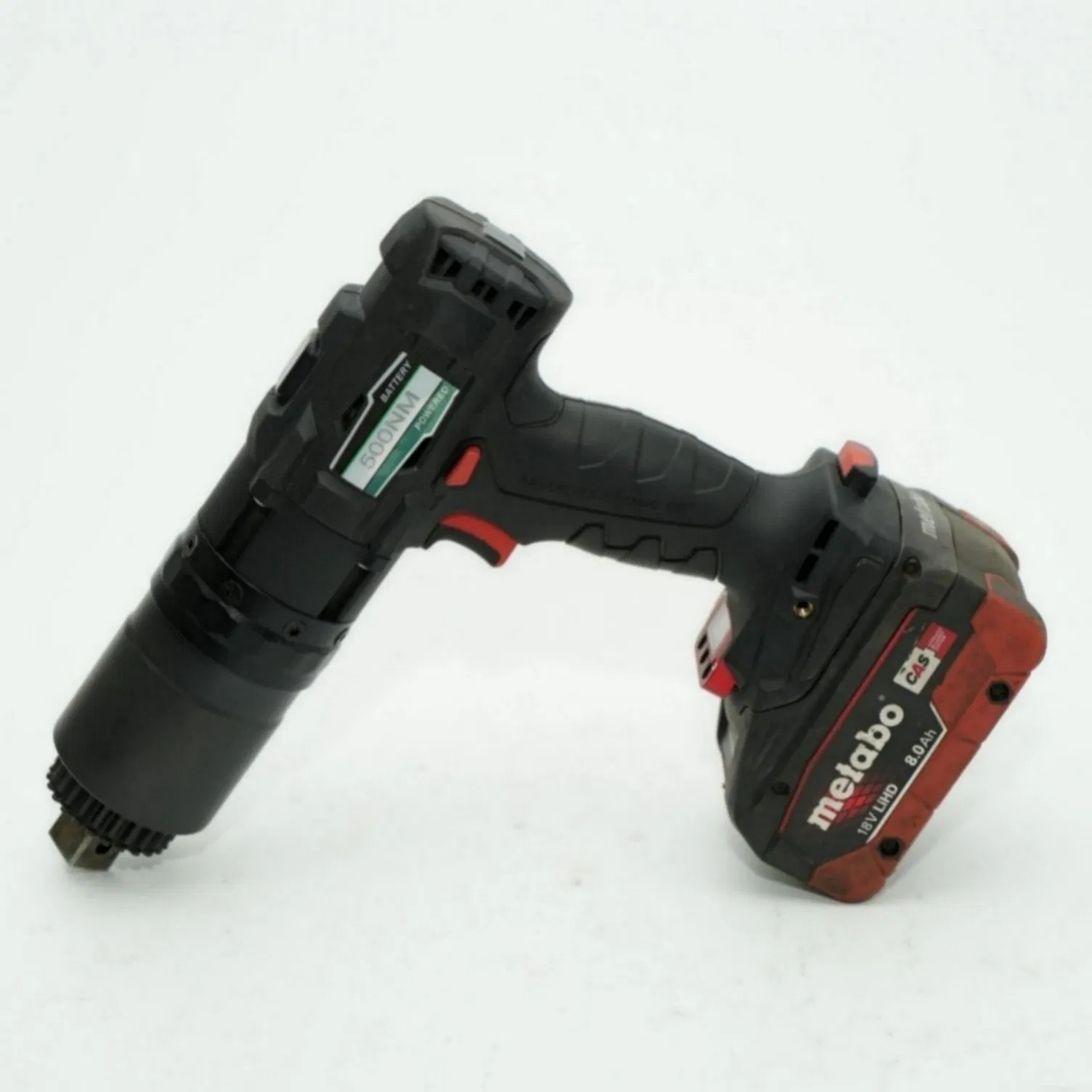

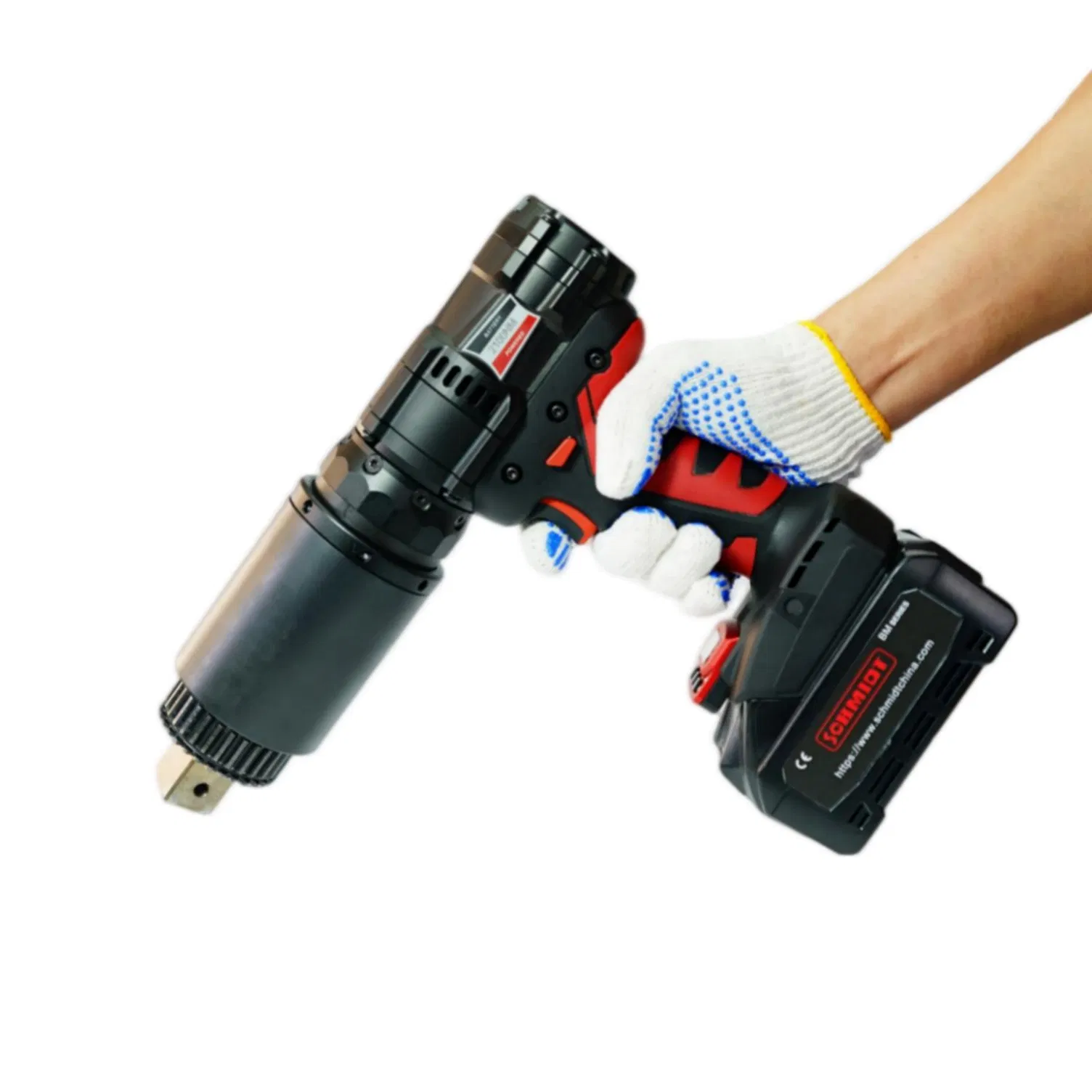

RECHARGEABLE TORQUE WRENCH BEM-L SERIES: PRODUCT INTRODUCTION

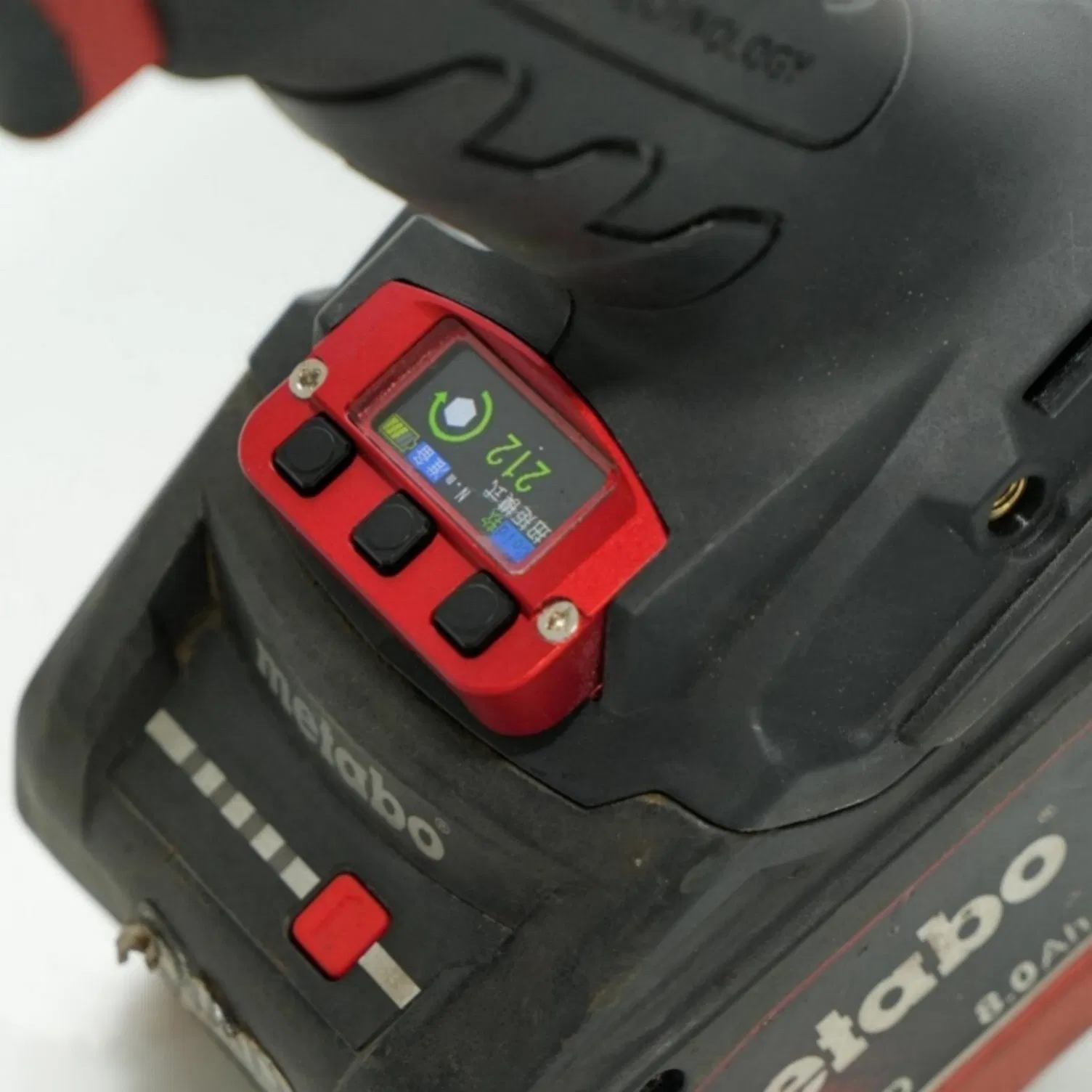

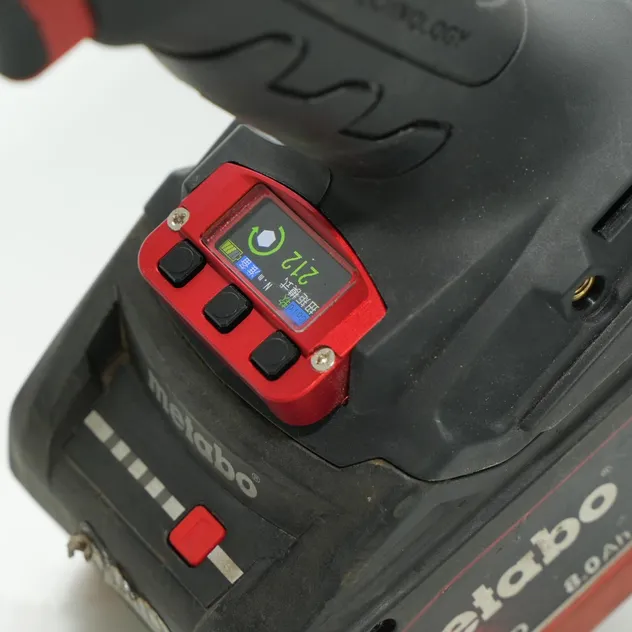

Brushless rechargeable torque wrench BEM-L series can be suitable for a variety of application environments, to achieve uninterrupted work in the mobile state. The gearboxes of this series of torque wrenches are light and precise design with digital adjustment function, which can output torque and display working state better. It can work effectively without power supply, and the torque output precision reaches ± 4%, repeatability ± 2% and are lighter, smaller, and more power efficient.

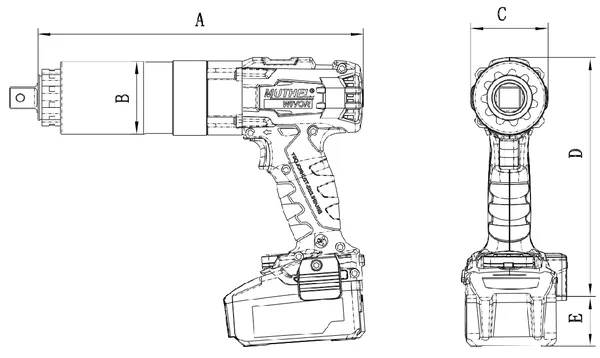

| Model | Driving Square | Min. Torque | Max. Torque | Speed (RPM) | Weight | Size A*B | Size C | Size D | Noise |
|---|---|---|---|---|---|---|---|---|---|
| BEM-3L | 3/4" | 100 | 300 | 20 | 3kg | 243*62mm | 68mm | 198mm | 80db |
| BEM-5L | 3/4" | 150 | 500 | 10.5 | 3kg | 243*62mm | 68mm | 198mm | 80db |
| BEM-12L | 3/4" | 300 | 1200 | 5.5 | 3.8kg | 284*69mm | 69mm | 198mm | 80db |
| BEM-21L | 1" | 550 | 2100 | 3.5 | 4.9kg | 292*76mm | 76mm | 201mm | 80db |
| BEM-45L | 1/1.5" | 1150 | 4500 | 1.9 | 7kg | 333*86mm | 86mm | 207mm | 80db |
| BEM-80L | 1.5" | 2000 | 8000 | 1.2 | 9.9kg | 353*102mm | 102mm | 214mm | 80db |

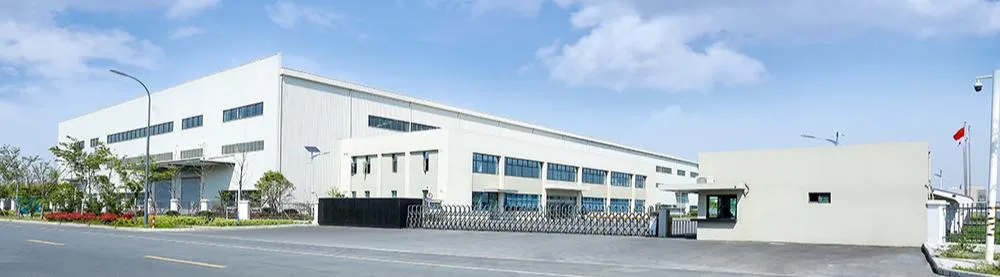

Established in 2012 as a high-technology enterprise, the company focuses on research, development, production, sale, and service of hydraulic torque wrenches, cylinders, pumps, and electric wrenches. We operate a modern production plant incorporating internationally advanced hydraulic tools production facilities, processing lines, and assembly lines.
After more than 10 years of development, our technology has reached the highest levels in the industry, obtaining CE certification, ISO14001, and ISO9001 certifications. We specialize in bolting tools, hydraulic lifting tools, pulling tools, and power packs, providing industry-leading solutions with numerous national invention patents.
