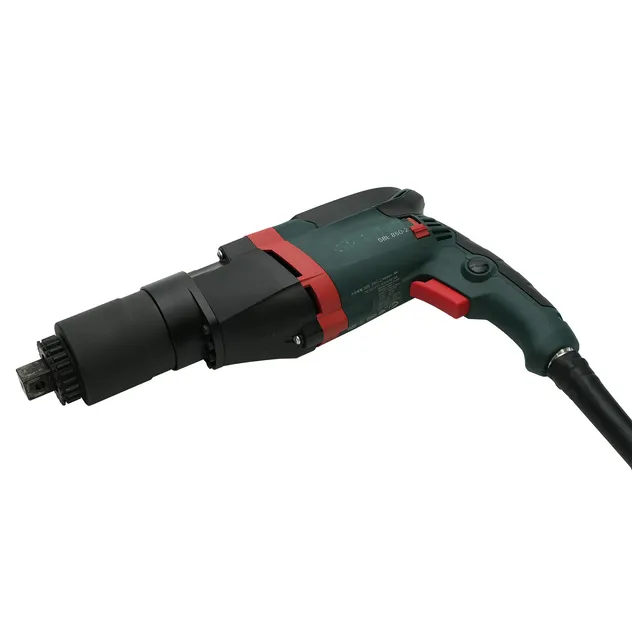

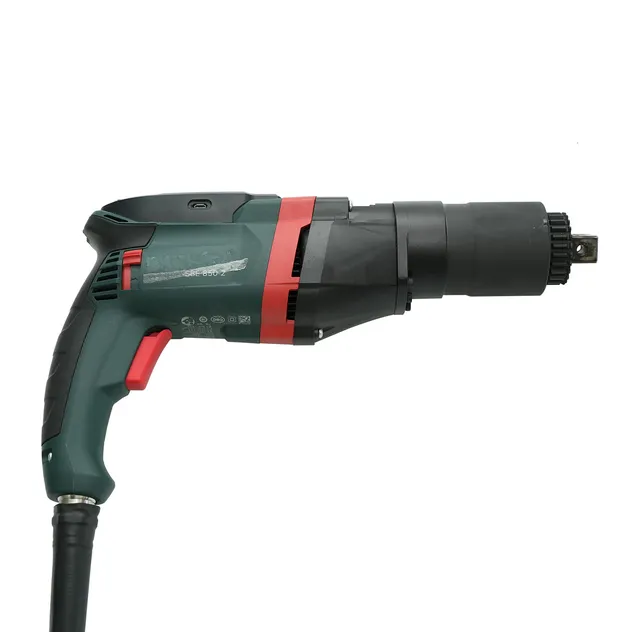

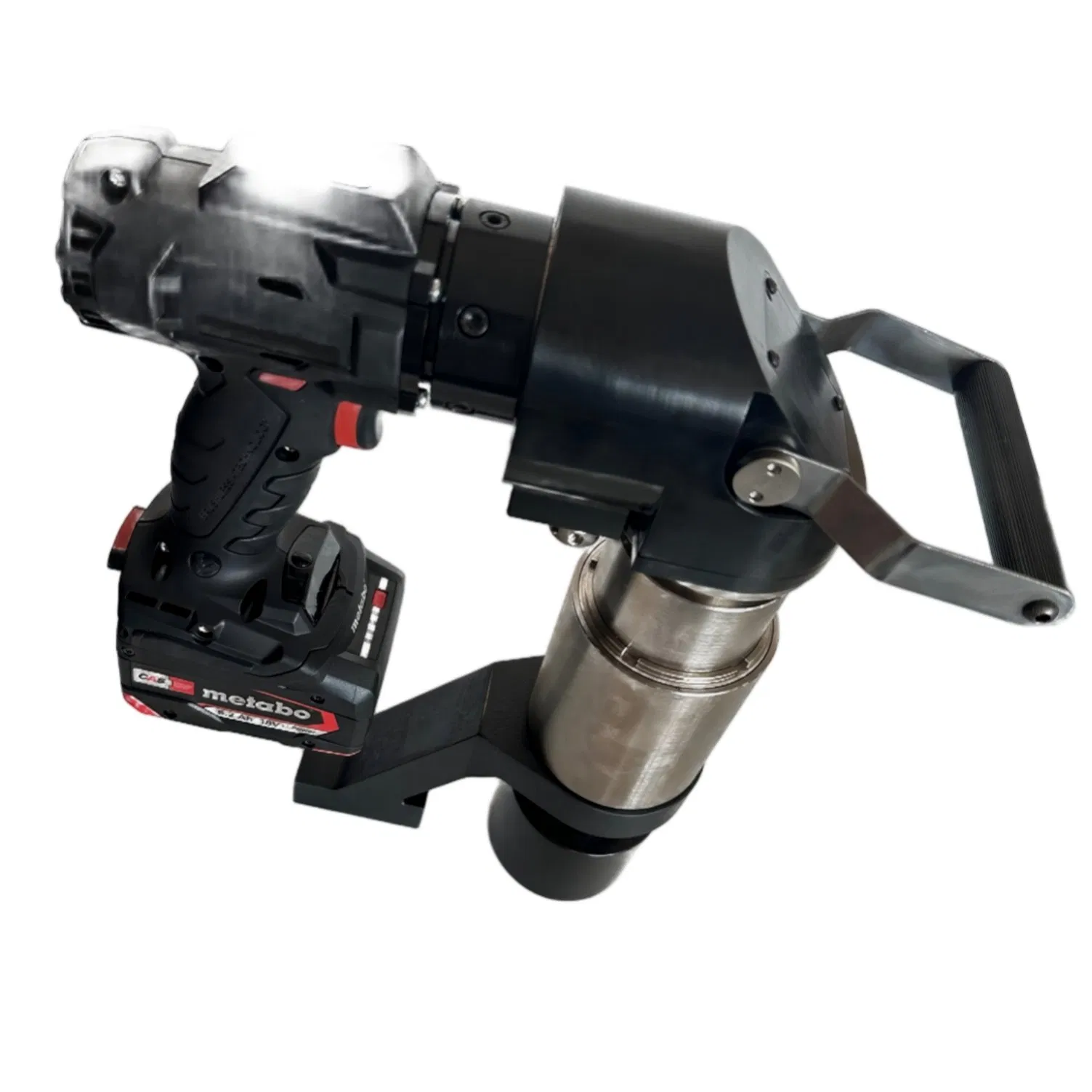

Straight Type Electric Torque Wrench Features:
BPM-DA series is a new generation of digitally controlled electric torque wrench. This series can start to work when connected to standard power, and meets the requirements of high precision, high strength and safety.
The BPM series uses a planetary gear reduction system with a high power output ratio, making the equipment lighter. Through the color control screen to accurately set the torque, through the high-performance digital control module, to provide users with stable and continuous torque control output.

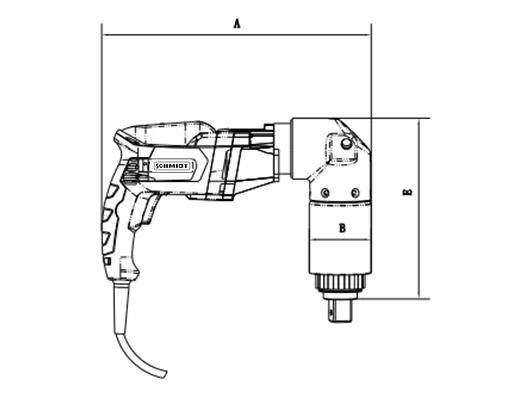

| Model | Driving Square | Torque Range(Nm) | Speed(RPM) | Weight | Size A | Size B | Size E | Noise |
|---|---|---|---|---|---|---|---|---|
| BPM-8DA | 0.75" | 250-800 | 10.5 | 7.2kg | 363mm | 65mm | 225mm | 80db |
| BPM-12DA | 0.75" | 350-1200 | 8.4 | 7.4kg | 363mm | 69mm | 230mm | 80db |
| BPM-17DA | 1" | 510-1700 | 7.2 | 8.4kg | 366mm | 76mm | 238mm | 80db |
| BPM-21DA | 1" | 630-2100 | 4.8 | 8.4kg | 366mm | 76mm | 238mm | 80db |
| BPM-28DA | 1" | 840-2800 | 4.4 | 8.8kg | 366mm | 78mm | 253mm | 80db |
| BPM-31DA | 1" | 950-3100 | 4 | 8.8kg | 366mm | 78mm | 253mm | 80db |
| BPM-35DA | 1" | 1050-3500 | 3.8 | 9.4kg | 366mm | 82mm | 255mm | 80db |
| BPM-40DA | 1"/1.5" | 1200-4000 | 3.4 | 9.4kg | 366mm | 86mm | 255mm | 80db |
| BPM-45DA | 1"/1.5" | 1350-4500 | 3 | 10.6kg | 366mm | 92mm | 281mm | 80db |
| BPM-60DA | 1.5" | 2000-6000 | 2 | 12.3kg | 373mm | 102mm | 294mm | 85db |
| BPM-80DA | 1.5" | 2400-8000 | 1.9 | 13.6kg | 373mm | 102mm | 294mm | 85db |
| BPM-100DA | 1.5"/2" | 3000-10000 | 1 | 20.5kg | 380mm | 114mm | 378mm | 85db |
| BPM-120DA | 1.5"/2" | 3600-12000 | 0.9 | 20.5kg | 380mm | 114mm | 378mm | 85db |

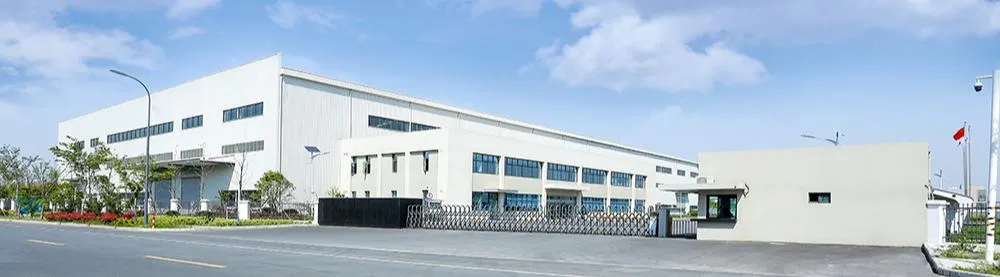

Established in 2012, as a high-technology enterprise, the company has been focused on integrating research, development, production, sale and service of hydraulic torque wrenches, cylinders, nut cutters, pullers, pumps, and electric wrenches. We own a modern production plant that incorporates advanced hydraulic tools production facilities, material processing lines, and assembly lines.
With over 10 years of development, our technology has reached the highest industry levels, obtaining CE, ISO14001, and ISO9001 certifications along with numerous national invention patents.
