Product Description

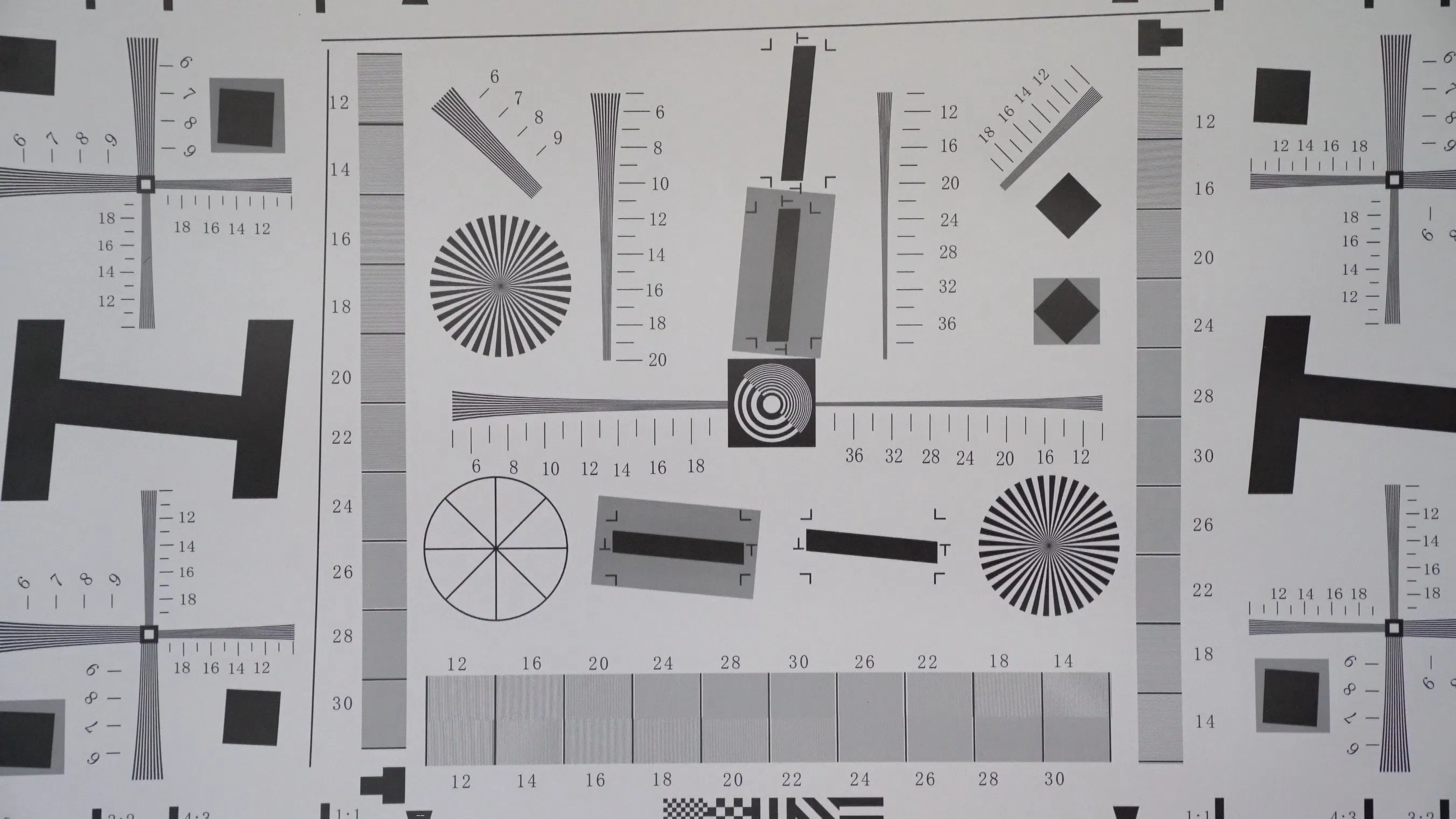

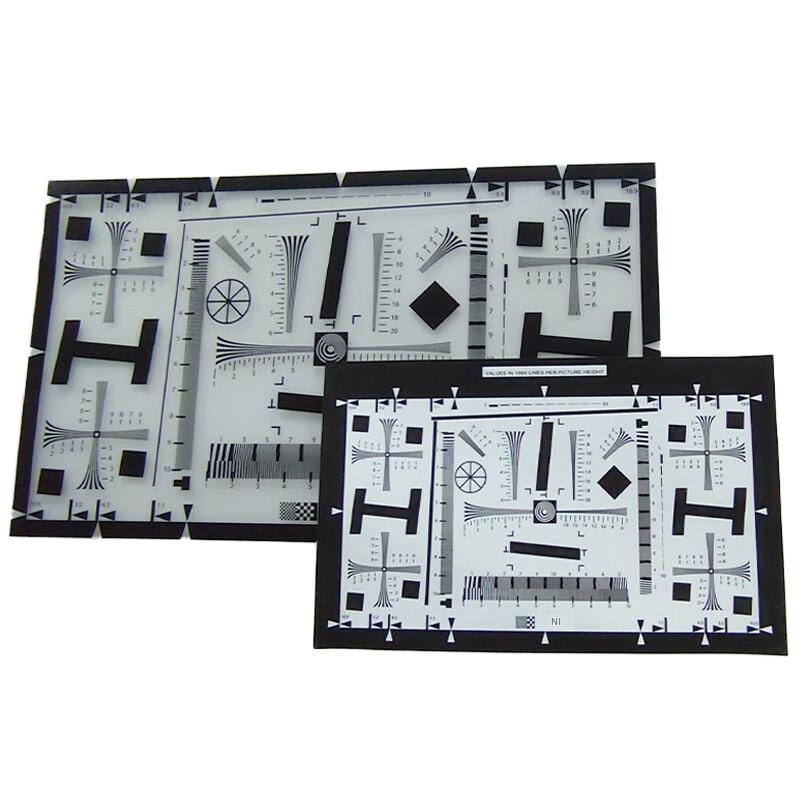

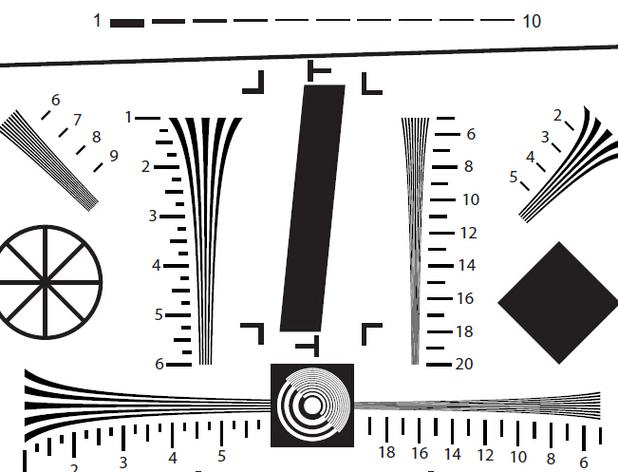

The ISO12233 resolution test chart is a standard test tool for evaluating the resolution performance of imaging devices such as digital cameras, lenses, and scanners. It is widely used in the development, testing, and calibration of optical imaging systems.

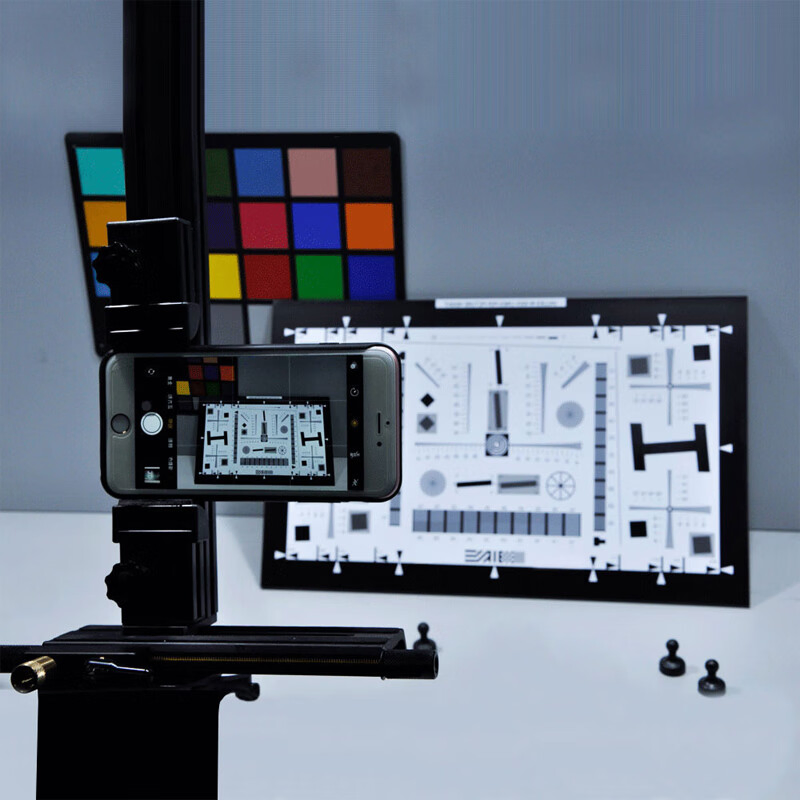

Camera and Lens Development: Measure spatial resolution and optimize lens design, sensor performance, and image processing algorithms.
Quality Control: Standardized production line inspection to ensure every device meets factory resolution requirements.
Algorithm Evaluation: Quantify sharpening, noise reduction, and compression algorithm impacts (JPEG, HEIC).
Industry Certification: Compliant with international standards (ISO 12233:2014) for authoritative performance benchmarking.
Frequently Asked Questions
What is the primary use of the ISO12233 Resolution Test Card?
It is used to quantitatively evaluate the resolution performance of imaging systems, including digital cameras, lenses, and security surveillance equipment.
What material is used for the NQ-10-100A model?

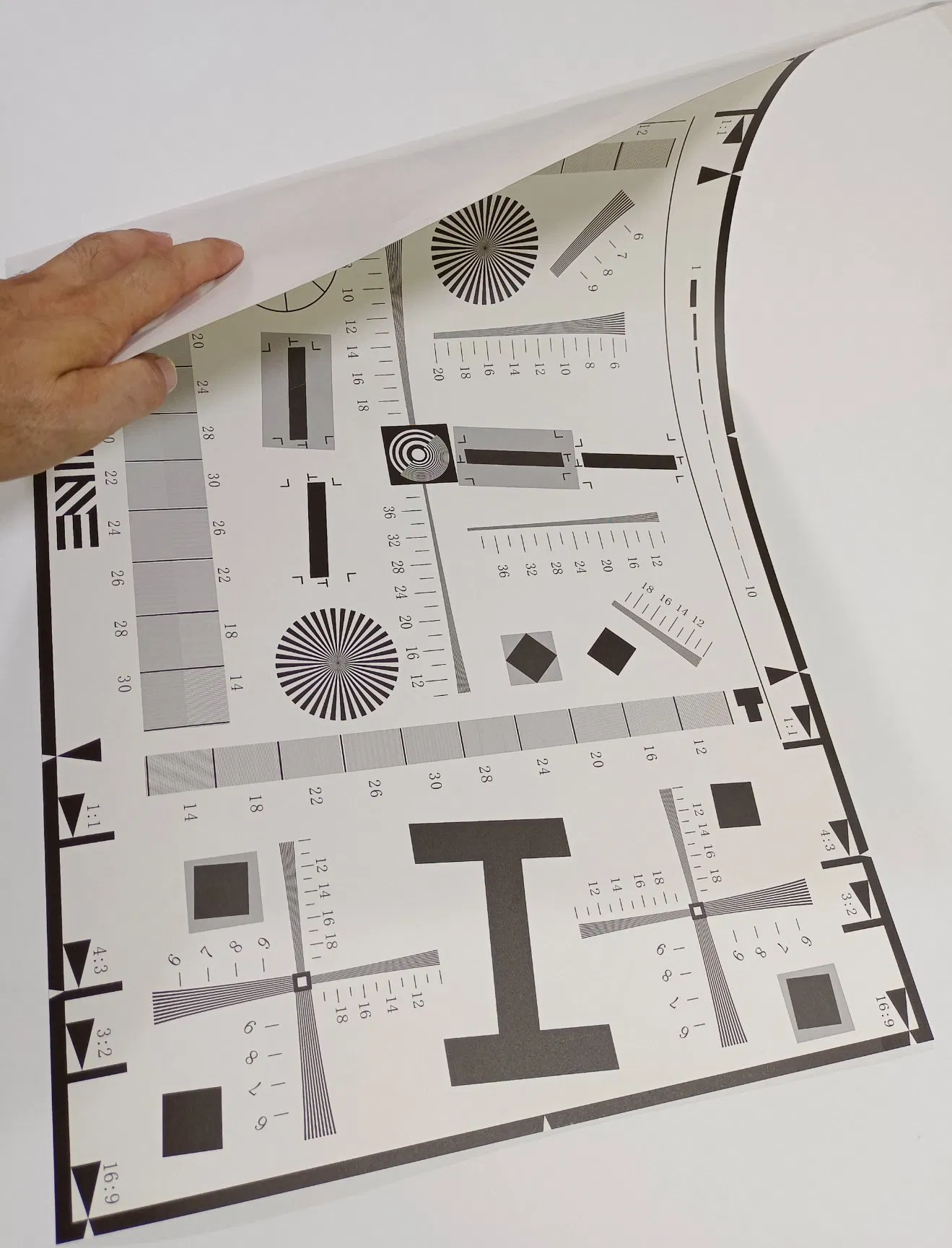

This model is produced using high-definition photographic paper with an anti-reflective coating to ensure accurate measurement results.
Can I use professional software with this test chart?
Yes, the chart is compatible with professional analysis software such as Imatest and IQAnalyzer to calculate MTF (Modulation Transfer Function) and SFR (Spatial Frequency Response).
Are custom sizes available for the test charts?
Yes, we support ODM services and can provide any size below 1600mm in width with no specific length limit.
What is the difference between reflective and transmissive charts?
Reflective charts (like this one) are illuminated from the front, while transmissive charts are illuminated from behind using a light box. Reflective charts are standard for most general camera testing.
What quality guarantees are provided?
We perform a pre-production sample check and a final inspection before shipment. The product also comes with a 1-year warranty.
