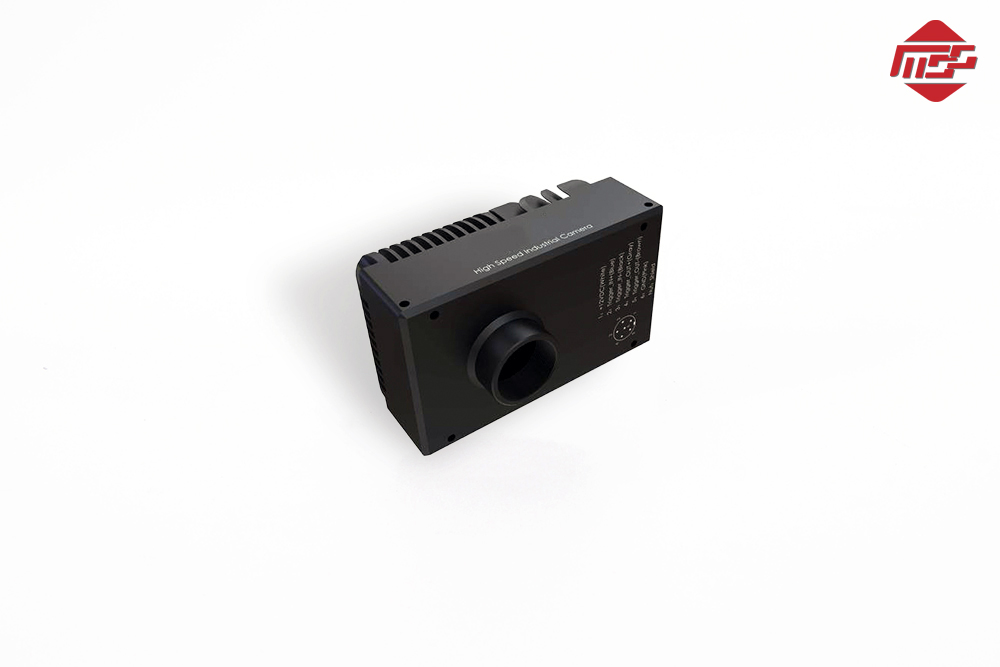

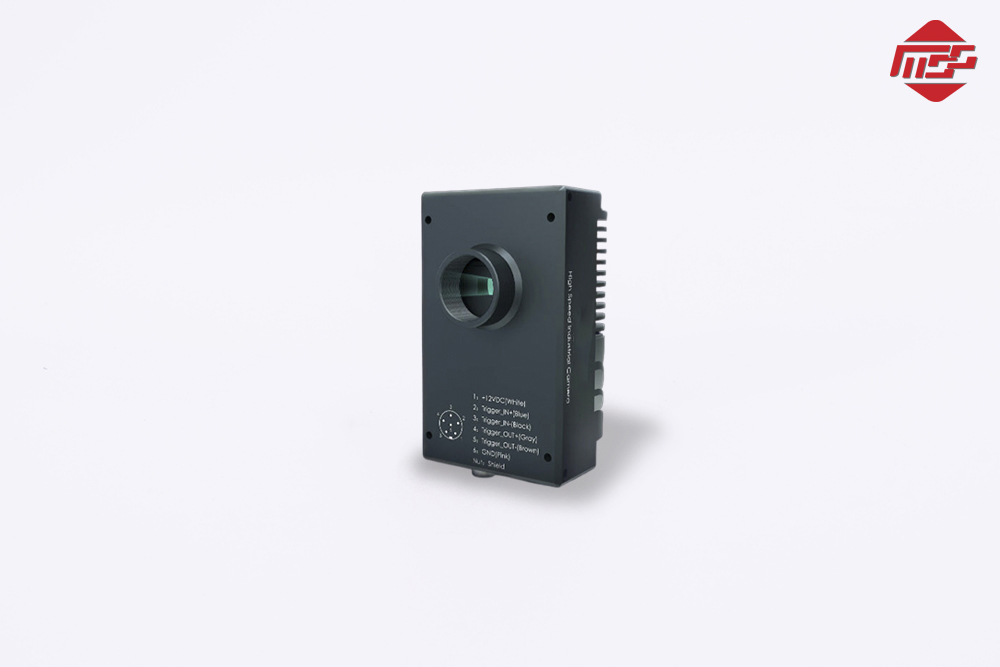

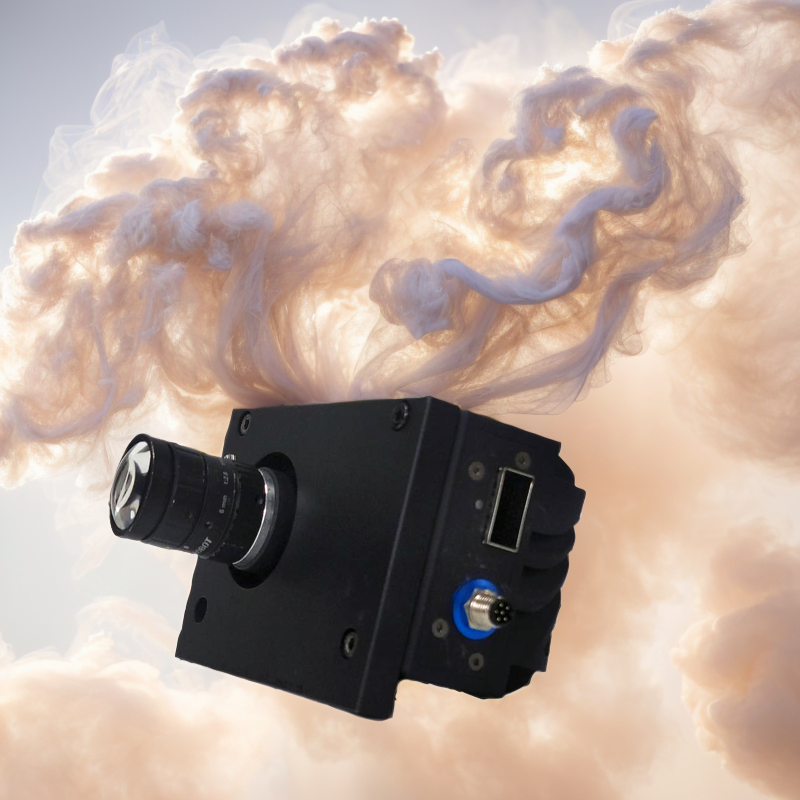

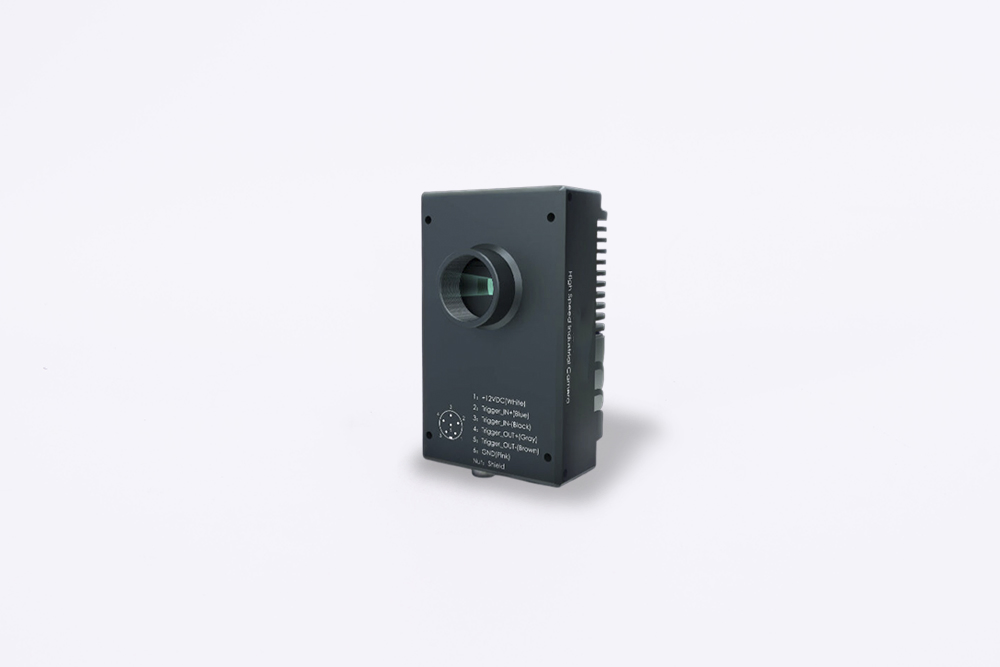

This 1024*1024 8 Bit High Definition Camera offers ultra-high definition imaging, providing you with unparalleled picture quality. Its advanced imaging system and industrial-grade imaging device guarantee ultra-fast image capture and real-time image processing. With stable focus and high pixel autofocus, you can trust this camera to deliver highly accurate and precise images every time.

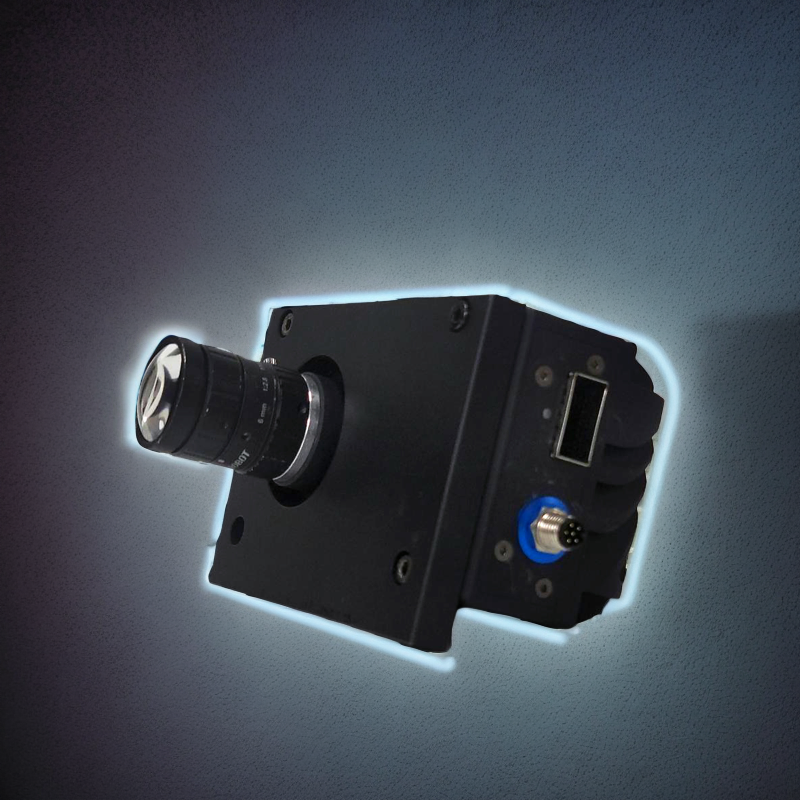

Featuring a C-mount digital camera, this versatile imaging solution is perfect for a wide range of applications, including microscopy. The 40G optical fiber transmission ensures efficient and reliable data transfer, while the complete SDK and software support make it easy to customize and optimize your imaging experience.
| Model | HPS-HSC2K | Resolution | 2048x1080 (Pixel: 6μmx6μm) |
| Sensor Format | 1" (12.3mm x 6.5mm) | Data Transfer Rate | 1490 fps @2.2MP, 8 bit; 2971 fps @1MP, 8 bit |
| Dynamic Range | 53dB @Linear mode, ≥90dB @HDR mode |
Shutter Mode | Global shutter, auto exposure, external/software trigger |
| Processing Module | FPN denoising, PRNU/Gamma/Lens correction, ROI, Gain, Binning | Data Interface | 40G Ethernet fiber interface |
| Digital I/O | 1 isolated trigger in/out, 8-PIN expansion (GPI, GPO, SPI) | Data Format | Mono 8 bit |
| Power | 12VDC, Typical 17W | Temperature | Operating: 0~45ºC Storage: -20~60ºC |
