High-Performance Industrial Imaging System for Enhanced Visual Clarity

1 / 5

High-Performance Industrial Imaging System for Enhanced Visual Clarity

Customization:	Available
Warranty:	1 Year
Usage:	Teaching, Research

Send Inquiry

Product Description

Basic Specifications

Model NO.

MSS-C-ITD3L

Trademark

MSS

Specification

2KG

Origin

China

HS Code

8525892900

Production Capacity

5000 pieces/Year

Packaging & Delivery

Transport Package

Carton

Package Size

40.00cm * 50.00cm * 60.00cm

Gross Weight

5.000kg

Product Description

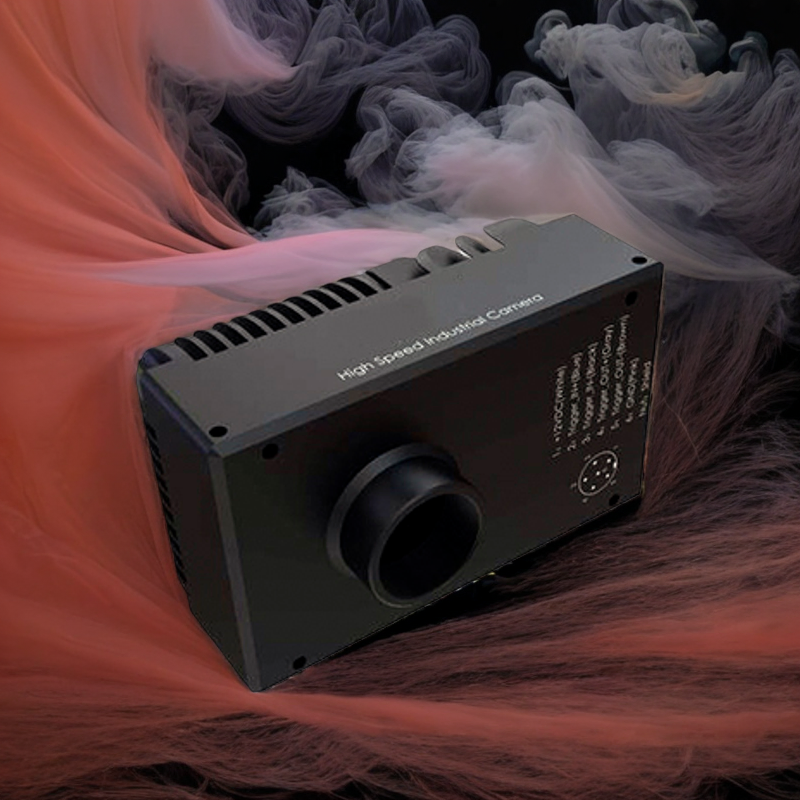

The Ultra-High-Speed Industrial Camera is engineered to revolutionize imaging in demanding environments. Featuring cutting-edge technology and exceptional performance, this system is optimized for a wide range of high-precision industrial applications.

Key Features

✓ Ultra-high-speed image acquisition system for rapid capture.
✓ Stunning picture quality with incredible definition and clarity.
✓ High resolution performance: 1490fps @2048*1080 and 2971fps @1024*1024.
✓ Standard C-mount interface for versatile lens installation.
✓ Efficient 40G optical fiber transmission for ultra-high bandwidth.
✓ Complete SDK and software support for seamless system integration.

Technical Parameters

Model	HPS-HSC2K	Resolution	2048x1080 (Pixel: 6μmx6μm)
Sensor Format	1" (12.3mm x 6.5mm)	Data Transfer Rate	1490 fps @2.2MP; 2971 fps @1MP
Dynamic Range	53dB (Linear), ≥90dB (HDR)	Shutter Mode	Global shutter, Auto/External/Software Trigger
Image Processing	FPN denoising, PRNU, Gamma, ROI, Binning	Data Interface	40G Ethernet fiber interface
Digital I/O	Isolated Trigger I/O, 8-PIN expansion	Data Format	Mono 8 bit
Power	12VDC, Typical 17W	Temperature	Operating: 0~45ºC; Storage: -20~60ºC

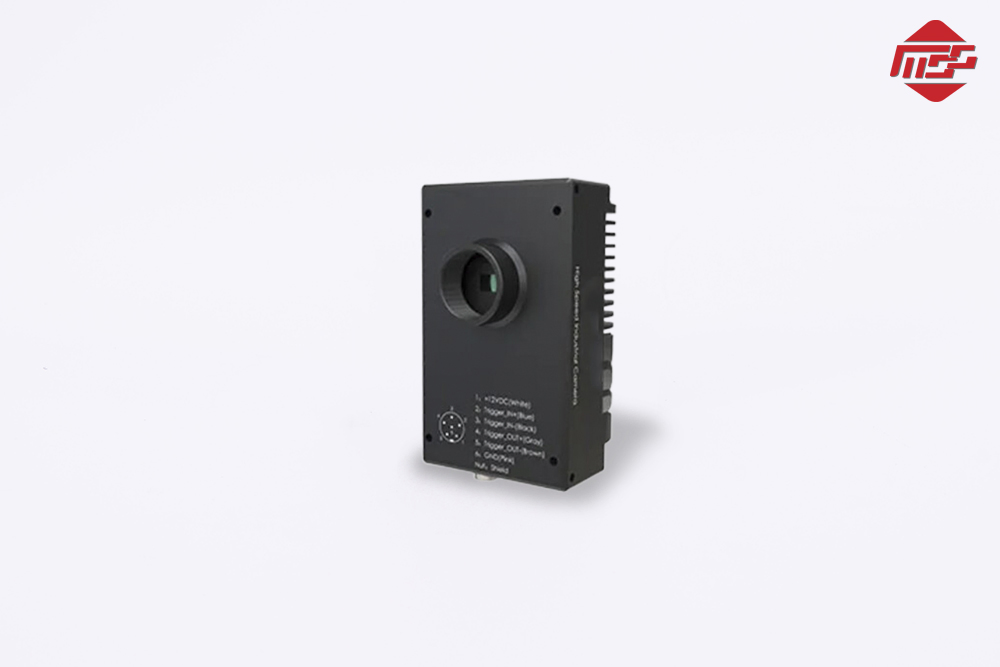

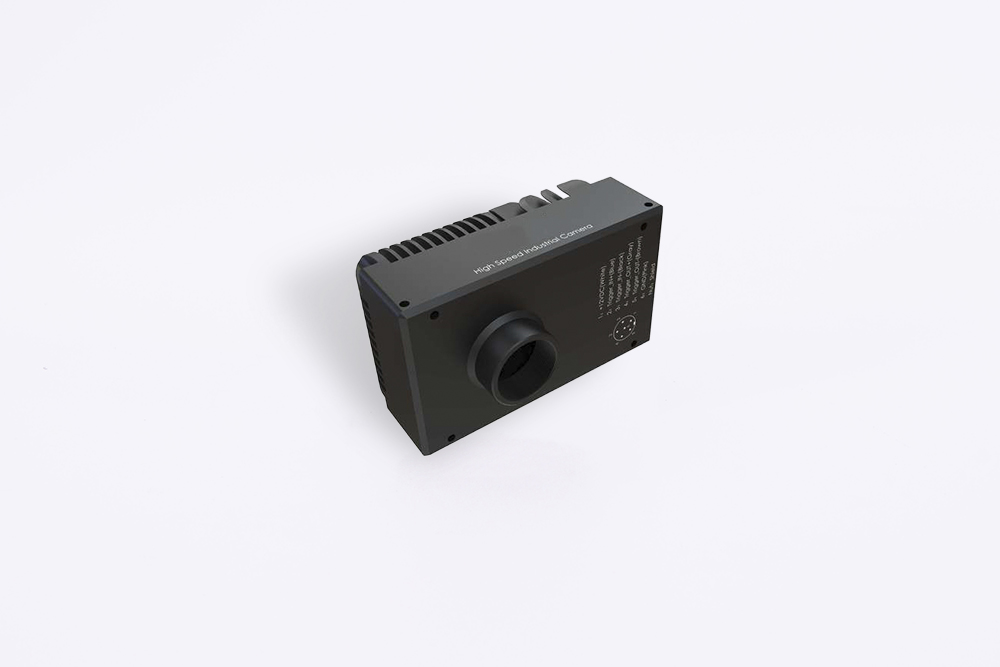

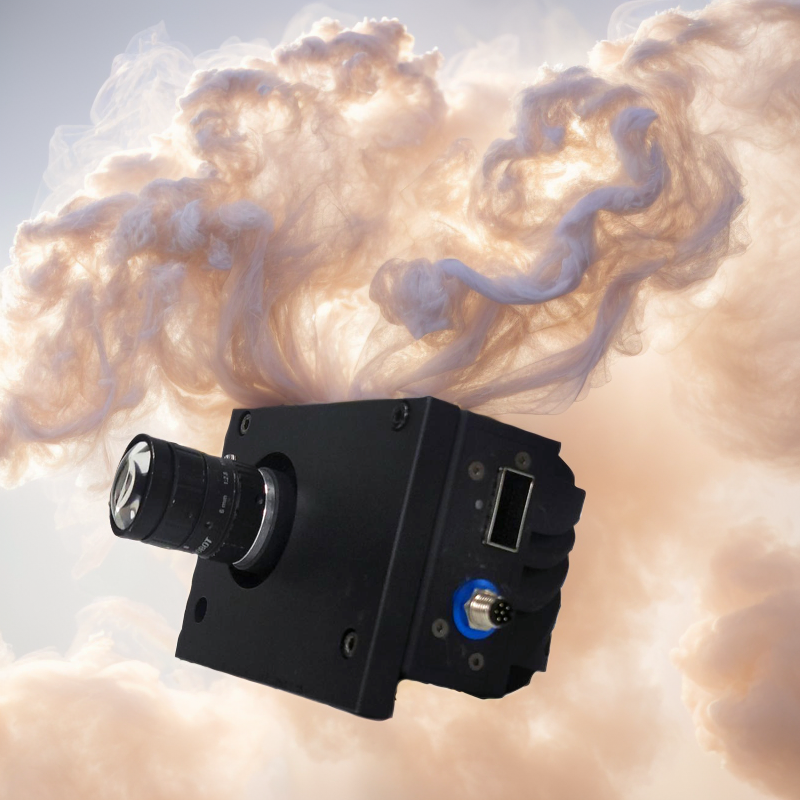

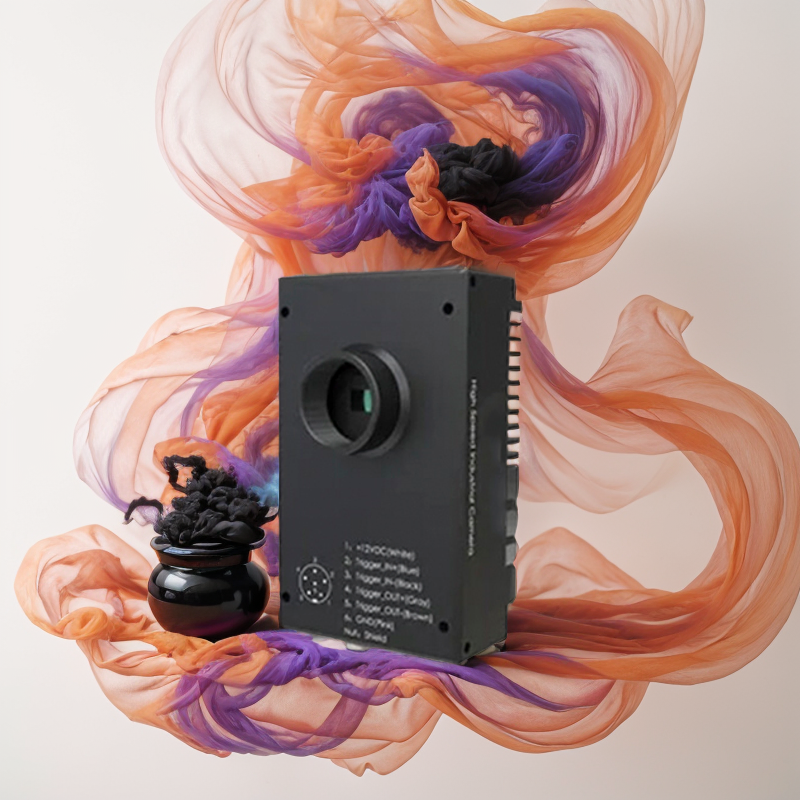

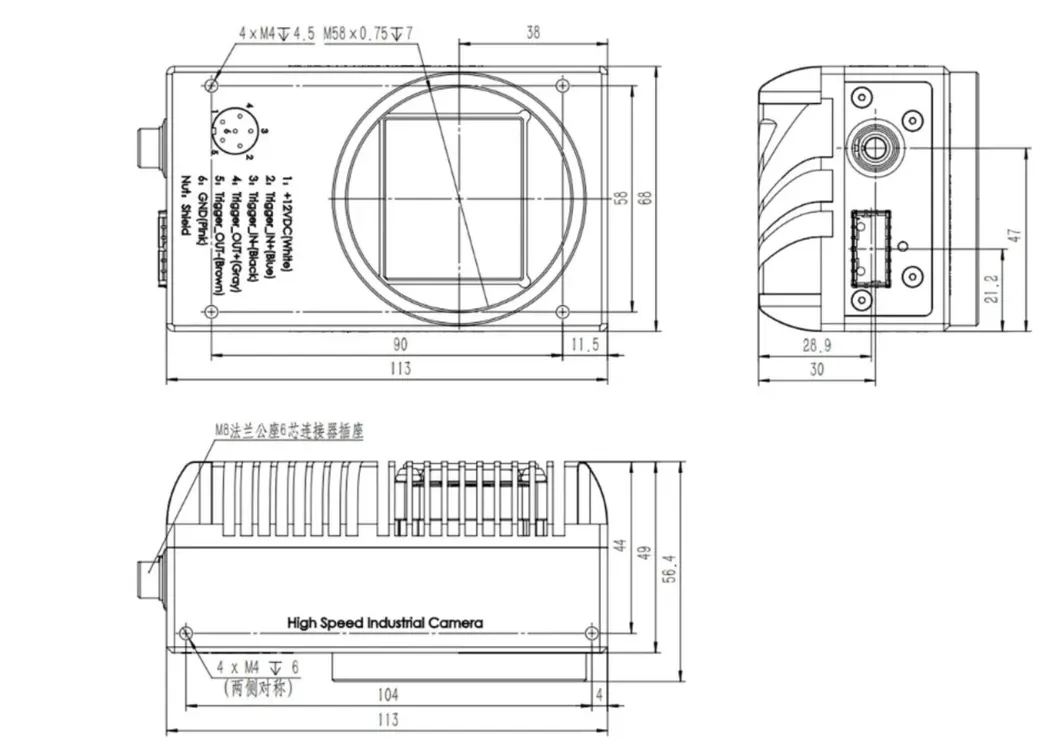

Product Gallery

High-Performance Industrial Imaging System

Frequently Asked Questions

Q1: What is the maximum frame rate of the MSS-C-ITD3L camera?

A: The camera can achieve up to 1490 fps at 2.2 megapixel resolution (2048*1080) and up to 2971 fps at 1 megapixel resolution (1024*1024) in 8-bit mode.

Q2: What type of data interface does this camera use for transmission?

A: It utilizes a high-efficiency 40G Ethernet fiber interface, ensuring stable and ultra-fast data transfer for high-speed imaging applications.

Q3: Does the camera support different trigger modes?

A: Yes, it supports multiple shutter and trigger modes including global shutter, automatic exposure, external trigger exposure, and software-based trigger exposure.

Q4: Is the camera compatible with standard industrial lenses?

A: Absolutely. The camera features a standard C-mount, making it compatible with a wide variety of industrial and scientific lenses for easy installation.

Q5: What image processing features are integrated into the module?

A: The integrated module includes FPN denoising, PRNU correction, gamma correction, lens correction, ROI (Region of Interest), gain adjustment, and H/V Binning.

Q6: What are the power requirements for this industrial camera?

A: The camera operates on a 12VDC power supply with a typical power consumption of approximately 17W.
