◈ Basic Information
Maximum Thermal Capacity
900 Kj (1200khu)
Production Capacity
300 Units/Month
◈ Product Features
01
The electric lift and rotatable newly designed U-shaped frame can meet the photographic requirements of different standing and lying positions. The U-shaped design can make the operation much more convenient and flexible.
02
The world leading digital CCD detector can help you get the high-definition images.
03
The leading domestic high power compact high frequency X-ray generator and high frequency power inverter makes the machine much more compact and more convenient without the extra high-voltage generator and cable.
04
Newly designed photographic bed used specially for the U-shaped arm X-ray machine. The bed floating and electromagnetic lock design makes it convenient for the accurate position of the lying patient.
05
Specially designed working station for DR adopts all-digital intelligent touchable LCD control system which is graphic and real color. This system makes the operation easier and more conveniently.
06
Apply different photographic parameters according to the human characteristics, such as multi-site, multi-position, muti-body shape, adult and children etc. The parameters can be modified and stored at will and make the operation more convenient.
07
The high quality high frequency high-voltage X-ray generator and high frequency power inverter can produce high-definition and good contrast images by high quality radiation and low dose.
08
The application of the kV and mA digital closed-loop control technology and the real time control of the microprocessor ensure the accuracy and repeatability of the radiology dose.
09
The multiple automatic protection features and fault tips ensure safety during the operation process.
◈ Technical Specifications
| Item |
Contents |
| Power Output |
26KW |
| Inverter Frequency |
60KHZ |
| Dual-focus |
Small focus: 0.6 Large focus: 1.3 |
| Maximum Thermal Capacity |
900 kJ (1200kHU) |
| Tube voltage |
40~130kV |
| Tube Current |
200mA |
| Digital Detector |
CCD |

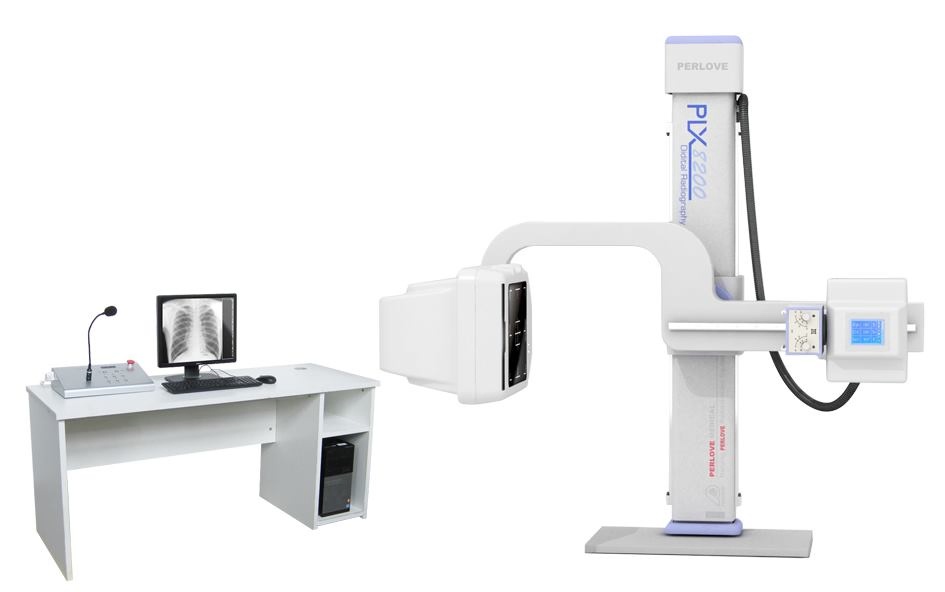

◈ Product Display
◈ Frequently Asked Questions
What are the advantages of the U-shaped frame design?
The electric lift and rotatable U-shaped frame is designed for maximum flexibility, allowing for easy transitions between standing and lying photographic positions, which significantly streamlines the clinical workflow.
How does the CCD detector improve image quality?
The world-leading digital CCD detector provides high-definition imaging, ensuring clear and precise diagnostic results with excellent contrast.
Is the system safe for pediatric patients?
Yes, the system allows for adjustable photographic parameters based on human characteristics, including specific settings for children to ensure low-dose radiation and safety.
What makes the patient bed unique?
The bed features a floating design and electromagnetic locks, specifically engineered for the U-shaped arm system to ensure accurate and stable positioning of lying patients.
How does the system ensure dose accuracy?
It utilizes kV and mA digital closed-loop control technology combined with real-time microprocessor monitoring to ensure high accuracy and repeatability of the radiology dose.
What is the power capacity of the X-ray generator?
The system features a high-power 26kW compact high-frequency X-ray generator with a 60kHz inverter frequency for efficient performance.
