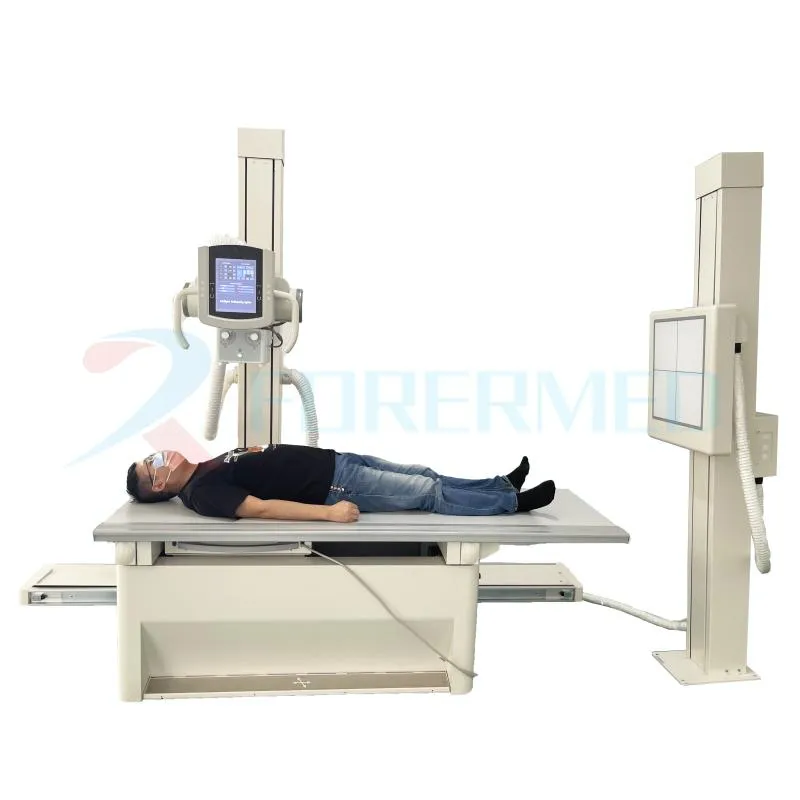

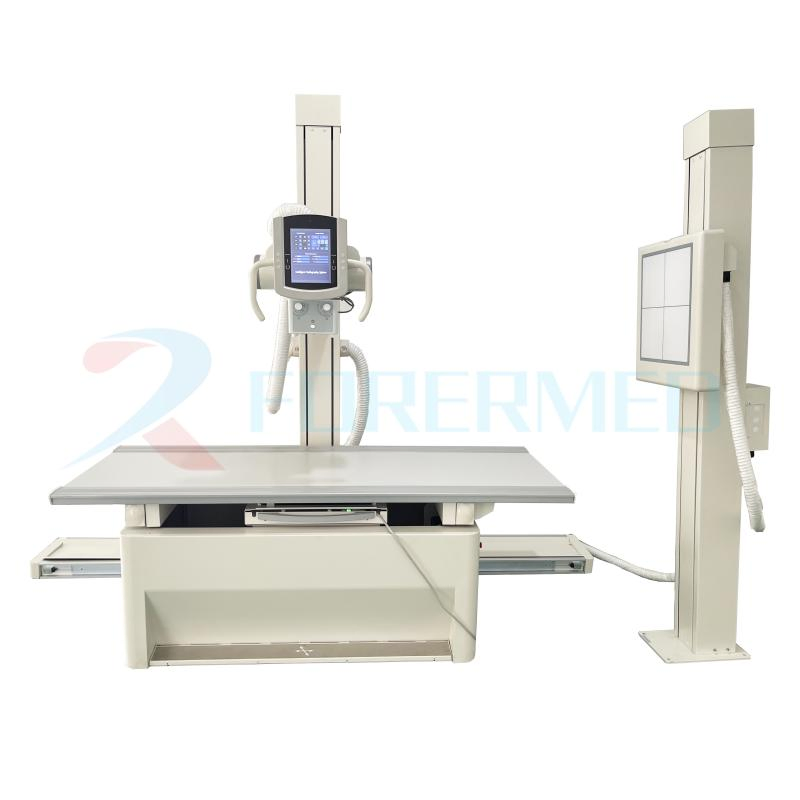

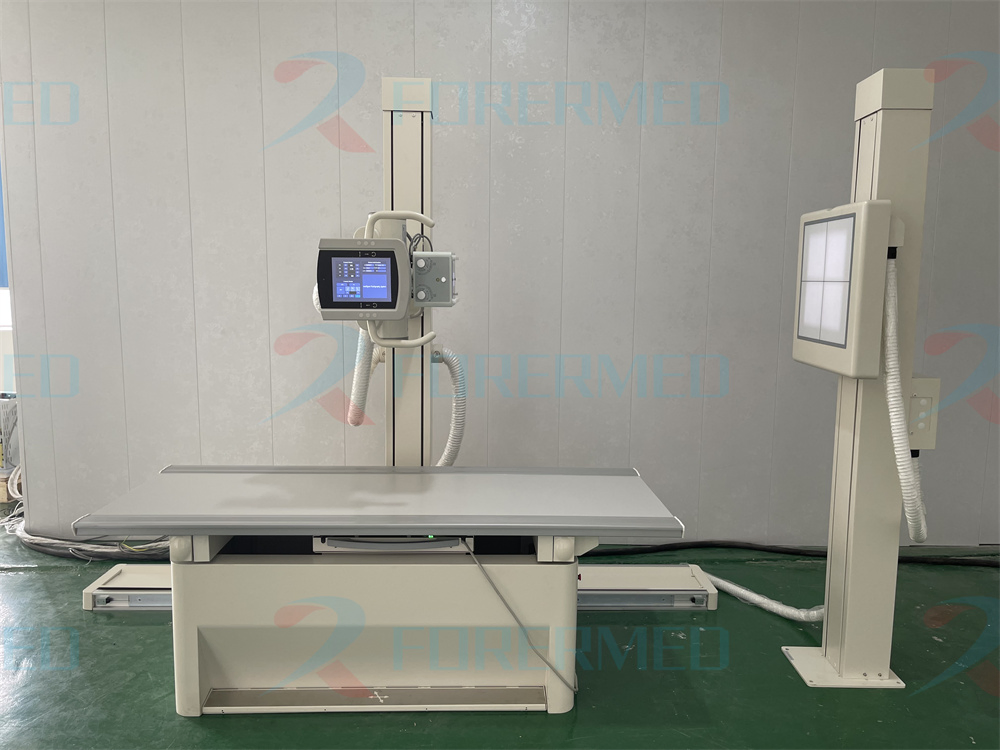

The Floor-mounted Digital X-ray Radiography System adopts a floor-mounted table and wall stands. Its smart design, flexible movement, easy operation, and high working efficiency provide more imaging positions. It is a high-end digital radiography device with a wide range of applications, capable of performing routine imaging of the human head, chest, abdomen, lumbar vertebra, and limbs with PA, LAT, and clinostatism in hospitals at all levels.
| Ambient Conditions | |
|---|---|
| Ambient temperature | 10ºC~40ºC |
| Relative humidity | 30%~75% |
| Atmospheric pressure | 70~106kPa |
| X-ray Generator | |
|---|---|
| Output power | 50KW |
| Frequency | >=25KHZ |
| Current | 10~630mA |
| Voltage | 40~150KV |
| mAs | 0.1~630mAs |
| Exposure time | 1ms~6300ms |
| APR program | Equipped |
| Protection system | Self-protection system with alarm and fault code check |

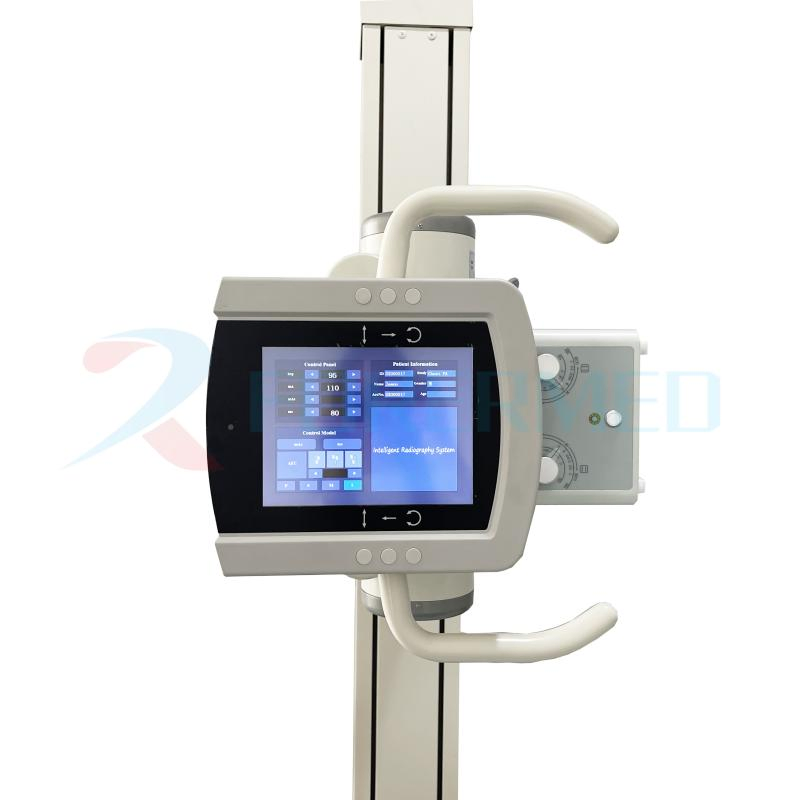

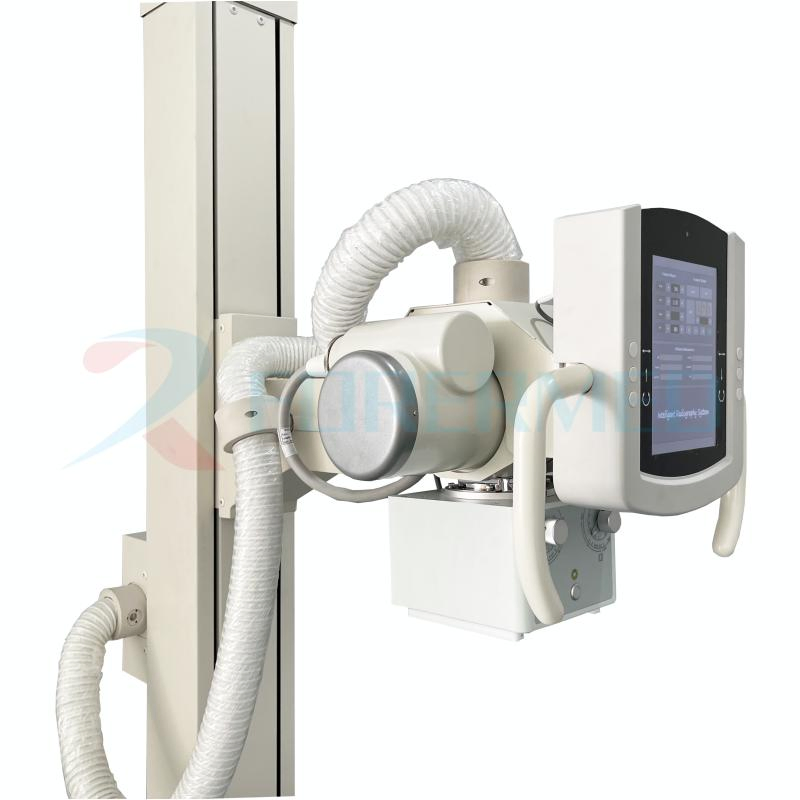

| X-ray Tube | |
|---|---|
| Anode type | Rotating Anode |
| Focal Spot value | 0.6mm /1.2mm |
| Maximum voltage | 150KV |
| Revolving speed | 2800rpm |
| Inherent filtration | 1.0mmAl |
| Anode heat storage | 300kHU |
| X-ray Detector (Flat Panel) | |
|---|---|
| Type | Amorphous Silicon |
| Scintillator | Cesium Iodide |
| Active Area | 17x17 Inch (43cm*43cm) |
| Active Pixel | 3072*3072 |
| Pixel Pitch | 139um |
| DQE | >=70% |
| Acquisition time | ≤2S |
| Mechanical System | |
|---|---|
| Radiography Table Size | 2000mm × 800mm |
| Table Load-bearing | 300KG |
| Tube Stand Vertical Movement | 1280mm |
| Tube Stand Horizontal Movement | 1800mm |
| Tube Rotational Angles | ±90° |
