Digital X-ray Radiography System

Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment
Certification:	CE, EEC, MSDS, ISO13485

Send Inquiry

Product Description

Basic Specifications

Model NO.

MS-DR8800

Group

Middle-aged and Old

Transport Package

Carton

Trademark

non-customized

Origin

China

HS Code

9018193010

Production Capacity

1000PCS/Year

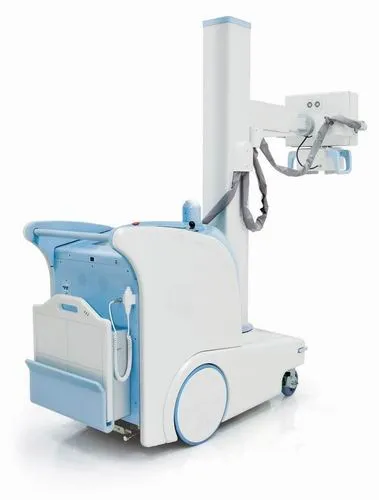

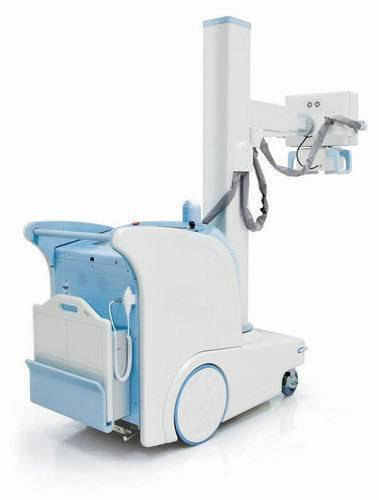

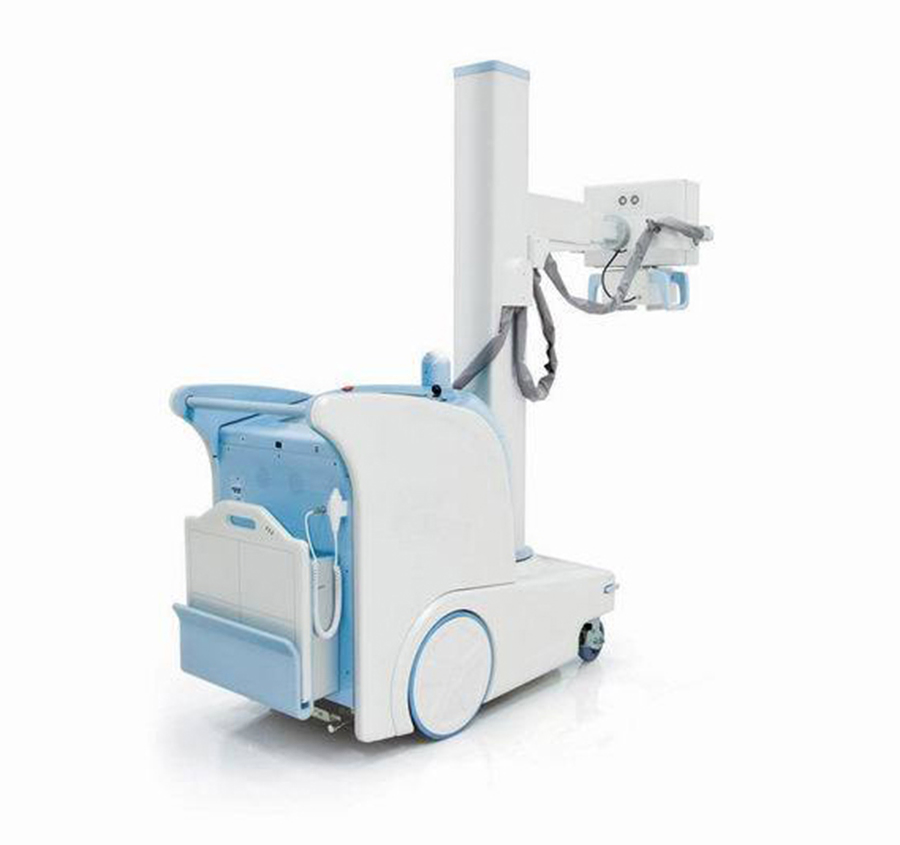

Product Overview: MS-DR8800 Digital X-ray System

⚙️ Basic Configuration

High quality combined high frequency high voltage generator
Color graphical touch LCD control system
Panel detector with free movement
High quality IPC & Large size medical LCD display
New type mobile column rack
Symmetric adjustable, wireless ranging rotatable collimator
Electric assistance drive system
Cable exposure hand brake & Wireless remote control

⚡ X-ray Generator

25KW compact generator with 60Khz high frequency technology, specifically designed to reduce radiation levels while maintaining image clarity.

🔋 Unique Power Supply

Features a Super Capacitor for stable photography power and durable life, plus a Li-Battery for smooth mechanical movement.

🕹️ Mechanical Movement & Software

Horizon arm contracts freely; Pillar rotates 360 degrees.
X-ray tube rotates and moves left/right within 90 degrees.
Collimator rotation of ±90 degrees for precise positioning.
Integrated LCD touch screen operation for convenient control.

Technical Parameters

Type	Item	Specification
High Frequency X-ray	Max Output Power	25kW
	Main Inverter Frequency	60kHz
	X-ray Tube Focus	Small: 0.6; Large: 1.3
	Anode Speed / Heat Capacity	3000rpm / 900kJ (1200kHU)
	Tube Current	200mA
	Tube Voltage	40-125kV
	MAS	0.4-360mAs
Digital Image System	Detector Type	Amorphous silicon / Cesium iodide
	View Area / Pixel	14″×17″ / 3000×2400
	Pixel Size / Resolution	144μm / 3.5Lp/mm
	Output Gray-scale / DQE	16bits / 75%
	Image Processing	CONTEXTVISION GOPVIEW XR2 Enhance module
	Management	Dicom Storage, Print, and Transmission
Physical Construction	Floor to Focus Distance	Max: 193cm; Min: 73cm
	Tube Rotation (Boom Axis)	±90º
	Pillar Rotation Range	0° ~ 360°

Frequently Asked Questions

What are the primary advantages of the MS-DR8800's power system?

The system utilizes a dual-power approach: a super capacitor for consistent photography quality and a dedicated lithium battery for mechanical movements, ensuring durability and efficiency.

How does the 60kHz high-frequency generator benefit the patient?

High-frequency technology allows for more precise control of radiation, significantly reducing unnecessary exposure while producing high-clarity medical images.

What type of imaging detector is integrated into this system?

The MS-DR8800 features a high-performance amorphous silicon detector with a cesium iodide scintillator, offering a 16-bit gray-scale for superior diagnostic detail.

Is the X-ray tube flexible for different positioning requirements?

Yes, the pillar supports 360-degree rotation, and the X-ray tube itself can rotate ±90 degrees, allowing for versatile imaging from various angles.

Does the software support international medical standards?

Absolutely. The workstation includes comprehensive DICOM management for storage, printing, and transmission, ensuring compatibility with hospital PACS systems.

How portable is the mechanical structure?

The system features a new type of mobile column rack and an electric assistance drive system, making it easy to maneuver and position within clinical environments.
