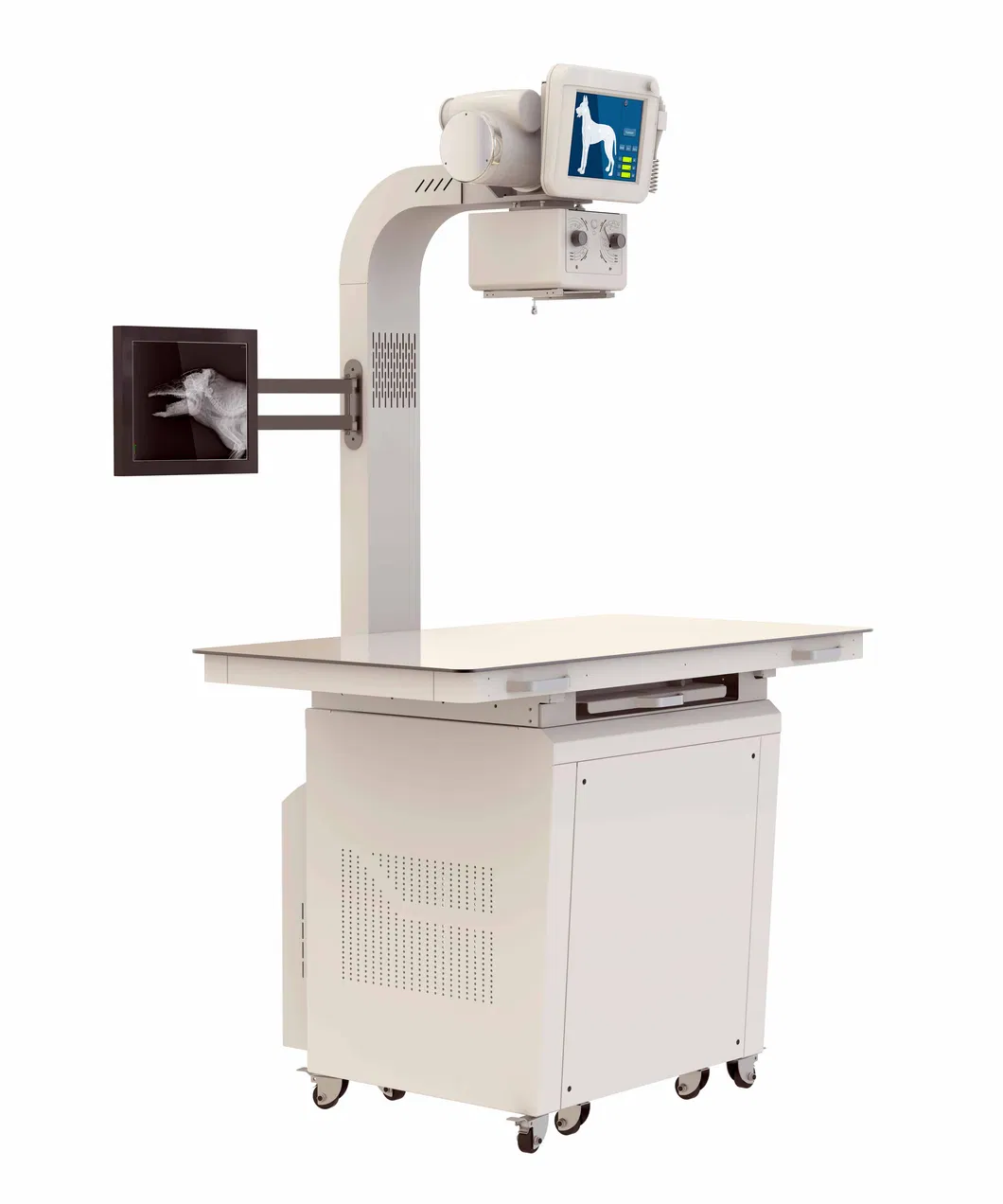

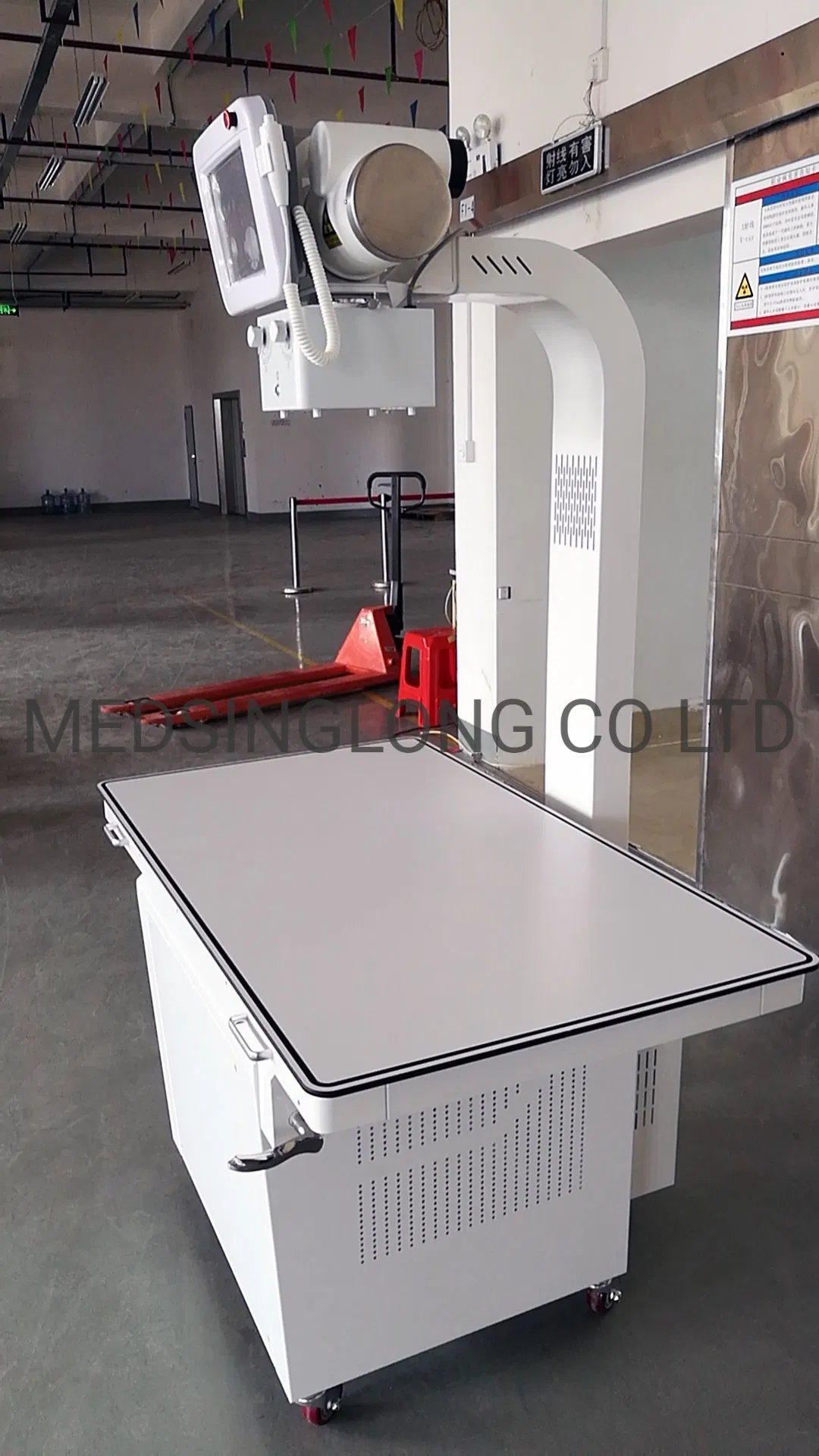

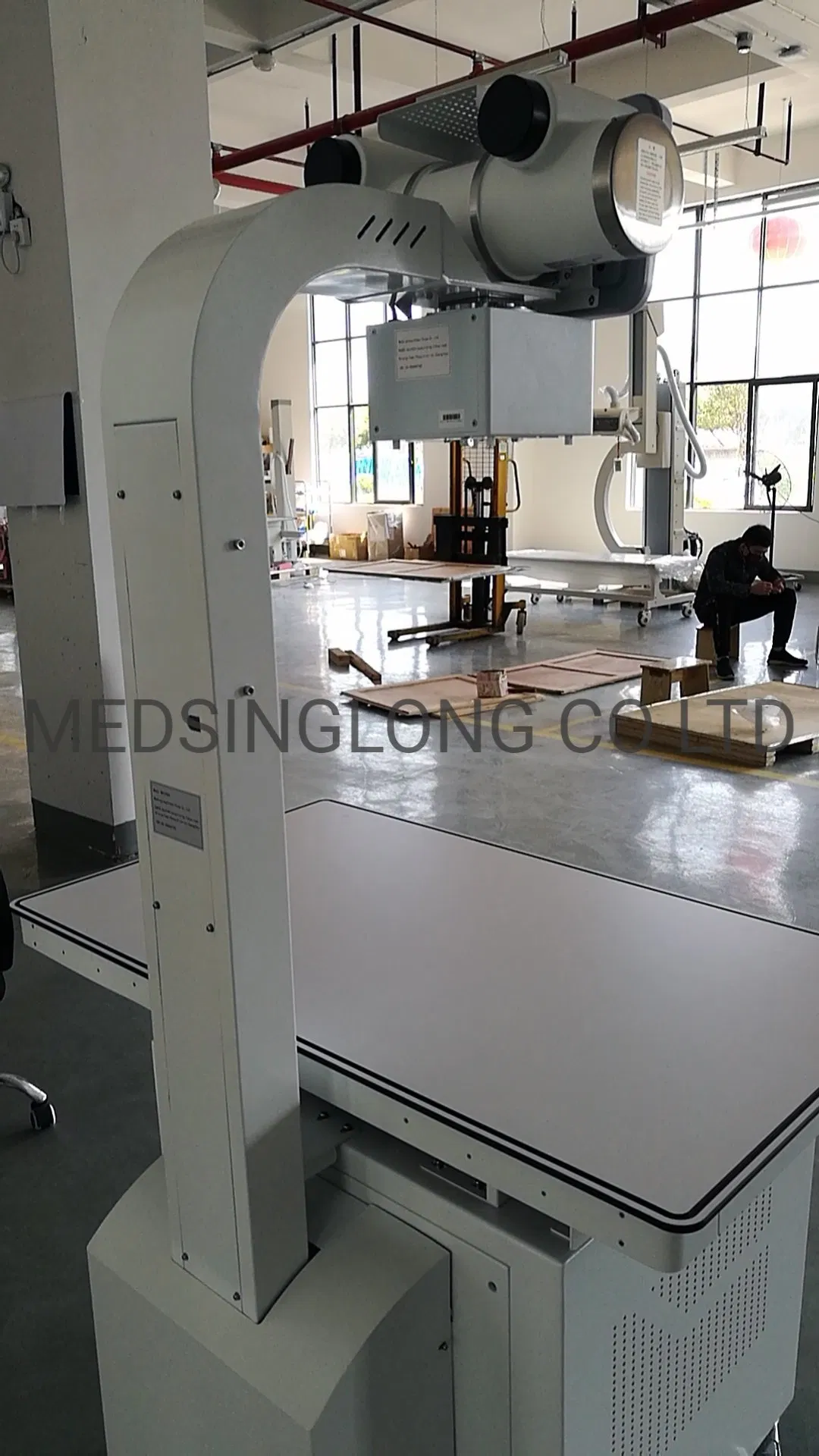

Medical Digital Floor-Mounted Veterinary X-ray Radiography System MSLVX17
| No. | Name | Specification | Parameters |
|---|---|---|---|

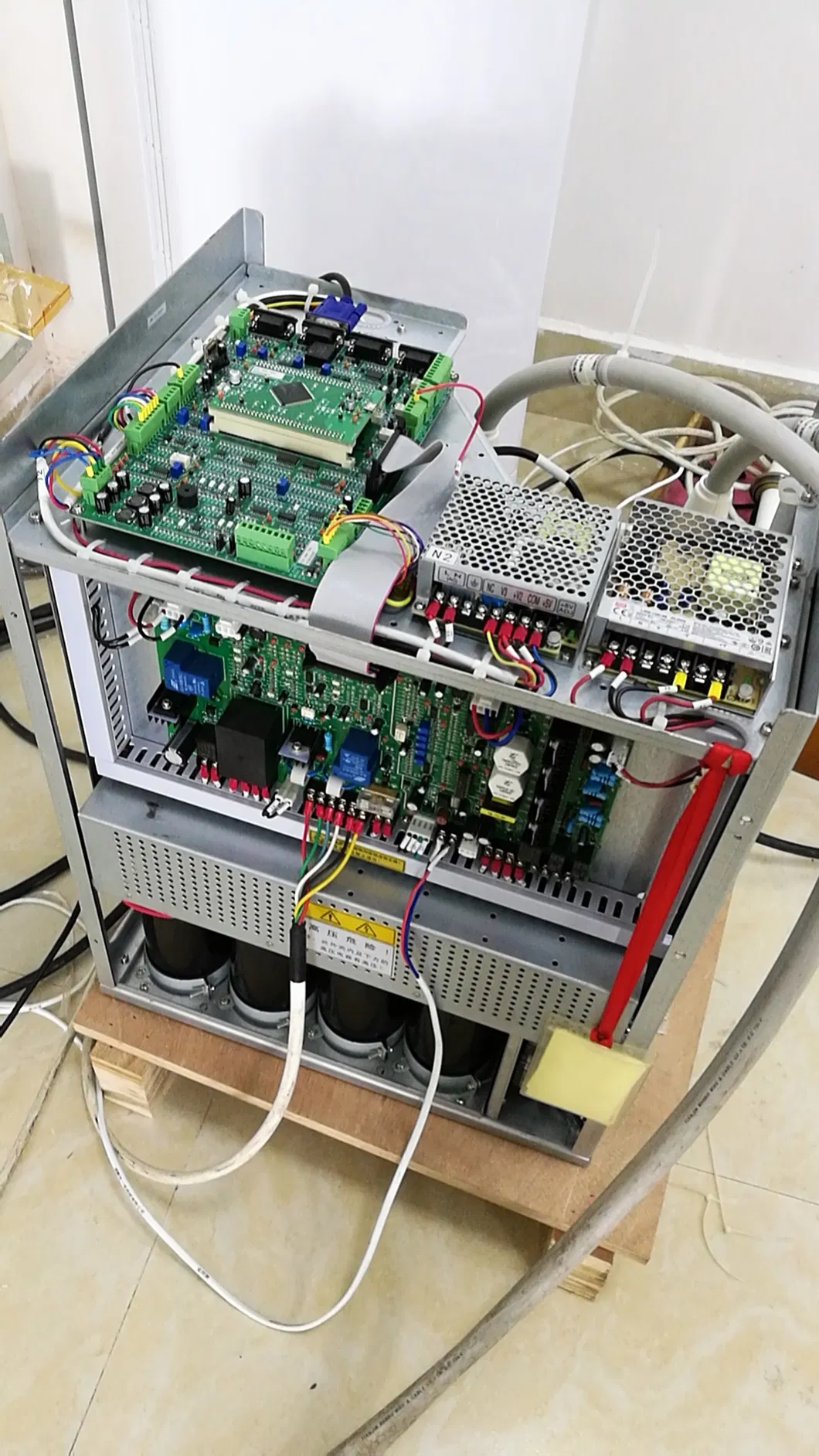

| 1 | X-ray generator | MSLVX17 | Voltage: AC220V±22V; Power: 16kW; Frequency: ≥30kHz; Tube Current: 16mA~200mA; Tube Voltage: 40~125kV; Exposure time: 0.0025s~6.4s |

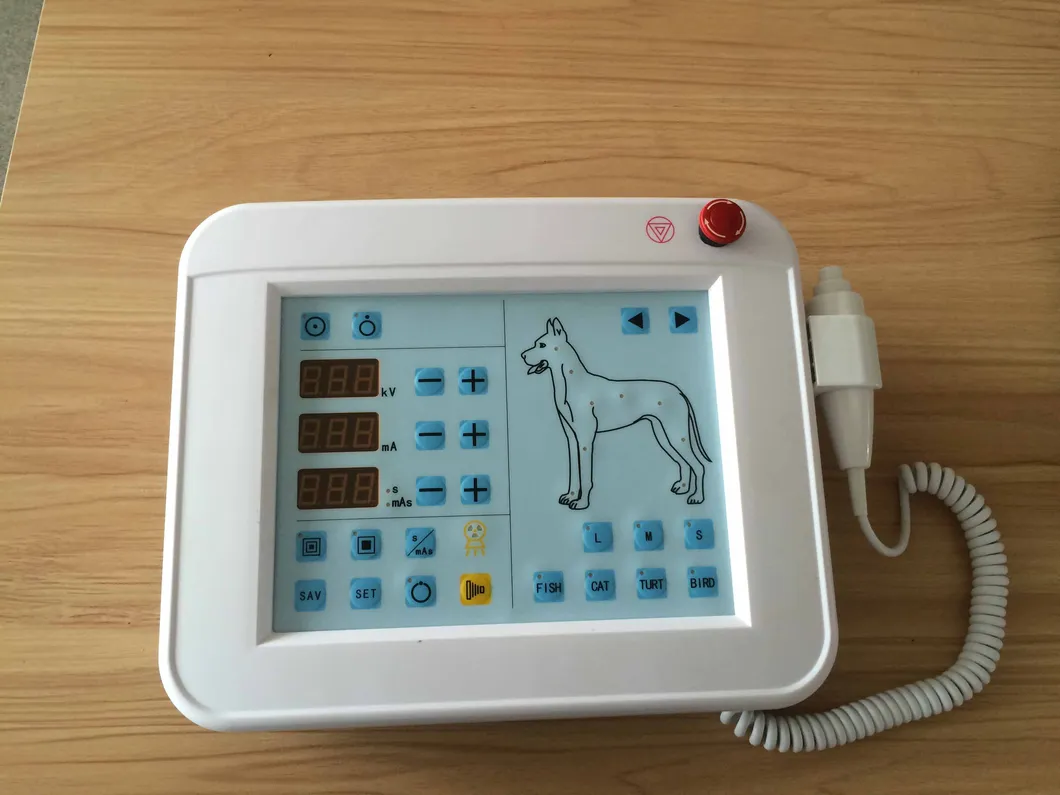

| 2 | Operating console | Microcomputer | Standard interface control |
| 3 | X-ray tube | XD51-20.40/125 | Dual-focus: 1.0mm/2.0mm; Power: 20KW/40KW; Rotation: 2800r/min; Heat content: 100kJ |
| 4 | Collimator | Manual | Manual control of lead door |
| 5 | Radiography bed | Fixed | Panel size: 2000×650×690mm |
| 6 | Grid | 15"×18" | Ratio: 10:1; Density: 40 L/cm; Focus: 1000mm |
