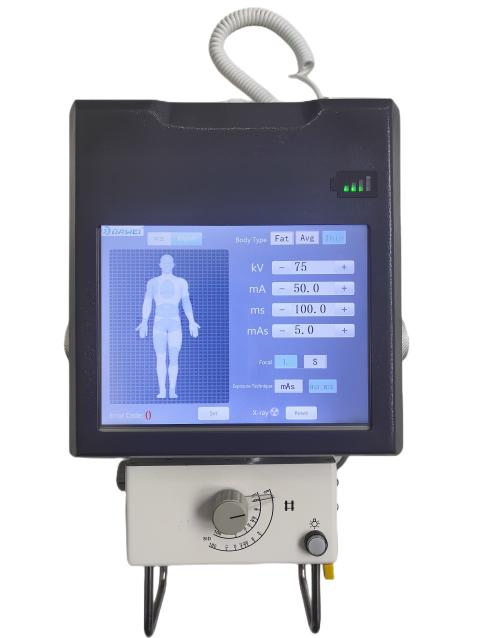

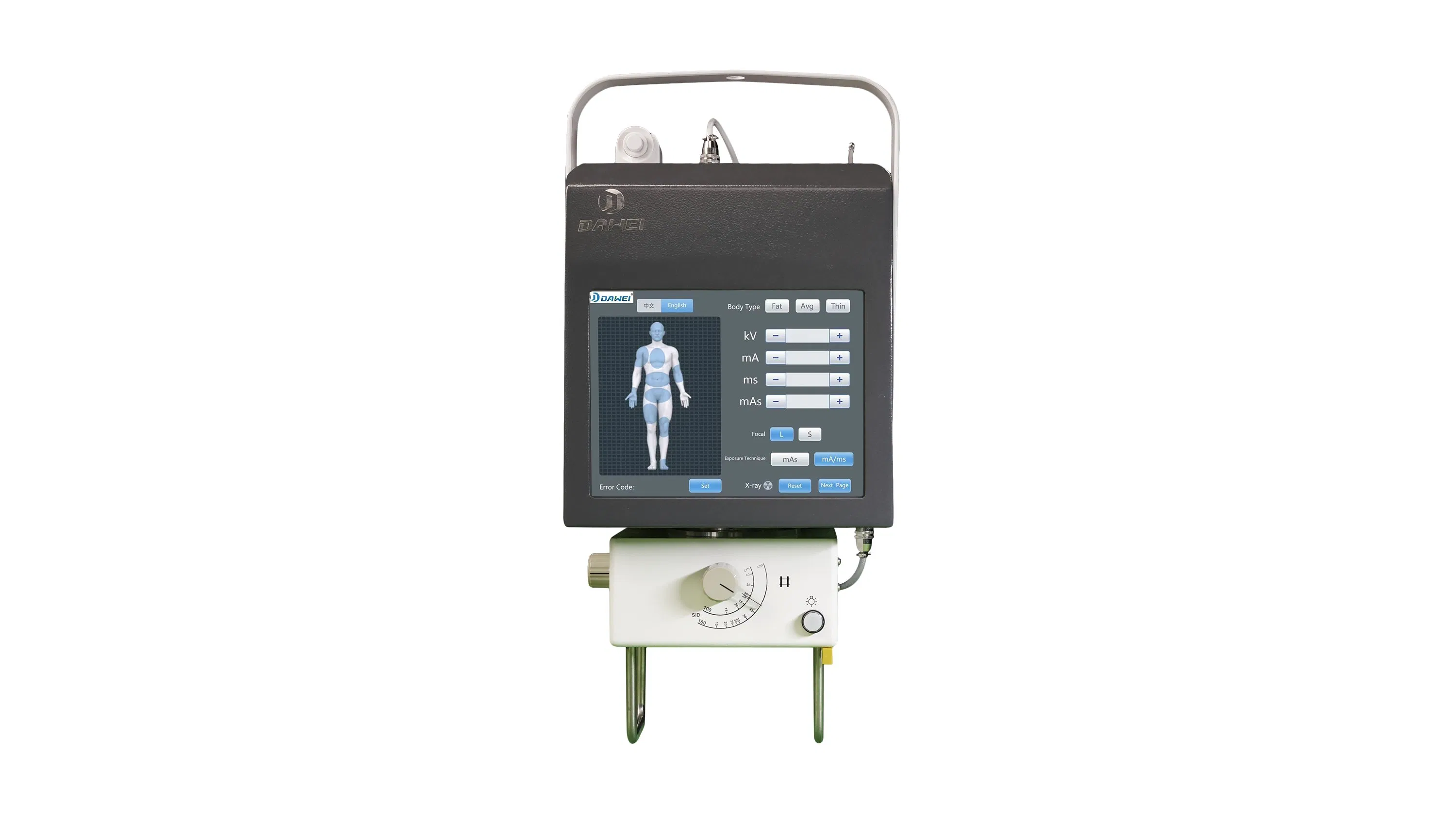

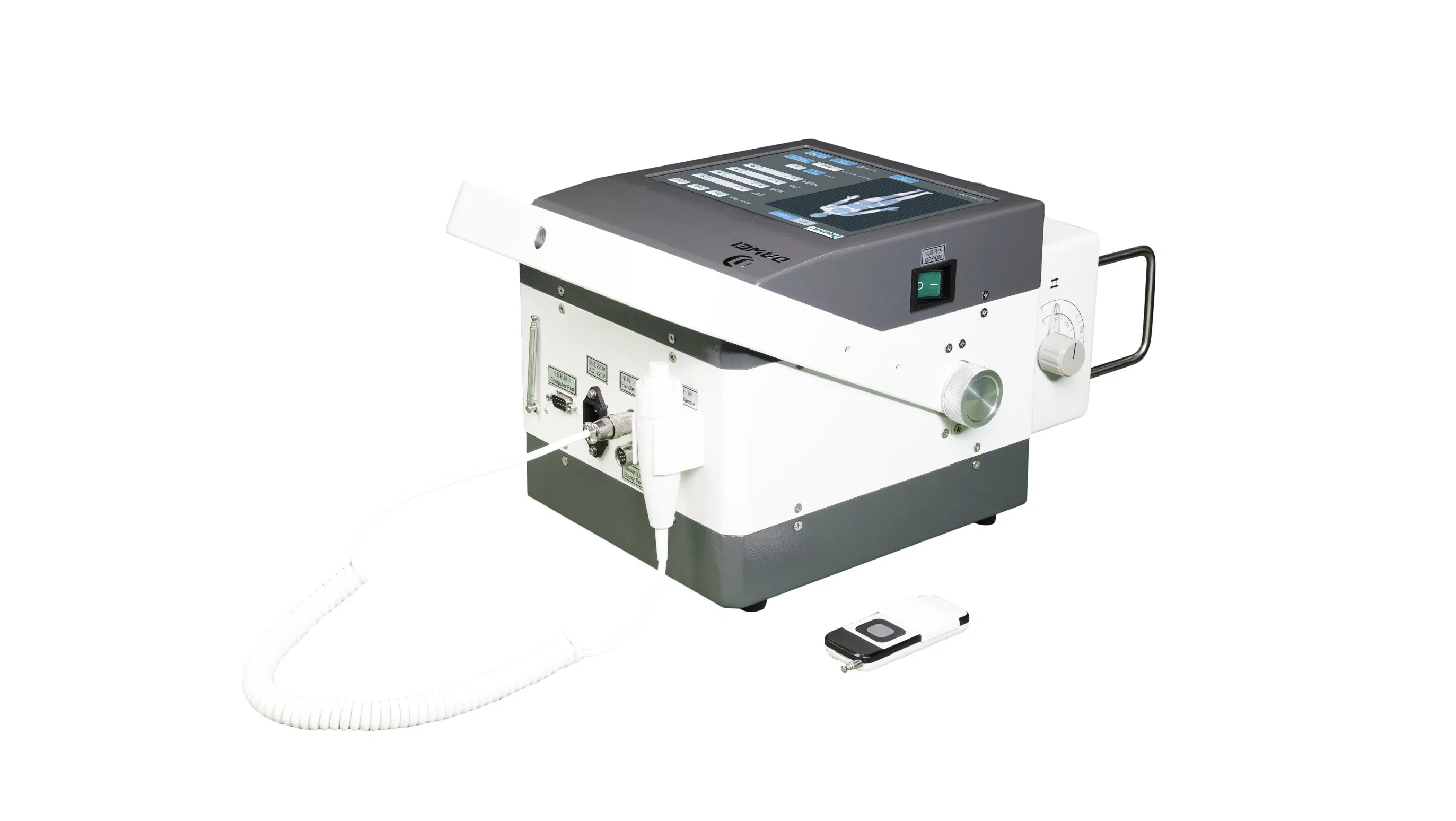

Medical Hospital Instrument Digital Portable X-ray Equipment

1 / 5

Medical Hospital Instrument Digital Portable X-ray Equipment

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋 Basic Specifications

Model NO. RD-500B

Certification CE, FDA, EEC, ISO13485

Detector Size 17" * 17"

Pixel Array 3072 * 3072

Output Power 5.3kW

Exposure Range 40kV - 125kV

Tube Current 10mA ~ 100mA

Power Supply 100-240V, 50Hz/60Hz

Battery Capacity 133wh

Machine Size 140*120*50cm

⚙️ Product Performance Parameters

Digital X-Ray Radiography System RD-500B

Component	Features & Performance Parameters
High-voltage Generator	Output power: 5.3kW; Inverter Frequency: 100kHz kV range: 40kV~125kV; mA range: 10mA~100mA ms range: 1ms~4000ms; mAs range: 0.1mAs~200mAs Exposure mode: kV-mAs, kV-mA-ms; APR num: 2000
X-Ray Tube	Nominal Focal Spot: 0.6mm (Small) / 1.8mm (Large) Anode Angle: 15°; Target Material: Tungsten Maximum Current: 100mA; Permanent Filtration: 0.6mmAl
Collimator	Max Field Coverage: 430mm×430mm (at SID=90cm) Light field brightness: >100lux; LED lamp timer: 30s Control method: Manual
Flat Panel Detector	Sensor: a-Si TFT with CsI:Tl Scintillator Effective Area: 427mm×427mm; Pixel Size: 139 um AD Conversion: 16 bit; Preview Time: 3s; Imaging Time: 5s Trigger Mode: AED(optional)/Software/Prep
Mobile Structure	Machine Size: 1030mm×900mm Height Adjustment Range: 560mm~1590mm Rotation Angle Range: 360°
Software Capabilities	Includes Patient Management, Study Operation, Image Preview, and Configuration. Tools: Flip, Rotate, Zoom, Window/Level adjustment, Image stitching, Measure tools (angle, distance, Cobb angle), CTR tool, and DICOM management.

🔍 Clinical Image Gallery

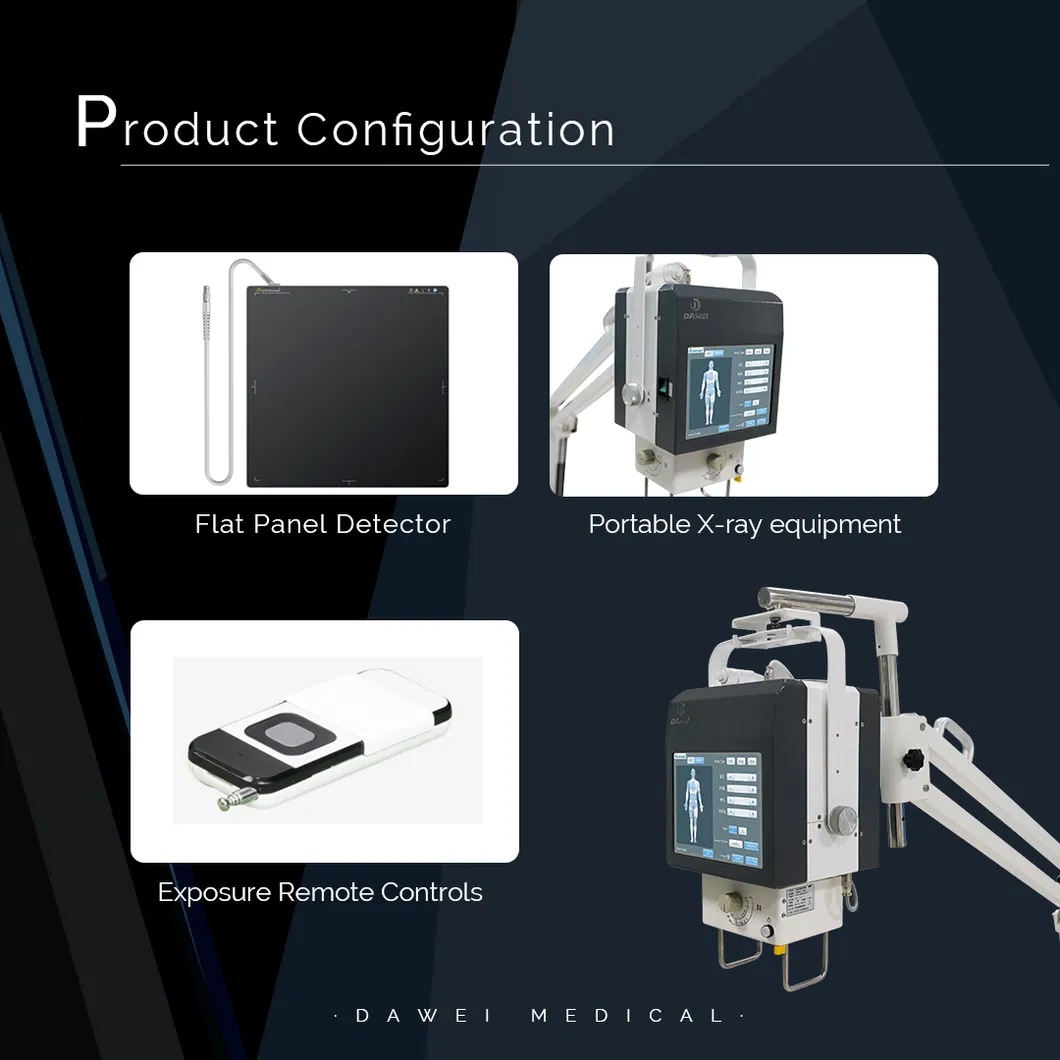

🏗️ Equipment Overview

Frequently Asked Questions

Q1: What is the maximum power output of the RD-500B? A: The RD-500B offers a high-performance output power of 5.3kW, suitable for a variety of clinical radiography needs.

Q2: What are the dimensions of the flat panel detector? A: It features a large 17" x 17" (427mm x 427mm) effective area with a 3072 x 3072 pixel array for high-resolution imaging.

Q3: How portable is the RD-500B X-ray system? A: The system is designed for mobility with a weight of approximately 17.4kg for the main unit and a mobile machine stand with a 360° rotation capability.

Q4: Does the software support advanced image processing? A: Yes, the integrated DR acquisition software includes advanced tools like image stitching, Cobb angle measurement, and Cardio-Thoracic Ratio (CTR) tools.

Q5: What certifications does the equipment hold? A: The RD-500B system is fully certified with CE, FDA, EEC, and ISO13485 standards.

Q6: What is the imaging speed for a diagnostic preview? A: The system provides a quick image preview in just 3 seconds, with full imaging completion within 5 seconds.
